Year |
2015 |
|---|---|
Make |
Mighty Viper |
Model |
VTL-20/25M |
Description |
CNC Vertical Turret Lathe |
Reference # |
8071136 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

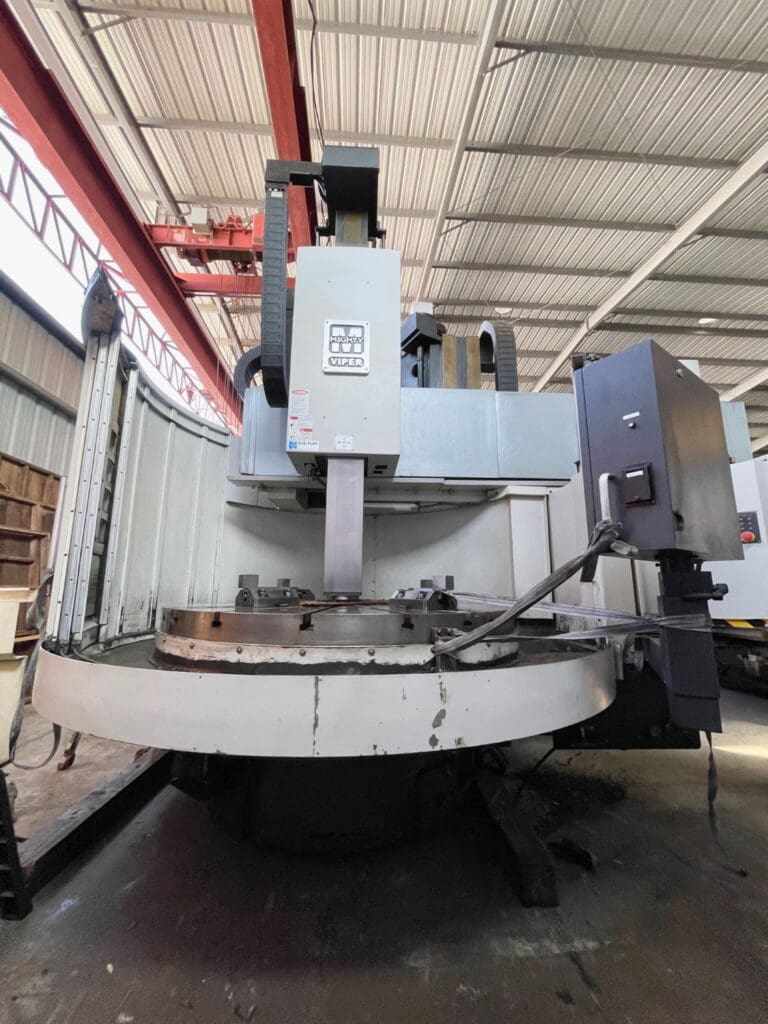

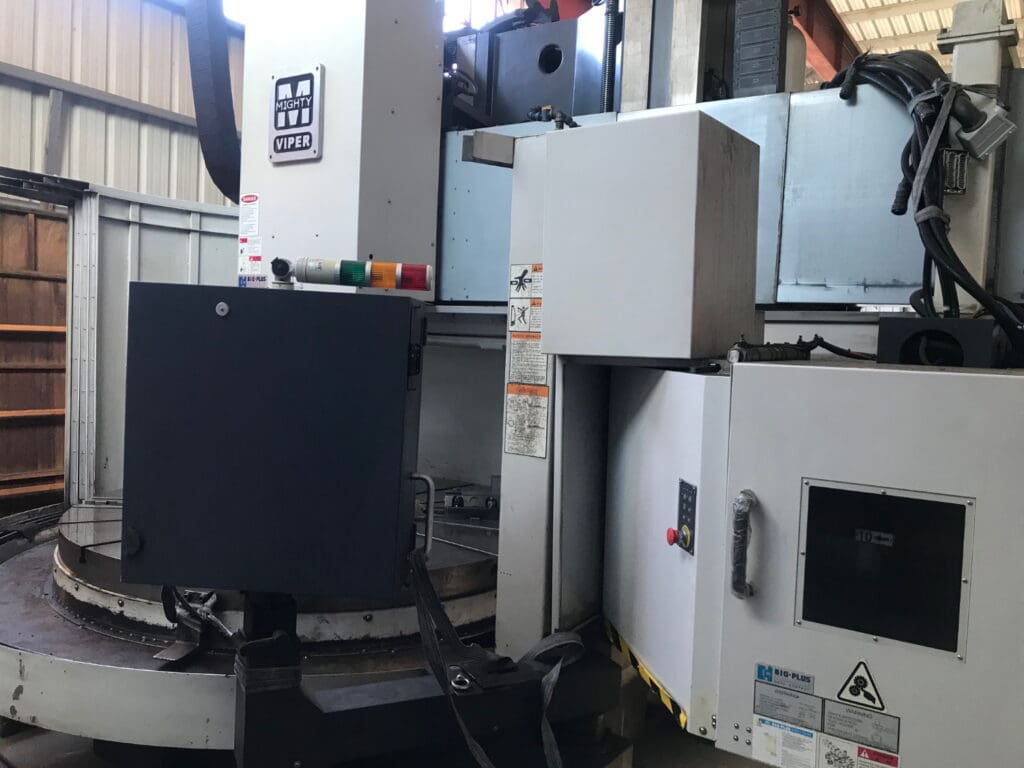

Used Mighty Viper VTL-20/25M (2015) CNC Vertical Turret Lathe for Sale. This pre-owned Mighty Viper CNC vertical lathe is located in The United States. If you have any questions regarding this Mighty Viper Vertical Turret Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Diameter |
78.74" |
|---|---|
| Max. Turning Diameter |
96" |
| Max. Swing |
99" |
| Max. Turning Height |
59" |
| Max. Mass of Work Piece |
44,000 Lbs |
| Max. Torque of Table |
18,150/24,600 Lbs-Ft/Nm |
| Max. Cutting Force |
5,950/26,500 Lbf /Newton |
| X Axis Stroke |
70.27" |
| Z Axis Stroke |
47.24" |
| Ram Size |
9.06" X 9.06" |
| Min. I.D. For Ram Pass |
12.99" |
| Rapid Traverse (X Axis) |
472 IPM |
| Rapid Traverse (Z Axis) |
393 IPM |
| Manual Feed Rate (X/Z Axes) |
141 IPM |
| Cutting Feed Rate |
0.04 – 141 IPM |
| Table Speed (2 Steps) |
1-73, 1-200 RPM |
| Table Index Speed (C Axis) |
3 RPM |
| Cross Rail Stroke |
31.49" |
| Cross Rail Step X Step |
7.874" X 4" |
| ATC Magazine Capacity Number |
18 |
| Tool Shank Size |
1.26" X 1.26" |
| Max. Tool Length |
17.72" |
| Tool Taper No. |
50 (Big-Plus) |
| Pull Stud |
P50T-2 |
| Max. Weight of Tool Holder |
110 lbs (1pc) |
| Table Main Motor |
60 HP |
| Live Spindle Motor |
20/15 HP (Kw) (30 Min/Continuous) |
| X Axis Motor (AC Servo) |
8 HP |
| Z Axis Motor (AC Servo) |
8 HP |
| Cross Rail Elevating Motor |
7.5 HP |
| Max. Drill Diameter |
97” / 50.04 mm (Carbon Steel Work Piece) |
| Max. Tap Diameter |
1.181” / 30 mm (Carbon Steel Work Piece) |
| Max. Torque of Drilling |
145/196 Ft-Lbs/Nm |
| Live Spindle Speed |
30-2,000 RPM |
| Dimension |
208.86”L X 167.72”W X 224.80”H |
| Machine Weight |
69,000 lbs |
| Power Requirement |
75kva / 3 Phase, 208V / 200 Amp |
