Year |
2015 |
|---|---|
Make |
Flow |
Model |
Mach 4 4020c |
Description |

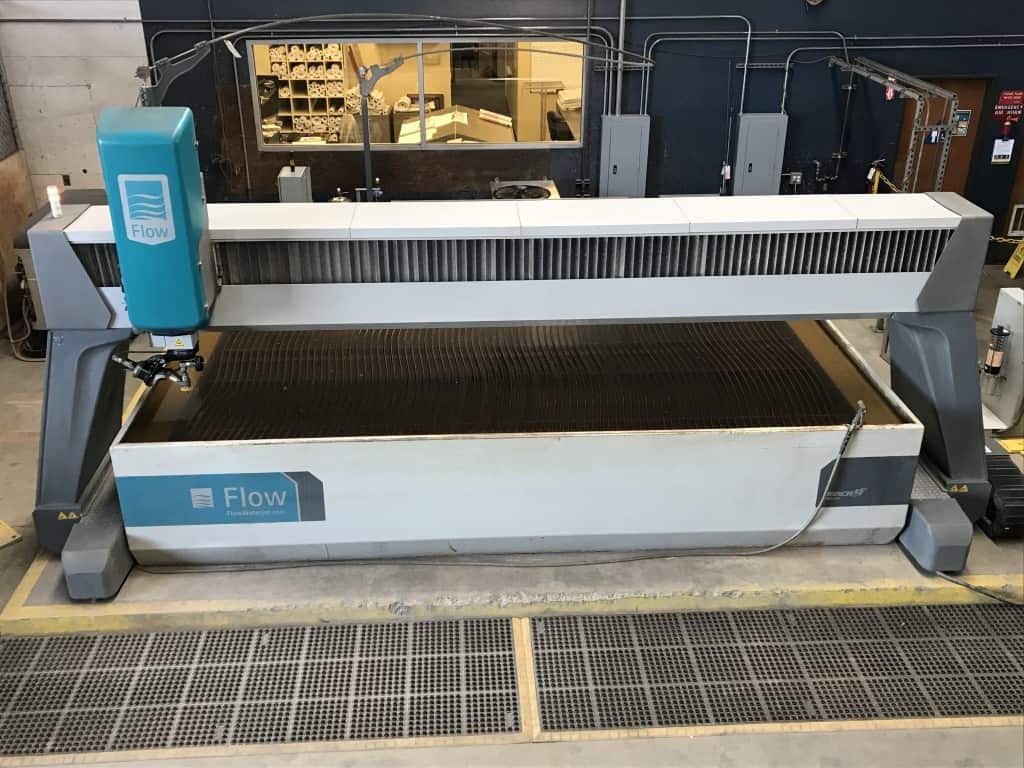

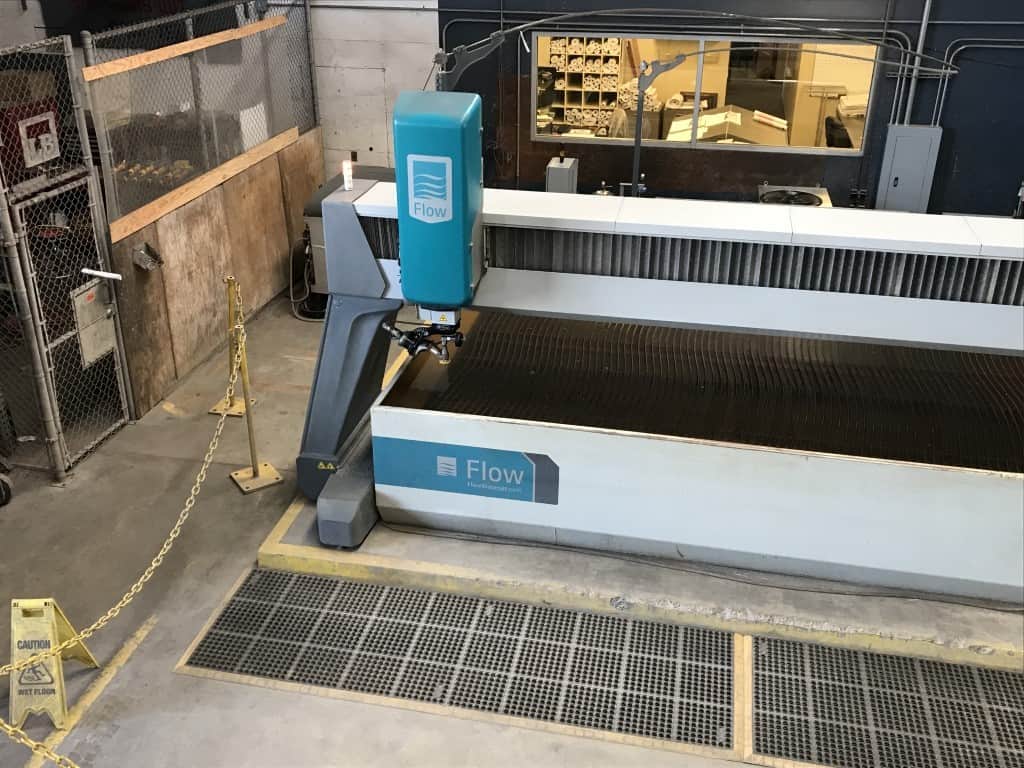

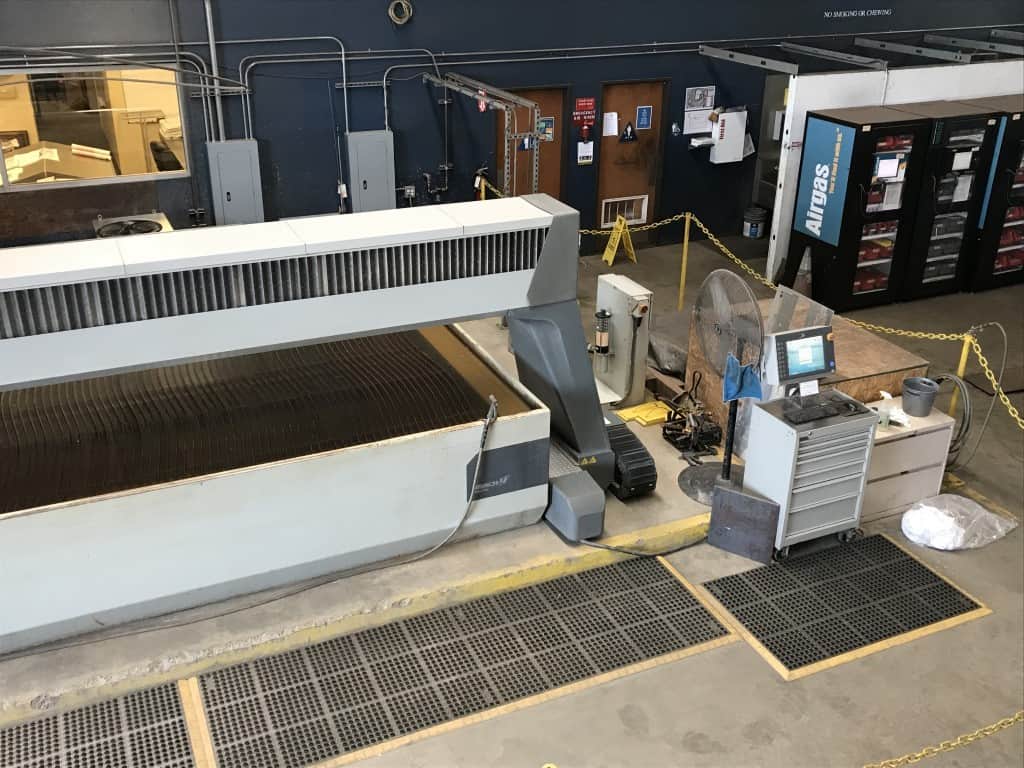

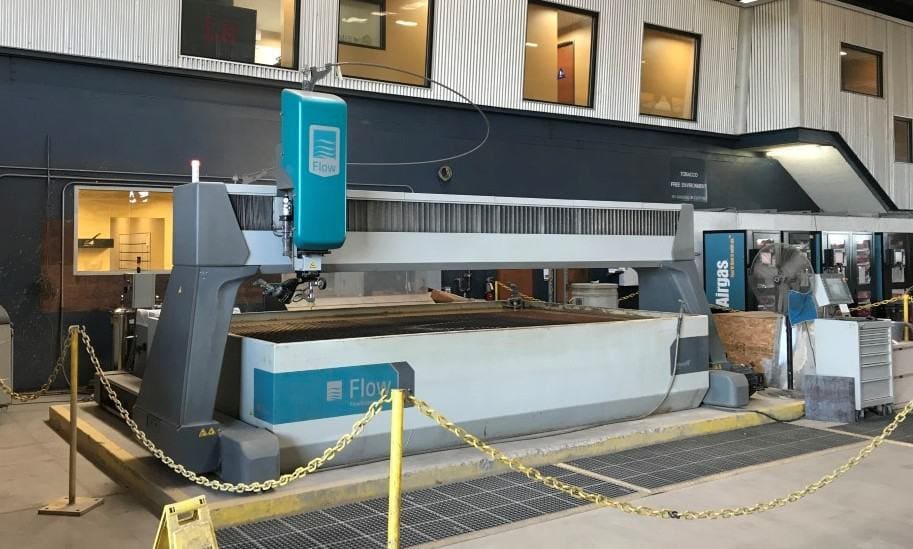

6.6' x 13.1' XD Dynamic Head CNC Waterjet |
Reference # |
8069864 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |

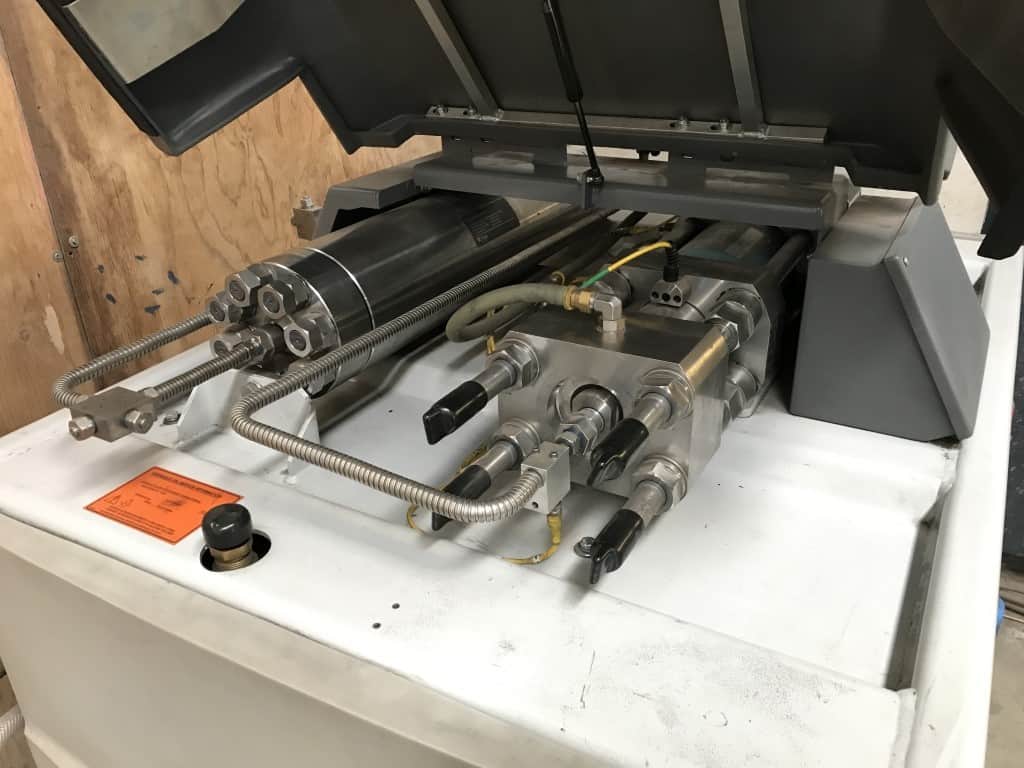

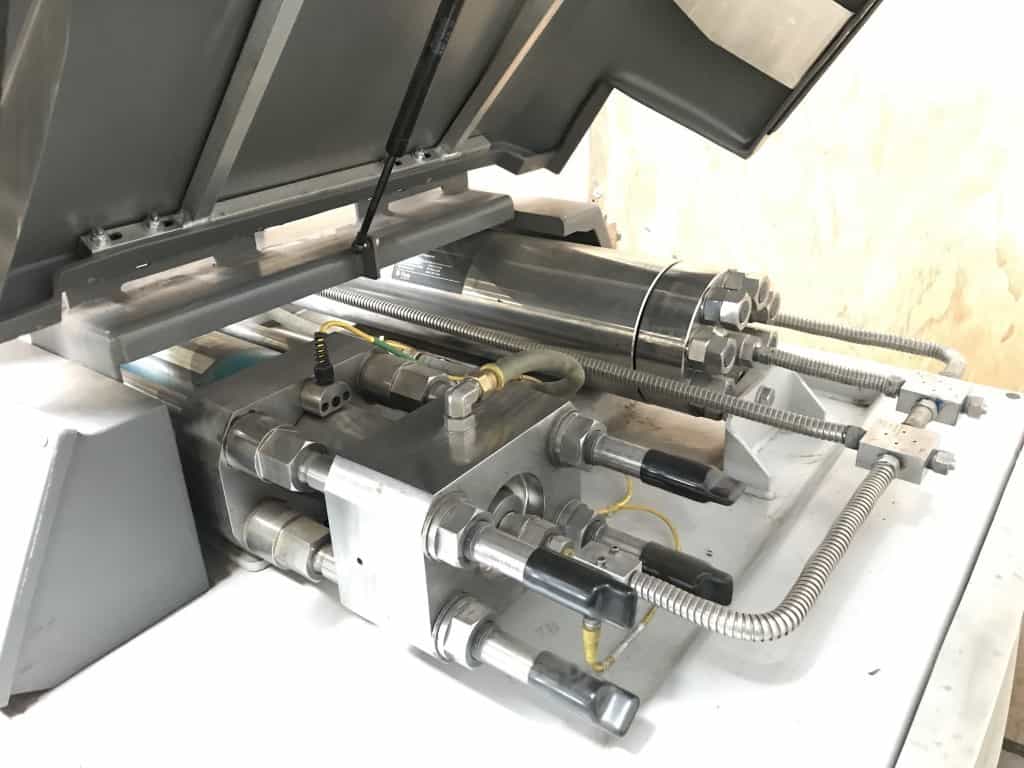

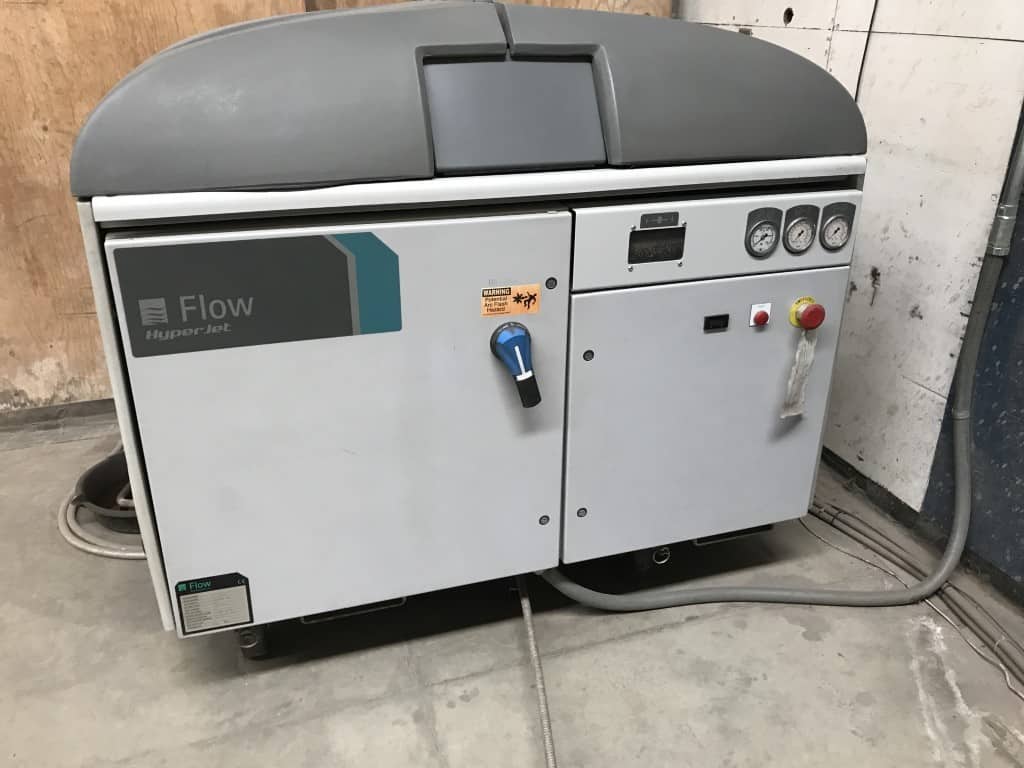

| Pump |
50 HP |
| Max Cutting Pressure |
94,000 PSI |
| Power Requirement |
480/3/60 |
| Rapid Traverse |
1400 IPM |
| Max Contouring Speed |
1000 IPM |
| Linear Straightness |
.001 Per 3ft |
| Repeatability |
.002 |
| Note |
Protection Package Is Heavy-Duty Collapsing Bellows to Protect Base and Bridge Rail Systems, Base Rails Are Below the Top of The Catcher, Reducing the Potential Impact of Loading A Heavy Work Piece, Eliminating Errors Caused by Thermal Expansion Due to Catcher Tank Heat and to Isolate the Motion System from Vibrations Caused by Loading and Unloading of Heavy Plate - the Mach 4c Does Not Cut Corners and Takes the Extra Step of Mounting the Bases Separate From the Catcher |
Features
|
All Manuals |

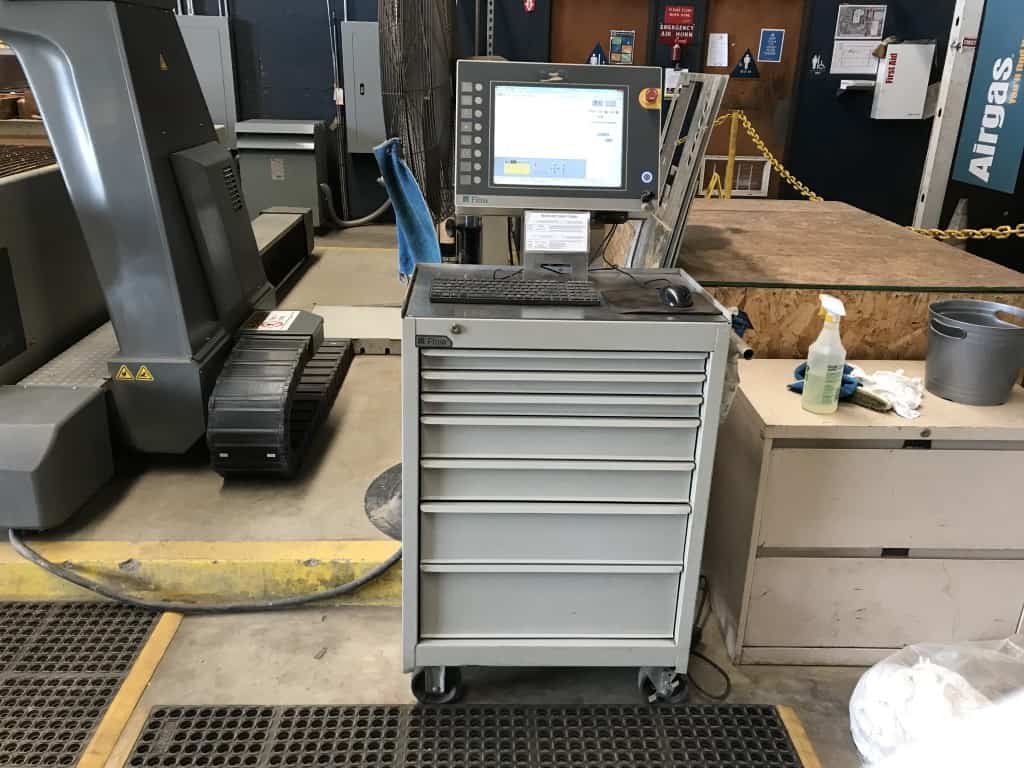

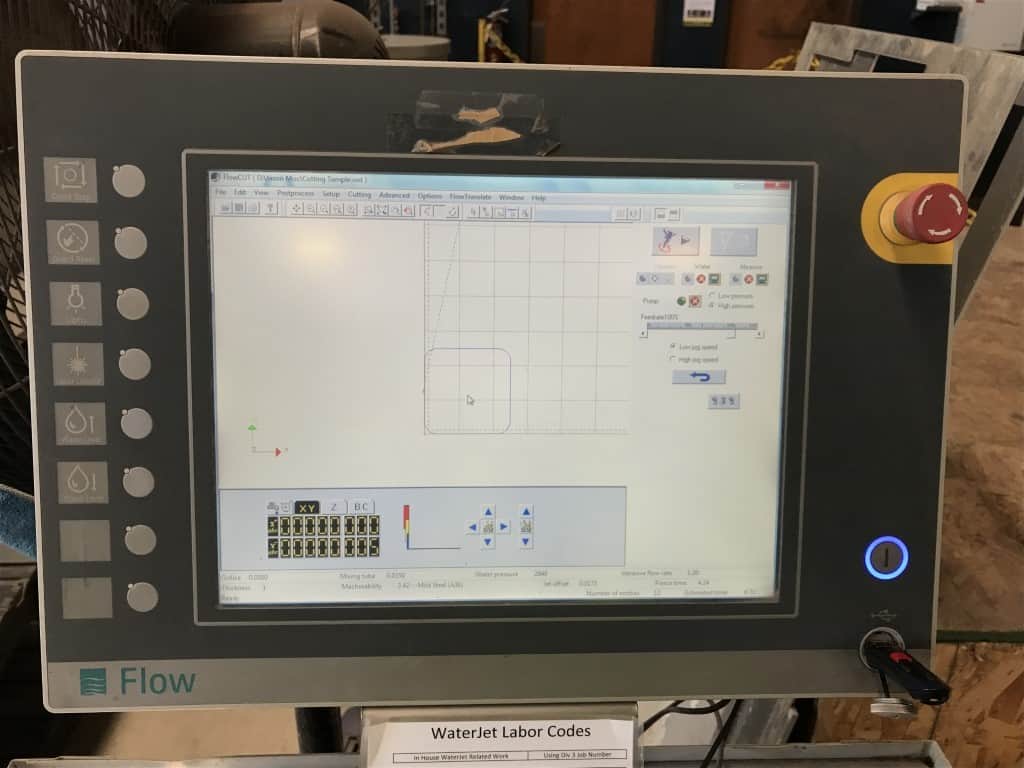

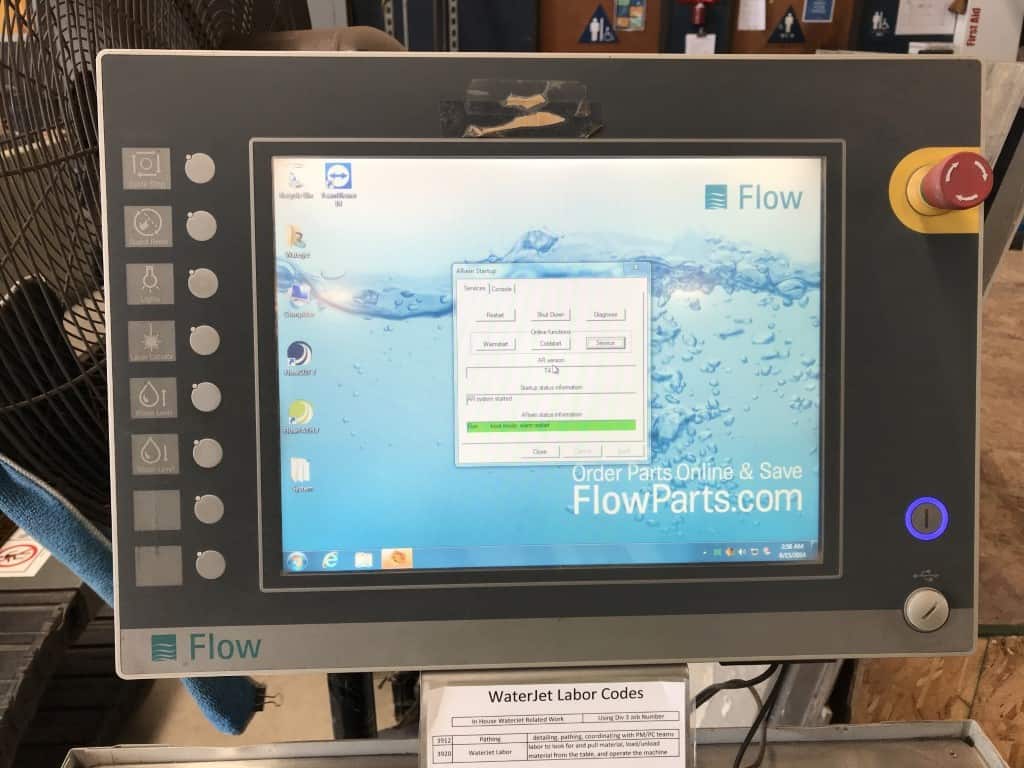

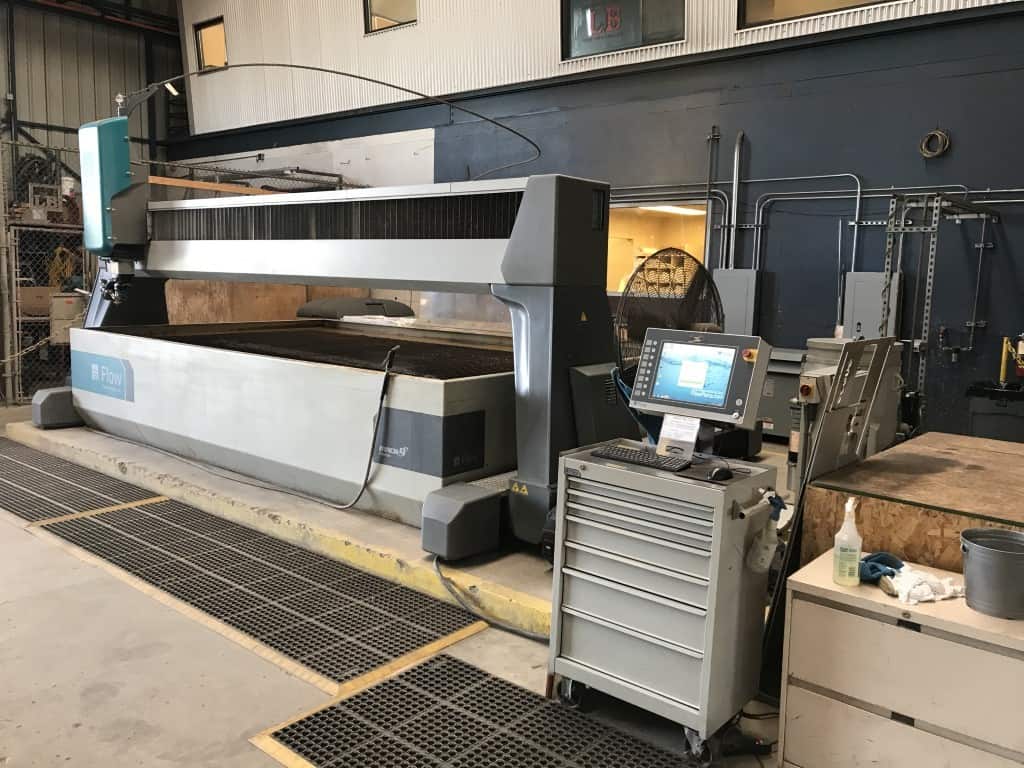

15" Color Monitor Touchscreen Rollaround Control |
|
3D Expert Desktop Software |
Standard Air-Conditioned Motion Components Ensure Long Life in Any Operating Environment |
|
Standard Touch Screen Mobile Control Station/Cabinet Increases the Convenience |

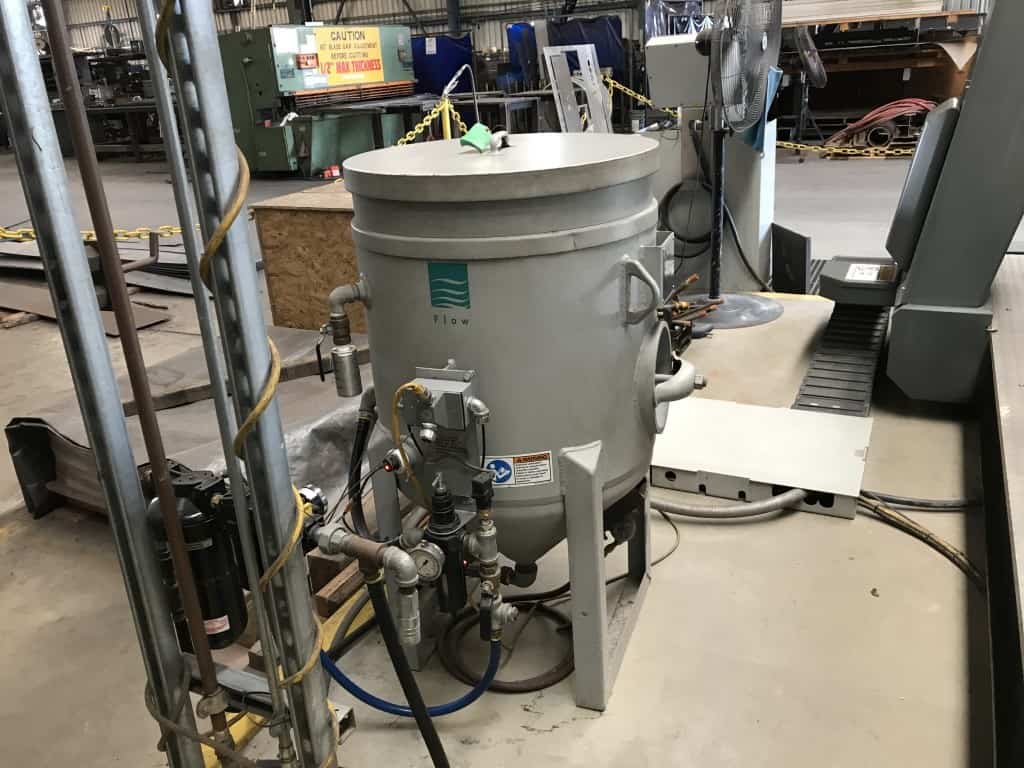

Abrasive Hopper with Lower Level Warning |
|
Dual-Drive Base Axis (Each of The Base Axes Have Dedicated Servo Drives) |
Flow Nesting Module |
|
Fully Programmable 12" Servo-Driven Z-Axis |
Graphic Programming with No G Code Needed |
|
Paser 4 Cutting Head |

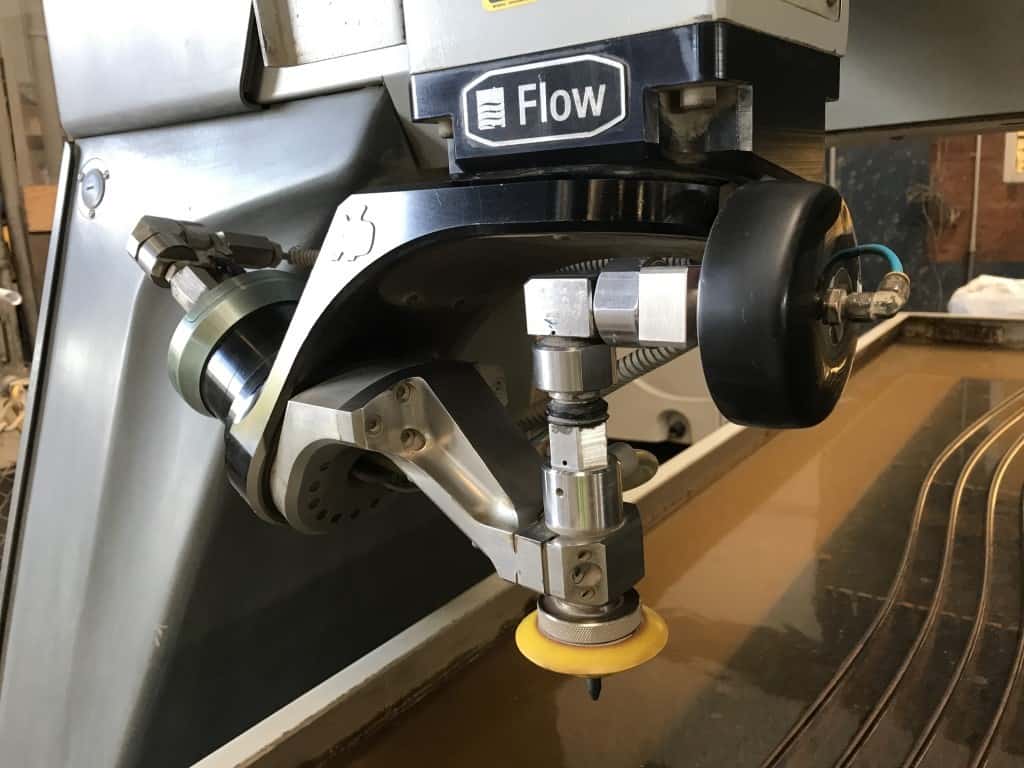

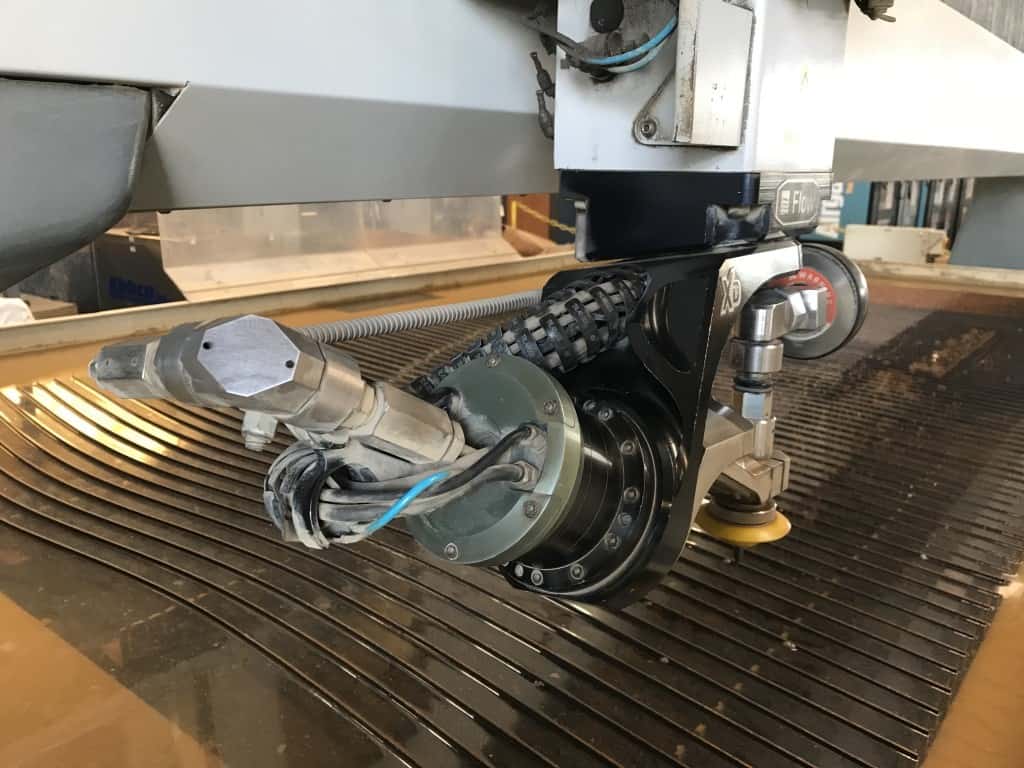

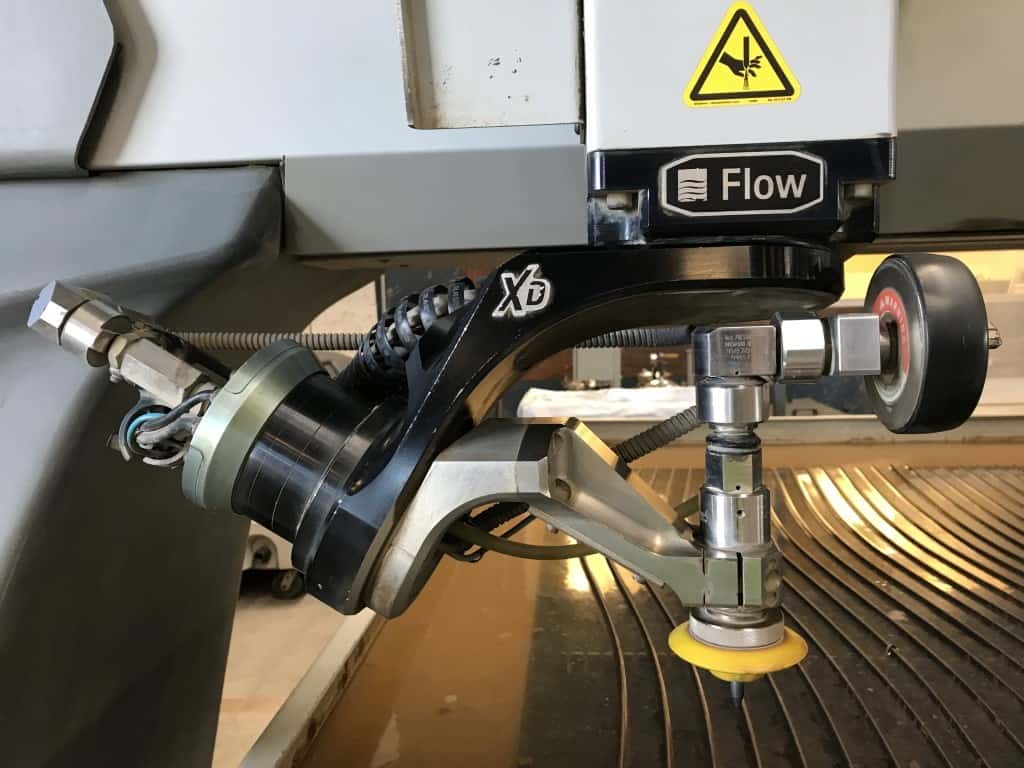

XD Dynamic 5 Axis Cutting Head |
