Year |
2013 |
|---|---|
Make |
Flow |
Model |
Mach 4 4030c-X5 |
Description |
10.1' x 13.1' XD Head CNC Waterjet |
Reference # |
8072659 |
Price |
Activate Pricing |

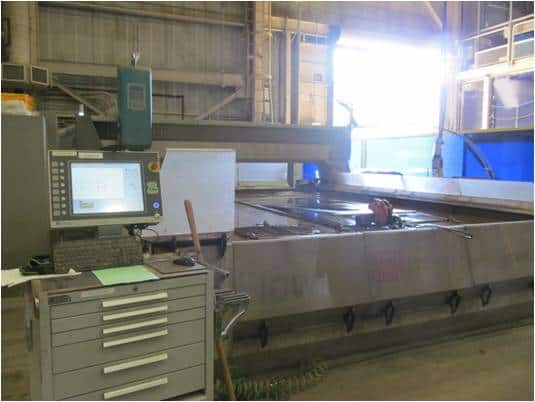

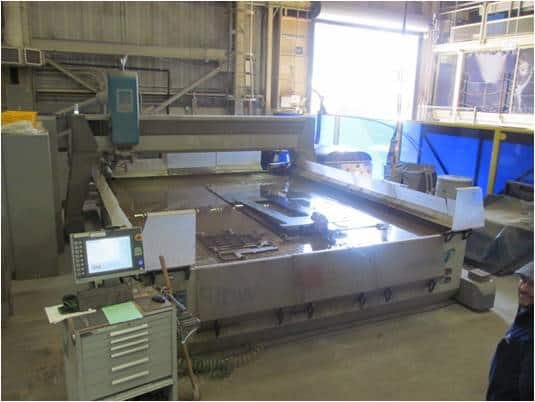

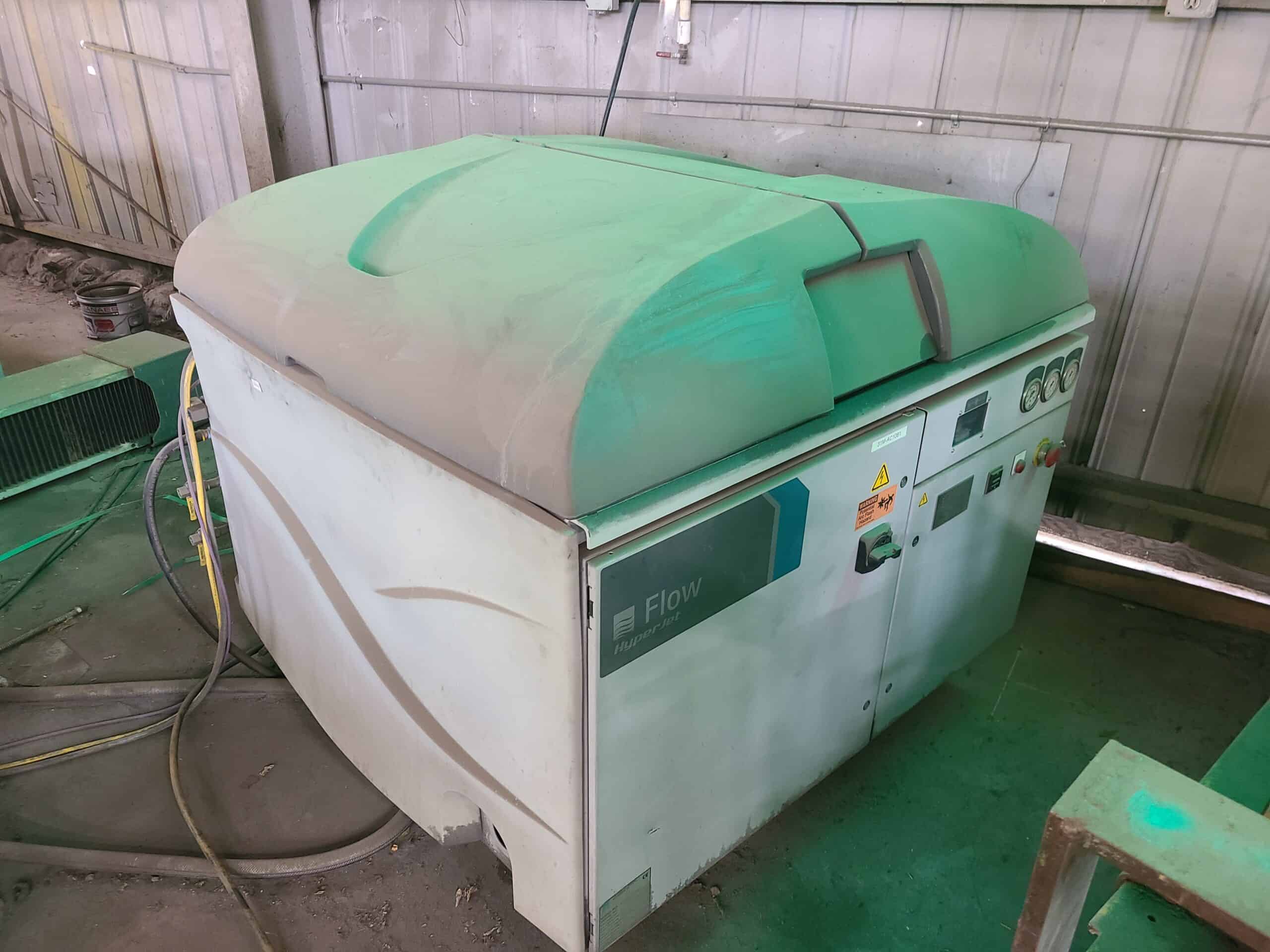

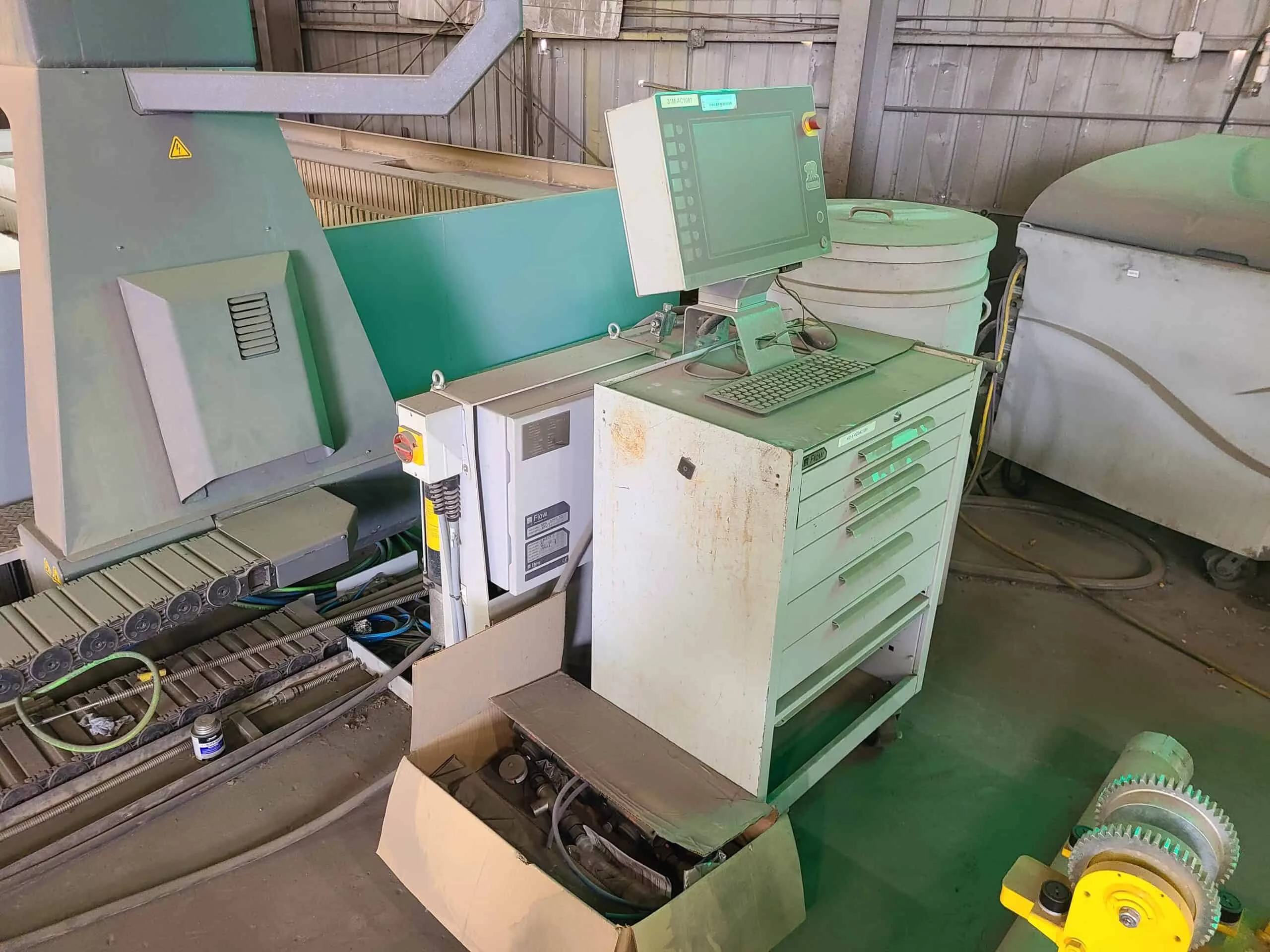

Used Flow Mach 4 4030c-X5 (2013) Waterjet for Sale. This gantry style high precision waterjet has a 10.1′ wide by 13.1′ long table and runs on a Flowmaster roll around PC based controller with a 15″ touch screen. It is equipped with a 100 HP HYPER JET 94i-D intensifier pump rated to 94,000 PSI max cutting pressure, solid state soft starter motor control, a 500 lb abrasive garnet hopper with low level warning, a full 5 axis XD cutting head for 3D cutting, a fully programmable 12″ Z axis, and a Paser 4 cutting head. Rapid traverse is 1400″/min, linear straightness accuracy .001″/3 ft, repeatability .002″. Power requirement is 460-480/3/60. FlowNest imports DXF, DWG, IGS, CADKEY, CDL and HPL files with no G-codes required. Available to see under power for inspection. See more used waterjets and other Flow machines, then Activate Pricing or Request a Quote.
Specifications
| Table Width |
10.1' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
100 HP |
| Max Cutting Pressure |
94,000 PSI |
| Power Requirement |
460-480/3/60 |
| Rapid Traverse |
1400"/ Min. |
| Linear Straightness Accuracy |
.001" / 3 Ft |
| Repeatability |
.002" |
Features
|

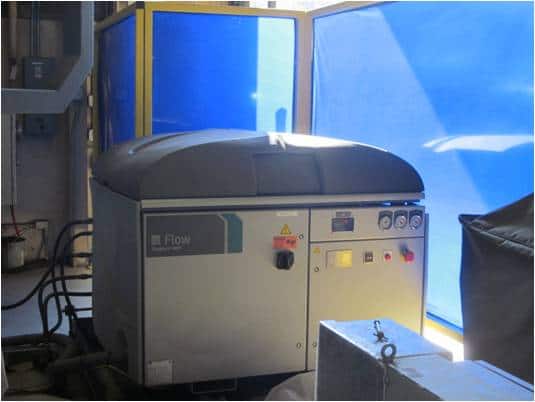

100 Hp HYPER JET 94i-D Intensifier Pump |
Solid State Soft Starter Motor Control |
|

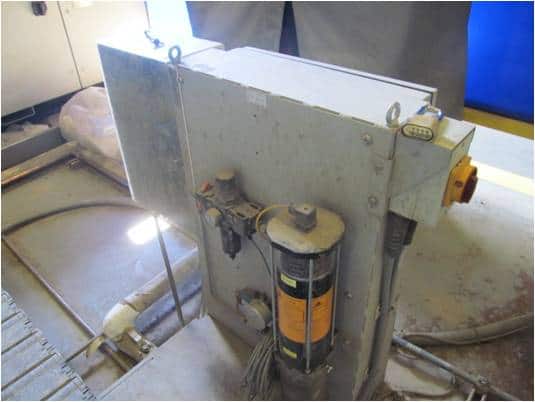

500lbs Abrasive Garnet Hopper W/ Low Level Warning |

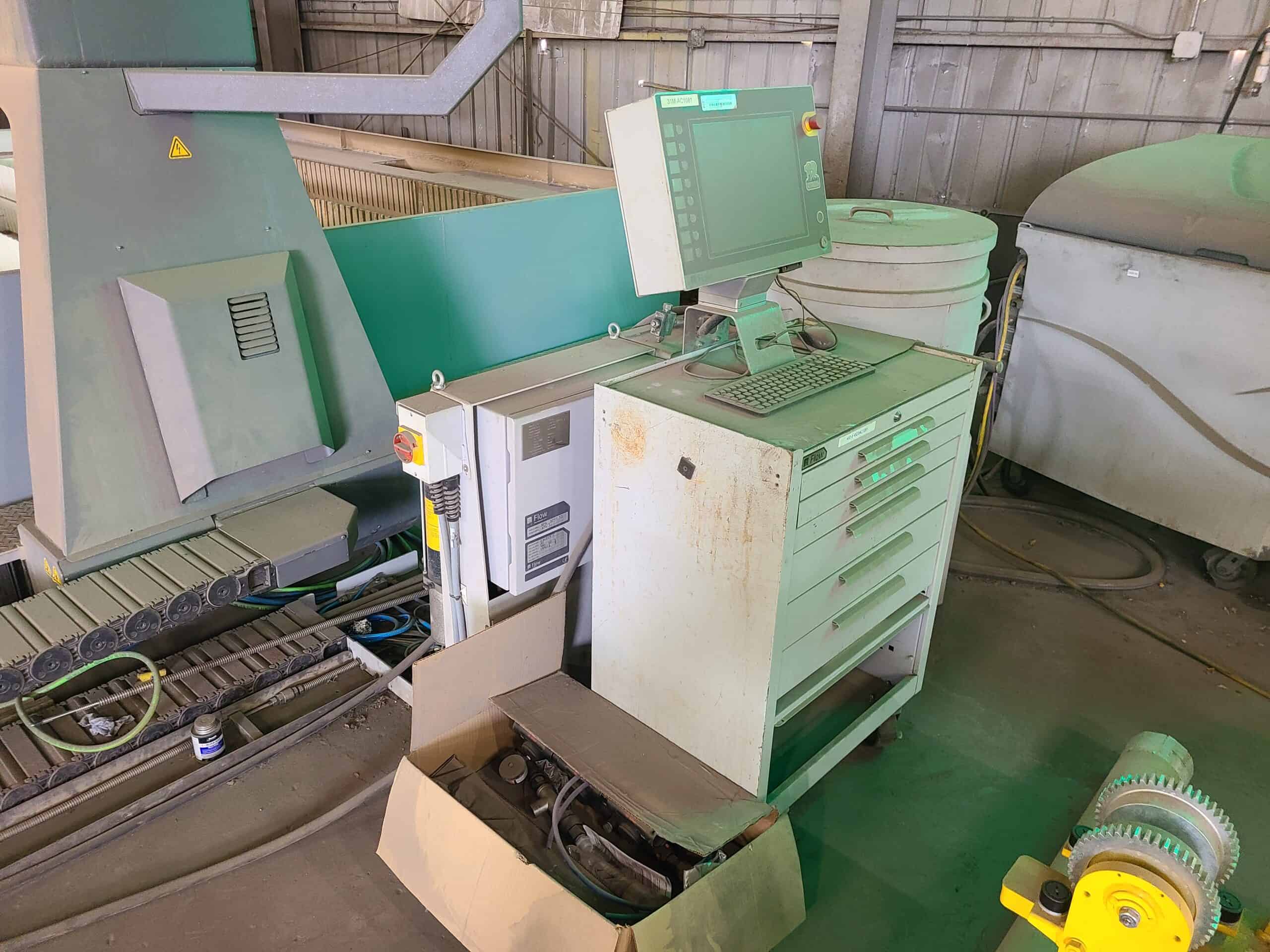

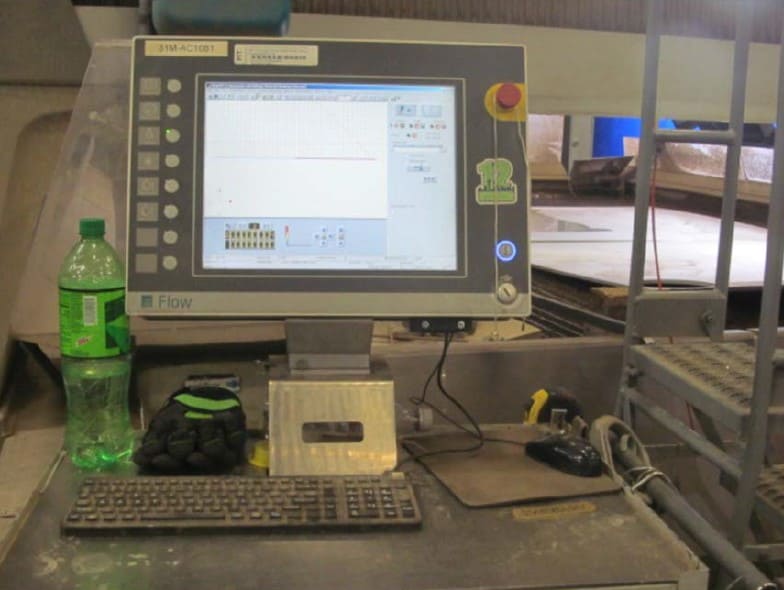

Flowmaster Roll Around PC Based Controller 15" Touch Screen |
|
Full 5 Axis XD Cutting Head 3D Cutting |
Fully Programmable 12" Z Axis |
|

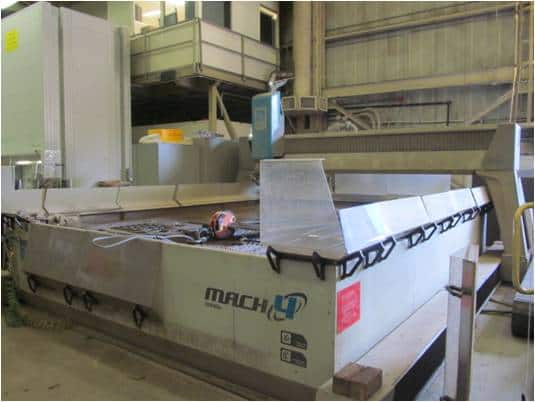

Gantry Style High Precision Waterjet |
Import DXF/DWG/IGS/CADKEY/CDL/HPL Files |
|
No G-Codes Required Flownest |
Paser 4 Cutting Head |
