Year |
2015 |
|---|---|
Make |
Ficep |
Model |
1103 DDV |
Description |
3-Spindle CNC Drill Line |
Reference # |
8072525 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

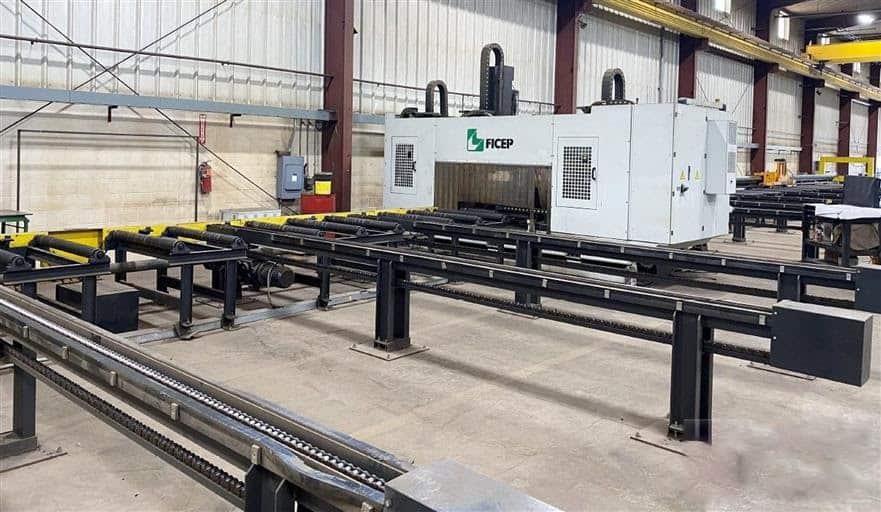

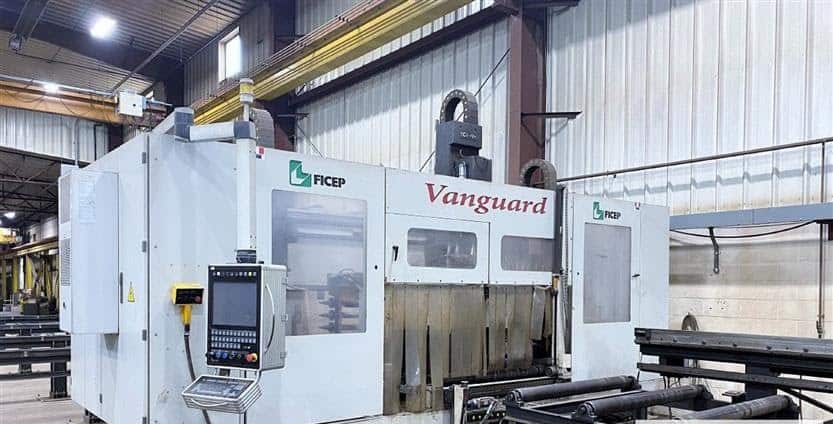

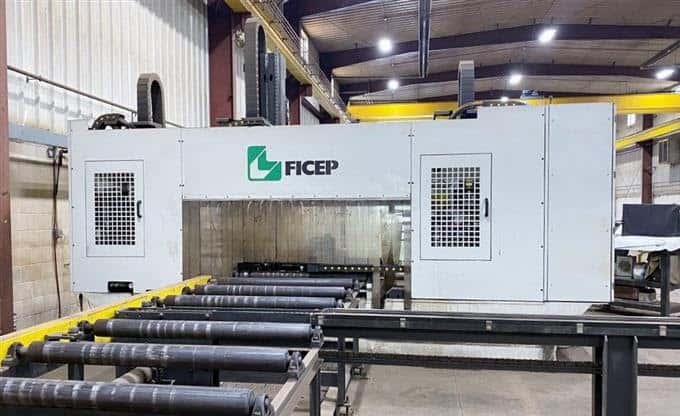

Used Ficep 1103 DDV
Specifications
| Min/Max Beam Depth |
3-1/8" / 44" |
|---|---|
| Min/Max Flange Height |
3/8" / 19-3/4" |
| Min/Max Length to be Transferred |
98" / 65' |
| Max Hole Diameter |
1-9/16" |
| Number of Drill Heads |
1-Vertical / 2-Horizontal (1-Spindle per Drill Head) |
| Spindle Speeds (Infinitely Variable) |
180 - 5,000 RPM |
| Spindle Rotation Motor (per head) |
22 HP |
| Max Carriage Speed |
164 FPM |
| Passline |
33-1/2" |
| Control |
Ficep Pegaso CNC |
| Max Section Weight |
11,900 Lbs |
| Max Weight per Foot |
147 Lbs/Ft |
Features
|
(3) 22 HP Drill Heads with 6-Station ATC |
Underside Scribing |
|

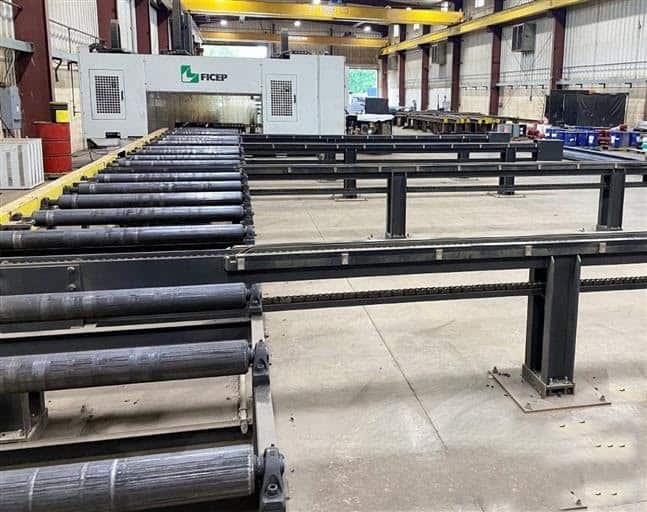

Infeed and Outfeed Conveyor for Sections up to 65' Long |
Infeed and Outfeed Drag Type Transfer Tables |
|
Material Handling |
*
