Year |
2015 |
|---|---|
Make |
CR Onsrud |
Model |
F217GW18 |
Description |
CNC Router |
Reference # |
8078831 |
Price |
Activate Pricing |

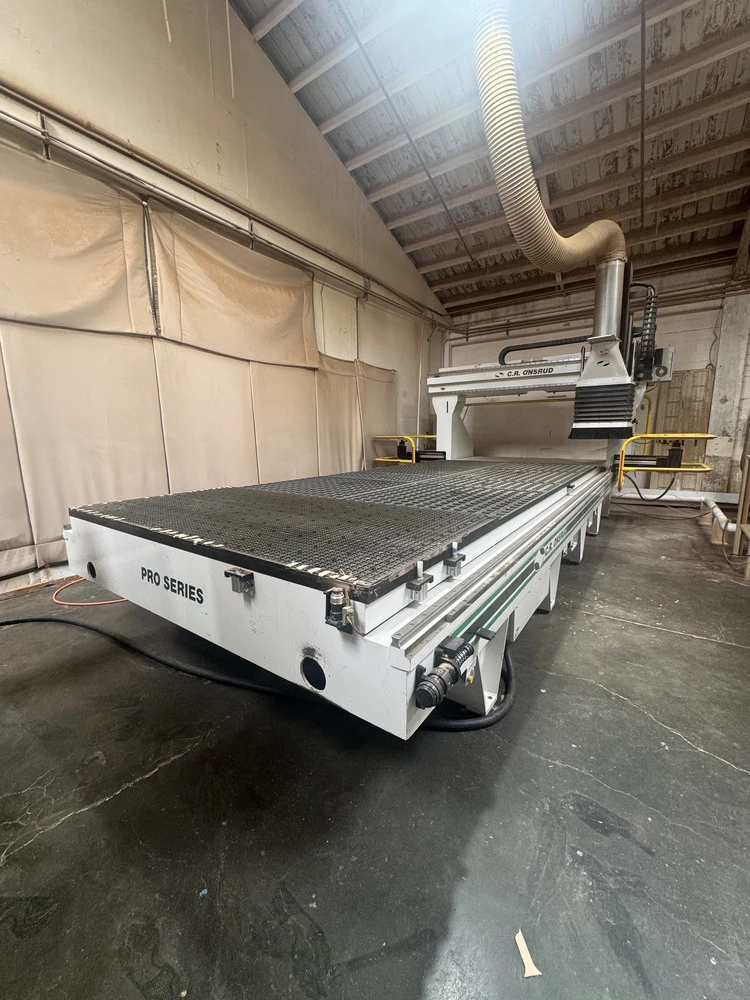

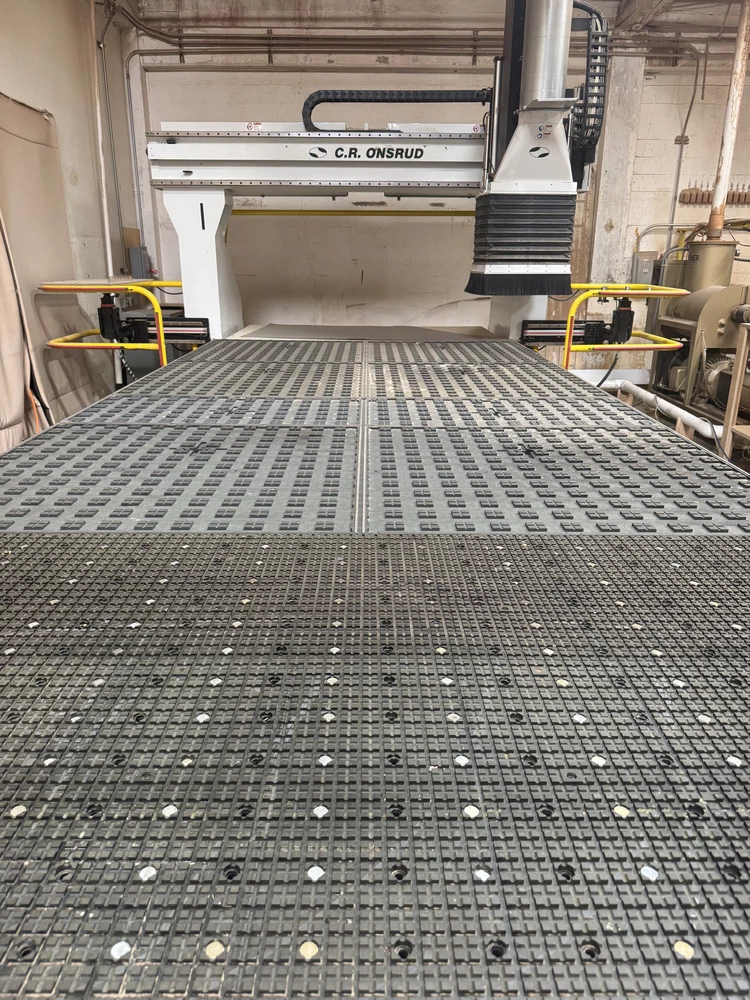

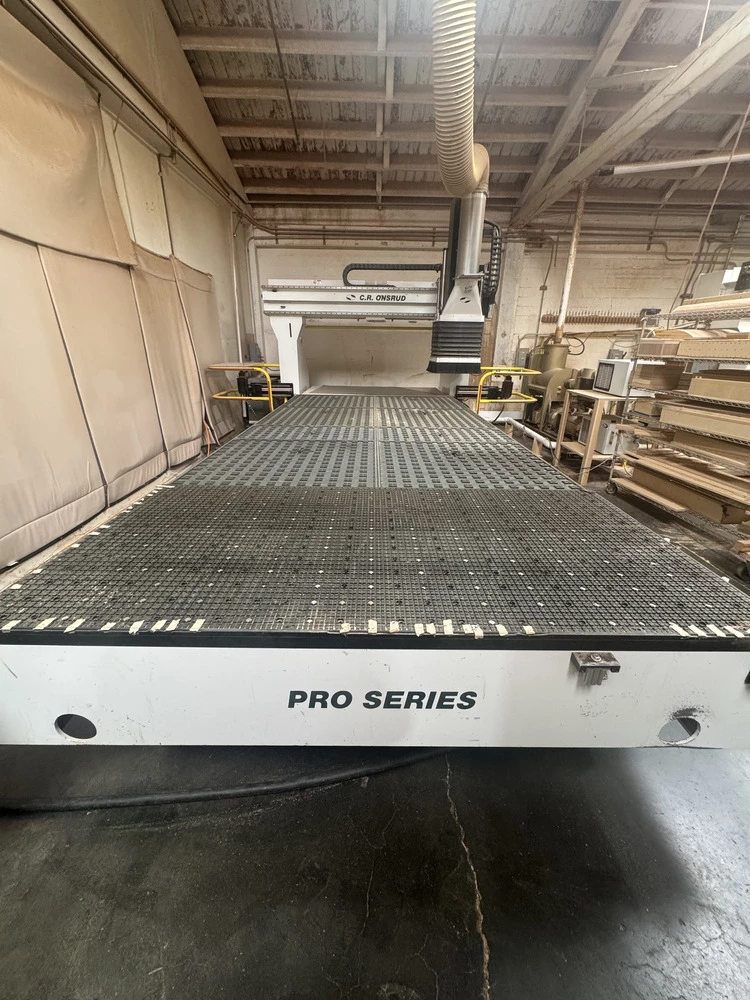

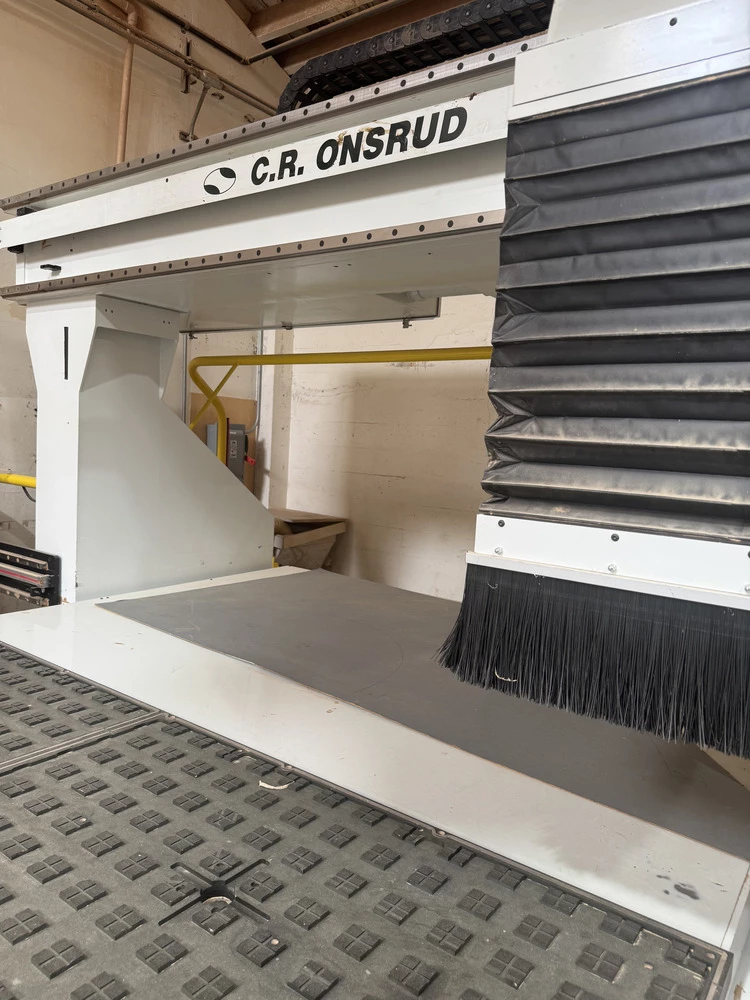

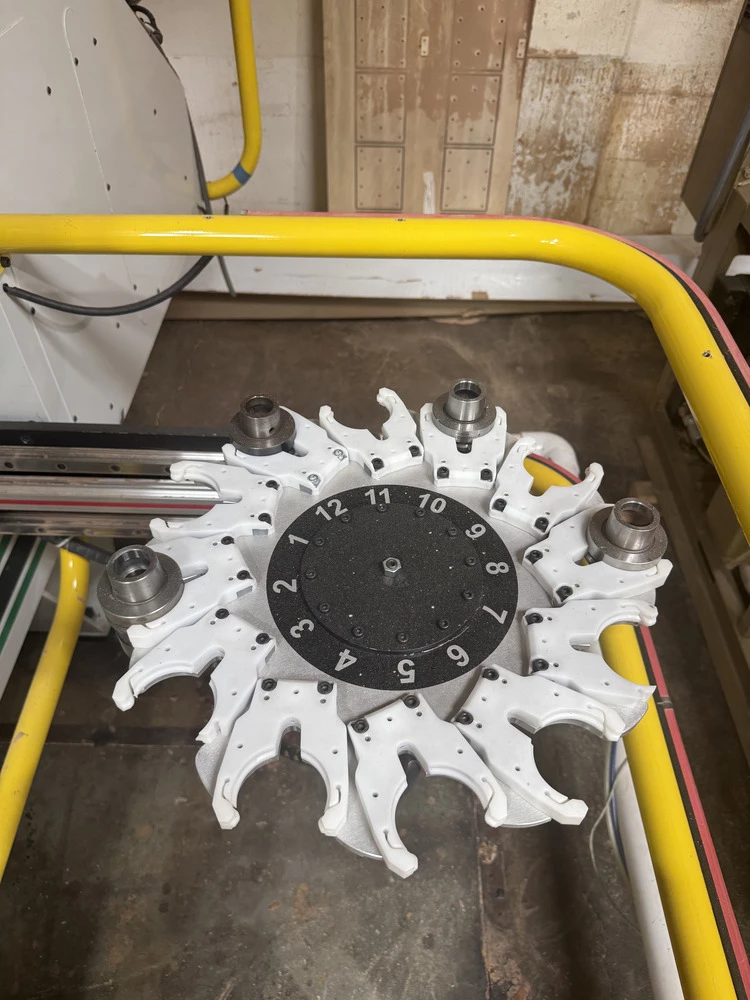

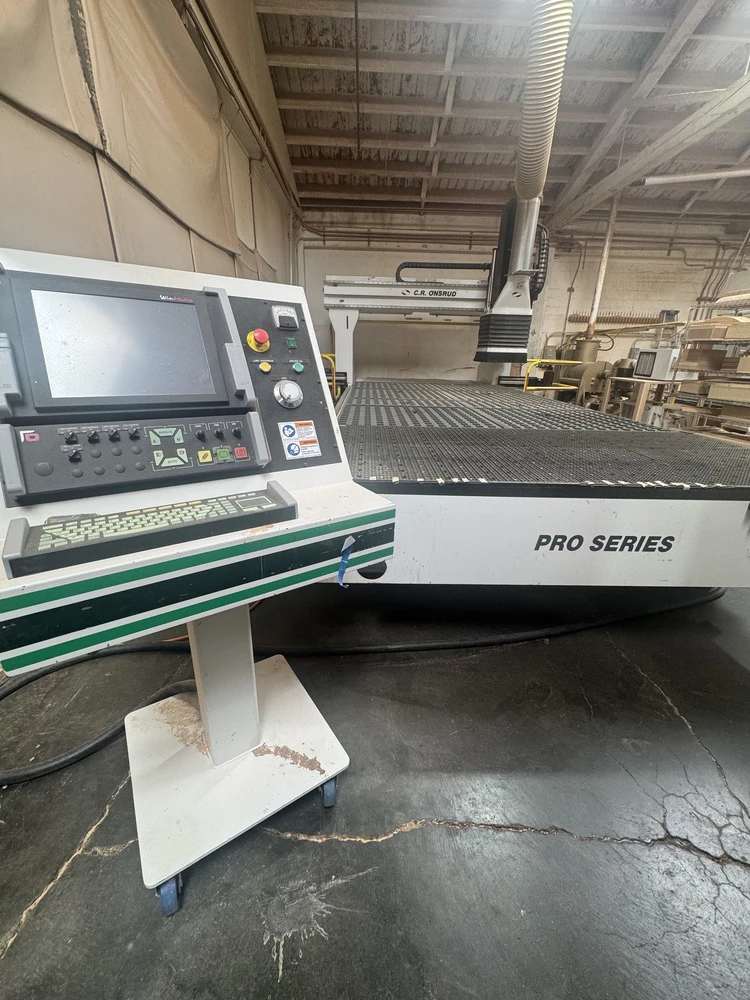

Used CR Onsrud F217GW18 (2015) CNC Router for Sale. This 5 axis machine has an 8′ x 18′ table with vacuum hold down divided into five zones. It carries an HSD spindle rated at 18 HP with speeds to 18,000 RPM, and Z axis stroke is 29″. Tool handling is covered by two 12-position rotary ATC units, and the machine runs on an OSAI controller. It is still in operation and can be seen under power for an inspection, so you can confirm axis movement, spindle function, and tool change cycles before committing. Use Activate Pricing to view the figure on this unit, and see comparable equipment in our used CNC routers listings. Request a Quote for details or to schedule a viewing.
Specifications
| Number of Axis |
5 Axis |
|---|---|
| Table Width |
8' |
| Table Length |
18' |
| Table Hold Down |
Vacuum Hold Down |
| Number of Vacuum Zones |
(5) Five Zones |
| Spindle Mfg |
HSD |
| Spindle Horsepower |
18 HP |
| Spindle Speed |
18,000 RPM |
| Z - Axis Stroke |
29" |
| Tool Changer |
(2) 12-Position Rotary ATC |

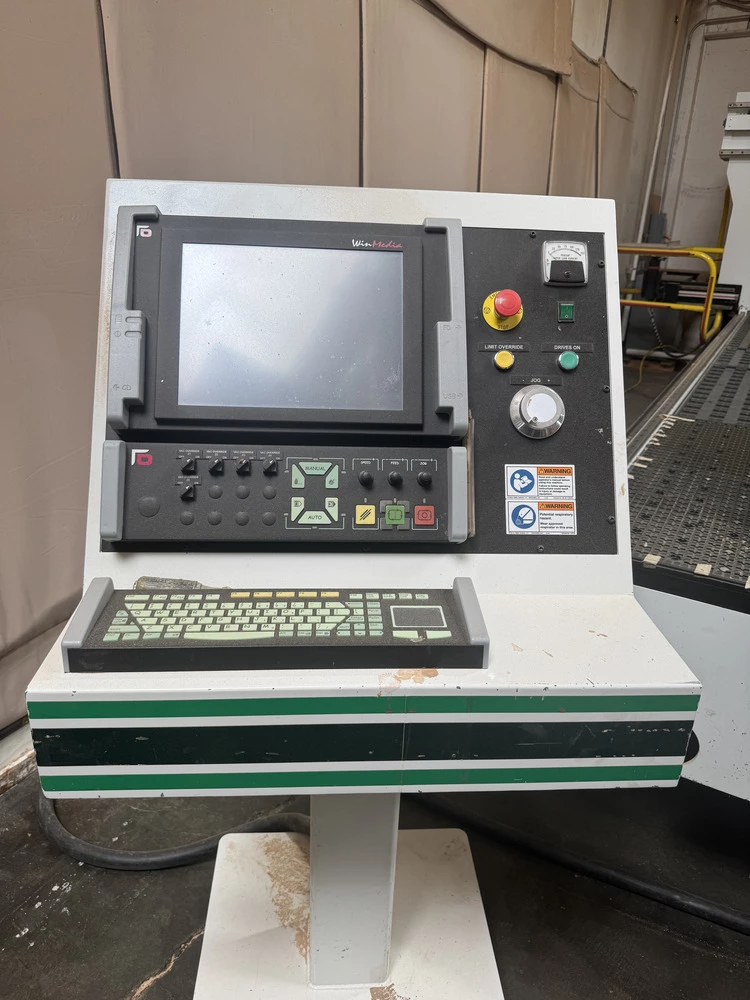

| Control |
OSAI Controller |
Features
|
Still in Operation for Inspections |
