Year |
2015 |
|---|---|
Make |
Accutex |
Model |
Accutex AU-9iA |
Description |
EDM Wire |
Reference # |
8069669 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
35.4" |
|---|---|
| Y-Axis Travel |
23.6" |
| Z-Axis Travel |
11.8" |
| Control |
64 bit Window CE PC |
| U/V Axis Travel |
3.9" / 3.9" |
| Degree Taper Cutting |
45 Degrees |
| Inside Tank Dimensions |
54.2" x 29.9" |
| Power Requirement |
200/230/3/60 |
| Glass Scale Feedback |
Linear Glass Scales |
| Table Feed Rate |
40.0 IPM |
| Max. Workpiece (XYZ) |
54.2″ X 29.9″ X 11.6″ |
| Max Workpiece Weight |
4,890 Lbs. |
| Wire Diameter |
0.006″ – 0.013″ |
| Wire Spool Feed Rate |
60 – 787 IPM |
| Wire Tension |
300 – 2,200 Grams |
| Start Hole Diameter |
0.020″ |
| Max. Wire Spool Weight |
35 Lbs. |
| Positioning Accuracy |
±0.00012″ |
| Repeatability (XY) |
±0.00008″ |
| Total Power Required |
15 KVa |
| Deionized Resin Tank |
935 0.4 Cu/Ft Fiberglass Bottle |
| Tank Capacity |
100 Gallons |
| Floor Space |
128″ X 126″ X 90″ |
| Weight |
11,880 Lbs. |
Features
|
Auto Wire Threading |
Chiller |
|

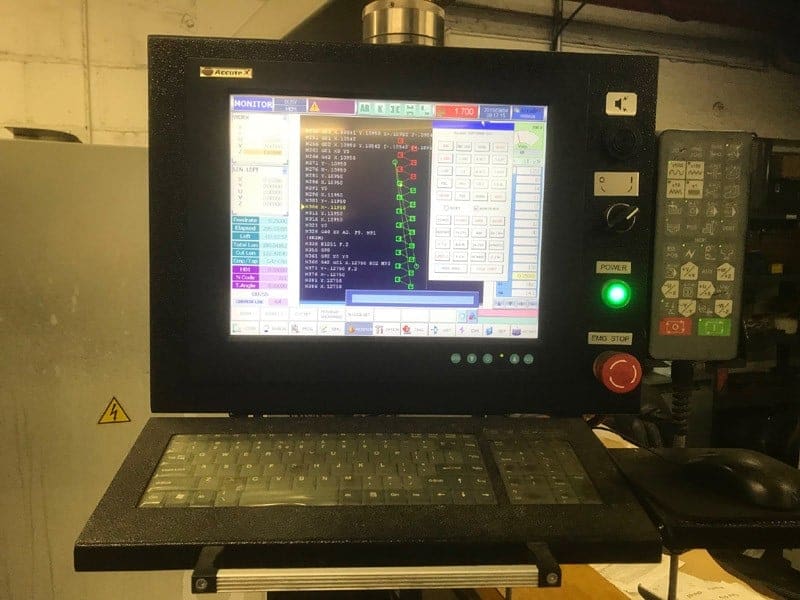

15″ Color Touch CNC Control Screen |
Co-Axial Flushing Machine |
|
Delivered New In 2015 |
*
