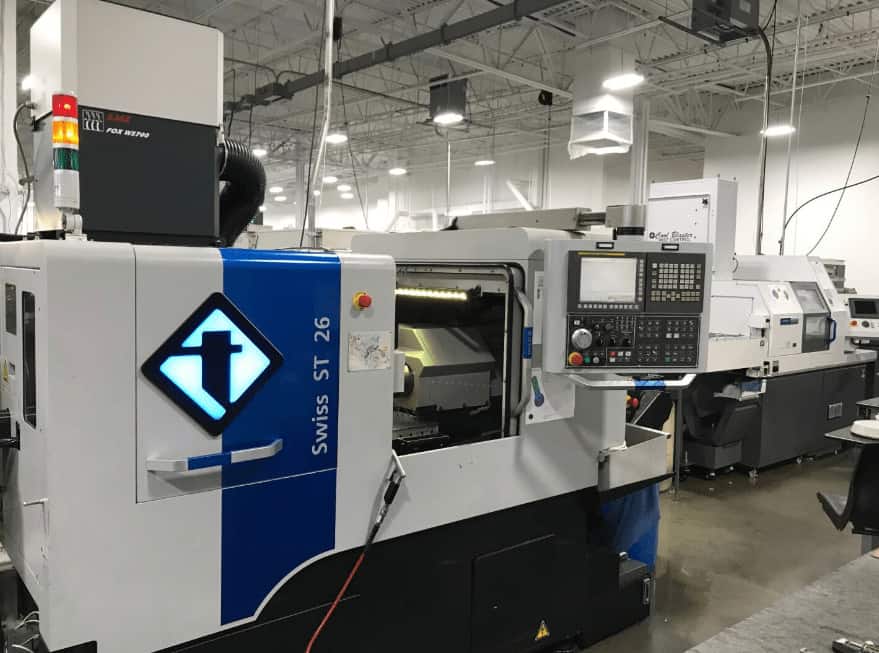

Year |
2014 |
|---|---|
Make |
Tornos |
Model |
ST26 |
Description |
CNC Swiss Lathe |
Reference # |
8070409 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Control |
Fanuc 31ITB |
|---|---|
| Controllable Axes |
9 - X1, Z1, Y1, X2, Y2, C1, X4 (XB), Z4, C4 |
| Least Input Increment |
0.001 Mm |
| Interpolation Method |
Linear / Circular |
| Rapid Traverse Rate |
35 M / Min Y1 Y2, 30 M / Min Z1 X4 Z4, 20 M / Min X1 X2 |
| Cutting Feedrates |
1 To 6000 Mm / Min |
| Feed Rate Override |
0 To 150%, 10% Step |
| Amount Of Tool Offset |
6 Digits |
| Number Of Tool Offsets |
99 |
| LCD/MDI |
10.4" Color LCD |
| Part Program Storage Size |
64 Kbyte |
| Main Spindle (Headstock) |
Z1, S1, C1 |
| Std Part Length With A Rotating Guide Bushing Mm |
220 |
| Max. Rpm Of The Spindle Rpm |
0 To 10,000 |

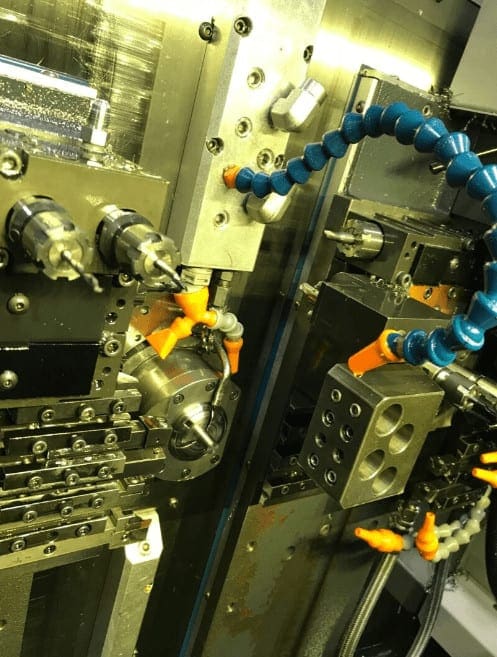

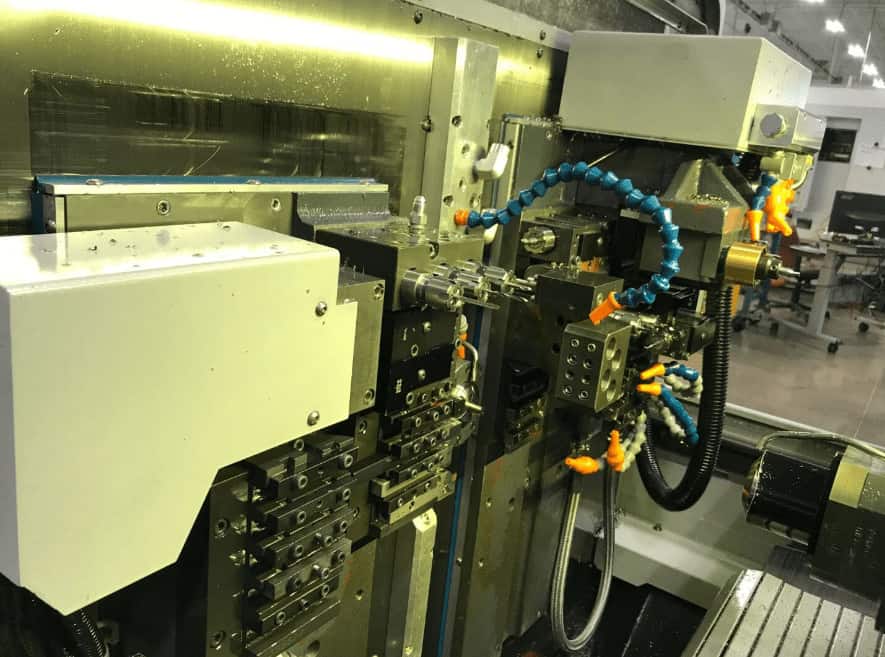

| Tool Platen |
X1, Y1, S2, X2, Y2 |
| Number Of Tool Positions In Main Operations |
17 |
| Cross Section Of The Turning Tools |
12 X 12 Mm Or X |
| Number Of Positions For Rotating Tools |
5 |
| Max Rpm Of The Rotating Tools Rpm |
6000 |
| Output Of The Rotating Tools Kw |
0.75 |

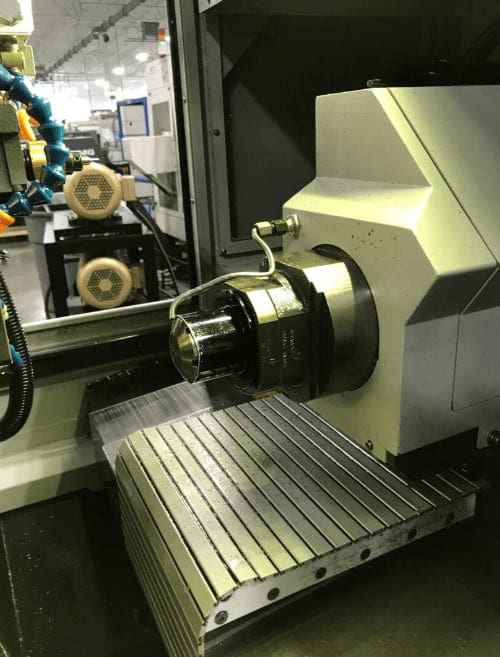

| Counter Spindle |
X4, Z4, S4, C4 |
| Maximum Bar Capacity Mm |
23 (25.4) |
| Max. Rpm Of The Spindle T / Min |
0 To 10000 |
| Spindle Output Kw |
9.5 (11) |
| Max Constant Torque Nm |
17 |
| Spindle Stop/Start Time From 0 To 10000 Rpm |
0.9 Sec |
| Drilling Capacity In Free Machining Steel Mm |
10 |
| Tapping Capacity In Free Machining Steel |
M10 |
| Maximum Number Of Tools |
36 |
| Breakdown Of Tools Between Main And Counter Operations |
19 / 17 |
| Coolant Tank Capacity |
185 Liters |
| Power Of The Coolant Pump |
400 W |
| Max. Pressure |
3 Bars |
| Approx Dimensions (LxWxH) |
91" X 52" X 67" |
| Approx Machine Weight |
7275 Lbs |
| Note |
Max Output Of The Coolant Pump L / Min 80, 2-Pump High Pressure Unit - Lower Pressure 650 Psi High Pressure 870 Psi |
| Bar Capacity (mm) |
26 |
Features
|

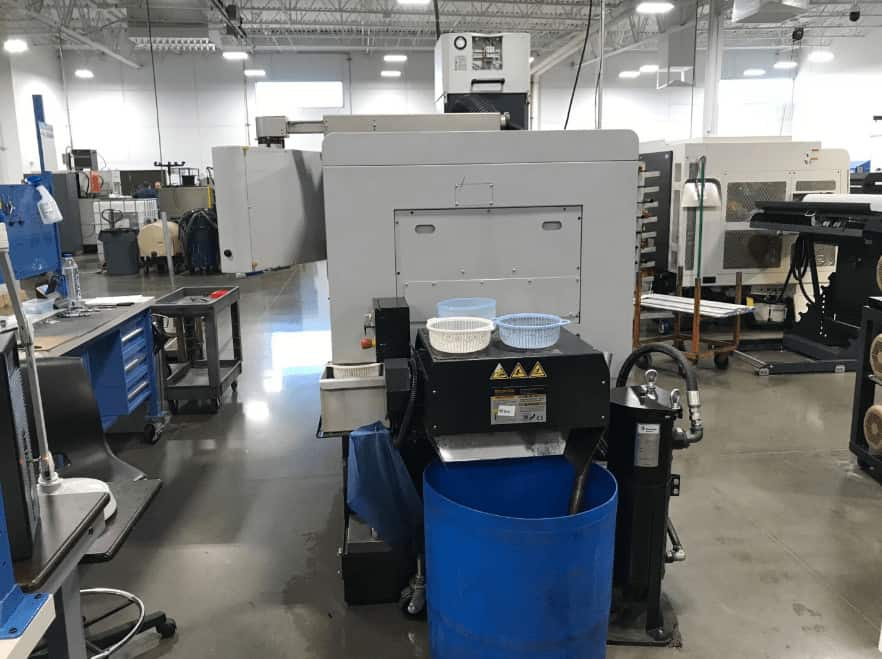

Chip Conveyor |

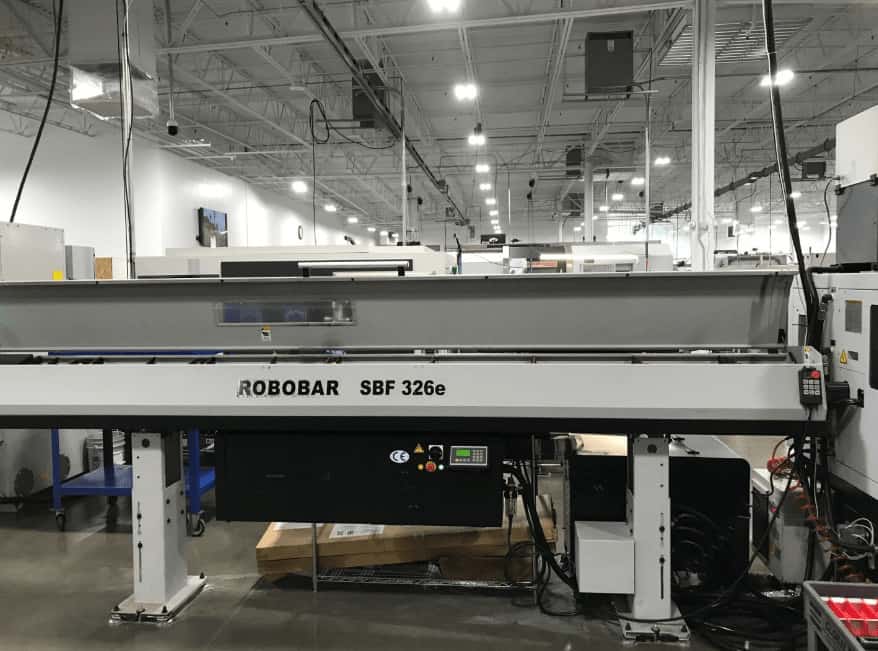

Robobar SBF-326E Automatic Loader |
|
Parts Conveyor |

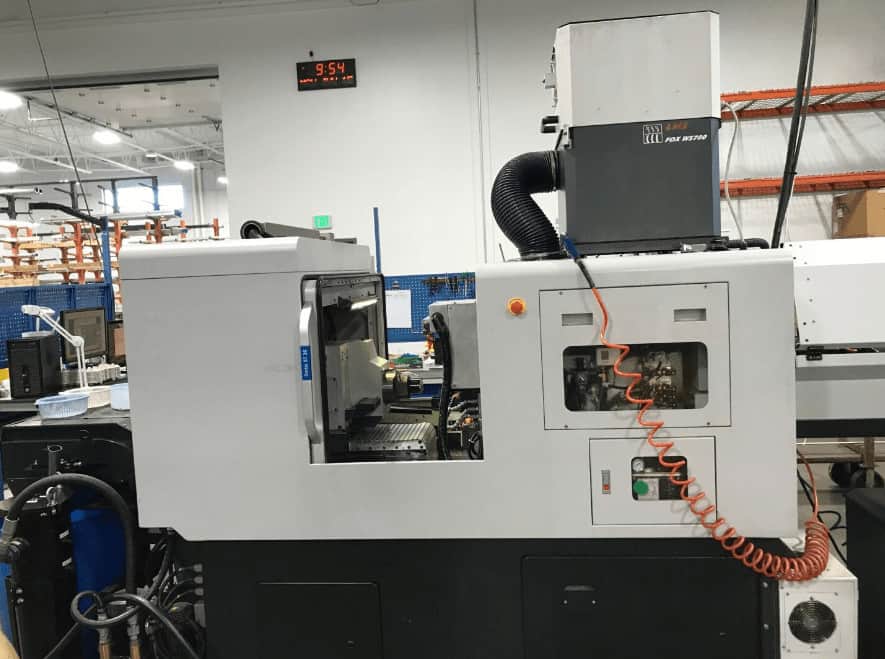

Fox Mist Collector |
