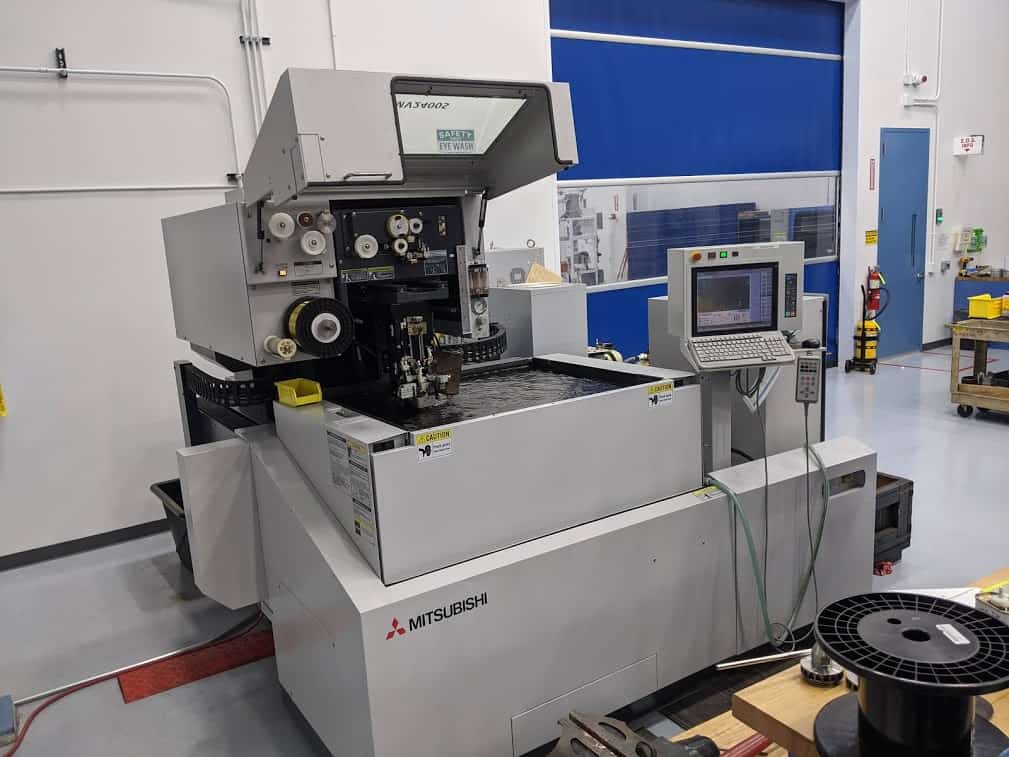

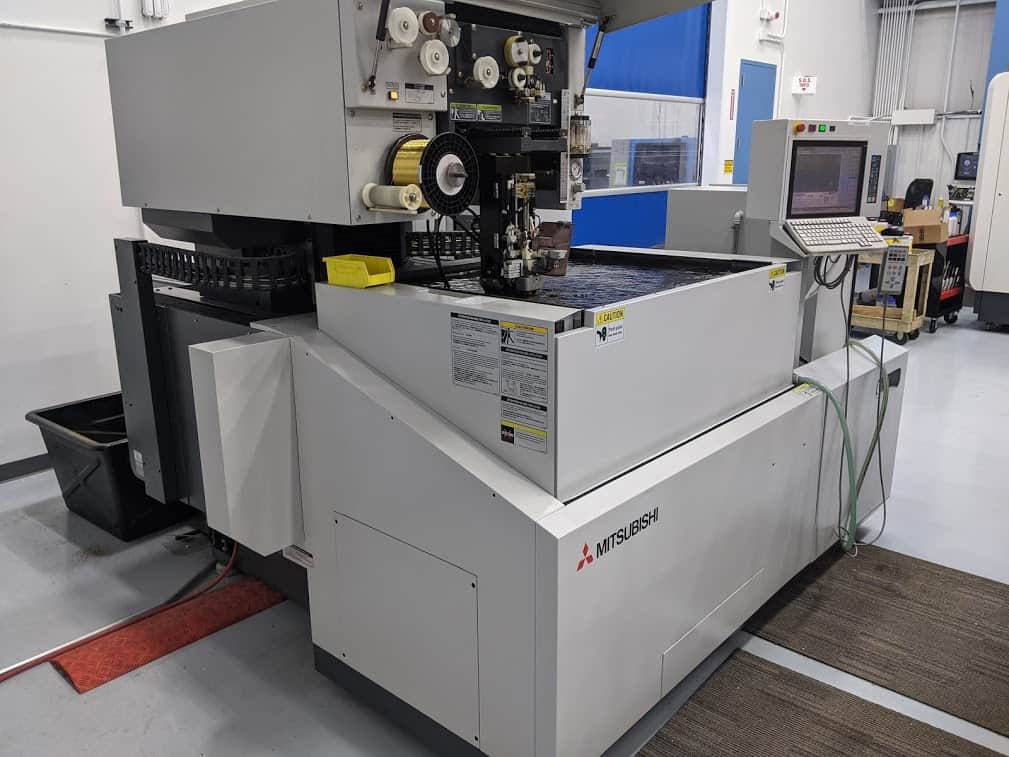

Year |
2014 |
|---|---|
Make |
Mitsubishi |
Model |
MV2400S |
Description |
EDM Wire |
Reference # |
8068279 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
23.6" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
12.3" |

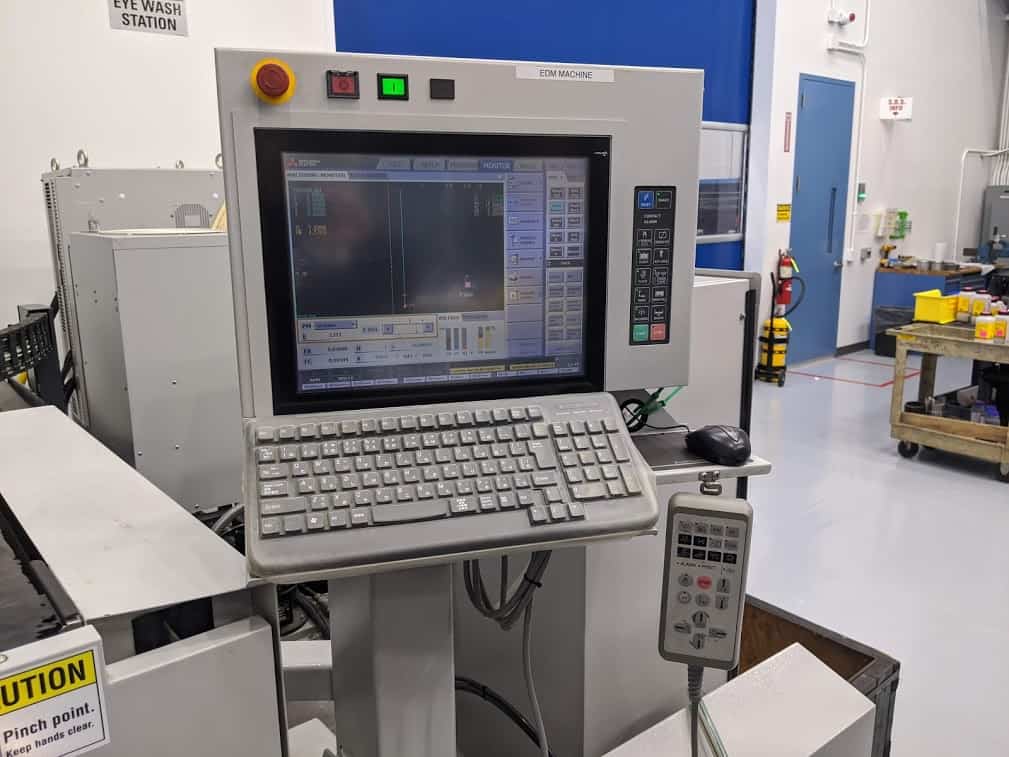

| Control |
Mitsubishi M-700 Control |
| U/V Axis Travel |
plus/minus 3" x plus/minus 3" |
| Degree Taper Cutting |
15 Degree @ 10" |

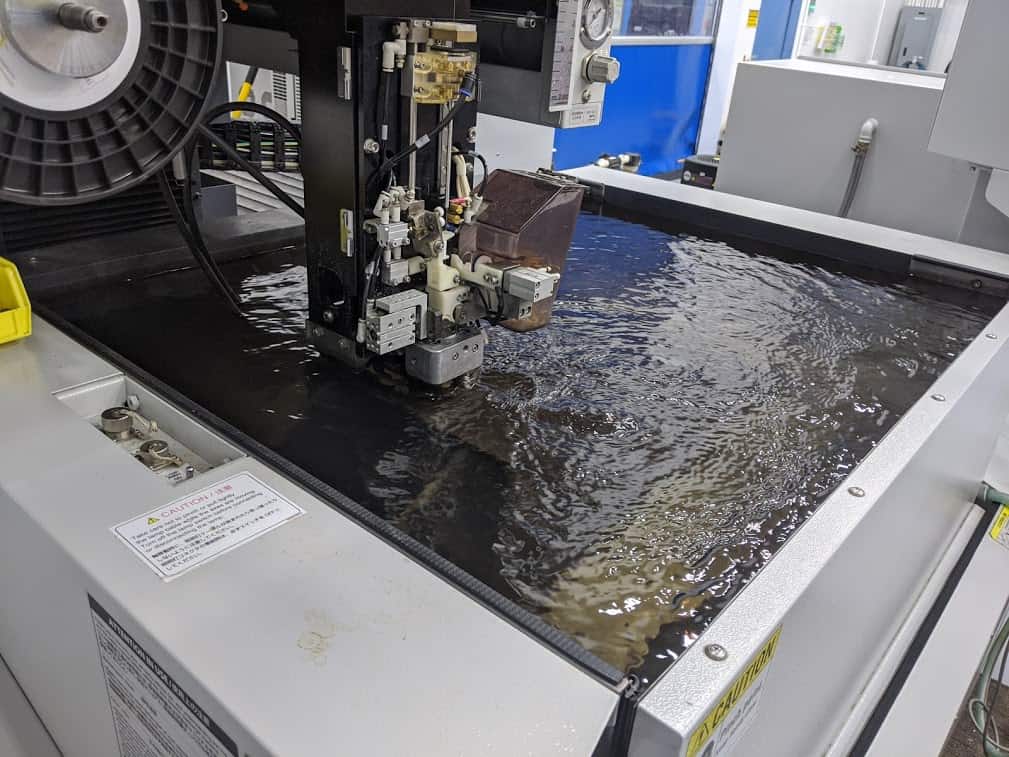

| Inside Tank Dimensions |
41.3" x 32.3" |
| Power Requirement |
208/230/3/60 |
| Resolution |
.000002" |
| Table Dimensions |
33" x 25.2" |
| Machining Range |
23.6" x 15.7" X 12.3" |
| Workpiece Weight |
3,300 lbs |
| Table Rapid Feed |
51.2"/Min |
| Minimum Wire Thread Start Hole |
.020" |

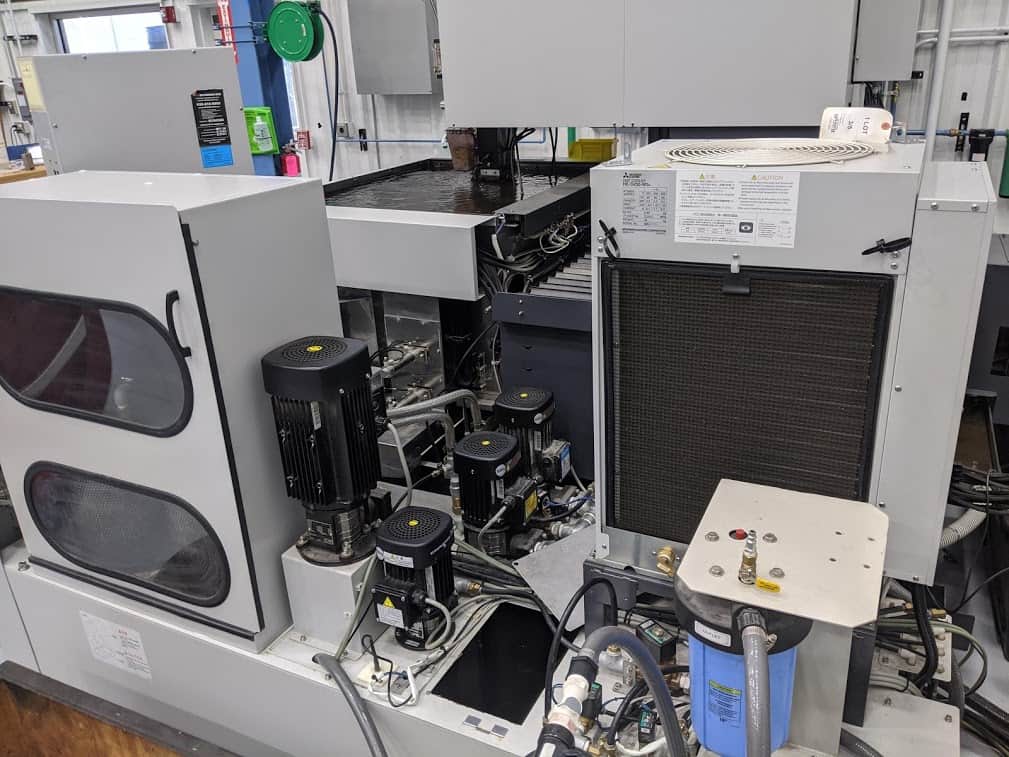

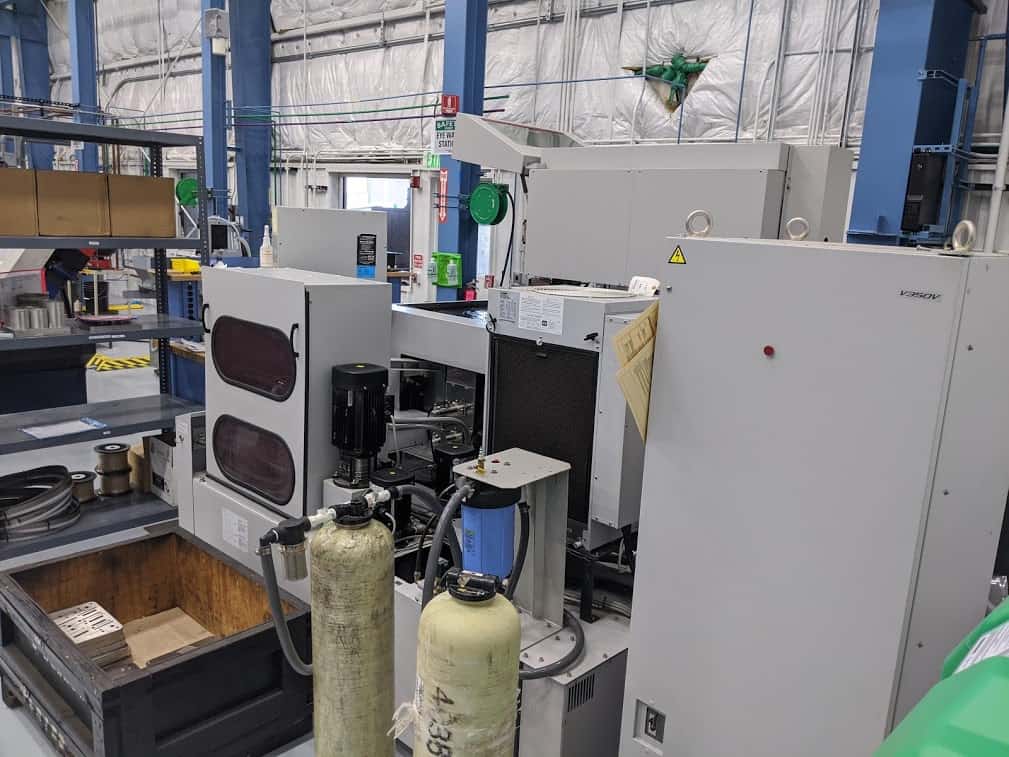

| Filter Tank Capacity |
260 Gallons |
| Dielectric System Dimensions |
40.3" x 90.5" x 61.7" |
| Dimensions |
111.7" x 137.4" x 93.7" |
| Machine Weight |
9,846 lbs |
Features
|
(2) USB Ports |
10 KG Wire Spool |
|
Auto Oiler |
Auto Power Recovery |
|

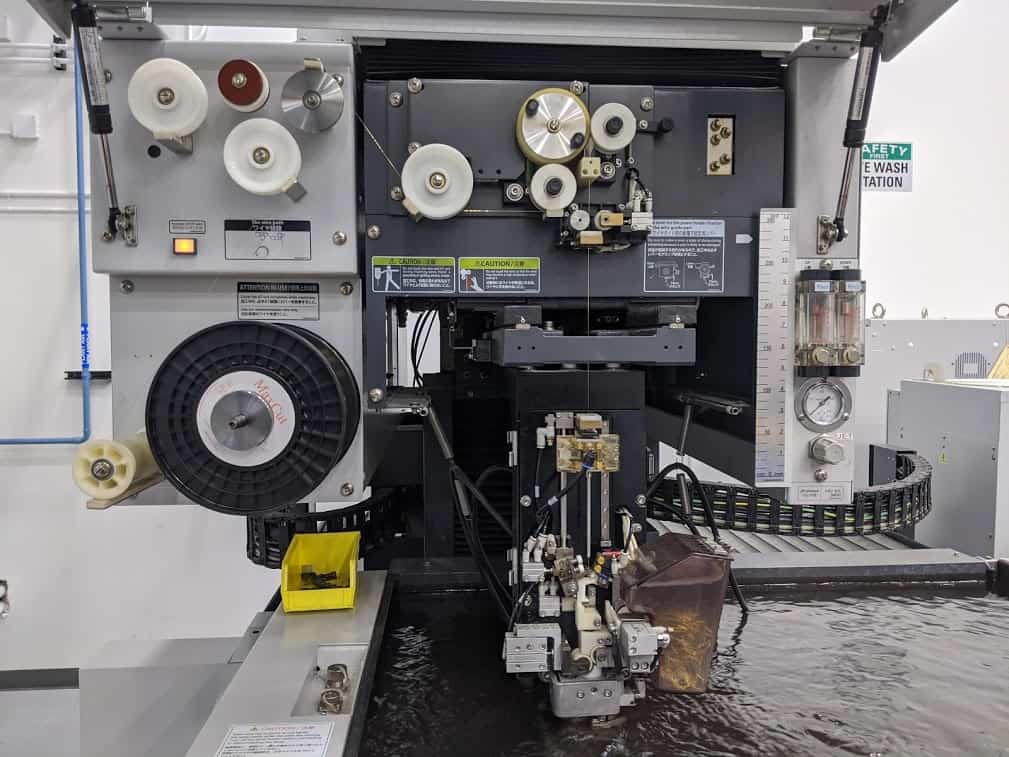

Auto Wire Threading |
Chiller Unit |
|
Fast Fill Pump |
15” LCD Touch Screen |
|
16-Step Programmable Flushing |
Wire Alignment Gauge |
|

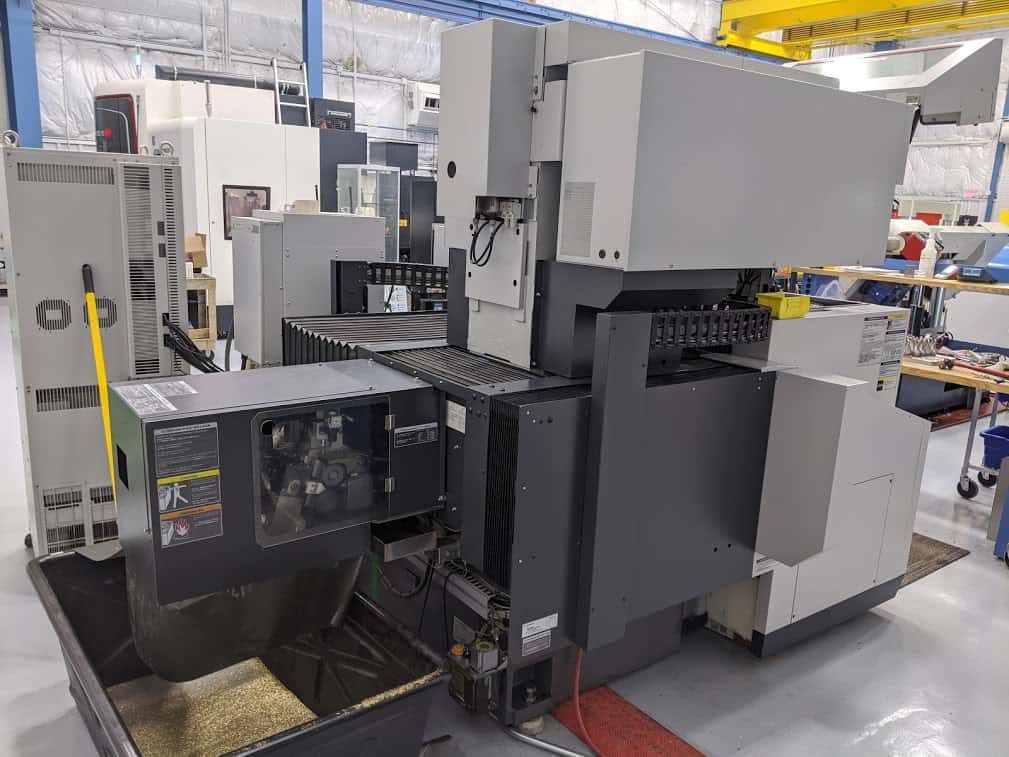

Wire Chopper |
4-Sided Table (One-Piece Hardened Stainless) |
|
40GB Hard Drive |
5 Micron Filter Precision |
|
Anti-Electrolysis Power Supply |
DNC Ethernet FTP |
|
Linear Scales |
Linear Shaft Motors |
|
Paper Cartridge Filter System |
X and Y Glass Scale Feedback |
