Year |
2014 |
|---|---|
Make |
Bystronic |
Model |

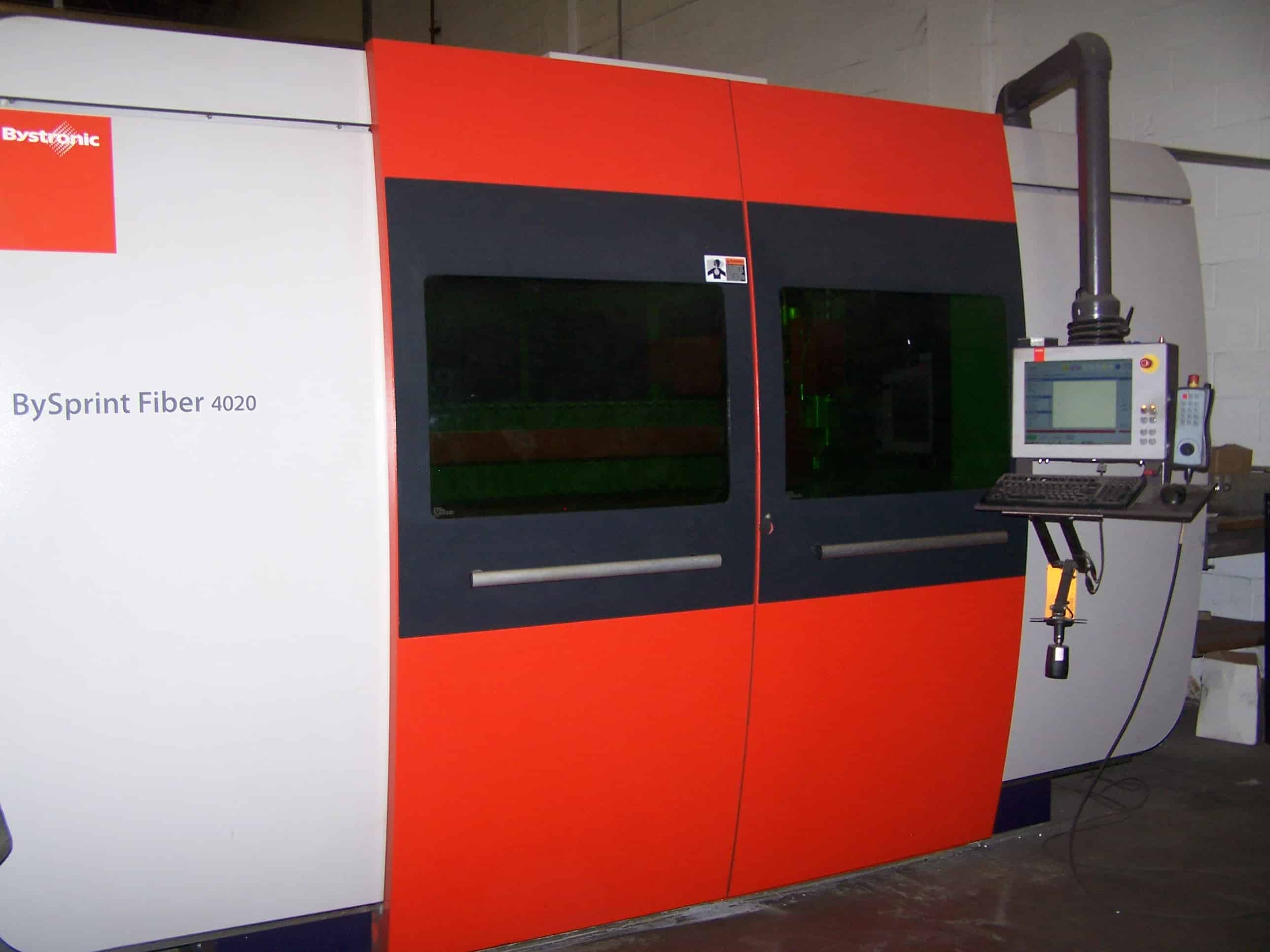

BySprint Fiber 4020 |
Description |
6' x 12' CNC Fiber Laser |
Reference # |
8068523 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |

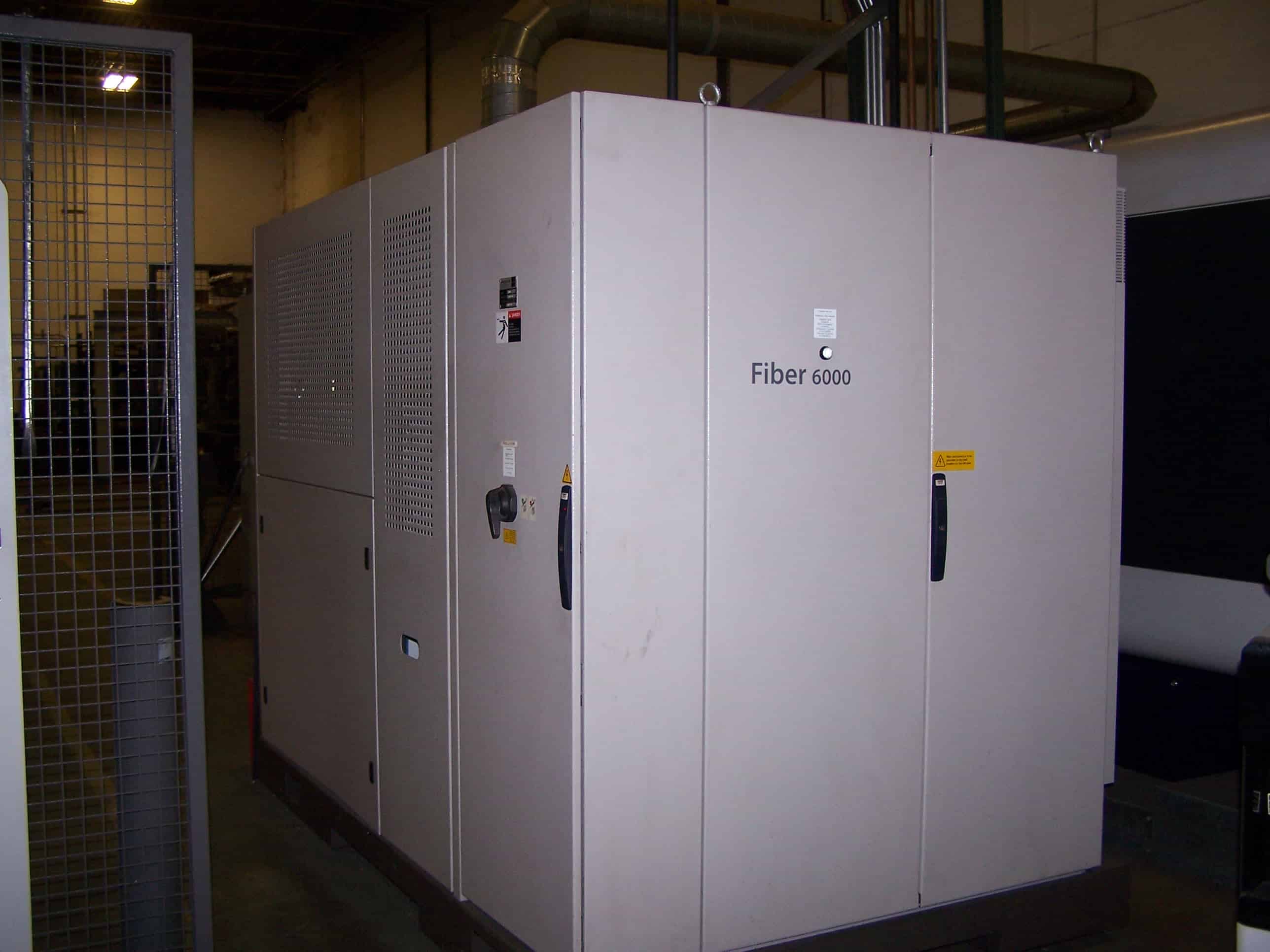

| Max Wattage |
6,000 |
| Control |
ByVision CNC Control |
| Hours |
13,000 |
| Power Requirement |
460/3/60 |
| Nominal Sheet Size (X-Axis) |
157.48" |
| Nominal Sheet Size (Y-Axis) |
78.74" |
| Cutting Area (X-Axis) |
160" |
| Cutting Area (Y-Axis) |
80" |
| Cutting Area (Z-Axis) |
2.75" |
| Maximum Sheet Weight |
2,800 Lbs |
| Max. Material Thickness - Mild Steel |
0.750" |
| Max. Material Thickness - Stainless |
0.625" |
| Max. Material Thickness - Aluminum |
0.625" |
| Max. Material Thickness - Copper |
0.394" |
| Max. Material Thickness - Brass |
0.394" |
| Maximum Postioning Speed Parallel |
3,37 IPM |
| Max. Simultaneous X/Y Speed |
5,511 IPM |
| Approximate Overall Dimensions |
493" x 213" x 95" |
Features
|
Pointed Copper Grates |

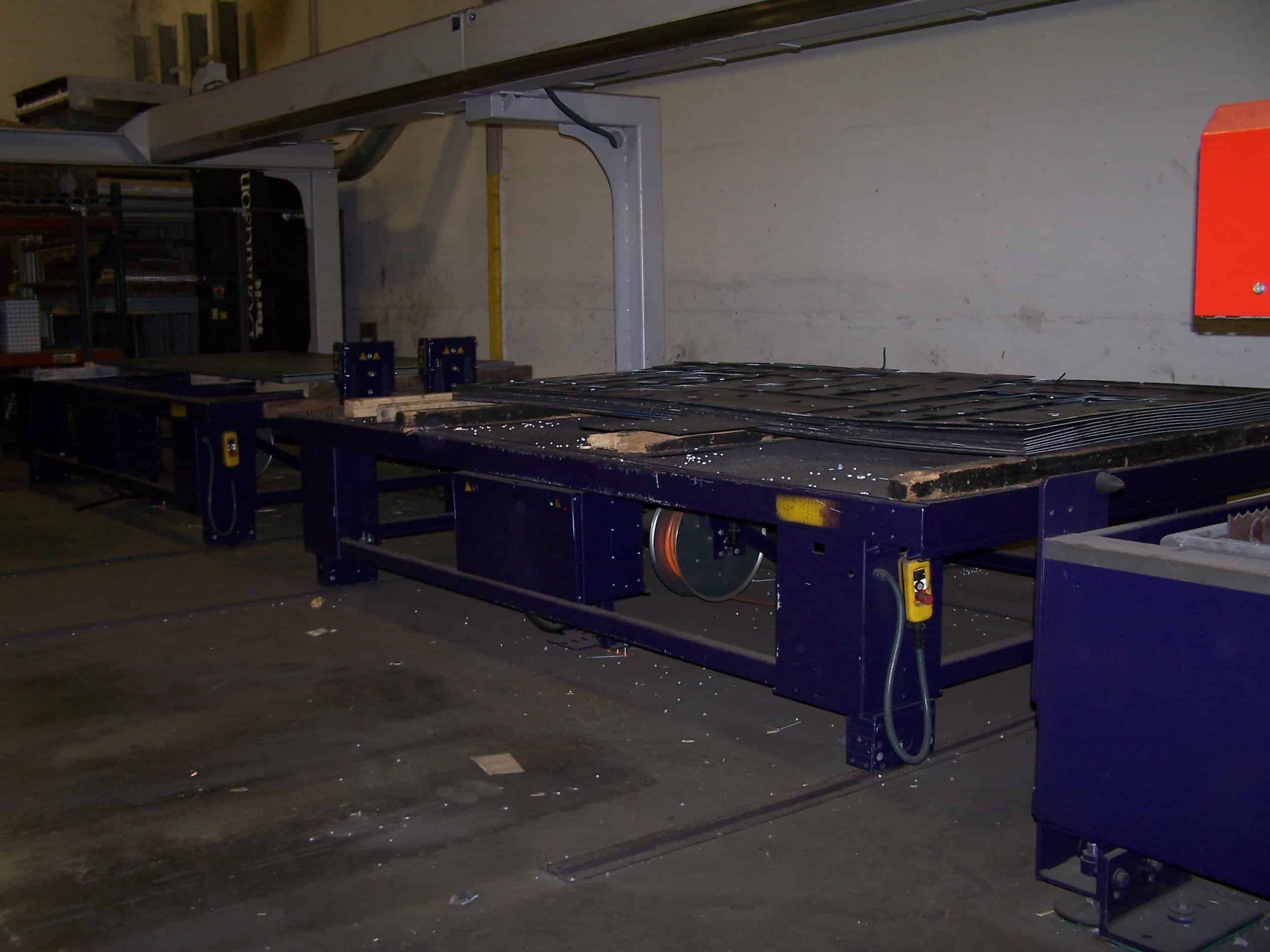

Dual Pallet Shuttle Tables |
|
Dust Collector |
Under Power |
|
Automatic Nozzle Changer with 40 Positions |

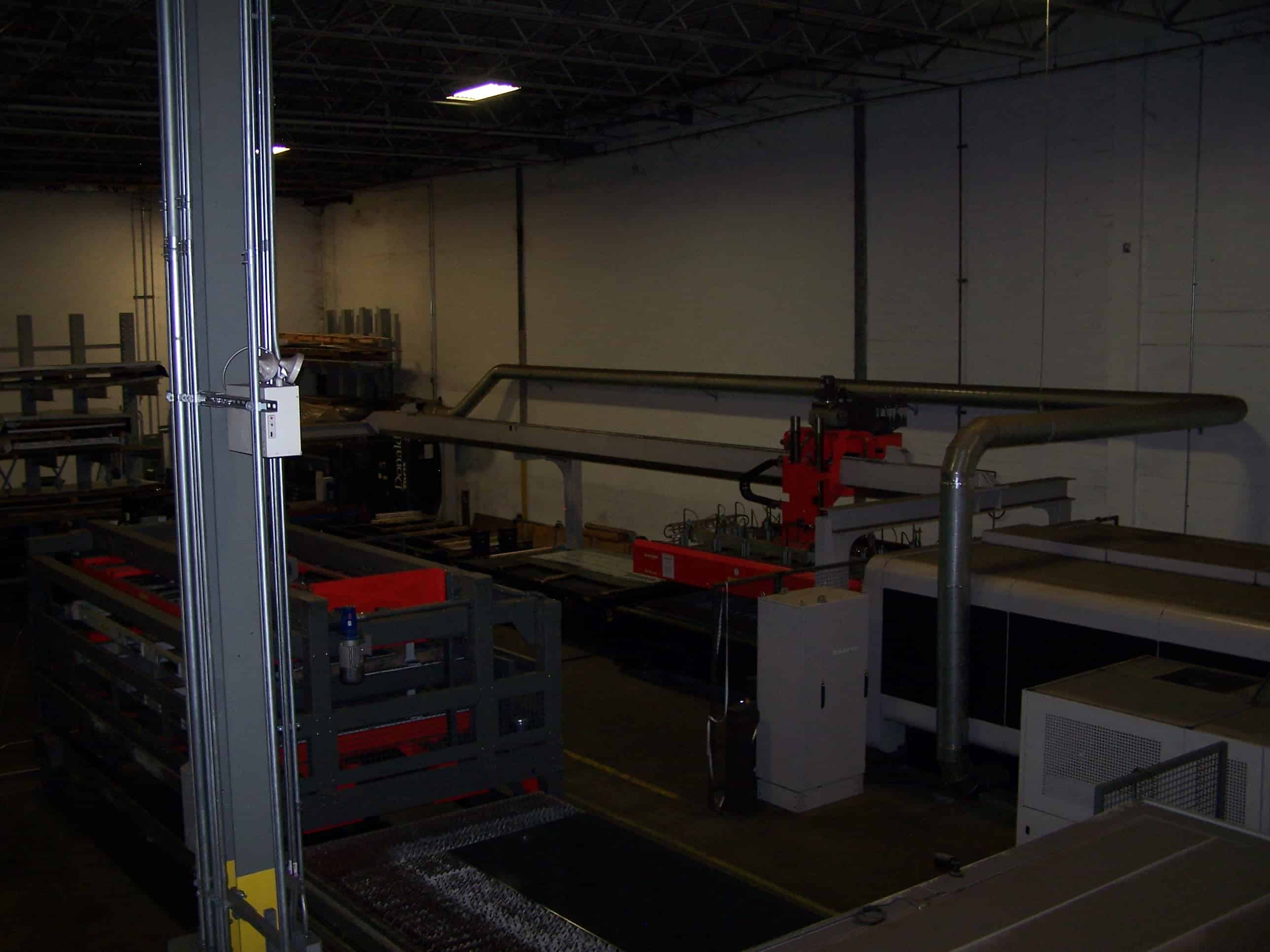

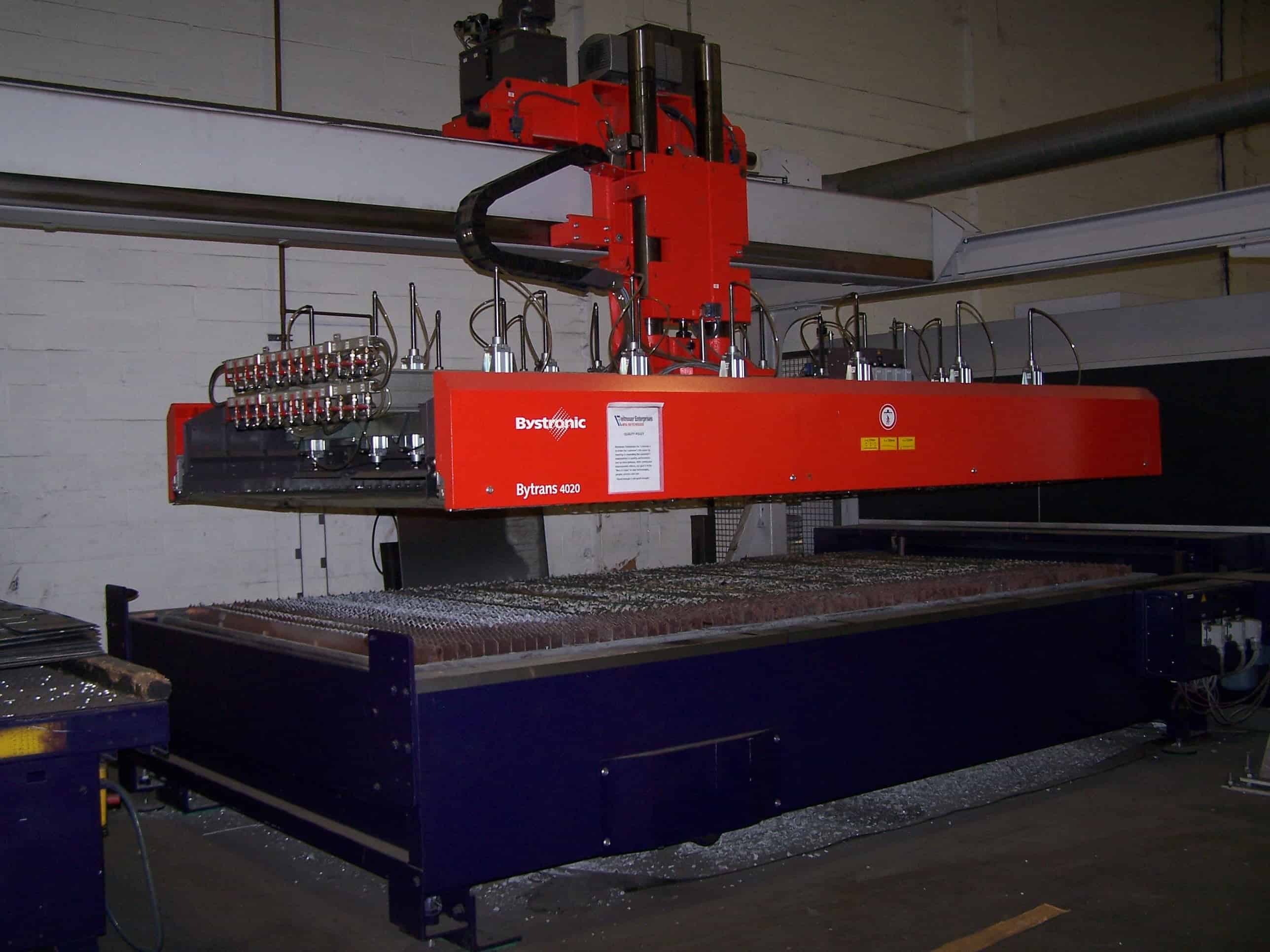

Byloader Gantry Crane With Powered Shuttle Tables Load/Unload |
|
Collection Bins Under Laser Cutting Area |

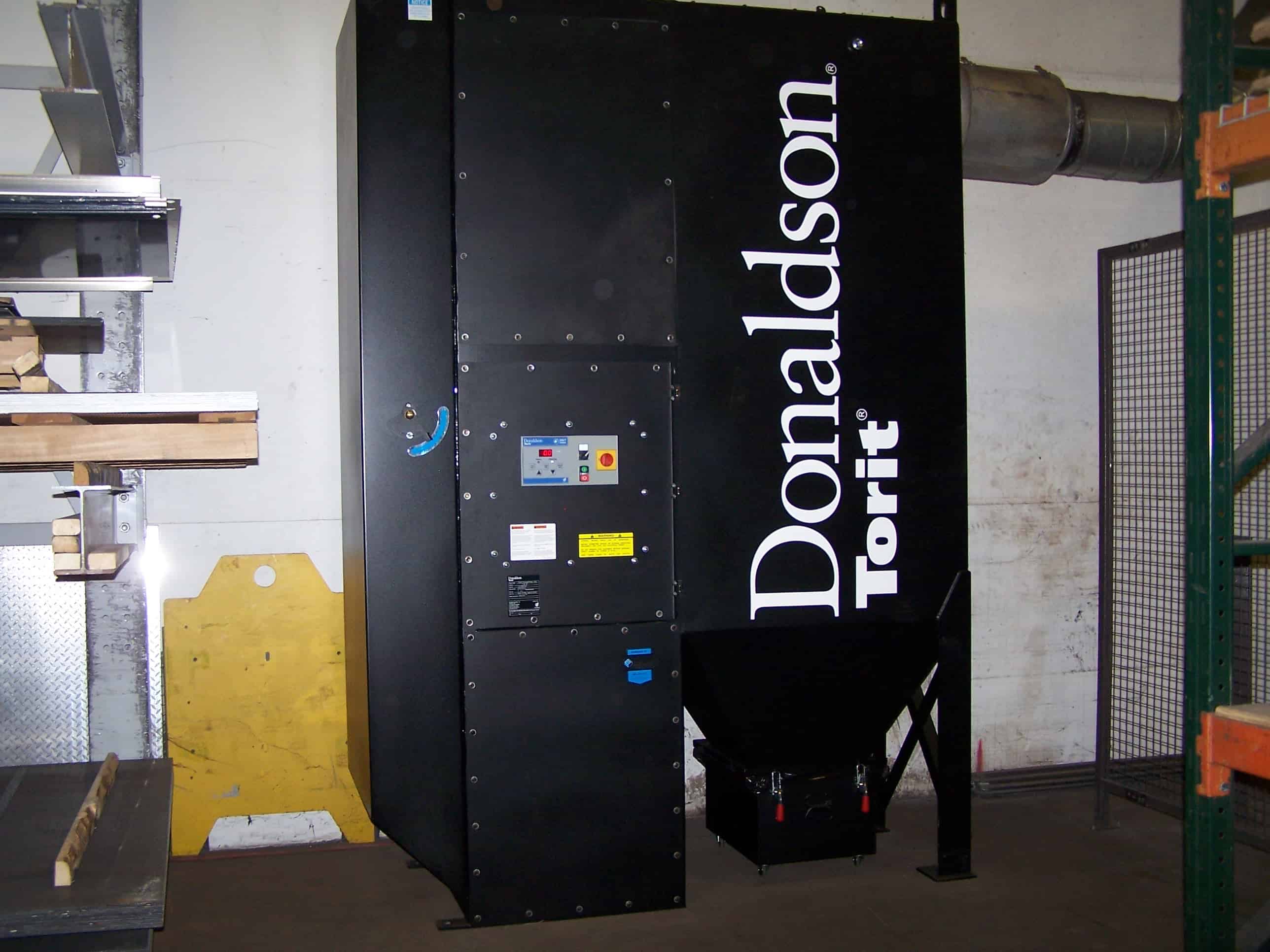

Donaldson TG-6 Dust Collection System Indoor/Outdoor Version |
|
New (7) Laser Modules Replaced June 2019 |
New Cutting Head Replaced June 2019 |
*
