Year |
2013 |
|---|---|
Make |
Southwestern |
Model |
Trak DPMSX2P |
Description |
Knee Mill |
Reference # |
8078662 |
Price |
Activate Pricing |

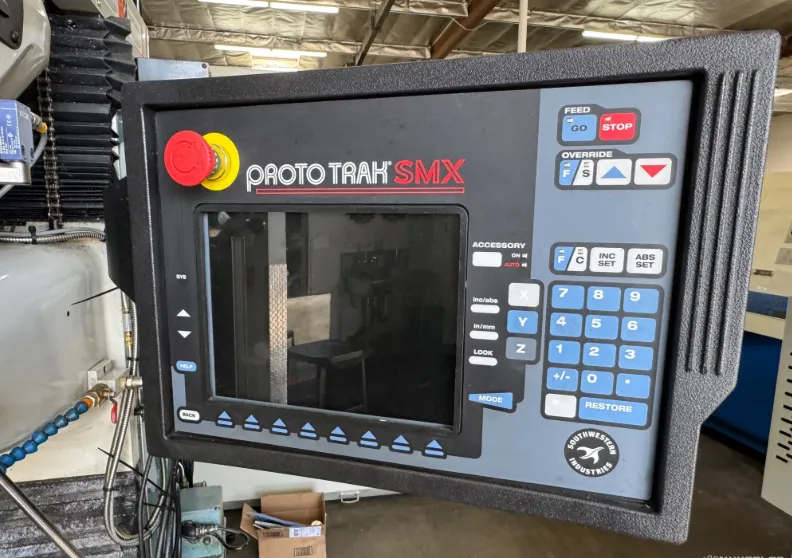

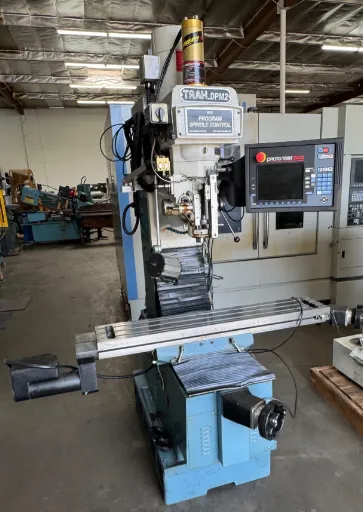

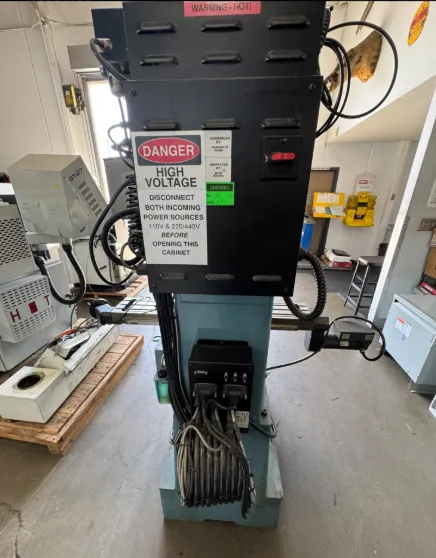

Used Southwestern Trak DPMSX2P (2013) CNC Vertical Machining Center for Sale. This bed mill offers 32″ of X-axis travel, 16″ in Y and 27″ in Z, with a maximum quill travel of 5″. The 3 HP spindle turns to 4,200 RPM and uses an R8 taper. Control is the Prototrak SMX CNC three-axis system, and the machine is equipped with electric handwheels and a power draw bar. Maximum workpiece weight is 1,320 lbs. The machine itself weighs 3,500 lbs with a footprint of 72″ x 64″ x 90″. It can be seen under power for an inspection prior to purchase. See more CNC vertical machining centers in stock, use Activate Pricing to view the price, or Request a Quote and we will follow up with details.
Specifications
| X-Axis Travel |
32" |
|---|---|
| Y-Axis Travel |
16" |
| Z-Axis Travel |
27" |
| Spindle Speed |
4,200 RPM |
| Spindle Taper |
R8 |
| Spindle Motor |
3 HP |
| Control |
Prototrak SMX CNC |
| Max Quill Travel |
5" |
| Max Workpiece Weight |
1,320 Lbs |
| Weight |
3,500 Lbs |
| Dimensions |
72" x 64" x 90" |
Features
|
Electric Handwheels |

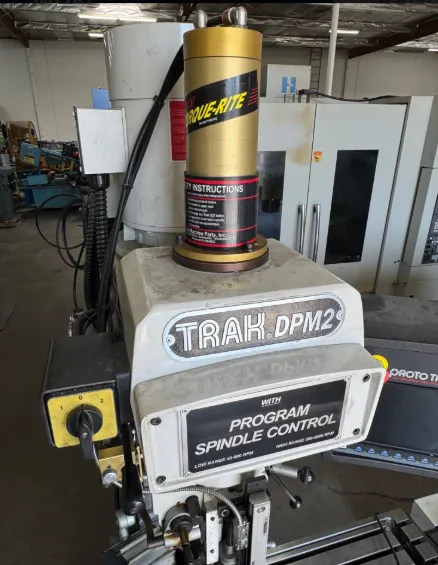

Power Draw Bar |
|
Prototrak SMX (3) Axis Control |
