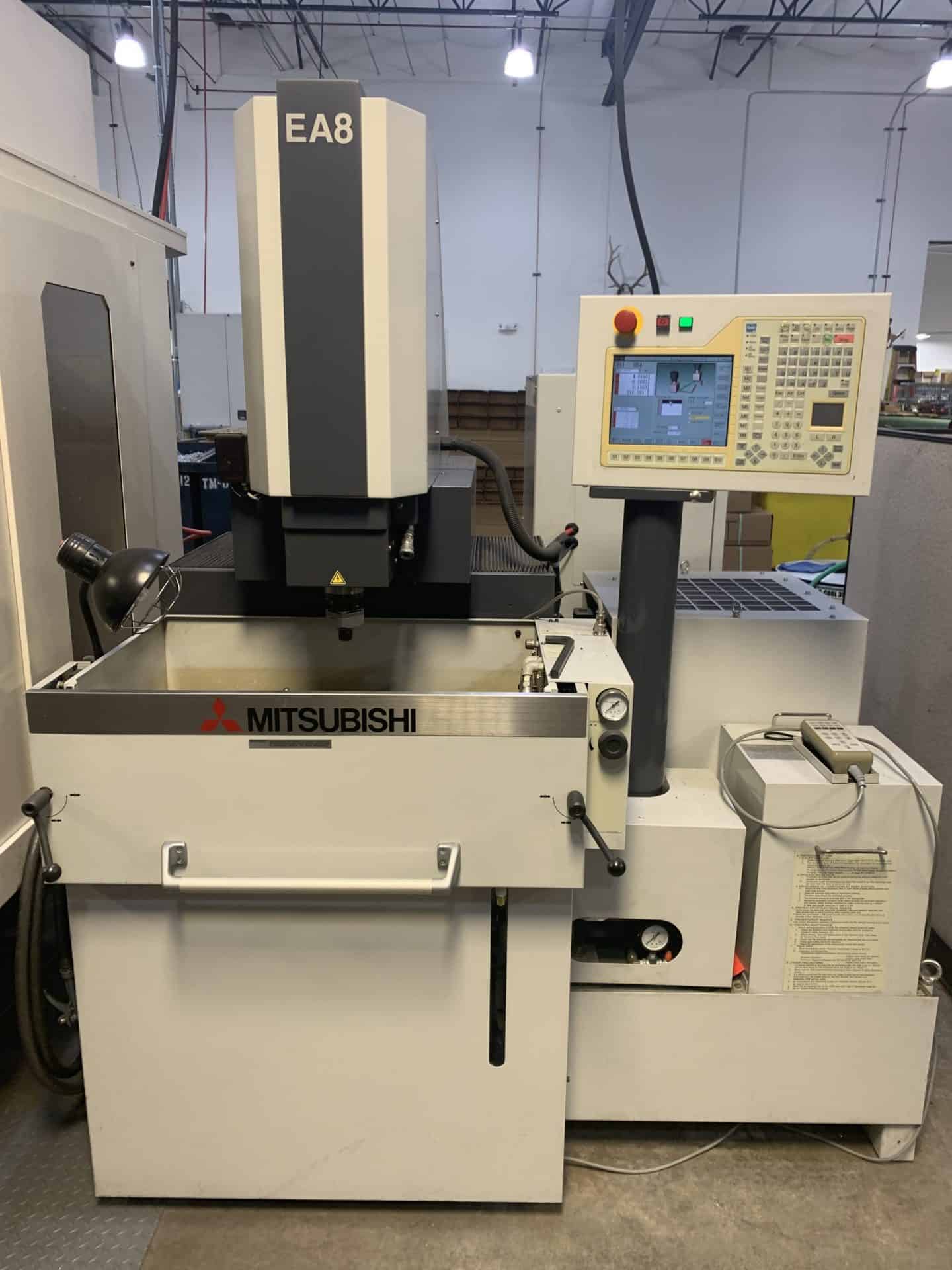

Year |
2013 |
|---|---|
Make |
Mitsubishi |
Model |
EA8 |
Description |
EDM Sinker |
Reference # |
8069014 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
9.8" |

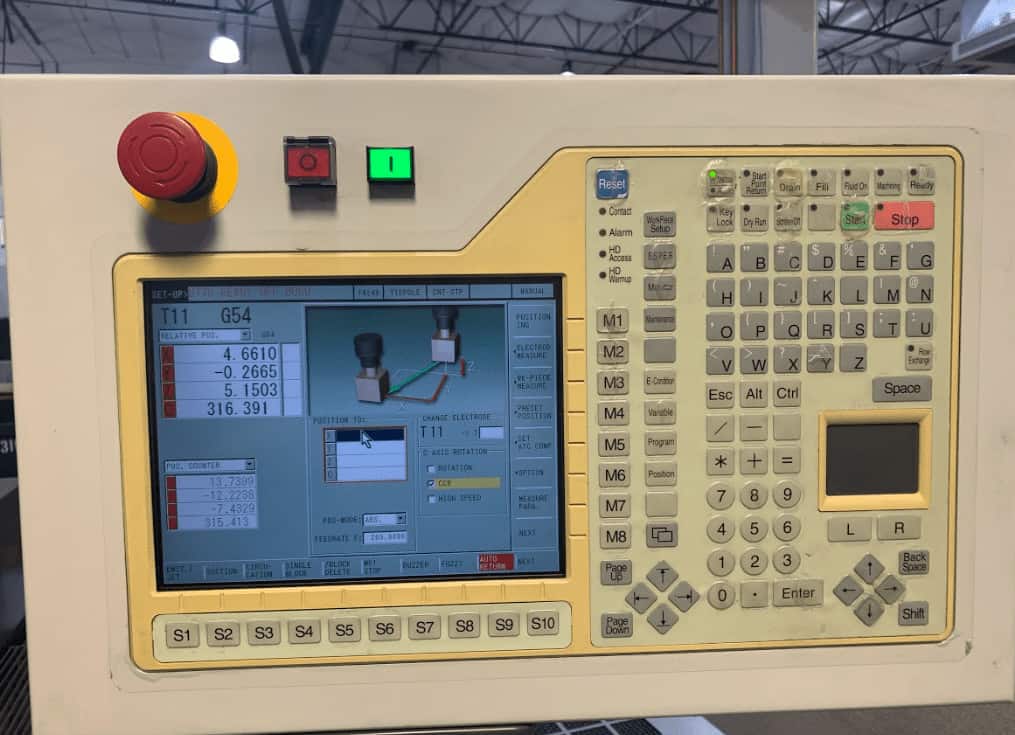

| Control |
M700 PC |
| Power Source |
80 AMP |
| C-Axis |
Yes |
| Chuck |
3R |
| Power Requirement |
200/220/3/60 |
| Inside Tank Dimensions |
30.3" x 19.6" x 9.8" |
| Max Electrode Weight |
55 Lbs. |
| Max Workpiece Weight |
1,200 Lbs. |
| Measurement Resolution |
.000004" |
| Dielectric Capacity |
51 Gallons |
| Rapid Speeds |
78.7"/Min. |
| Machine Tool Dimensions |
64" x 67.5" x 79.5" |
| Machine Weight |
5,000 Lbs. |
Features
|
Dielectric Fluid Emission |

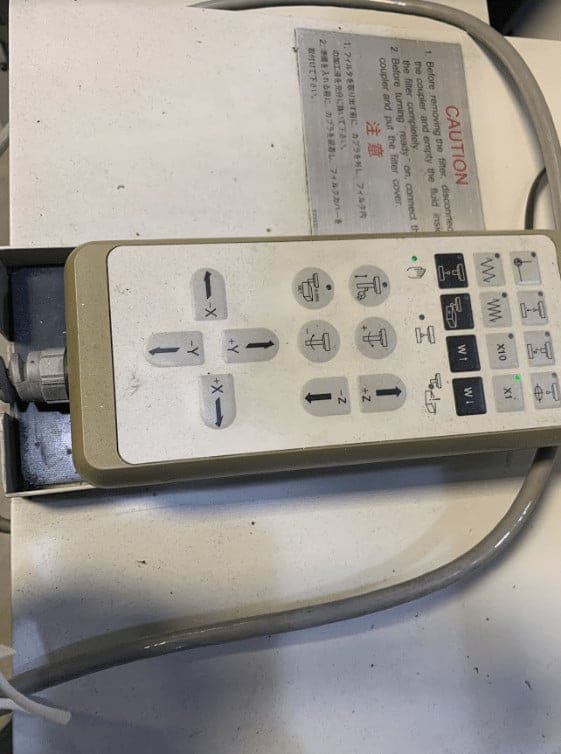

Remote Pendant |
|

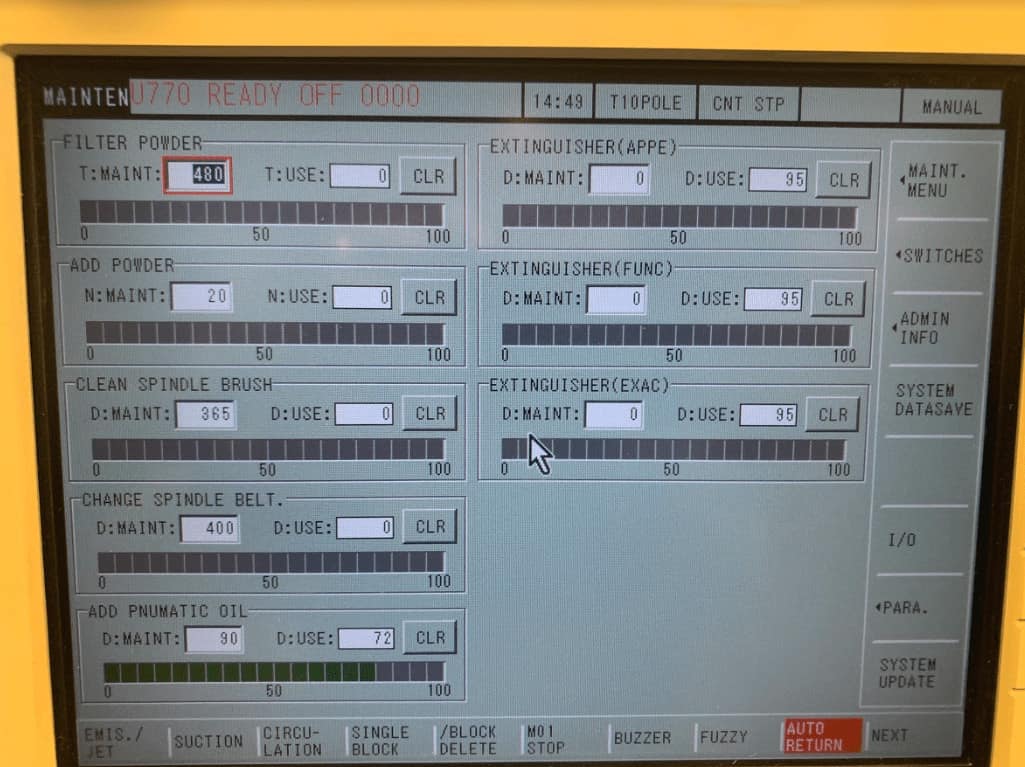

10.4" LCD Display |
3.5FDD & USB Flash Memory |
|
SS Jump 5 (High-Speed Jump Stabilization System) |
40 Gig Hard Drive |
|
System 3R Macro C-Axis |
Delectric Oil Radiator Cooler |
|
DNC Hardware Ethernet FTP |
Fuzzy Pro-3 Plus |
|
Manual Vertical Drop Door |
X-Y Encoder/Z Linear Scale Glass Scale Feedback |
