Year |
2013 |
|---|---|
Make |
Hyundai Wia |
Model |
L230LMSA |
Description |

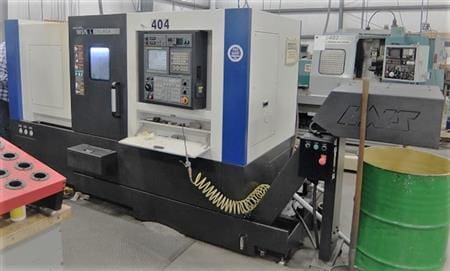

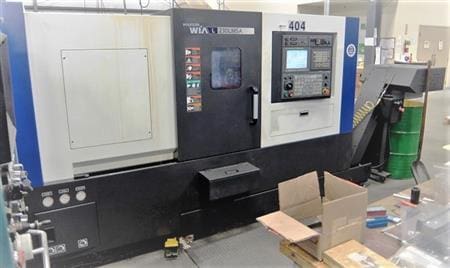

CNC Lathe |
Reference # |
8069429 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.6" |
| Swing |
21.7" |
| Turning Diameter |
N/A |
| Spindle Speed |
4,000 RPM |
| Control |
Fanuc 0iTD |
| Distance Between Centers |
20.5" |
| Turret |
12 Station |
| Live Tooling |
Milling |
| Sub-Spindle |
6" Sub Spindle |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
220V / 3 PH |
Features
|
(2) Eppinger Live Tool Holders 1 Axial & 1 Radial Unit Both Like New with Almost No Use |
(2) Foot Pedals |
|
Barfeed Interface |
(2) OD Double Holders |
|
(2) Operator’s Manuals for Control System |
(4) OD Single Holders |
|
(5) ID Holders |
Ethernet Interface |
|
Front Door Interlock |
RS 232 Port Interface |
|
Parts Catcher |
Spindle Load Meter |
|
Work Light |
(1) Instruction Manual |
|
(1) Maintenance Manual |
(1) Operator's Manual for Lathe System |
|
(1) Parameter Manual |

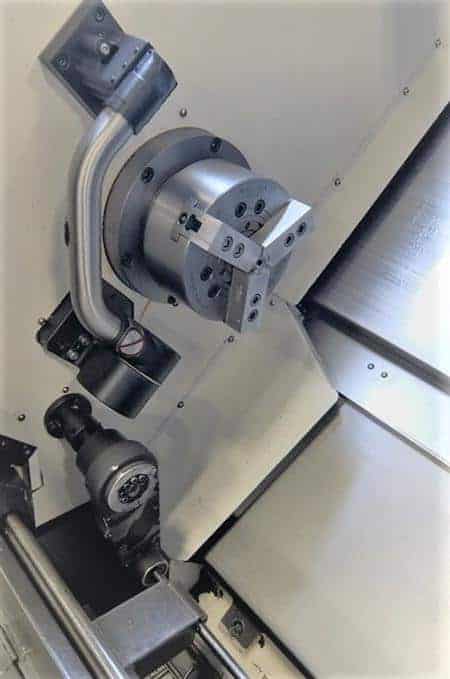

6" 3 Jaw Hydraulic Chuck on Subspindle |
|
8.4" Color LCD Monitor |
8" 3 Jaw Hydraulic Chuck on Main Spindle |
|
USB Port Interface |
All Available Static Tooling |
|
Automatic Parts Catcher |
Chuck Open/Close Confirmation |
|
Chuck Wrenches for Both Hydraulic Chucks |
Complete Coolant System w/ Tank & Pump |
|
Custom Macro B & Variables 200 ea. |

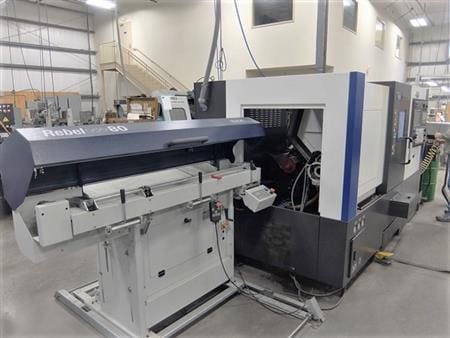

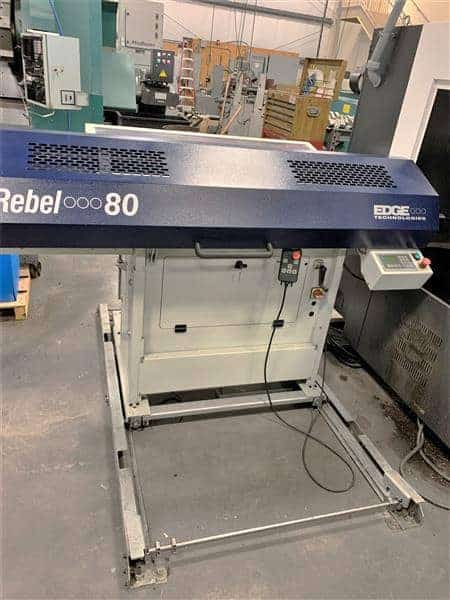

Edge Rebel 80 Short Magazine Barfeed |
|
Full C Axis on Main and Subspindle |
High Pressure Coolant (6 Bar) |
|
Live Milling/Drilling Capability |
Manual Tool Presetter |
|
Operation Status Light |
Parts Ejector for Subspindle |
|
Work Counter B |
