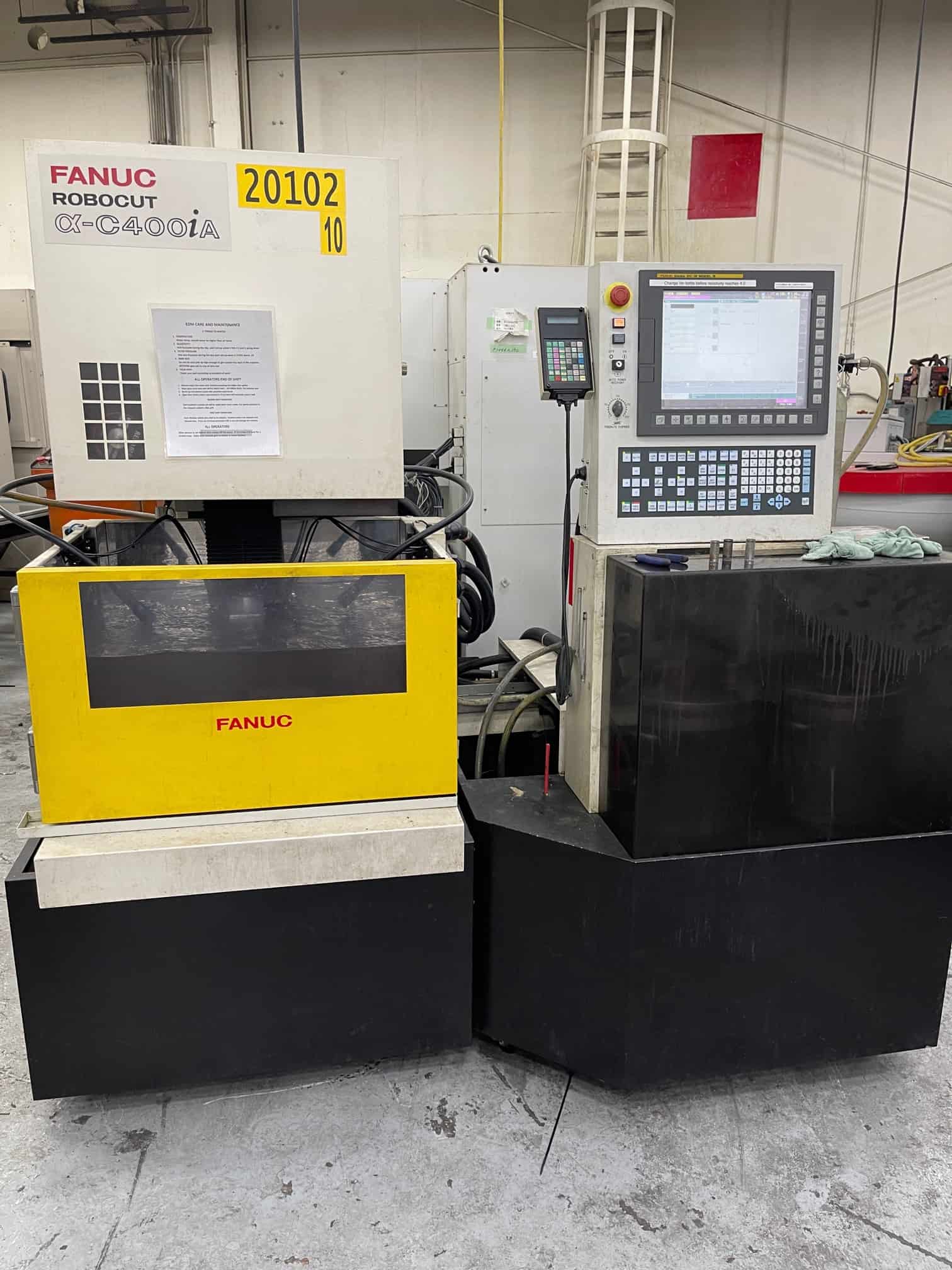

Year

2013

Make

Fanuc

Model

Robocut a-C400iA

Description

EDM Wire

Reference #

8070521

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

X-Axis Travel

14.6"

Y-Axis Travel

10.6"

Z-Axis Travel

10"

Control

Fanuc 31i-WB

U/V Axis Travel

2.36" x 2.36"

Degree Taper Cutting

30 Degree at 3.3"

Inside Tank Dimensions

30.5" x 23.6"

Power Requirement

200-220/3/60

Glass Scale Feedback

.00000004 Rotary

Machine Weight

4,000 Lbs

Machine Footprint

76" x 87" x 77" H

Dielectric Capacity

145 Gallons

Positioning Accuracy

+/- .0001

Max Workpiece Size

30.5" x 23.6" x 10"

Max Submerged Depth

9.84"

Max Workpiece Weight

1,100 Lbs

Wire Diameter

.008" - .012"

Max Cutting Speed

.012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr

Note

No Wire Alignment Gauge, Transformers Not Included

Features

4MB Part Storage

AC Servo Drive Motors

Auto Wire Threading

Electric Chiller

Glass Scale Feedback

10-Second Automatic Threading

13KVA Total Power

15" Color LCD Touchscreen

RS232 Ethernet Interface

Submerged Cutting

Wire Chopper

AC & DC Generator Switchable

AIP2 Discharge Control

Built-in Conversational Programming

Electronic Manuals Available

Ethernet Connectivity

Fanuc Auto Wire Feed

Keyboard / USB / CF Card and Ethernet

X / Y / U / V / Z Servo Closed Loop System
