Year

2013

Make

Fanuc

Model

Robocut a-C400iA

Description

EDM Wire

Reference #

8078918

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

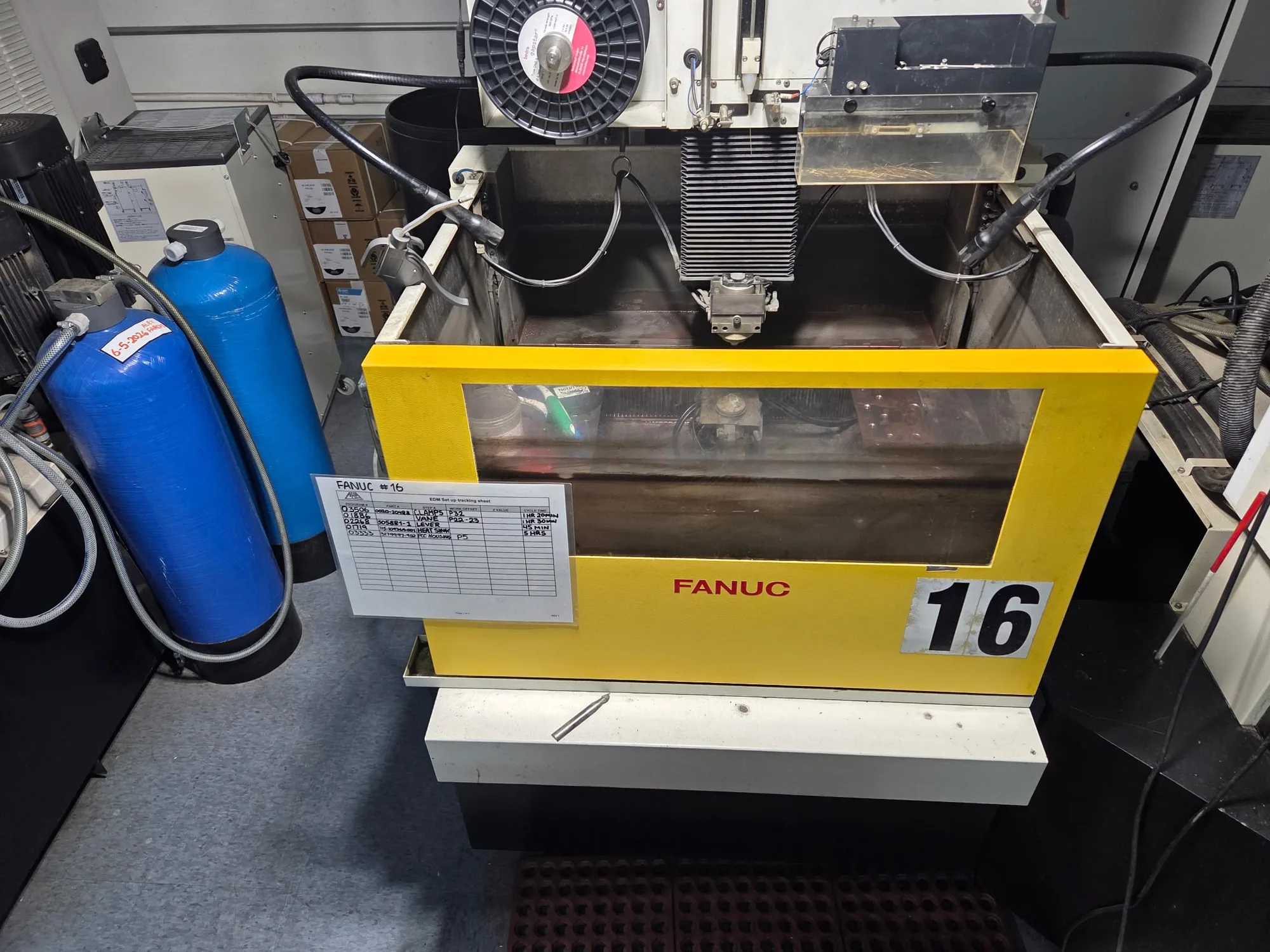

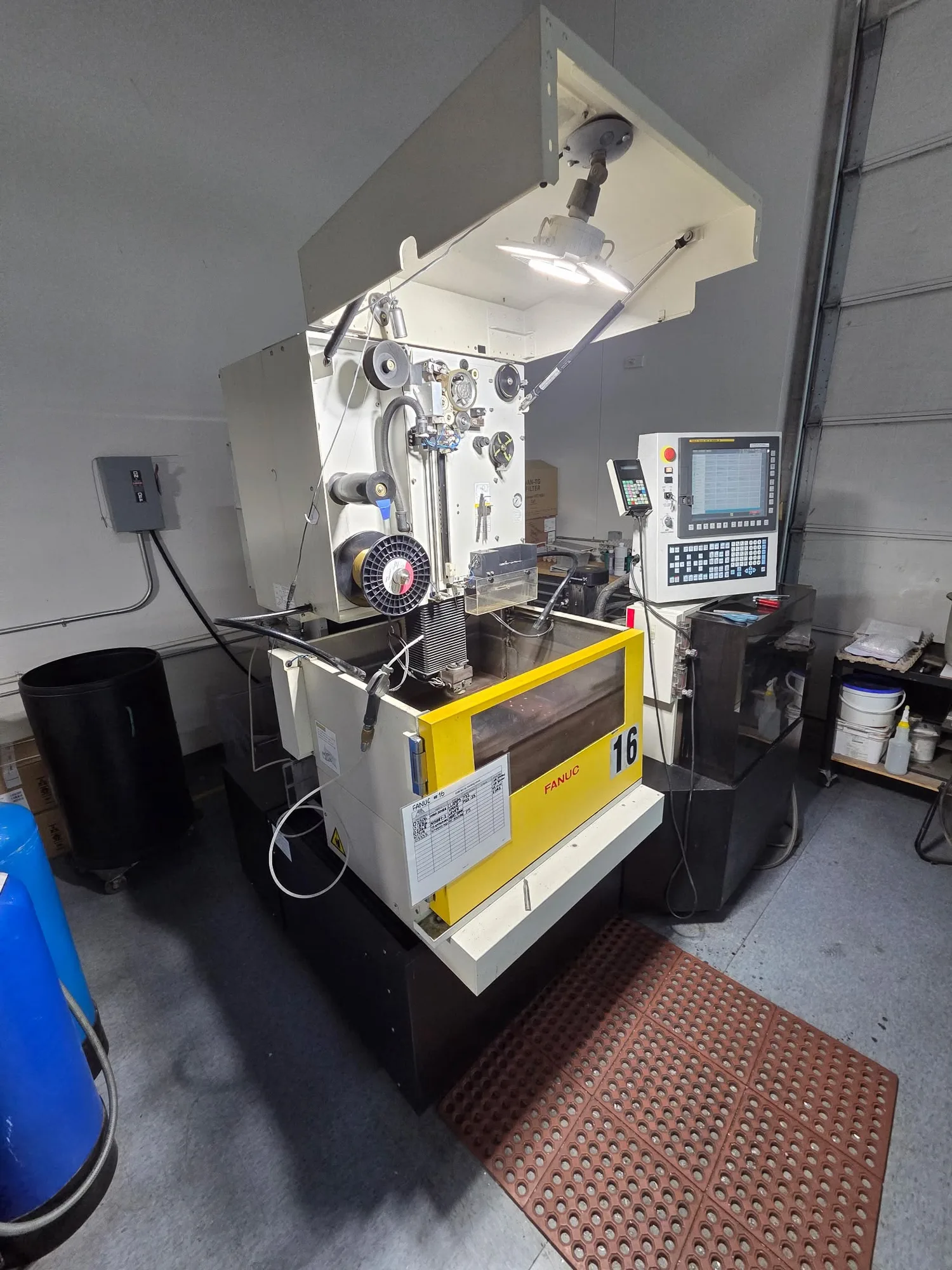

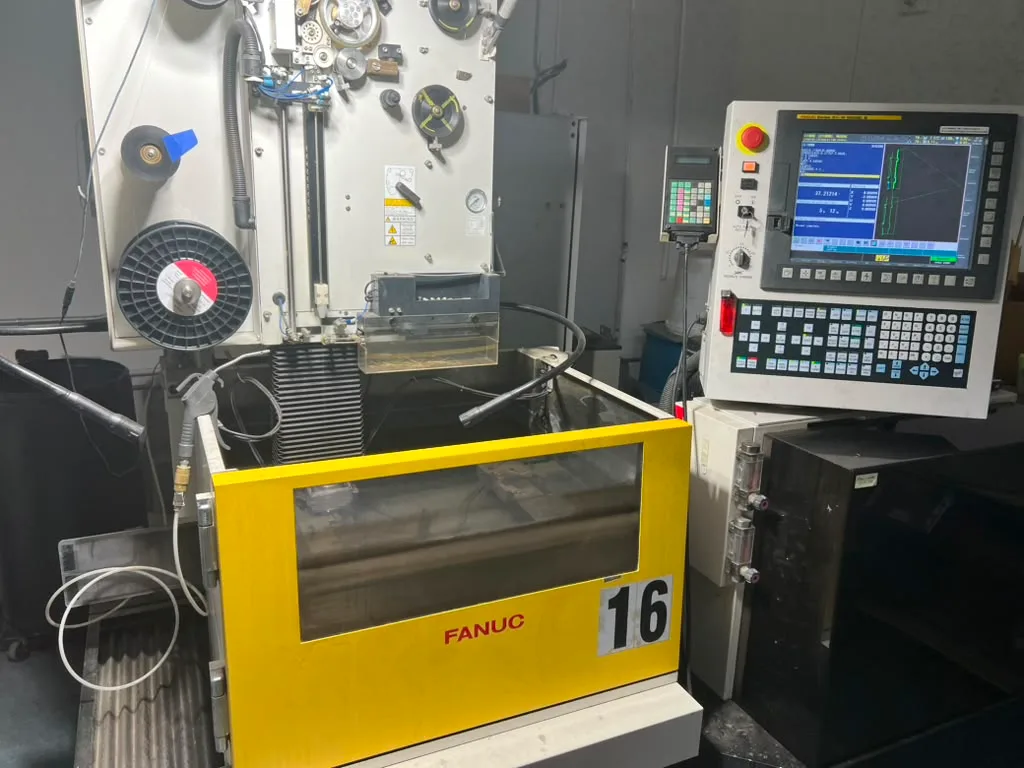

Used Fanuc Robocut a-C400iA (2013) EDM for Sale. This wire EDM runs a Fanuc 31i-WB control with 14.6″ X, 10.6″ Y and 10″ Z travel, plus 2.36″ x 2.36″ U/V travel and 30 degree taper cutting at 3.3″. Inside tank dimensions are 30.5″ x 23.6″, with a maximum workpiece of 30.5″ x 23.6″ x 10″ at up to 1,100 lbs and 9.84″ maximum submerged depth. Wire diameter range is .008″ – .012″, positioning accuracy is +/- .0001, and dielectric capacity is 145 gallons. Equipped with auto wire threading, submerged cutting, AC servo drive motors, rotary glass scale feedback, a 15″ color LCD touch screen and Ethernet connectivity. Power requirement is 200-220/3/60. No wire alignment gauge; transformers not included. Activate Pricing or use the Inquire Now button for details on this Fanuc machine.

Specifications

X-Axis Travel

14.6"

Y-Axis Travel

10.6"

Z-Axis Travel

10"

Control

Fanuc 31i-WB

U/V Axis Travel

2.36" x 2.36"

Degree Taper Cutting

30 Degree at 3.3"

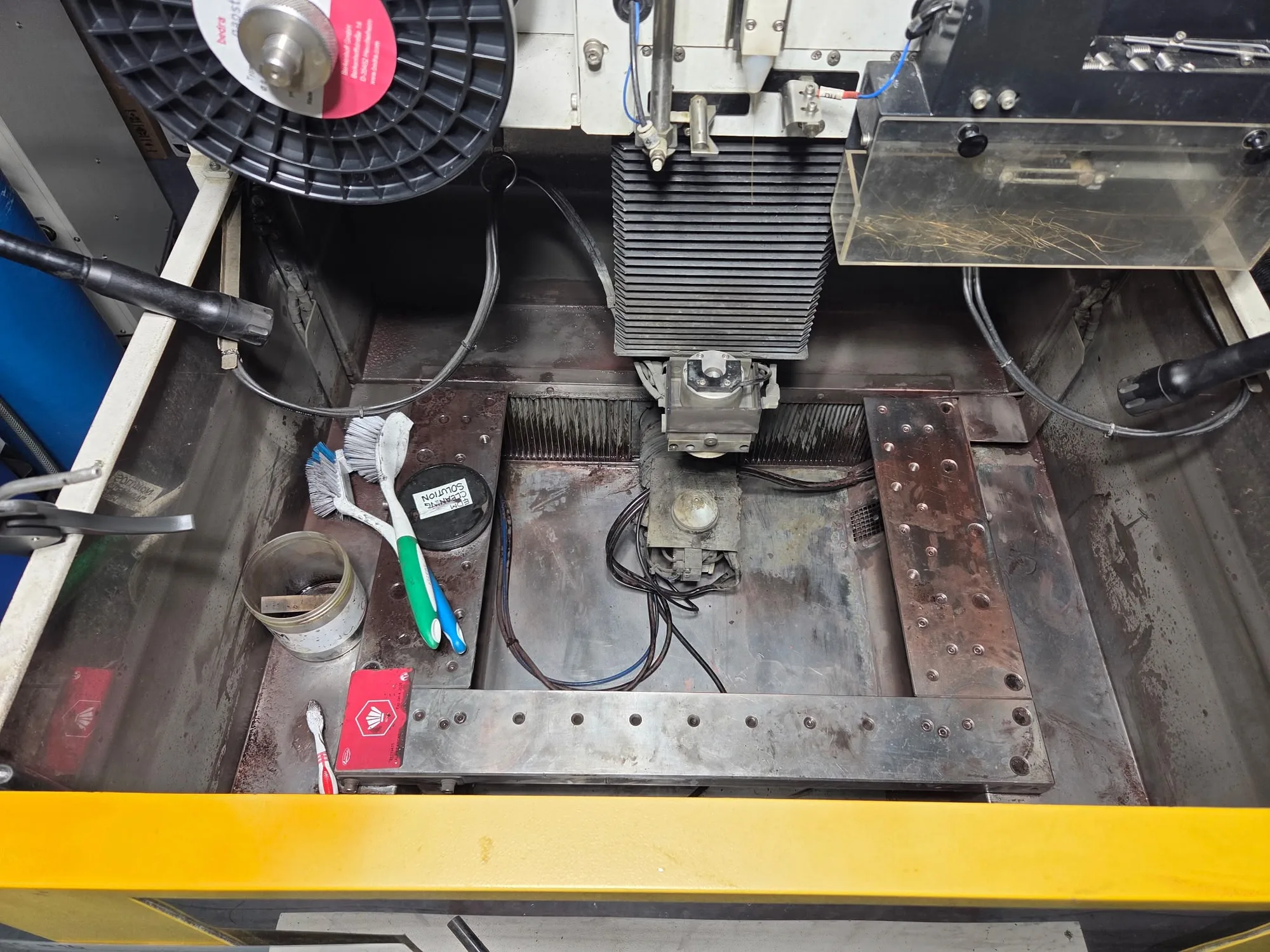

Inside Tank Dimensions

30.5" x 23.6"

Glass Scale Feedback

.00000004 Rotary

Max Workpiece Size

30.5" x 23.6" x 10"

Max Submerged Depth

9.84"

Max Workpiece Weight

1,100 Lbs

Wire Diameter

.008" - .012"

Max Cutting Speed

.012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr

Positioning Accuracy

+/- .0001

Dielectric Capacity

145 Gallons

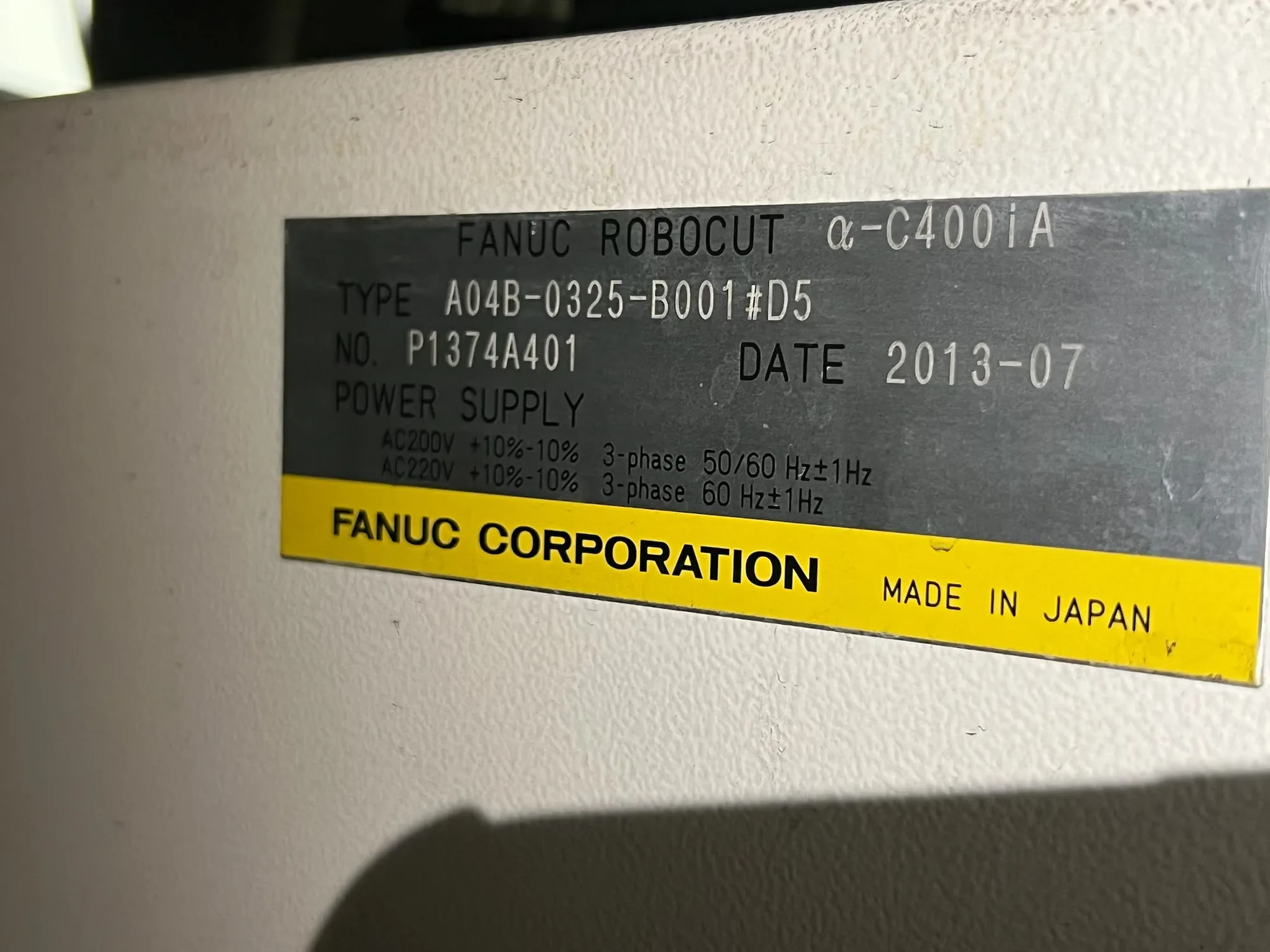

Power Requirement

200-220/3/60

Machine Footprint

76" x 87" x 77"H

Machine Weight

4,000 Lbs

Note

No Wire Alignment Gauge, Transformers Not Included

Features

AC &amp

DC Generator Switchable

4MB Part Storage

AC Servo Drive Motors

Auto Wire Threading

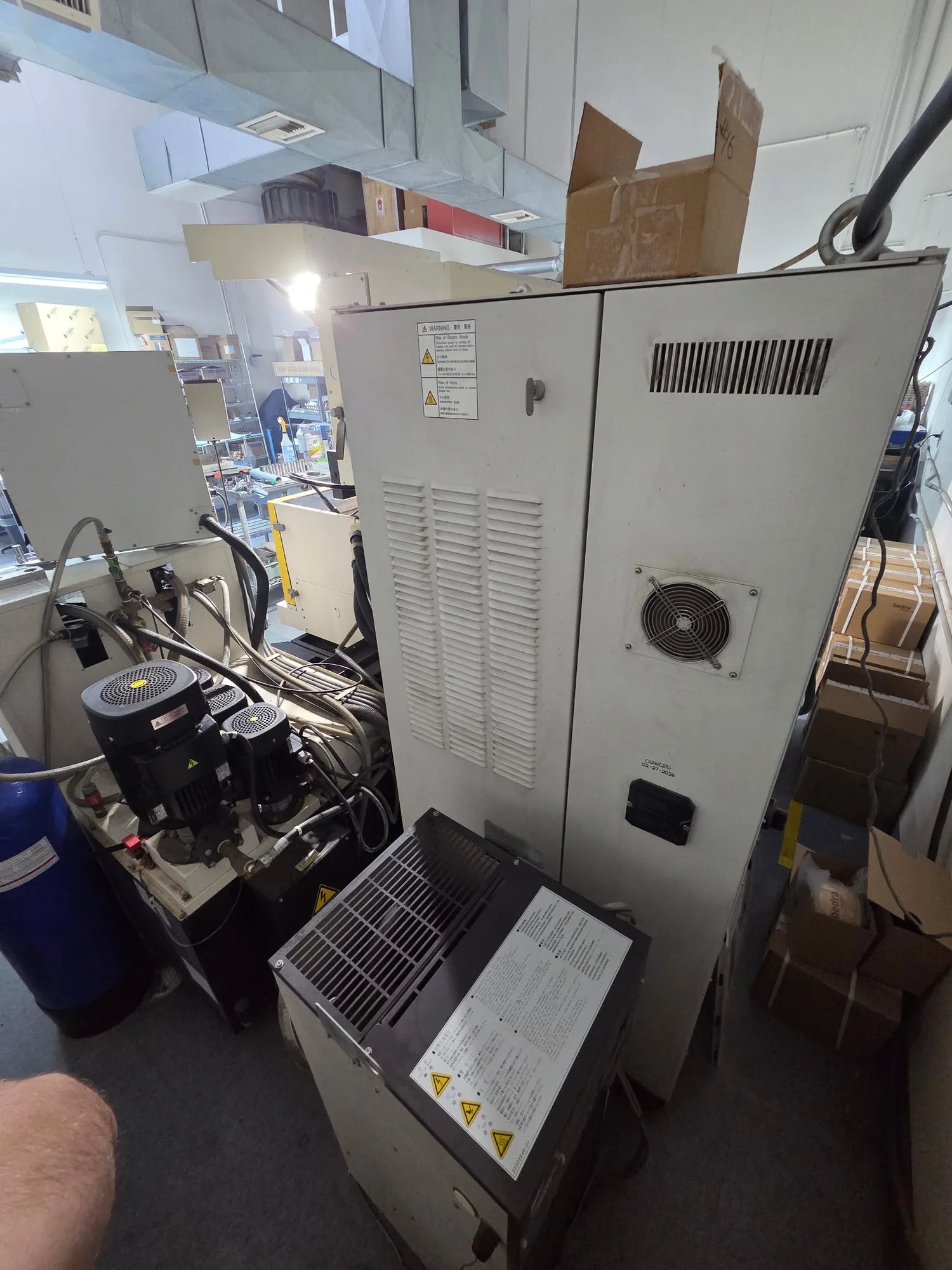

Electric Chiller

Electronic Manuals

10-Second Automatic Threading

13KVA Total Power

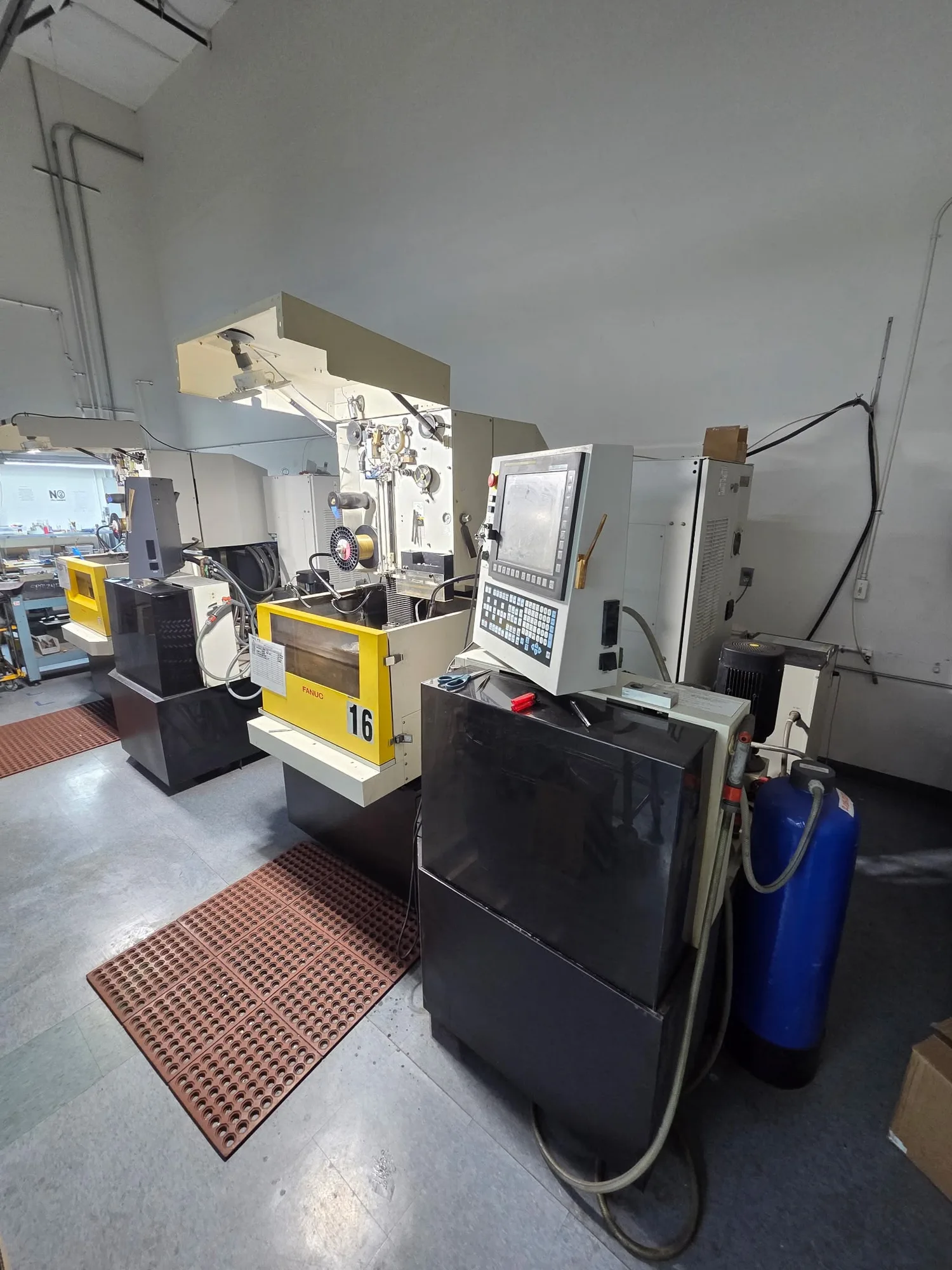

15" Color LCD Touch Screen

Rotary Glass Scale Feedback

RS232 Ethernet Interface

Submerged Cutting

AIP2 Discharge Control

Built-in Conversational Programming

Ethernet Connectivity

Fanuc Auto Wire Feed

Keyboard / USB / CF Card and Ethernet

X / Y / U / V / Z Servo Closed Loop System

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
