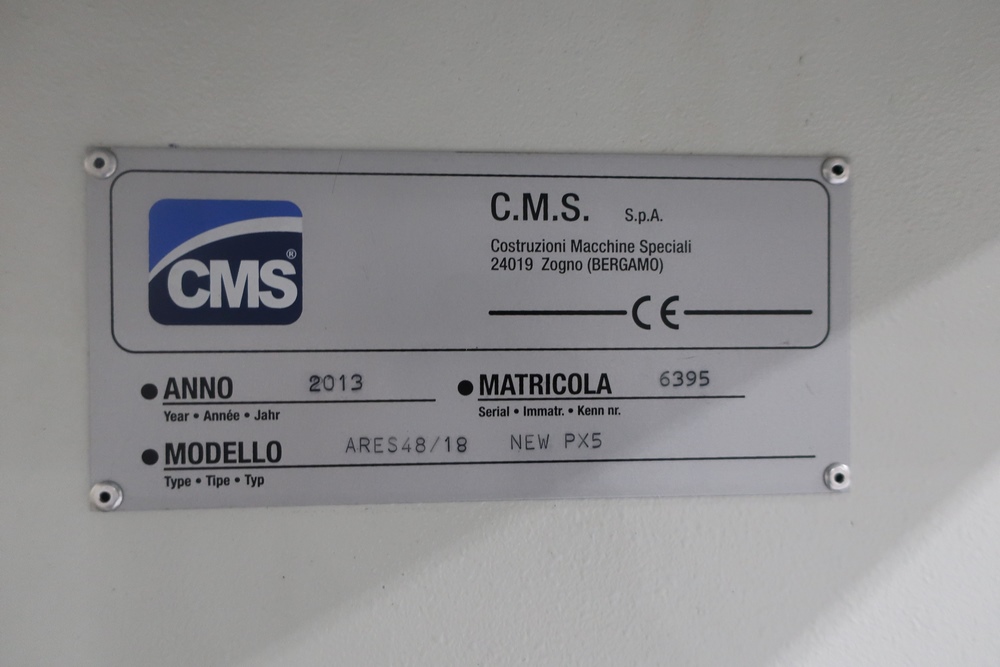

Year |
2013 |
|---|---|
Make |
CMS |
Model |
ARES-4818-PX5-Z1200 |
Description |
5 Axis CNC Router |
Reference # |
8075752 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

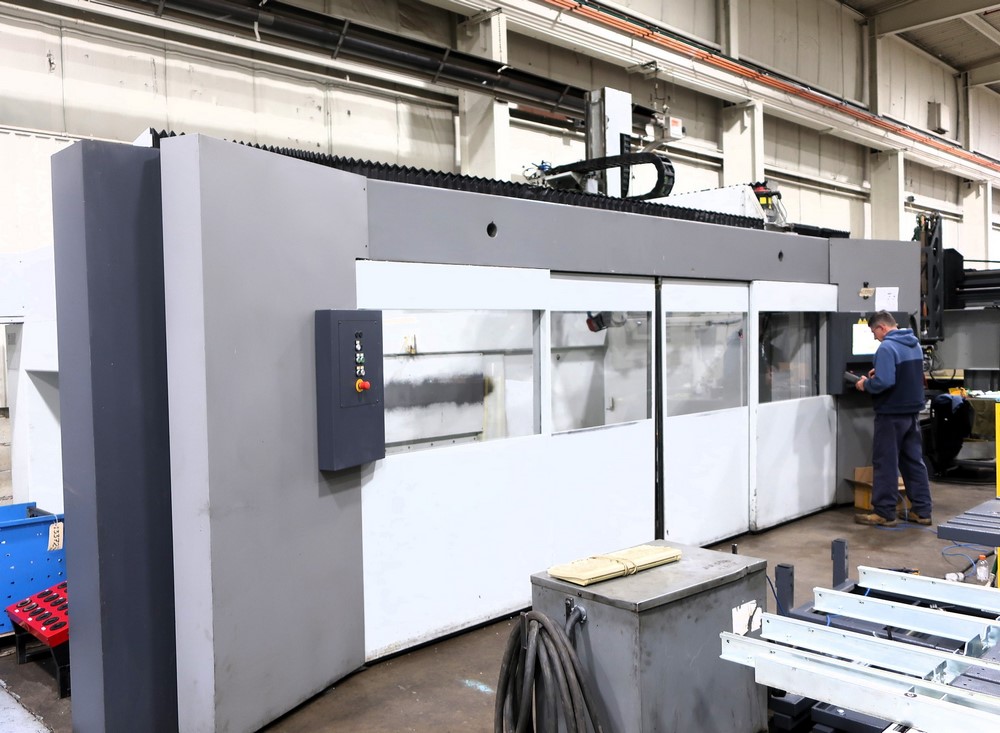

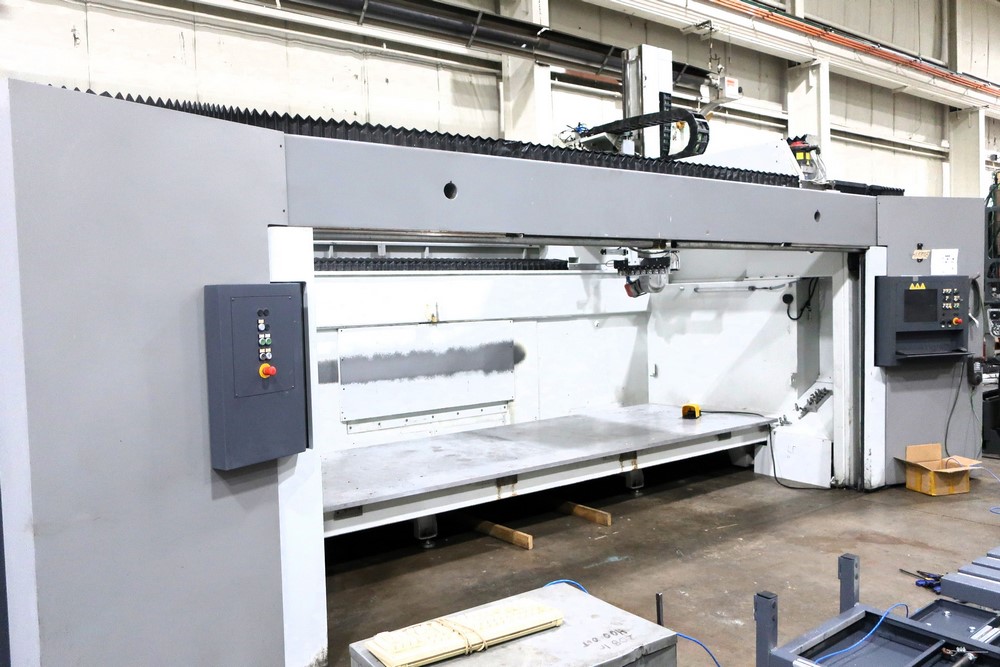

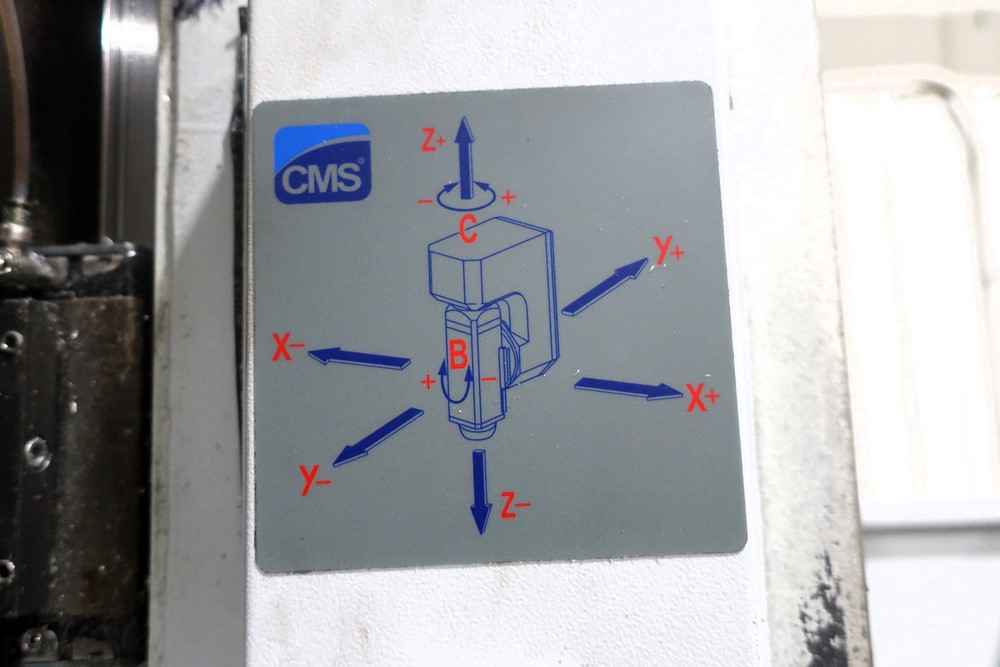

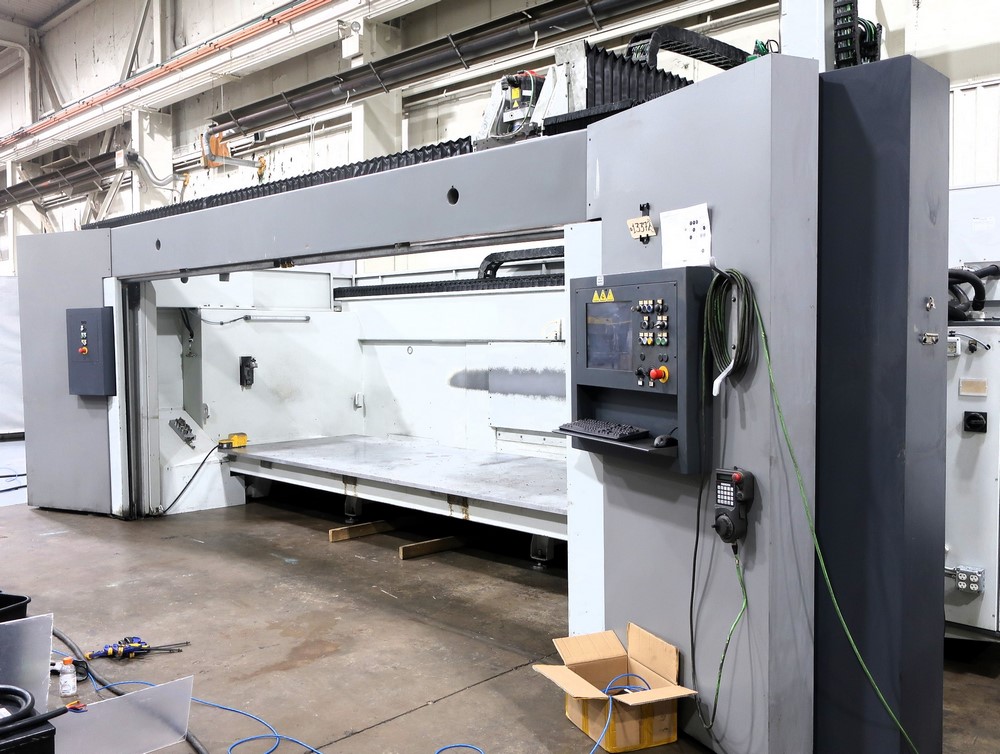

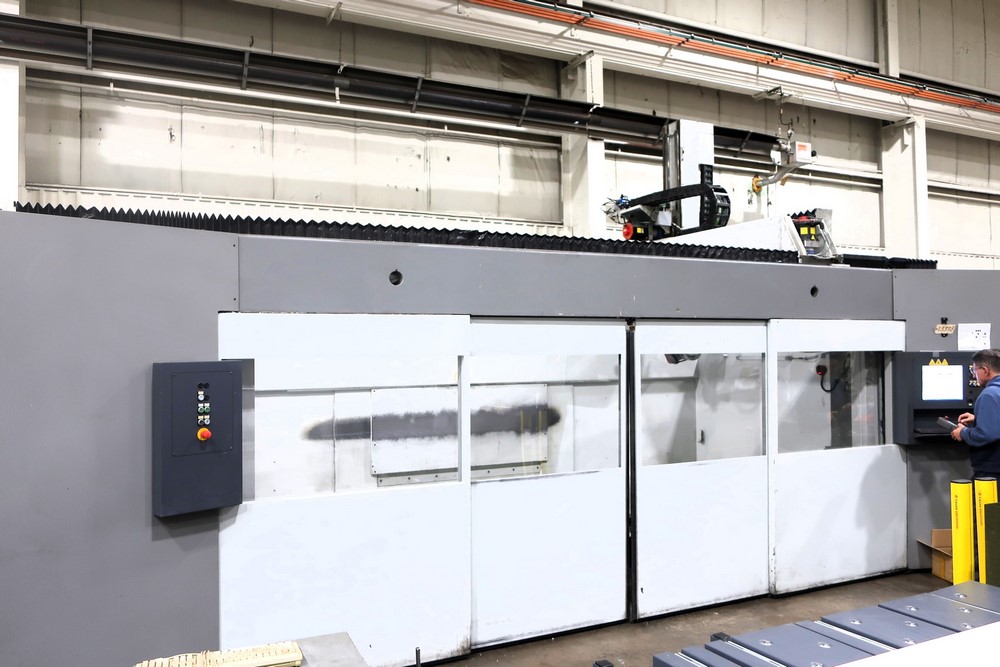

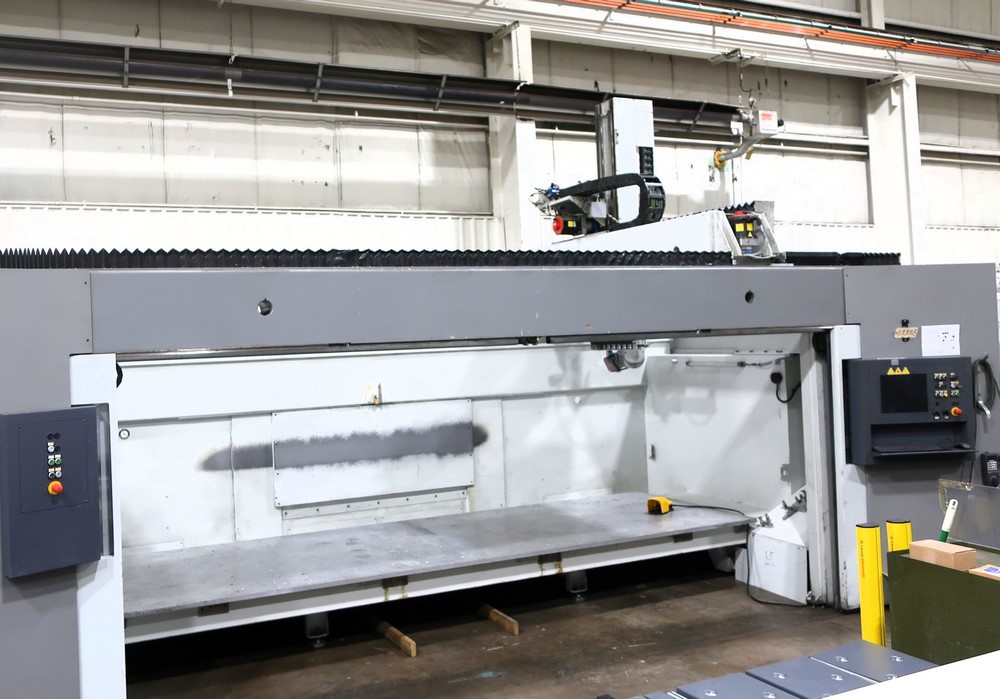

Used CMS ARES-4818-PX5-Z1200 (2013) CNC Router for Sale. This 5-axis machine has a 53.3″ x 192″ table with vacuum hold down and 1800MM (71″) of Y-axis travel. The B-axis rotates +/-120 degrees and the C-axis +/-270 degrees. The 20 HP spindle runs to 24,000 RPM with an HSK 63 taper and is served by an 8-position ATC. A Renishaw TS30 tool setter is fitted, and the machine runs Fanuc 31l-A5 CNC controls. It is equipped with a cart with tool holders and a teach pendant. The router can be seen under power for an inspection. See more equipment in our used CNC routers category, use Activate Pricing to view the price, and Request a Quote for details.
Specifications
| Number of Axis |
5 |
|---|---|

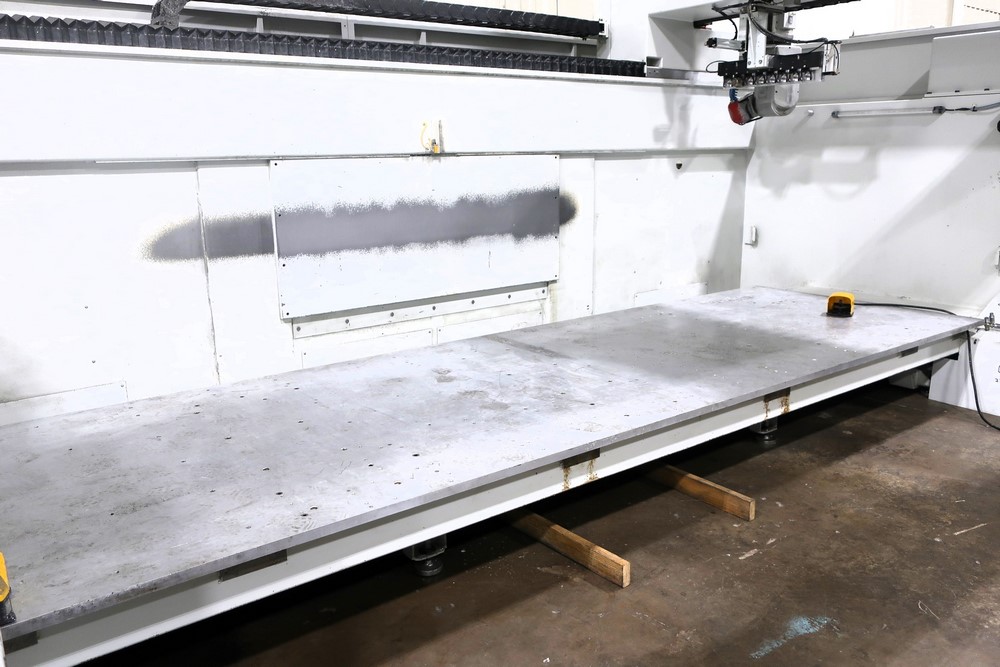

| Table Width |
53.3" |
| Table Length |
192" |
| Table Hold Down |
Vacuum |
| Y-Axis |
1800MM - 71" |
| B-Axis |
+/-120 Degrees |
| C-Axis |
+/-270 Degrees |

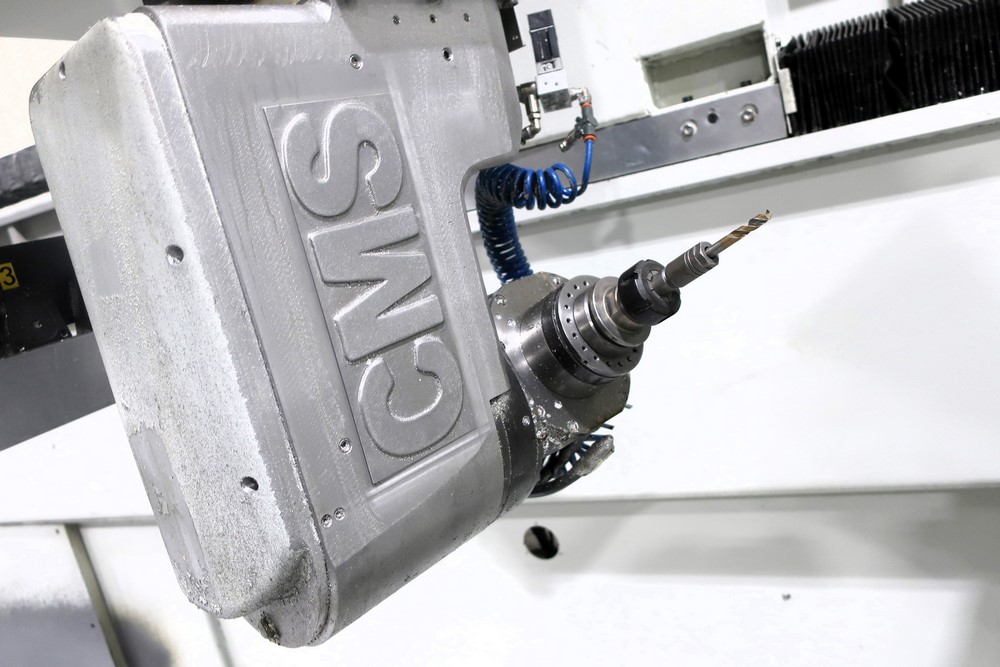

| Spindle Speed |
24,000 RPM |
| Spindle Motor |
20 HP |

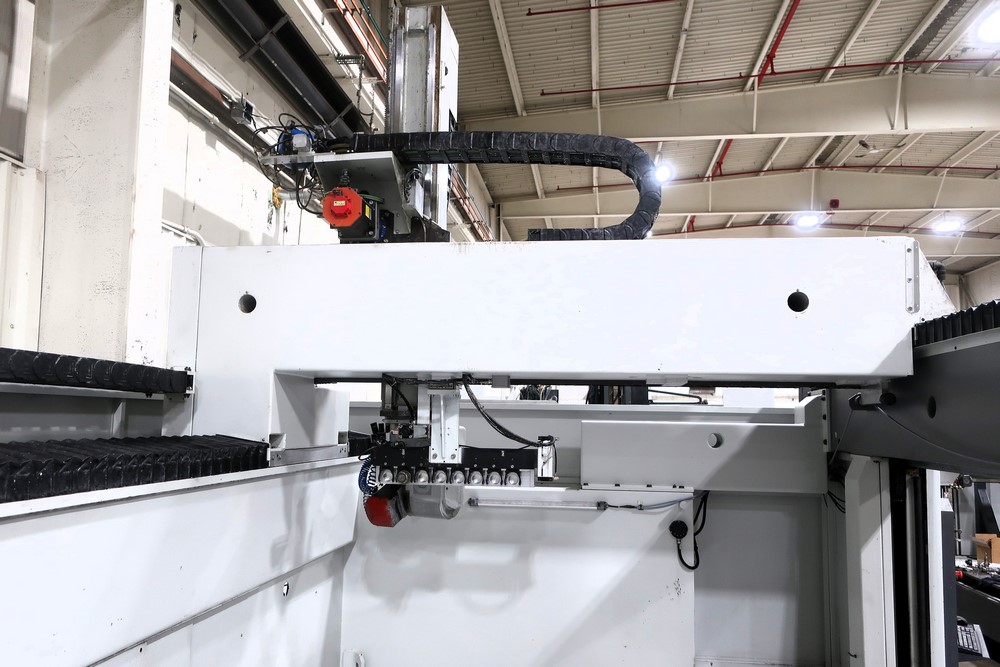

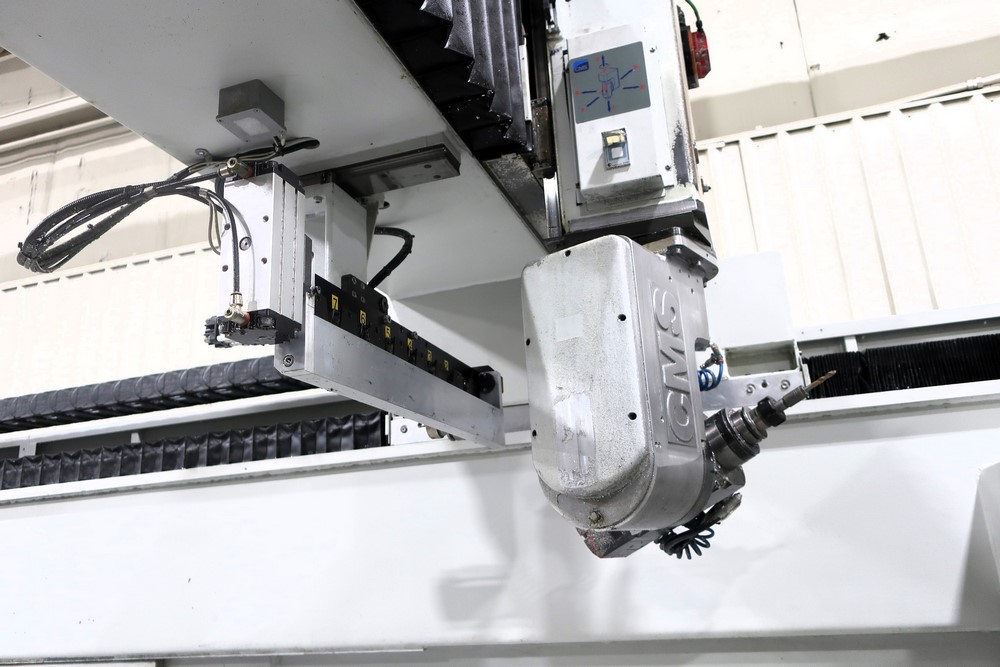

| Tool Changer |

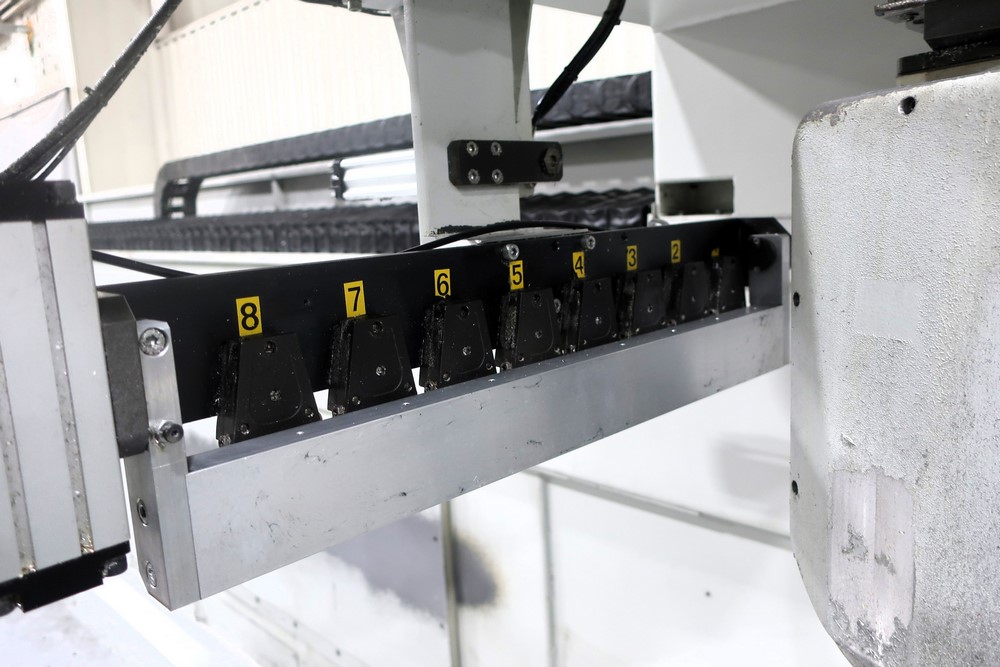

(8) Postion ATC |
| Spindle Taper |
HSK 63 |

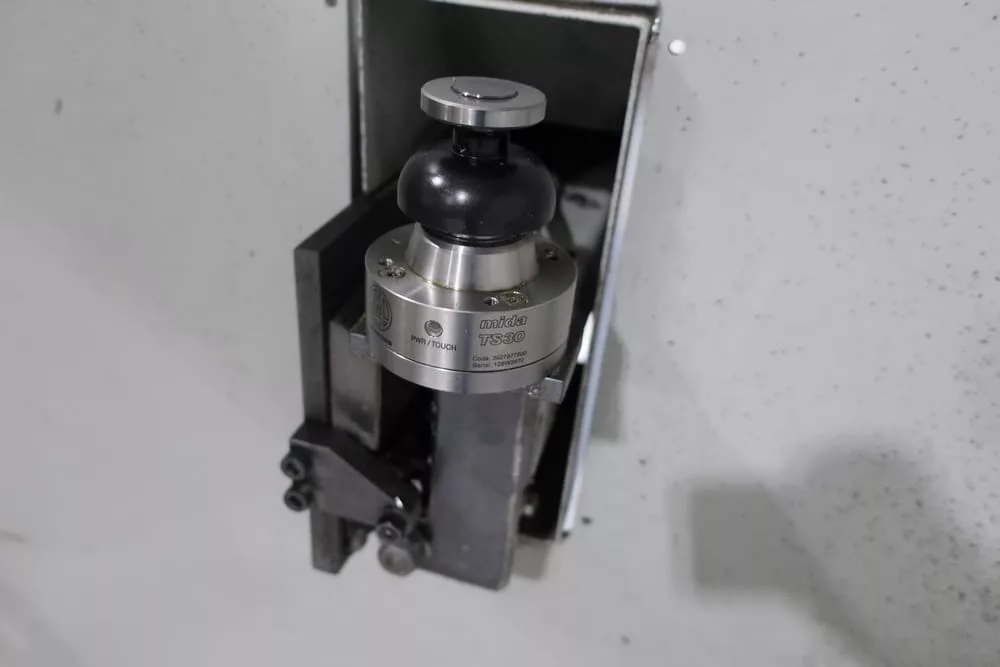

| Renishaw Tool Setter |
Renishaw TS30 Tool Setter |

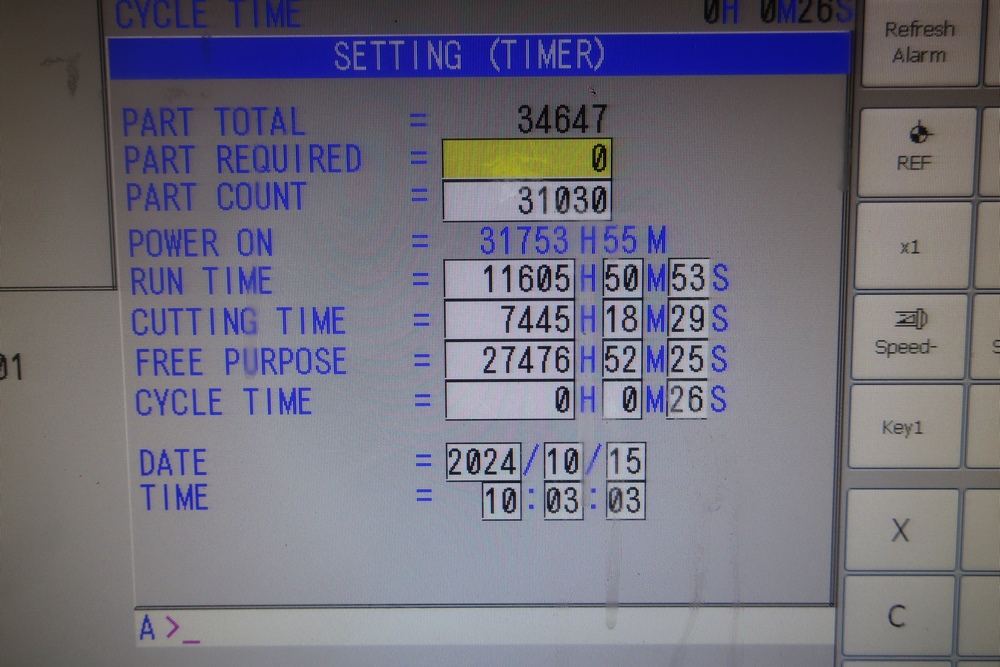

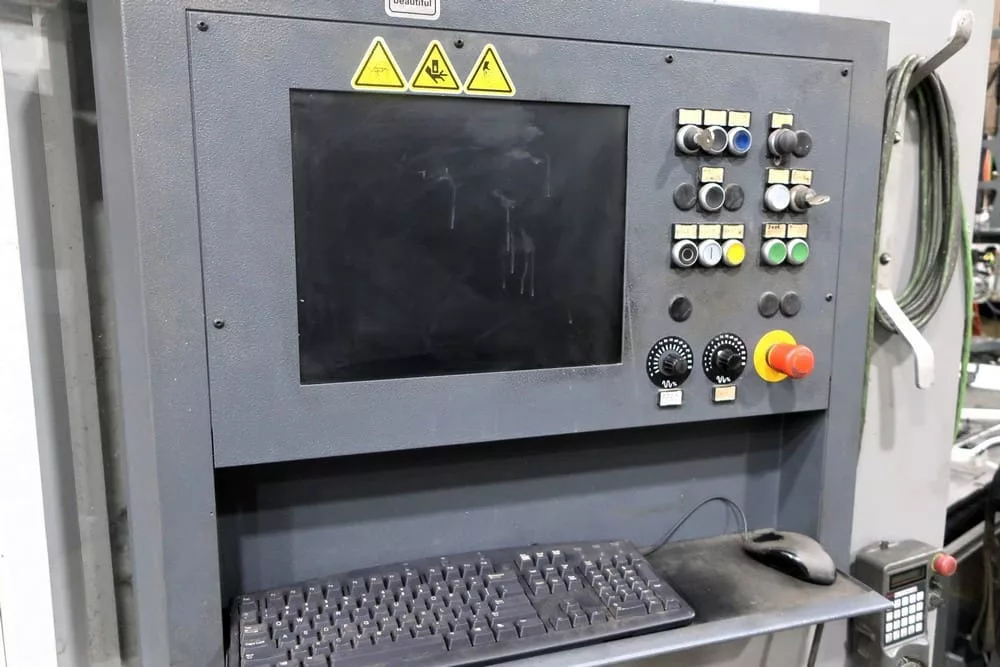

| Control |

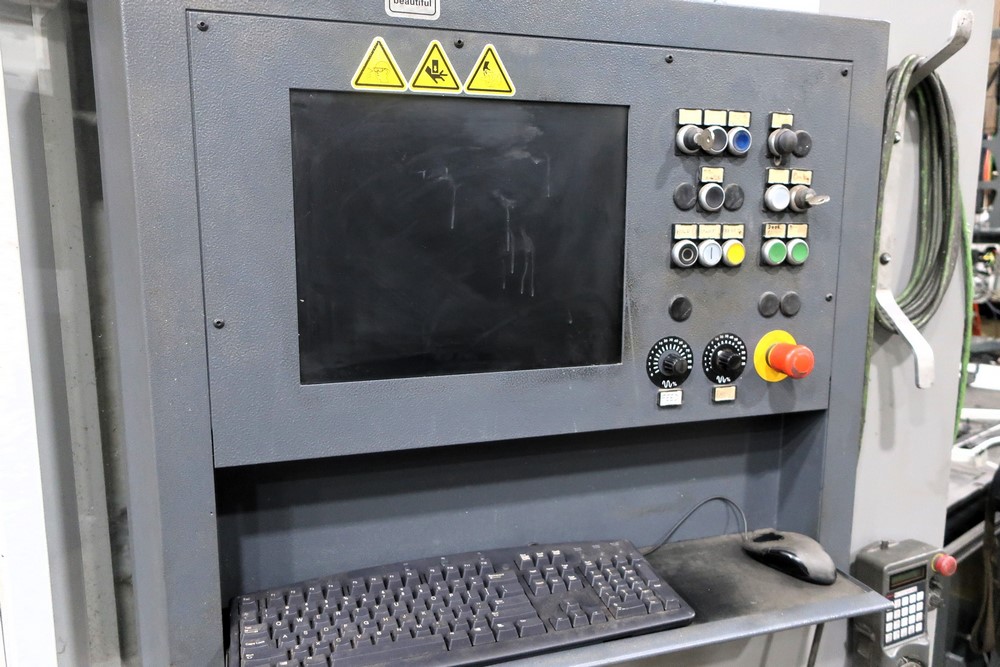

Fanuc 31l-A5 CNC Controls |
Features
|

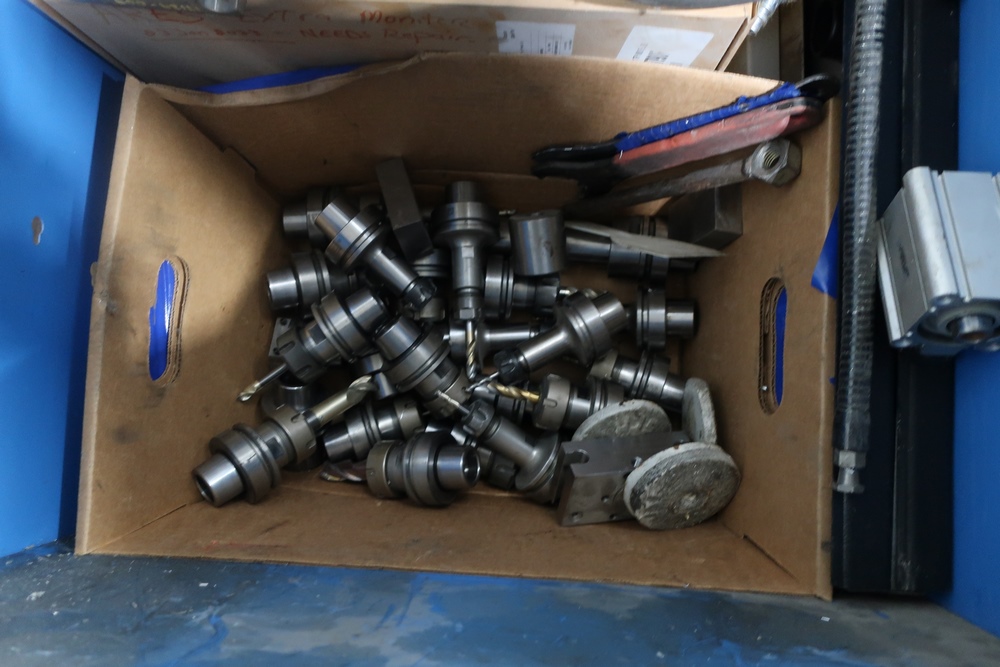

Cart with Tool Holders |

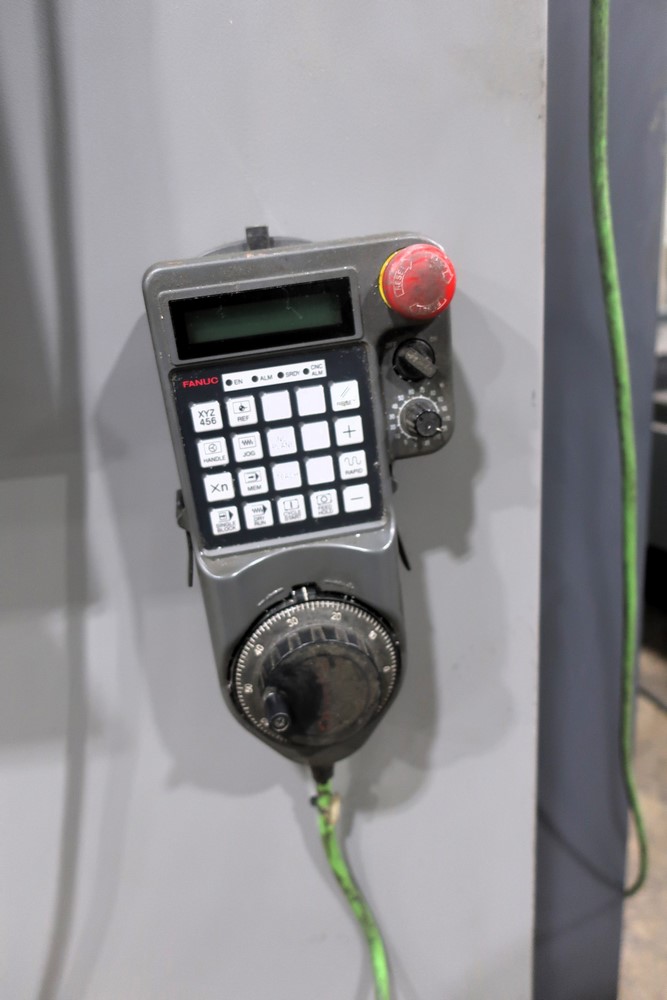

Teach Pendant |
