Year |
2012 |
|---|---|
Make |
Quick Tech |
Model |
TT-42 |
Description |
CNC Swiss Lathe |
Reference # |
8071250 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

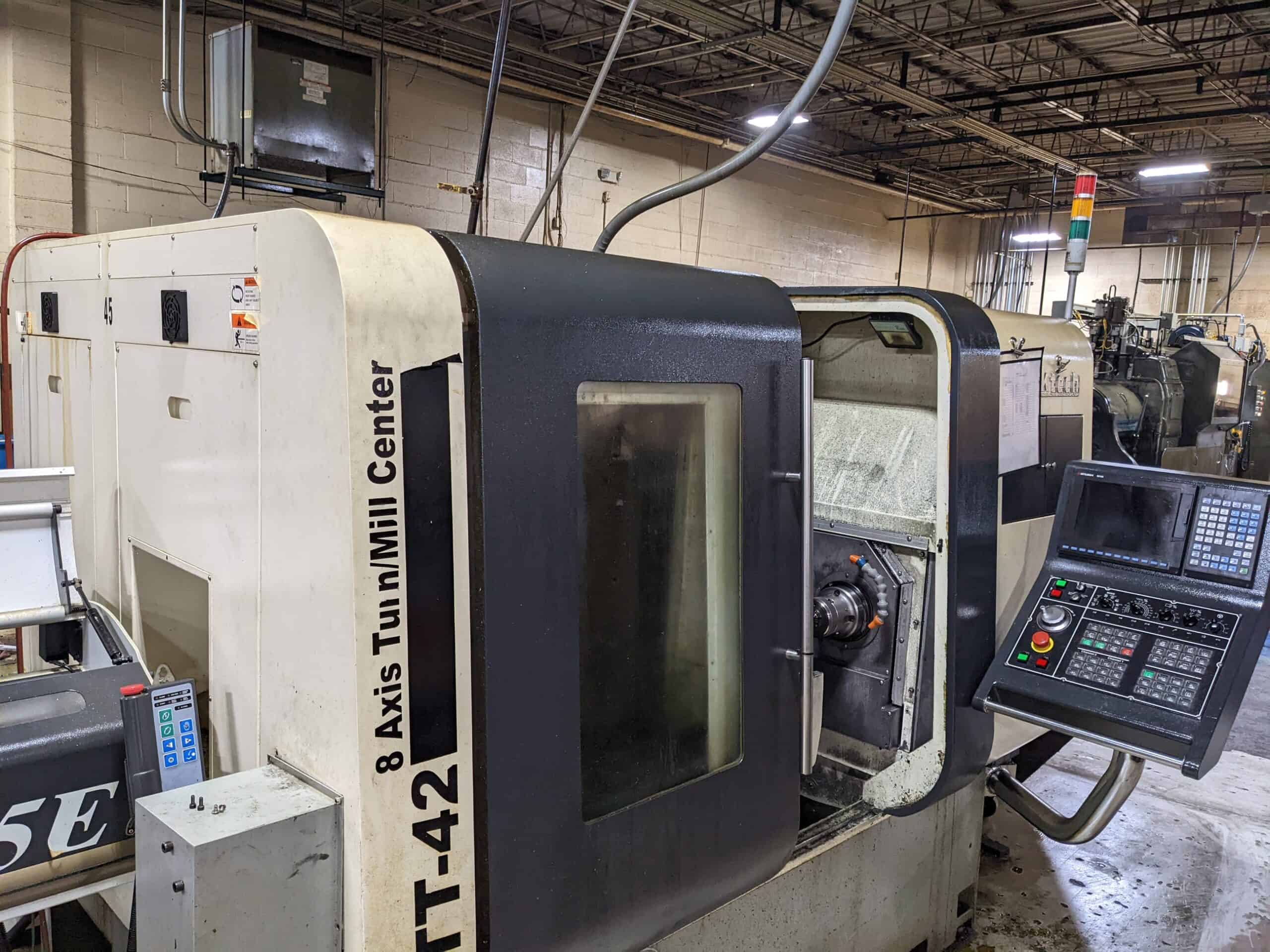

Used Quick Tech TT-42 (2012) CNC Swiss Lathe for Sale. This pre-owned Quick Tech CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Quick Tech Swiss Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
1.65" |
|---|---|
| Spindle Speed |
6,000 RPM |
| Control |
Mitsubishi |
| Distance Between Centers |
9.05" |
| Turret |
16/15 |
| Sub-Spindle |
Yes |
| Chip Removal |
Chip Conveyor |
| Main Spindle Power |
7.5 kW |
| Main Spindle Speed |
6,000 RPM |
| Main Spindle Max. Bar Diameter |
42mm |
| Main Spindle Max. Turning Length |
230mm |
| Main Spindle C-Axis Indexing Precision |
0.001 Degree |
| Counter-Spindle Power |
3.7 kW |
| Counter-Spindle Speed |
6,000 RPM |
| Counter-Spindle Max. Bar Diameter |
42mm |
| Counter-Spindle Max. Turning Length |
100mm |
| Counter-Spindle C-Axis Indexing Precision |
0.001 Degree |
| Counter-Spindle Z Stroke |
360mm |
| Counter-Spindle X Stroke |
410mm |
| Tool Block System Number of Positions |
16 |
| Tool Block System Number of Motorized Positions |
6 |
| Tool Block System X/Z Stroke |
140 x 230mm |
| Tool Block System Y Stroke |
410mm |
| Tool Block System Live Tools Speed |
4,000 RPM |
| Tool Block System Live Tools Power |
1 kW |
Features
|
A2-5 Spindle Nose (Main and Counter) |

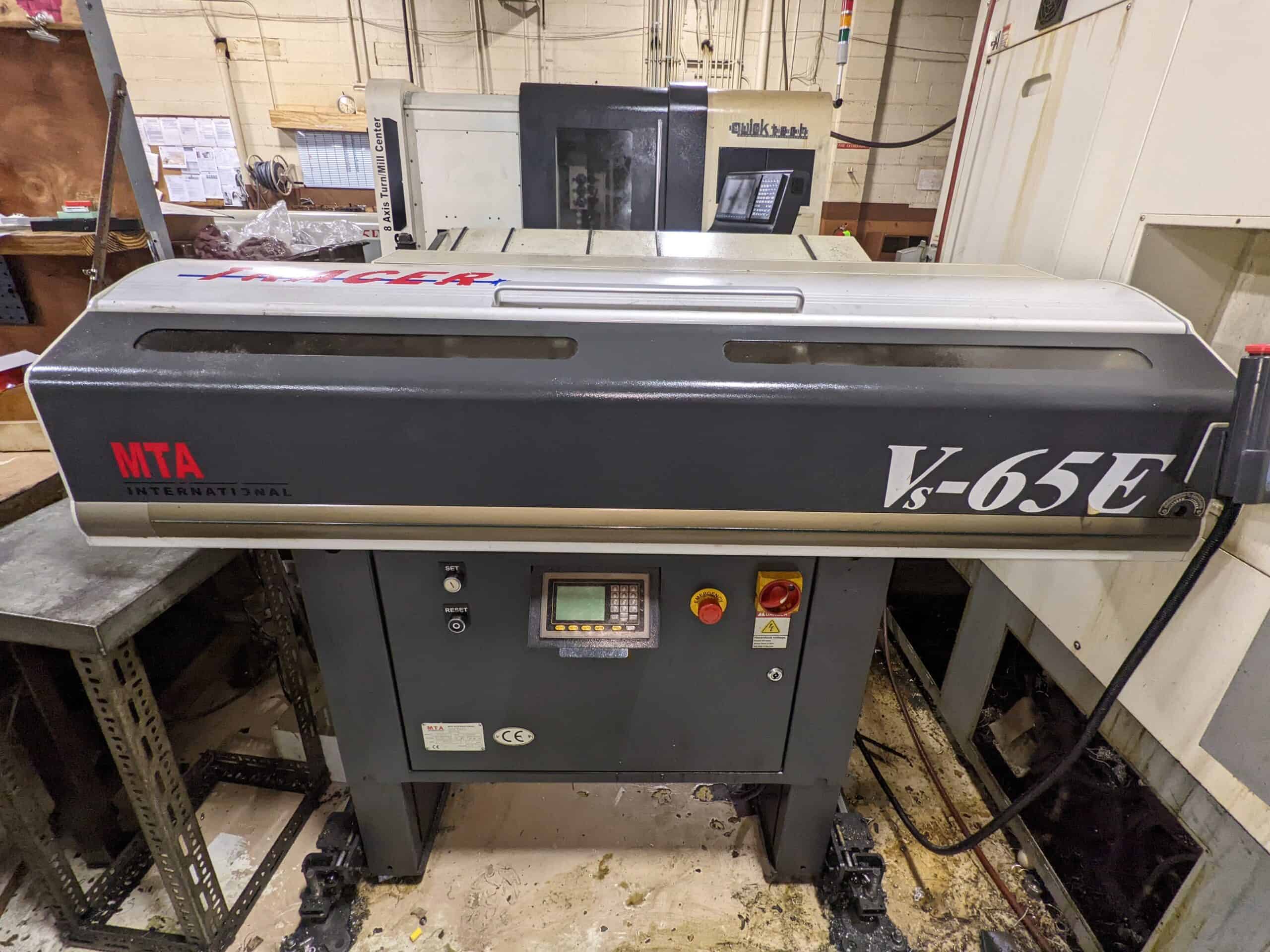

Barfeed Included |
|
ER20 Tool Block System Tool Type |
