Year |
2012 |
|---|---|
Make |
Peddinghaus |
Model |
Processing Line |
Description |
Complete Beam Processing Line |
Reference # |
8075558 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Peddinghaus Complete Beam Processing Line
Specifications

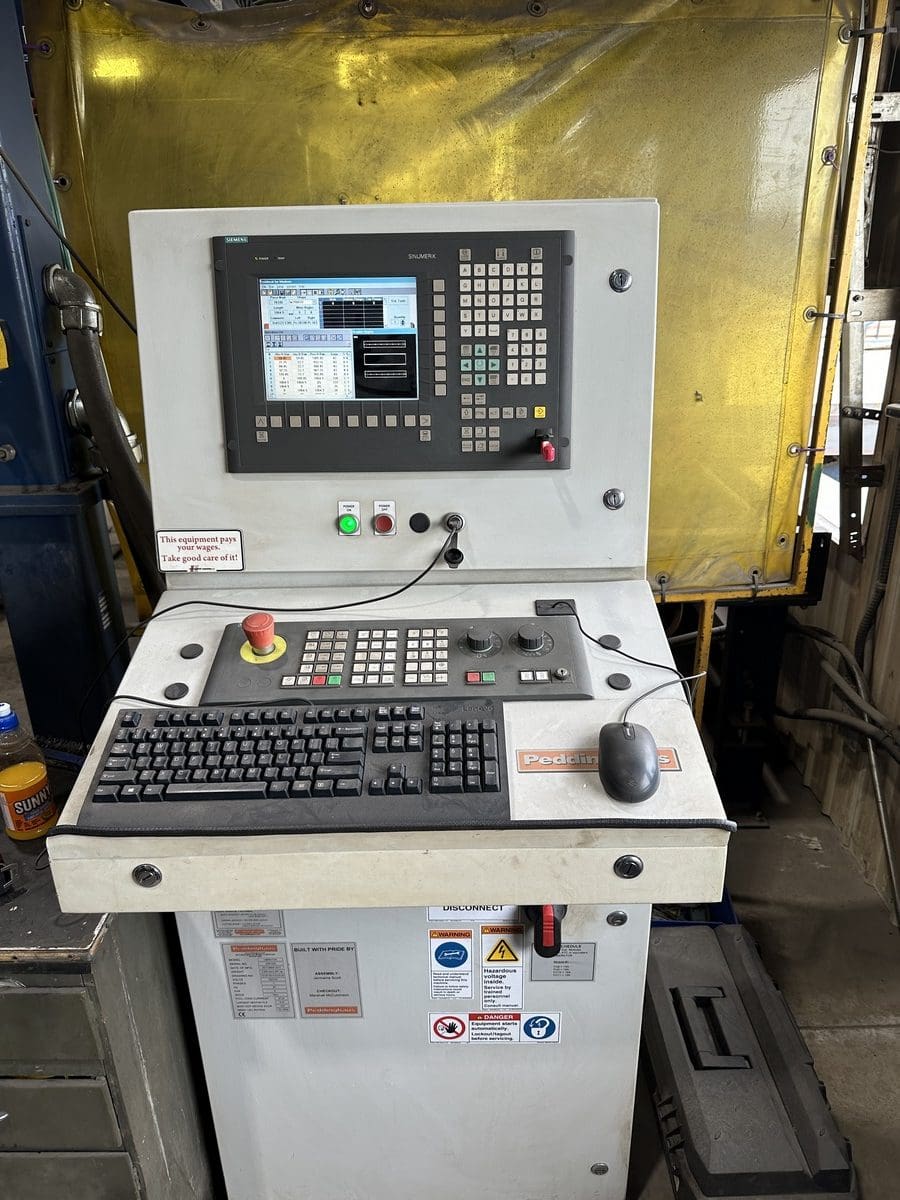

| Control |
Siemens |
|---|---|
| Stroke |
13" |
| Min/Max Drill Diameter |
9/16" - 2" |
| Max Beam Capacity |
40" x 60' |
| Min/Max Material Thickness |
1-1/4" - 10" |
| Max Speed X/Y-Axis |
120 FPM |
| Spindle Motor |
20 HP |
| Band Saw Capacity |
20" H x 61" W |
| Band Saw Workload |
15,000 Lbs |
| Max Profile Size on Liberator |
44" x 24" |
| Max Plate Width on Liberator |
48" |
| Flange/Web Bevels on Liberator |
+/- 45 Degrees |
| Max Material Thickness on Liberator |
6" |
| Liberator Traverse Speed |
100-400 IPM |
| Liberator Cutting Speed |
7-30 IPM |
| X-Axis Travel |
46" |
| Y-Axis Travel |
76" |
| Z-Axis Travel |
30" |
| B/C-Axis |
270 Degrees |
| Repeatability of X/Y/Z |
+/- 0.001" (Cutting with Oxy-Fuel +/- 0.06255") |
| Note |
Can Be Sold Separately, Call For Individual Pricing |
Features
|
2012 Material Handling |
2012 Ocean Terminator DCM-20/30 (Horizontal Bandsaw) |
|

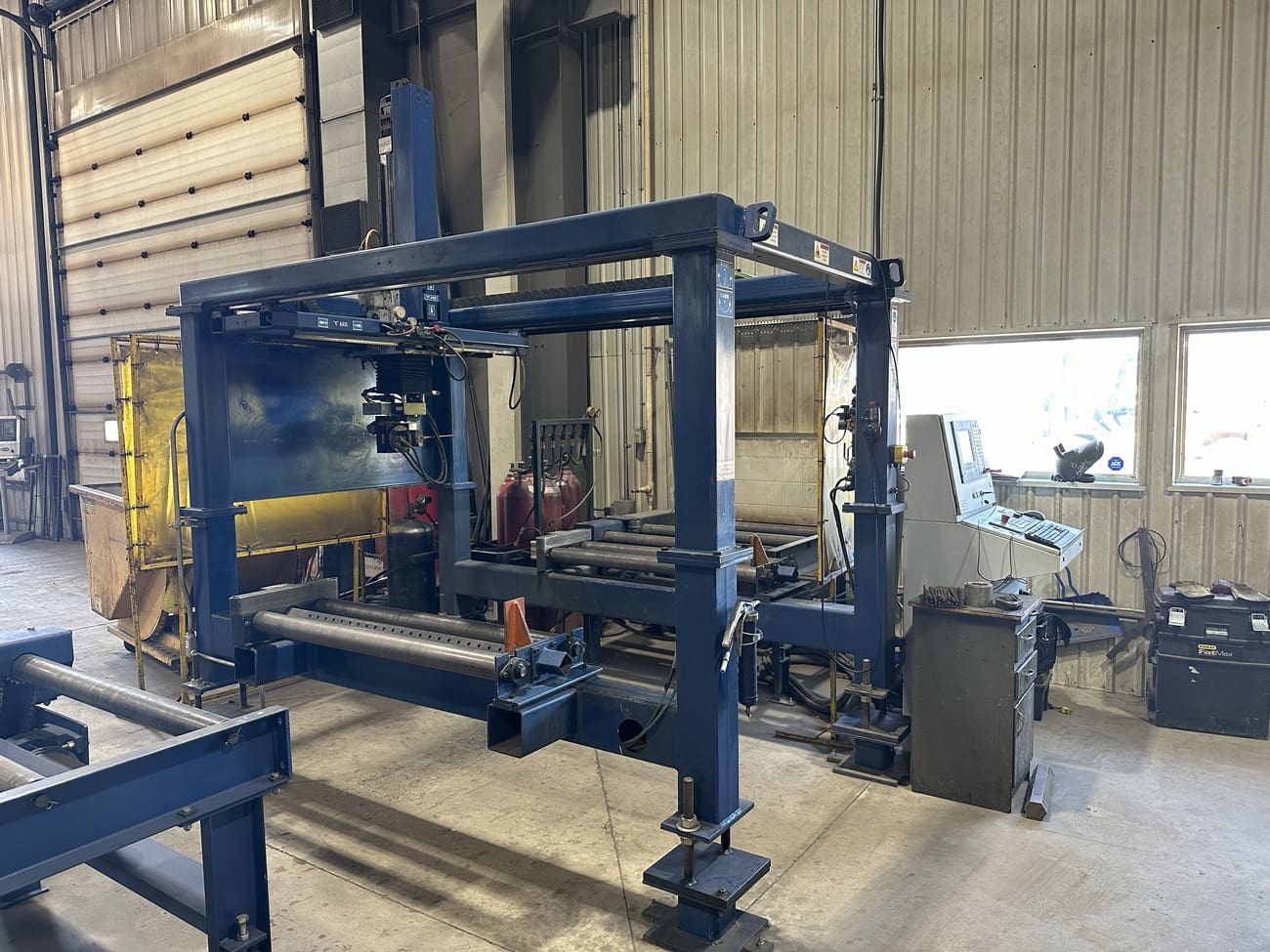

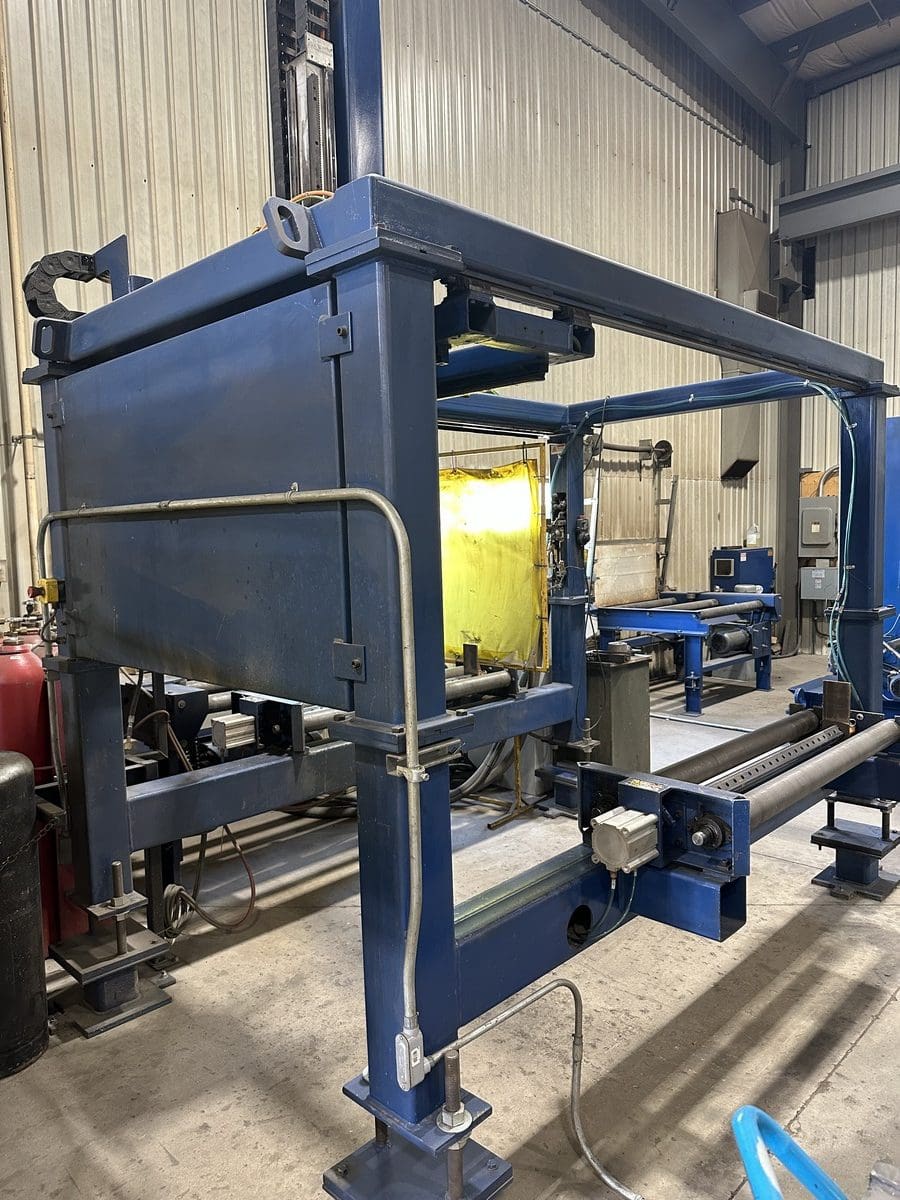

2012 Peddinghaus Liberator (Coping Machine) |

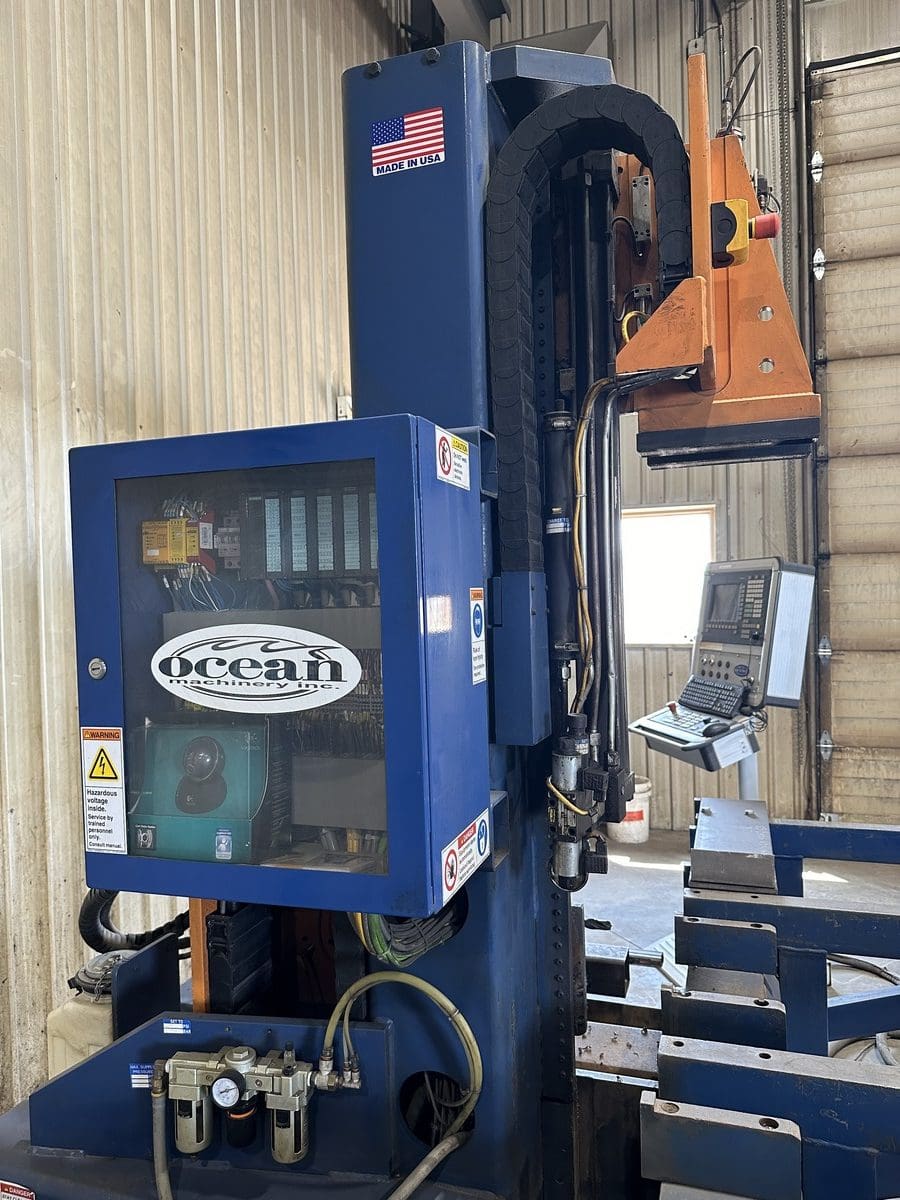

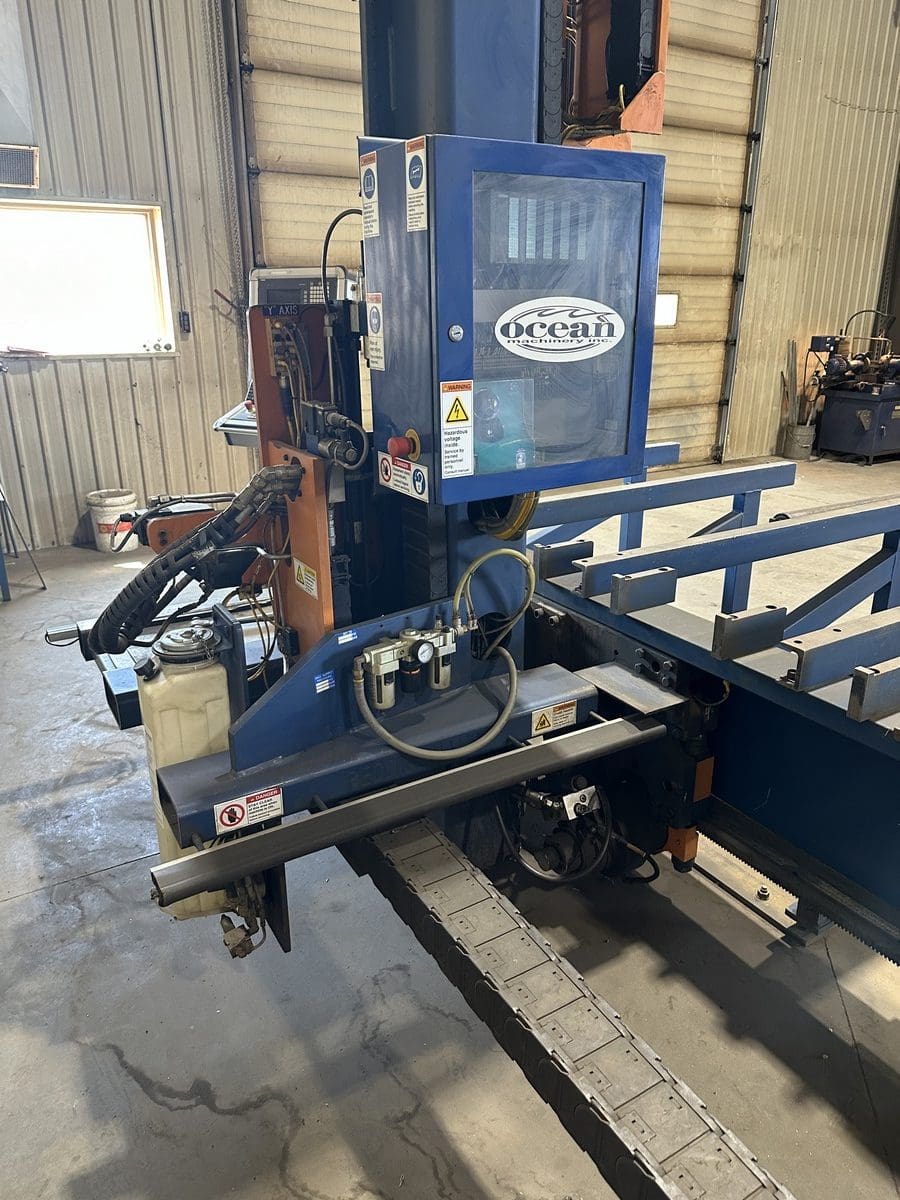

2012 Peddinghaus Ocean Avenger MDL-1000B (Beam Drill Line) |
|

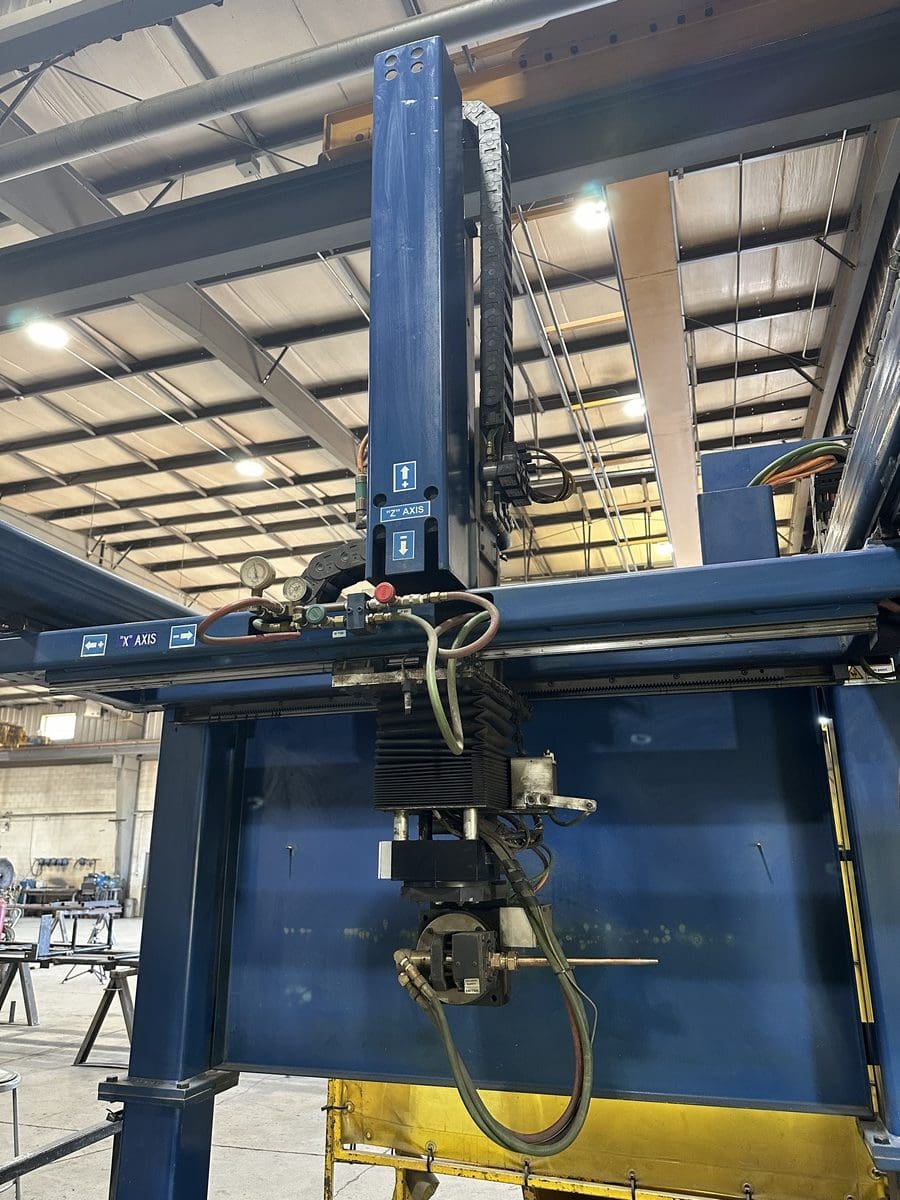

5-Aaxis Liberator - CNC Robotic Oxy-Fuel Cutting Beam Cope |

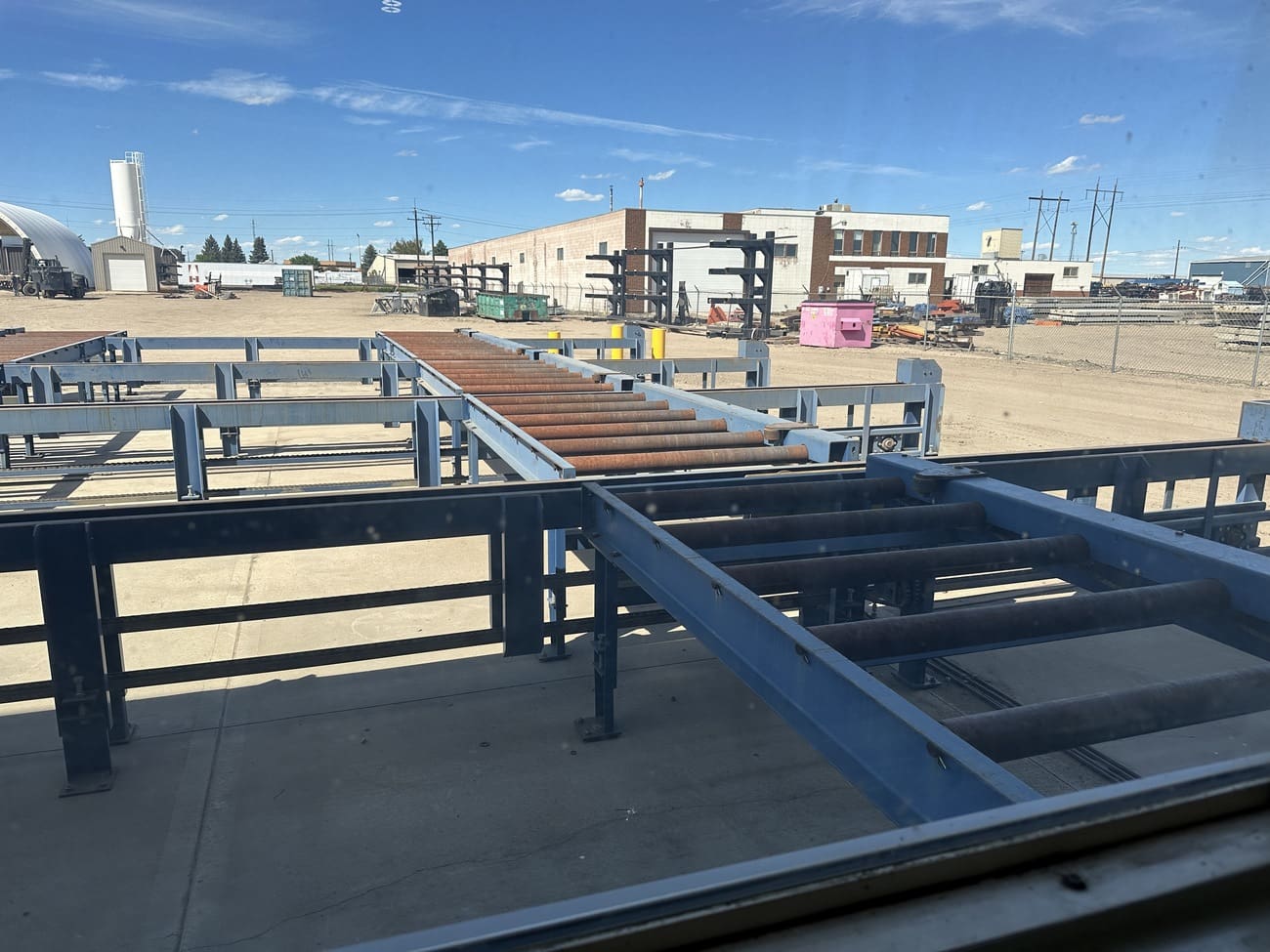

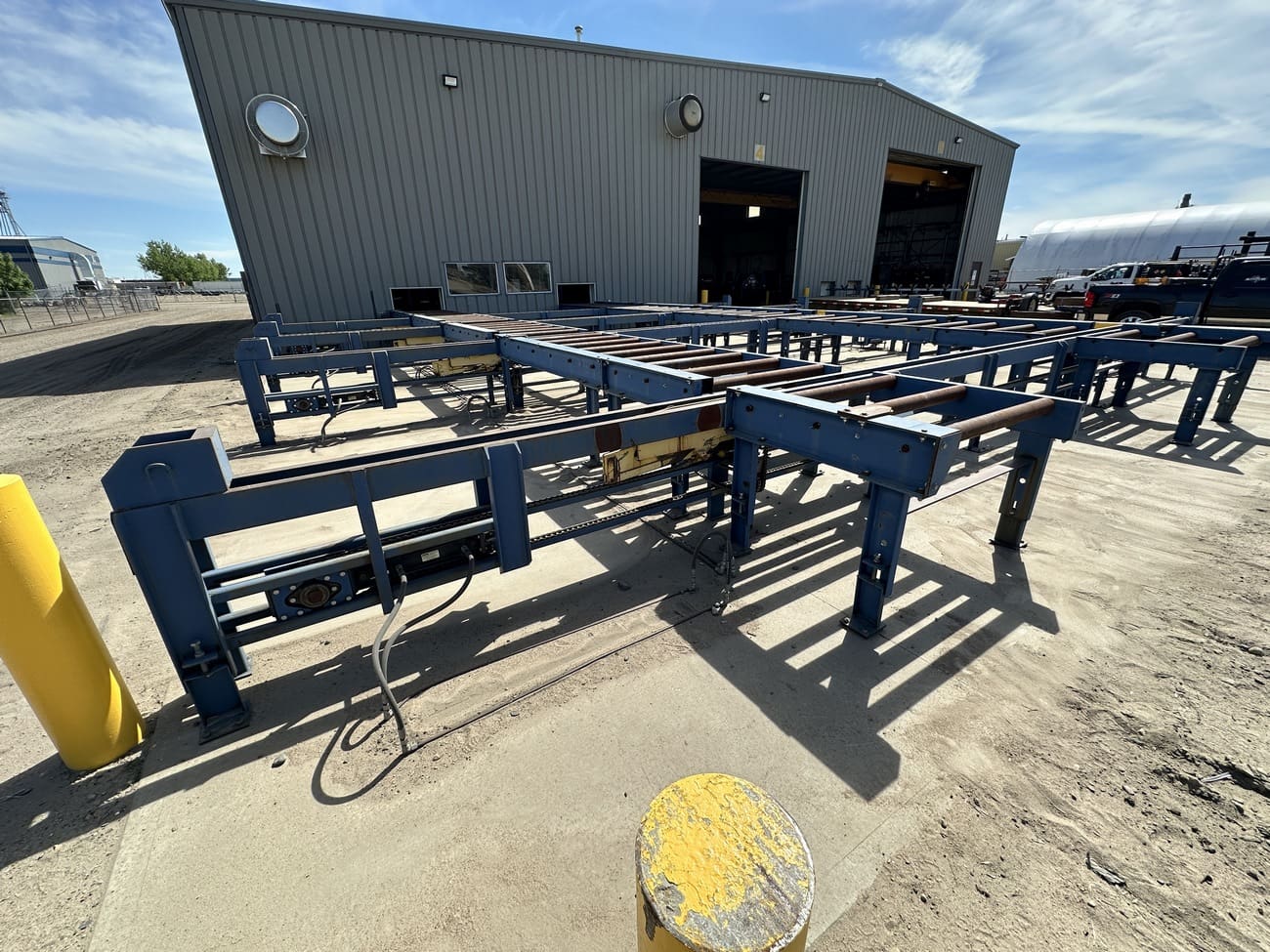

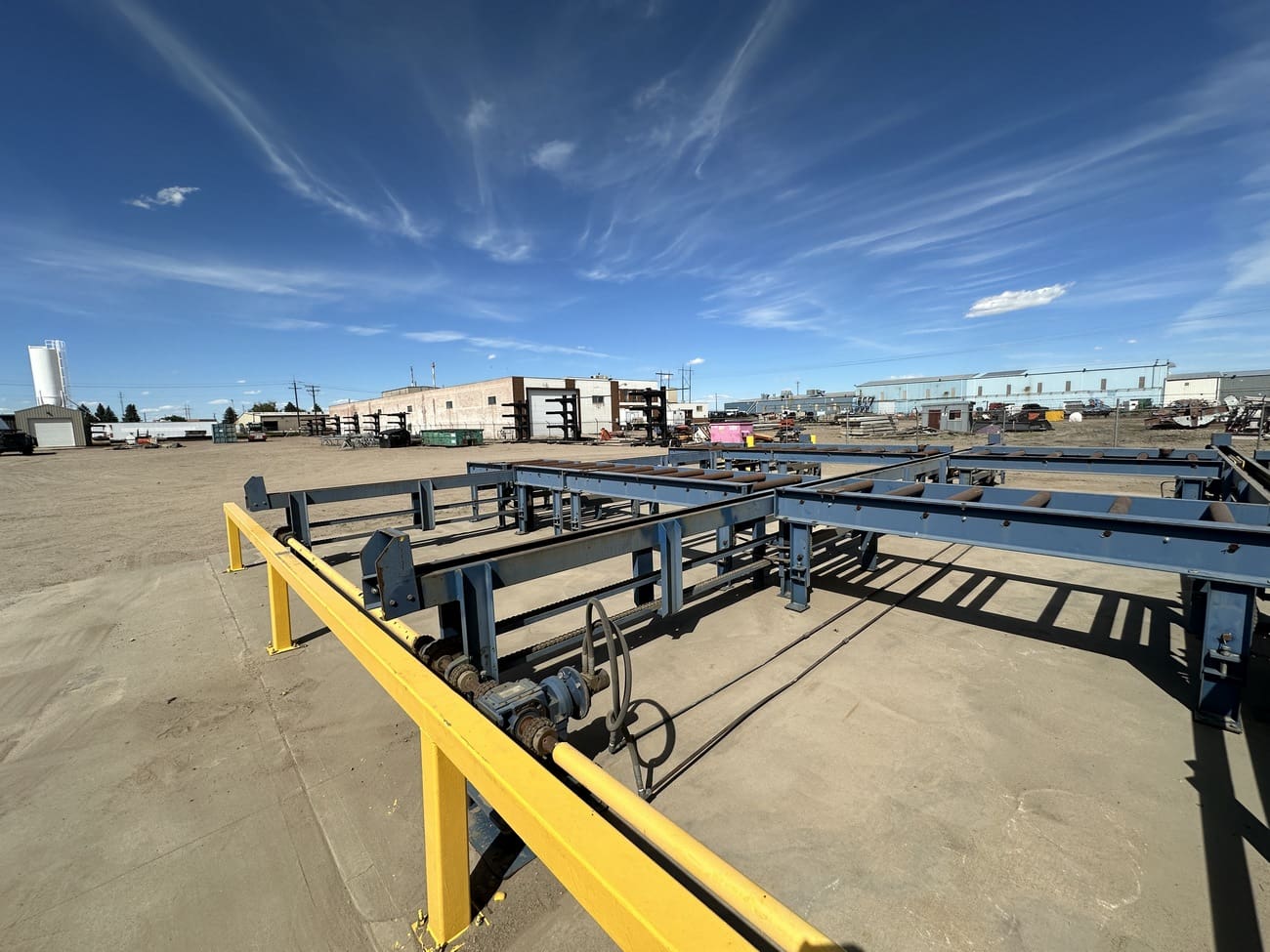

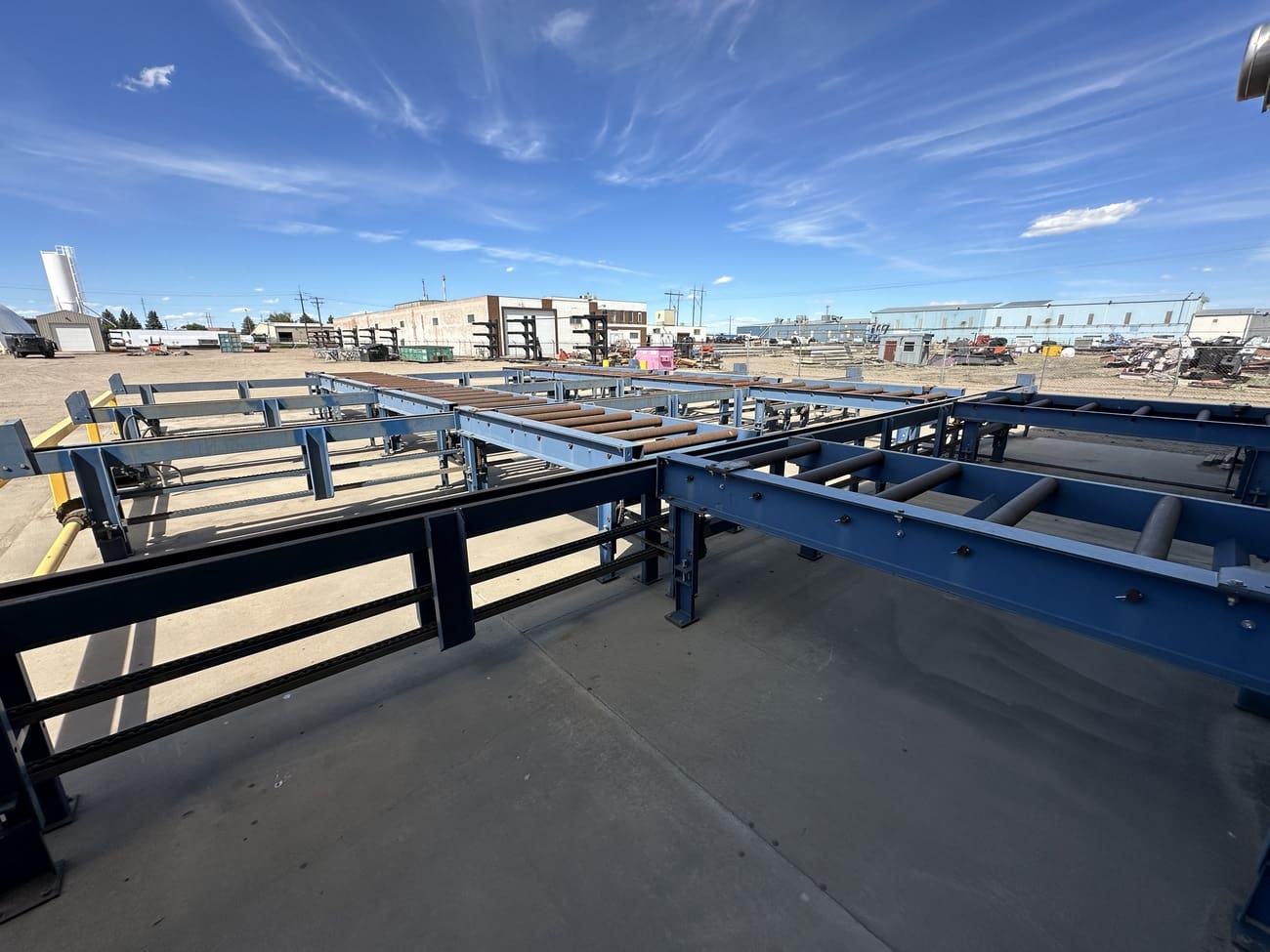

Assortment of Material Handling |
|
Laser Cutting Guide on Band Saw |

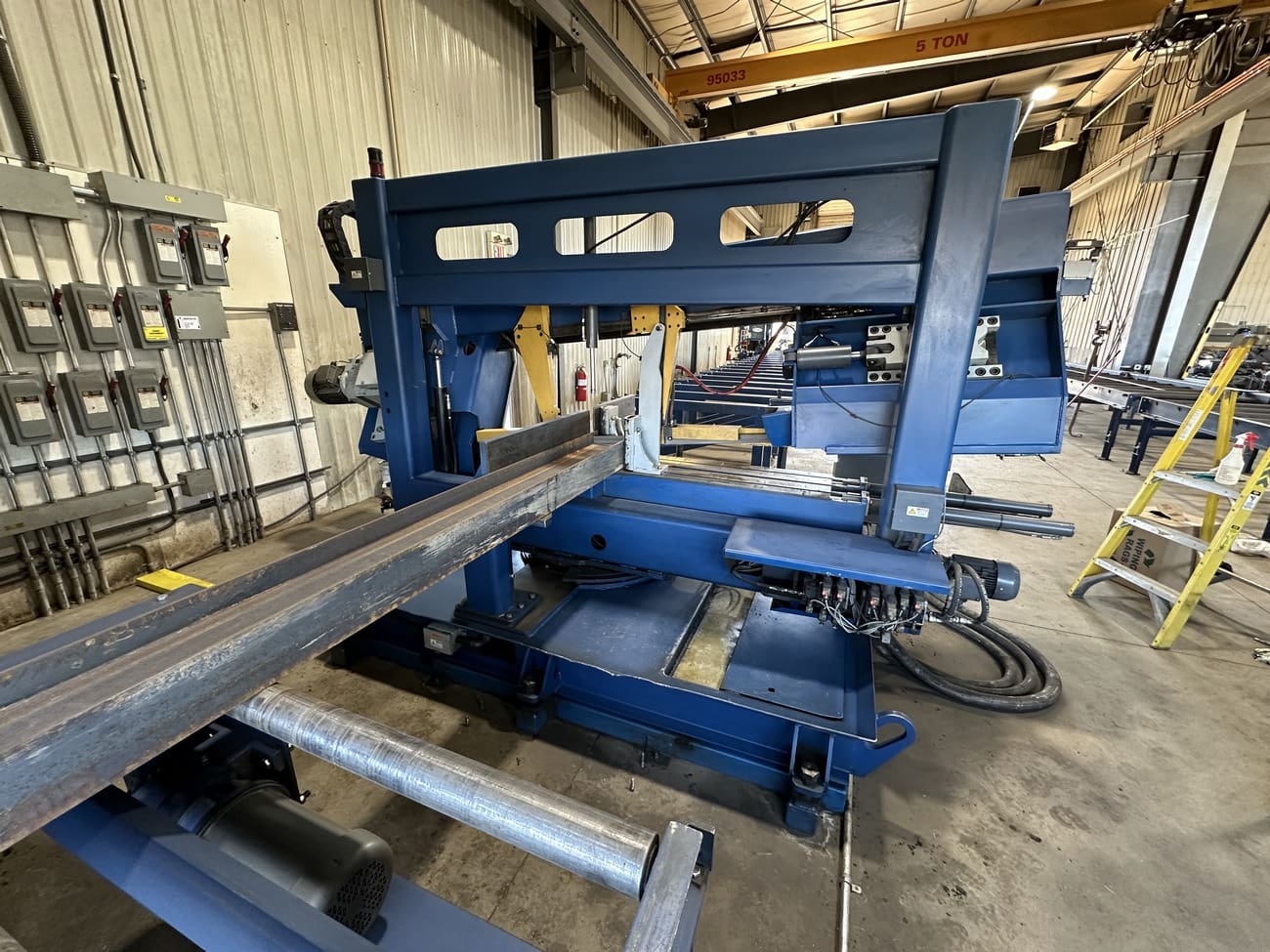

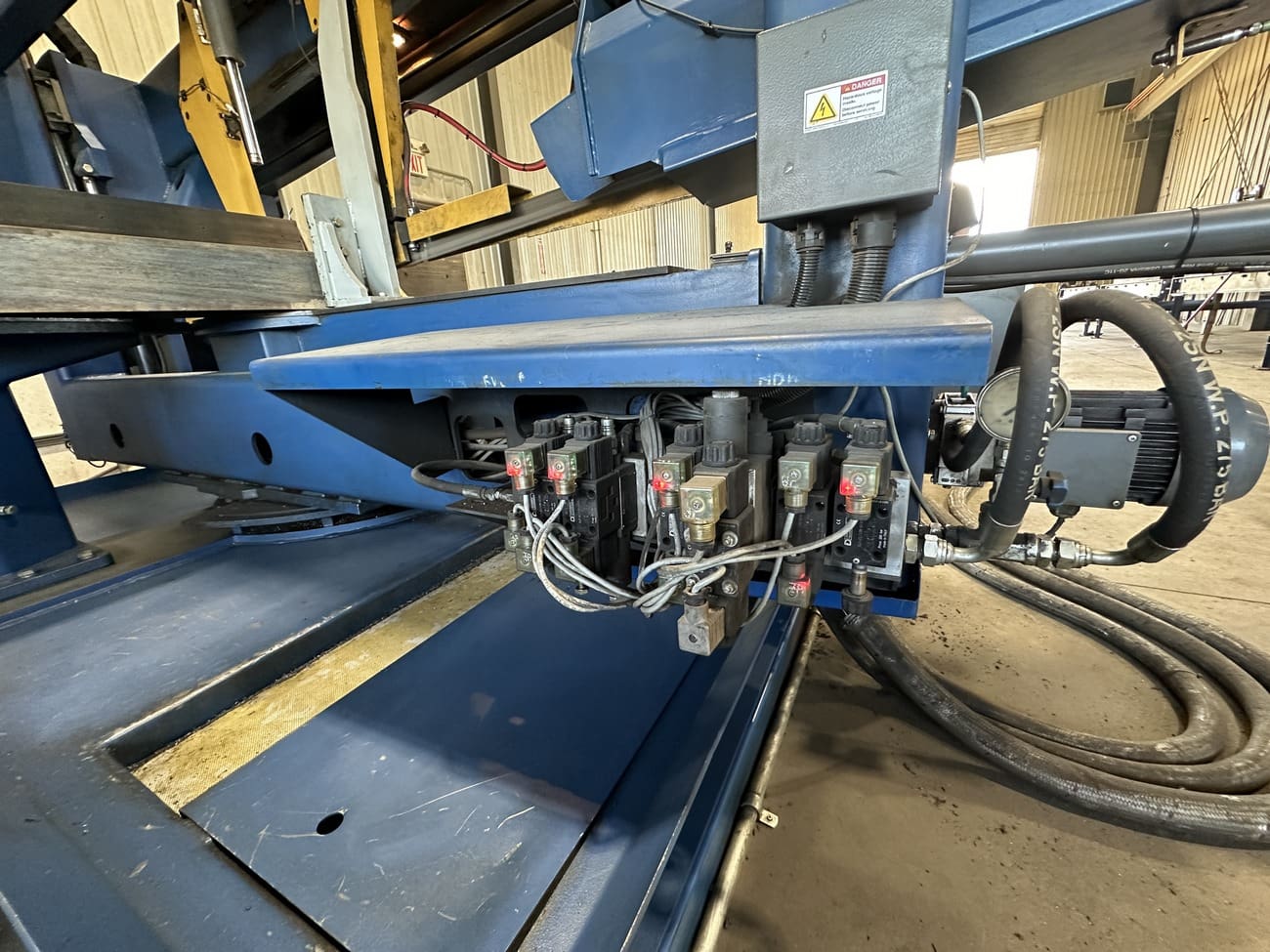

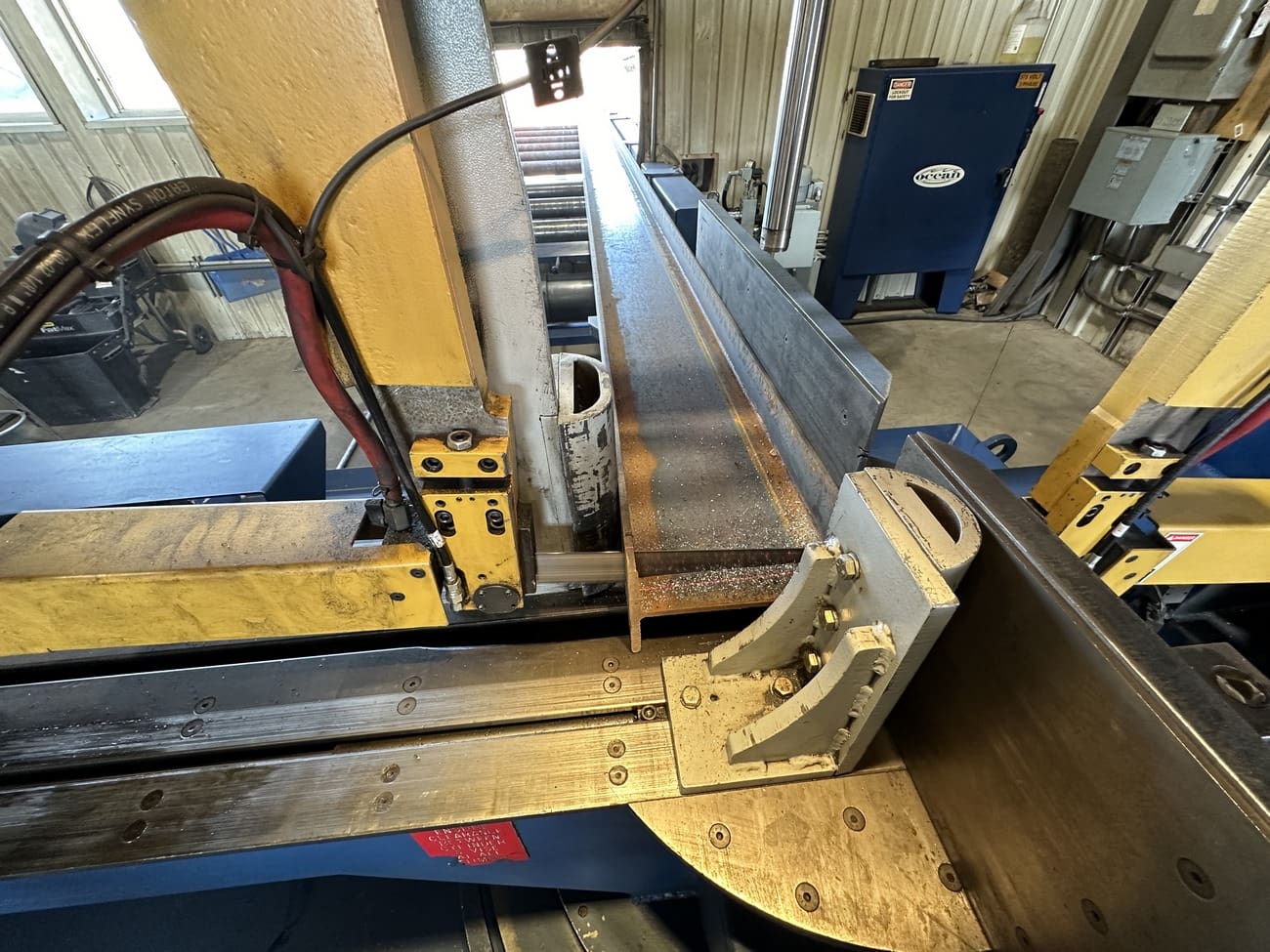

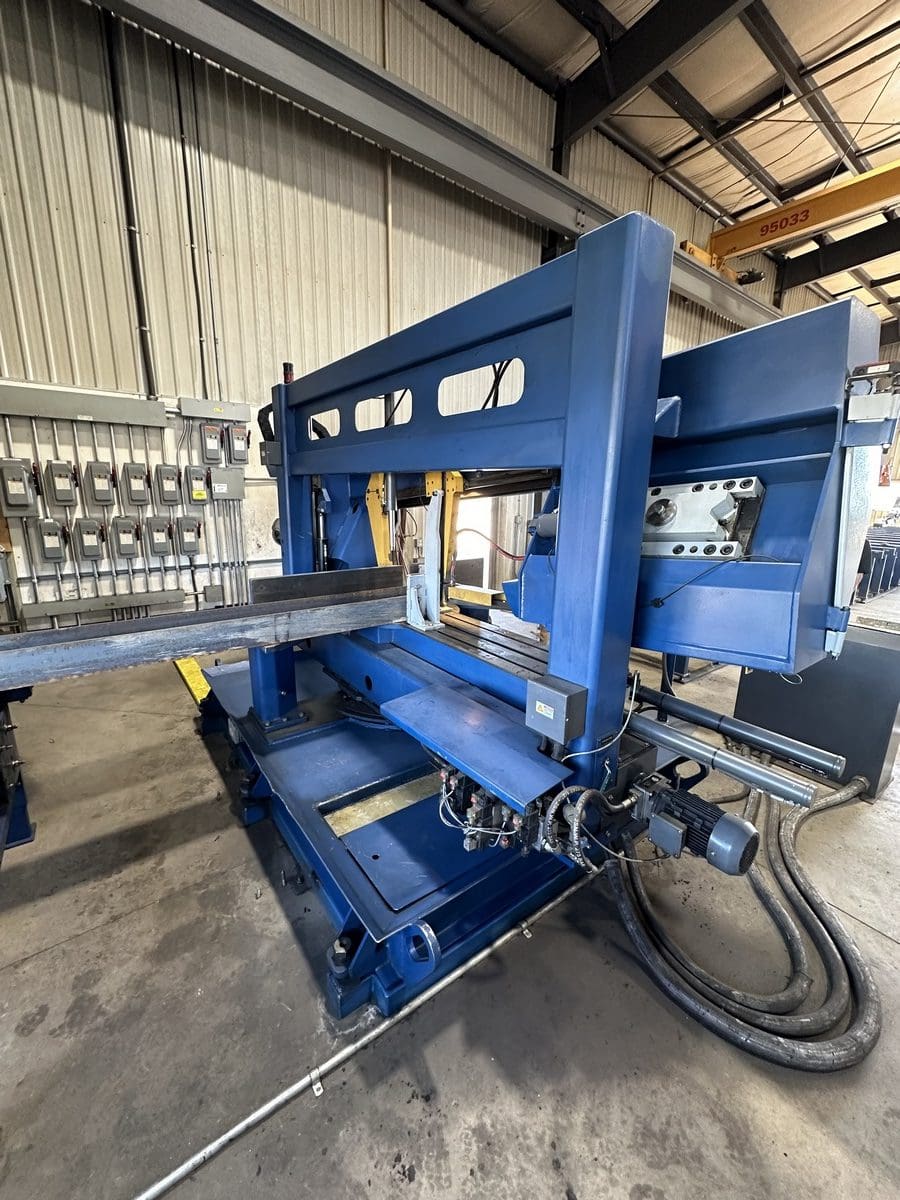

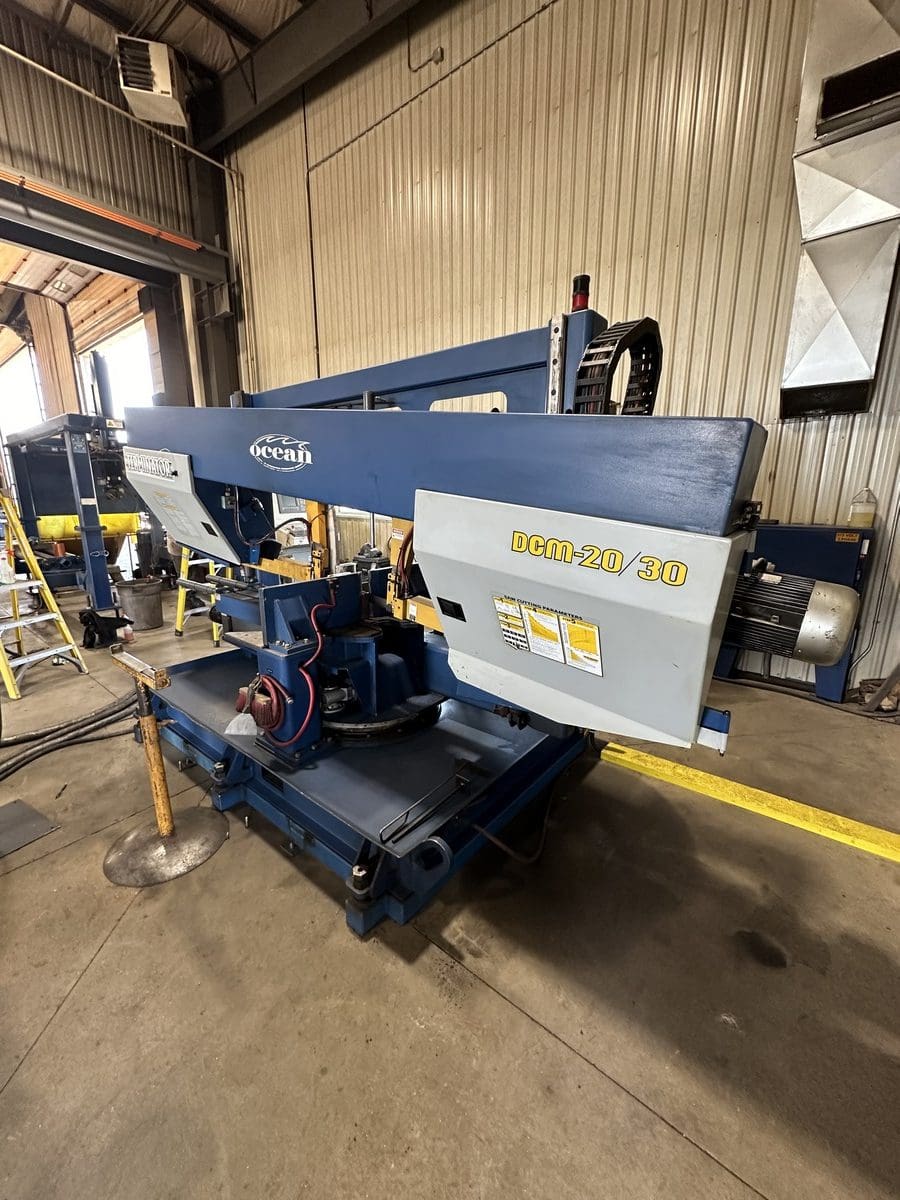

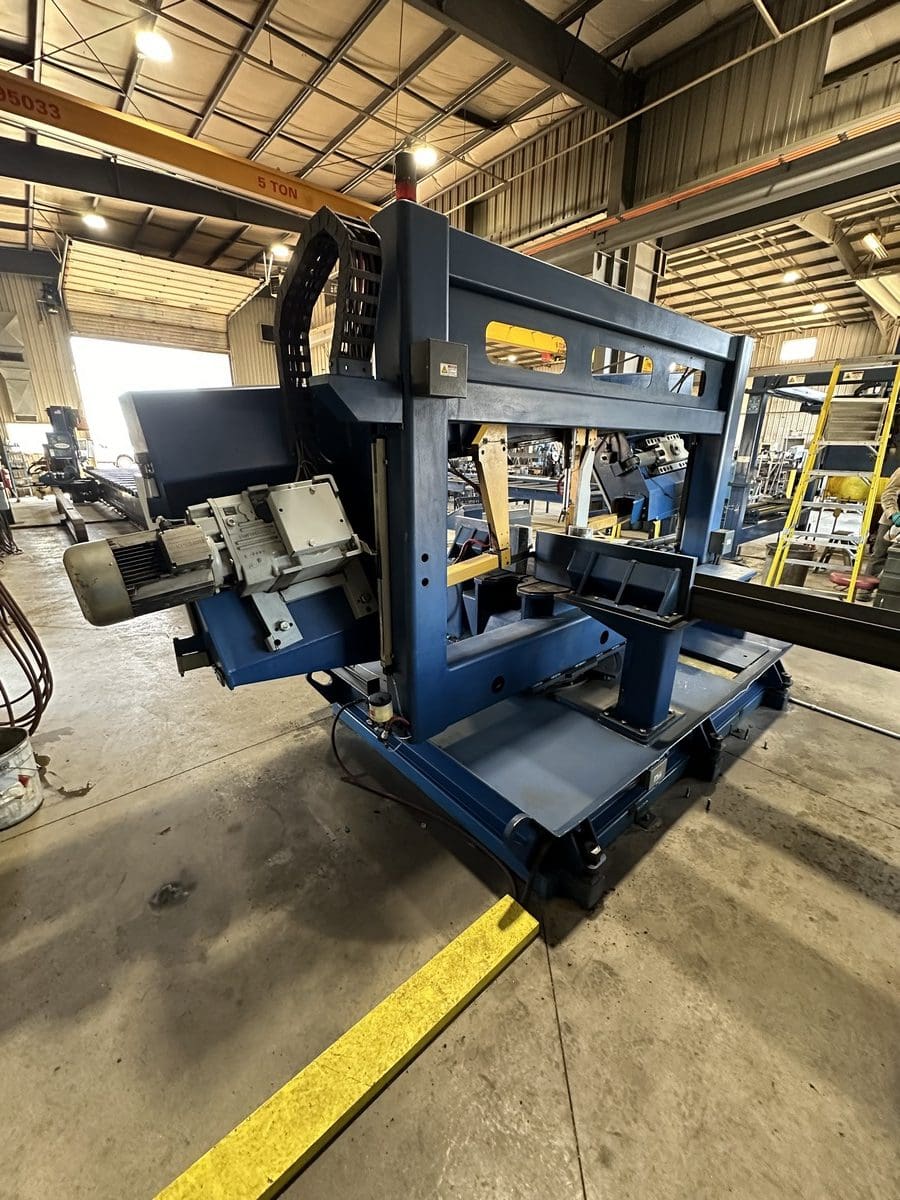

Terminator DCM-20/30 Double Miter Horizontal Band Saw |
|
Digital Display |

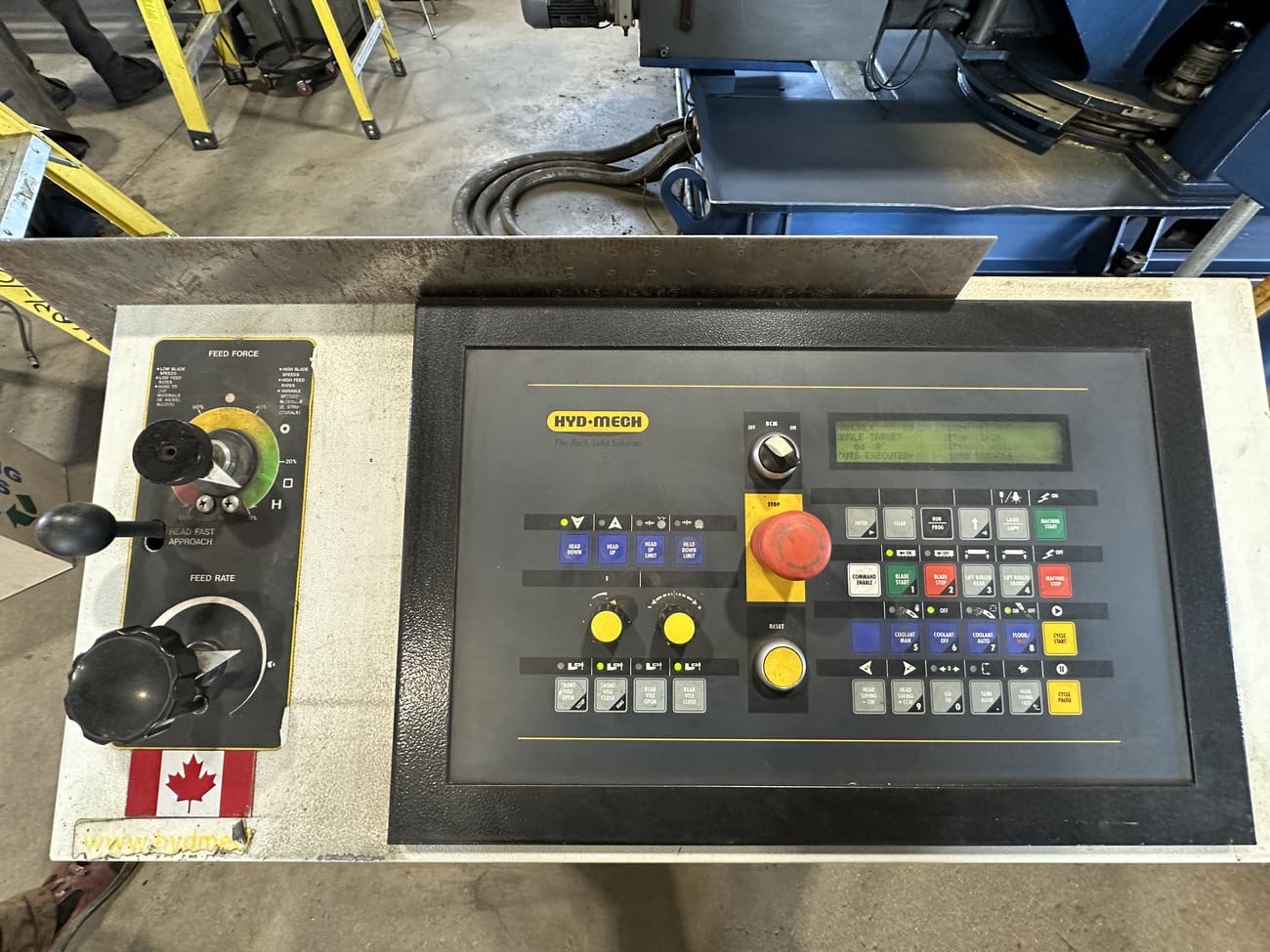

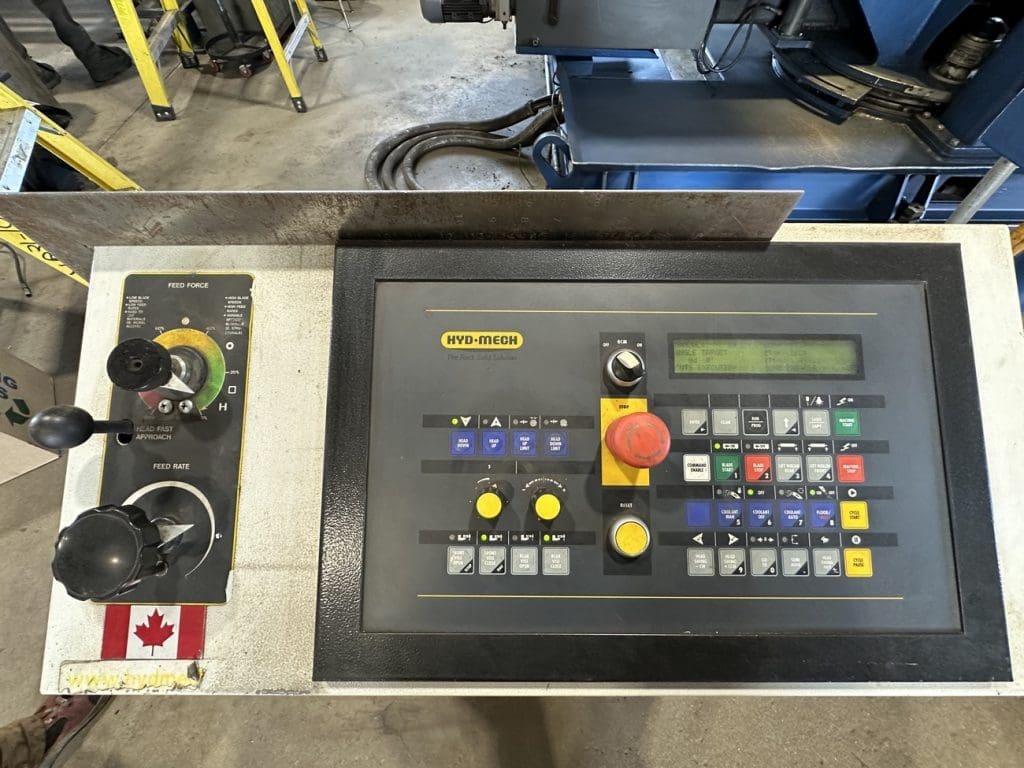

Remote Console |
|
Spray Mist Coolant |
Hydraulic Vise |
|
Tooling Included |
Carbide Blade Guides |
|
Drill Sharpener |
