Year |
2012 |
|---|---|
Make |
Mitsubishi |
Model |
MWX3-612 |
Description |

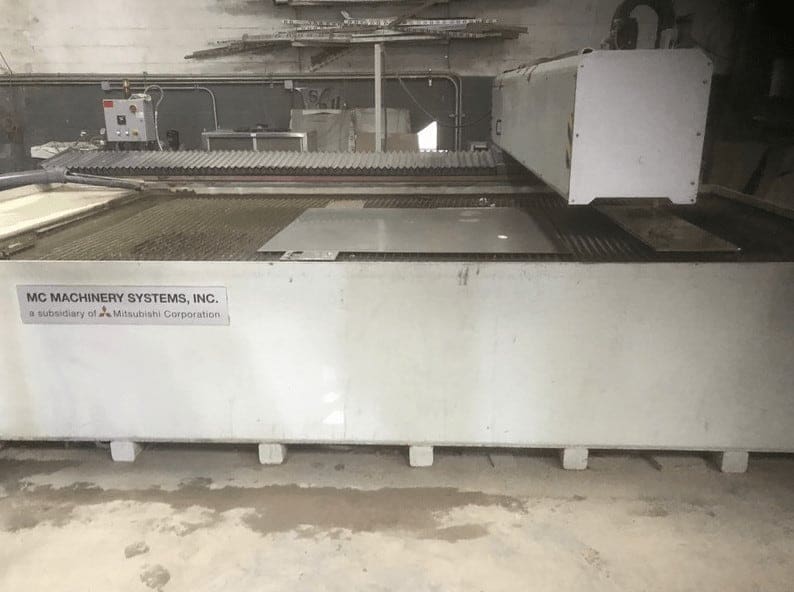

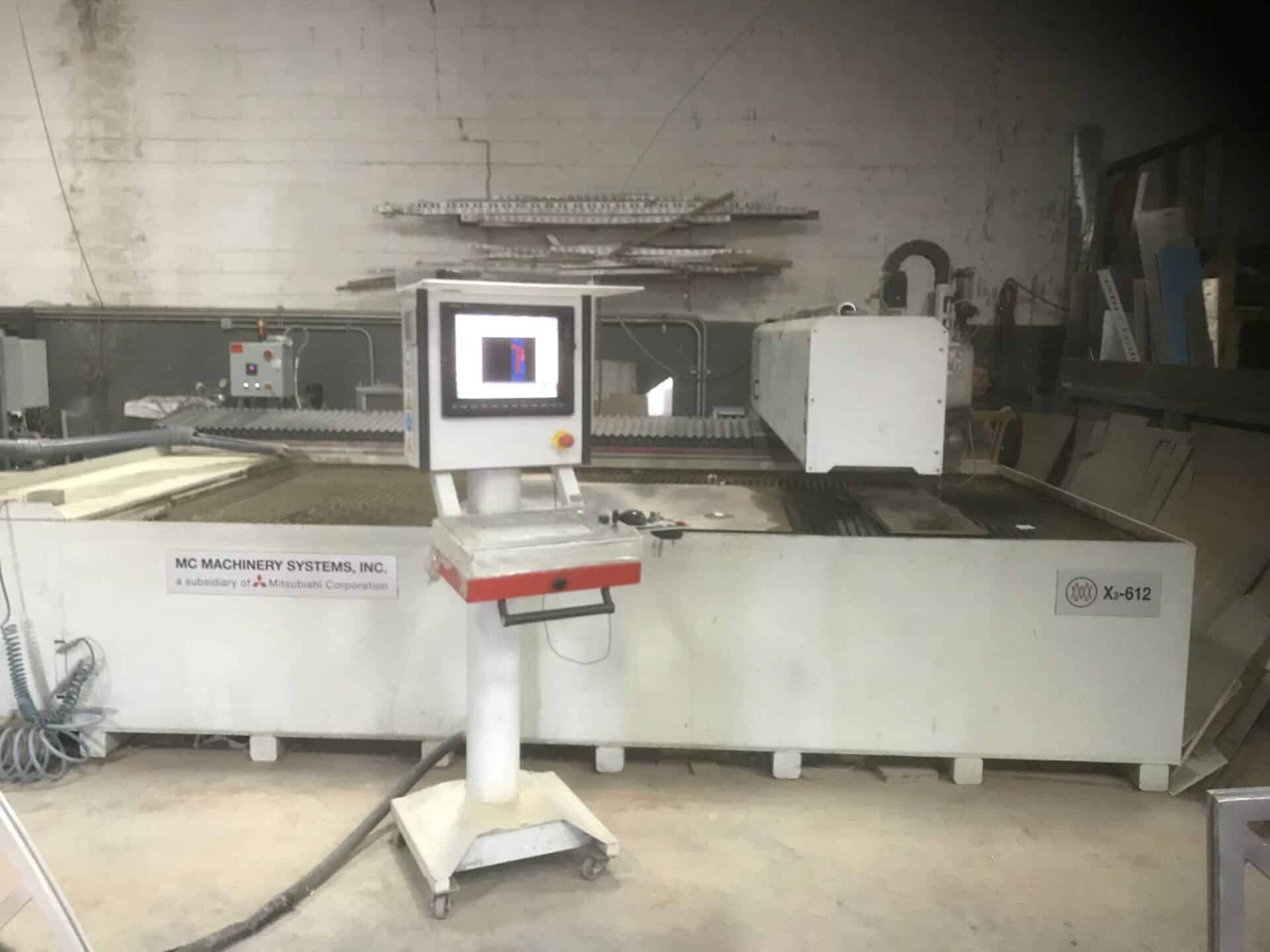

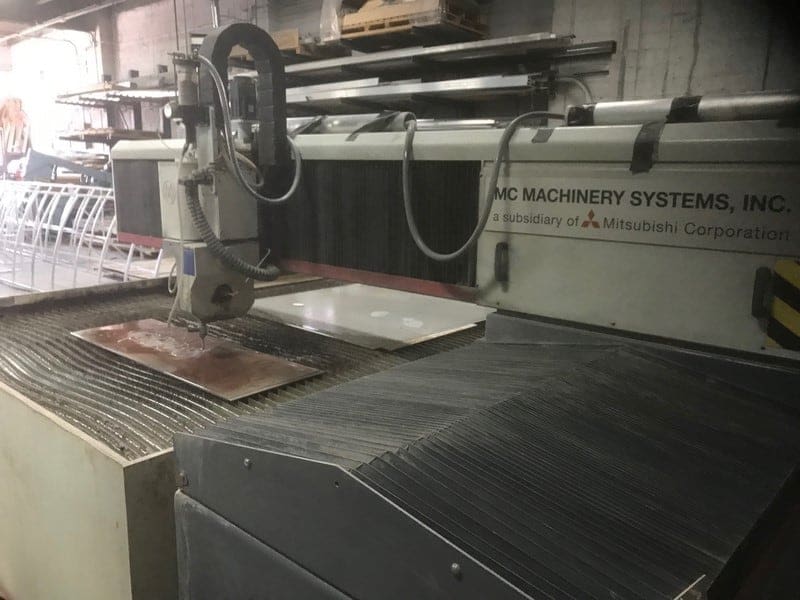

6' x 12' CNC Waterjet with Power Bevel Cutting Head |
Reference # |
8040021 |
Price |
$32,995 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Mitsubishi MWX3-612 (2012) CNC Waterjet for Sale. This pre-owned Mitsubishi CNC waterjet is located in New Jersey. If you have any questions regarding this Mitsubishi Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |
| Programmable Z Axis |
10" Stroke |
| Pump |
40 HP |
| Abrasive Hopper |
670 Lbs |
| Max Cutting Pressure |
55,000 PSI |
| Water Consumption GPM |
.65 |
| Control |

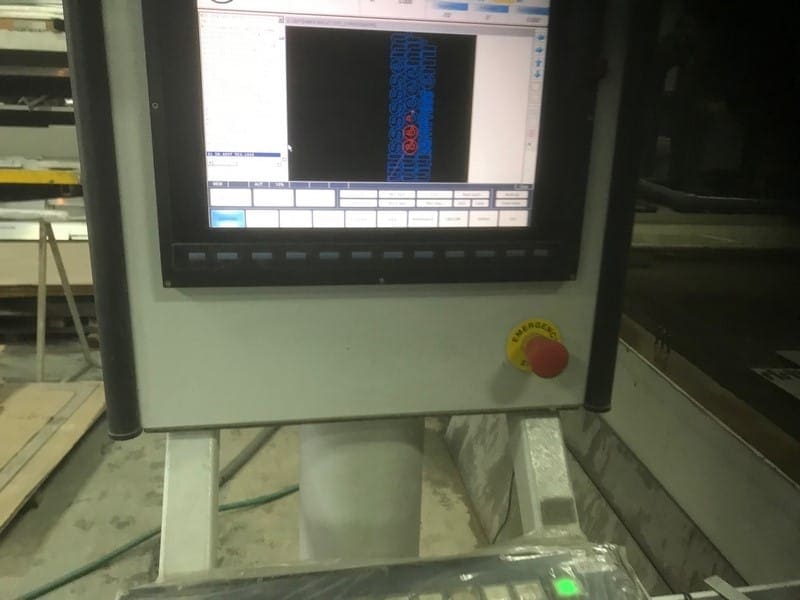

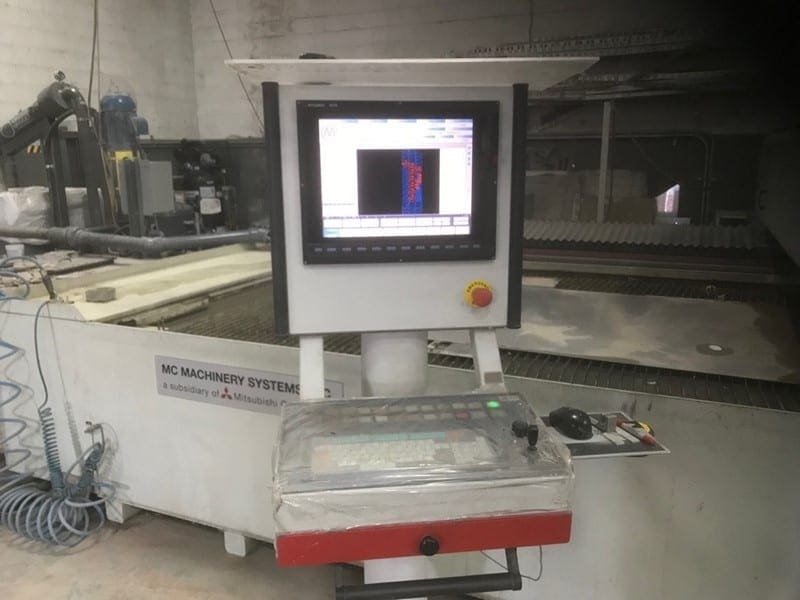

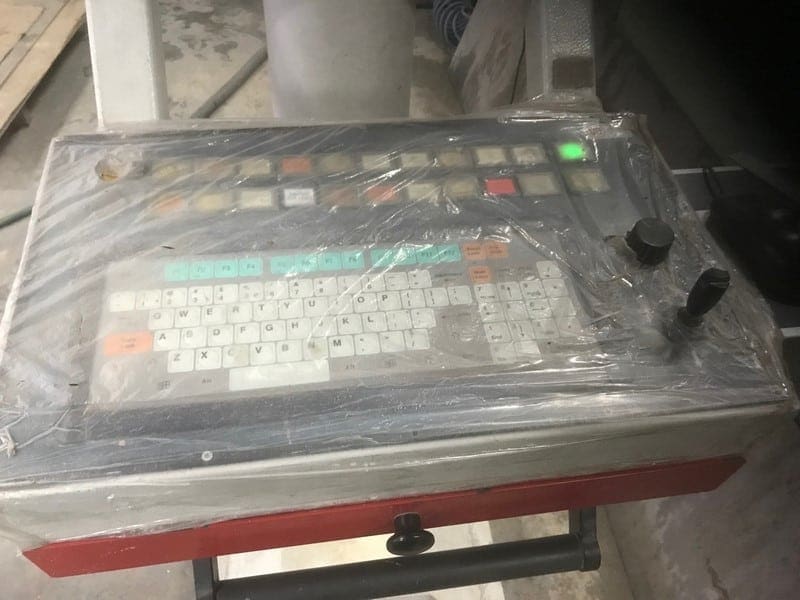

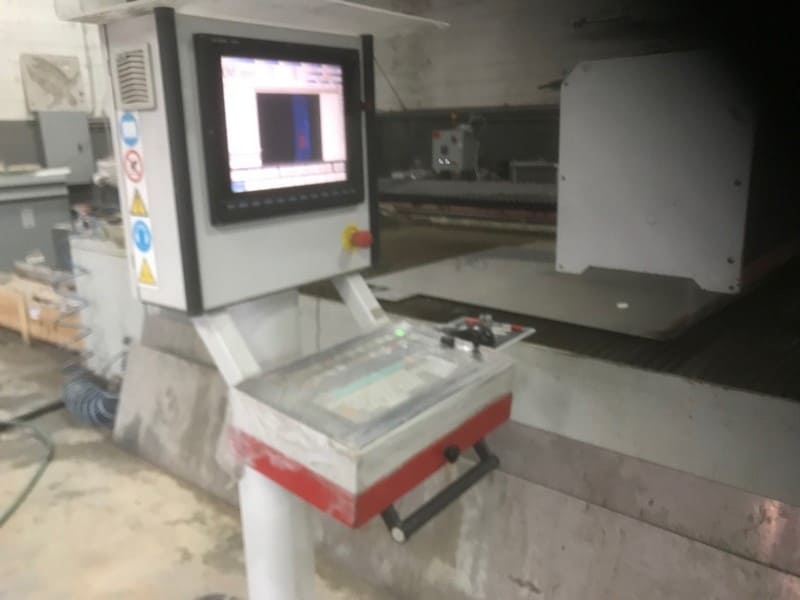

Mitsubishi M720 |
| Machine Weight |
20,000 lbs |
| Note |

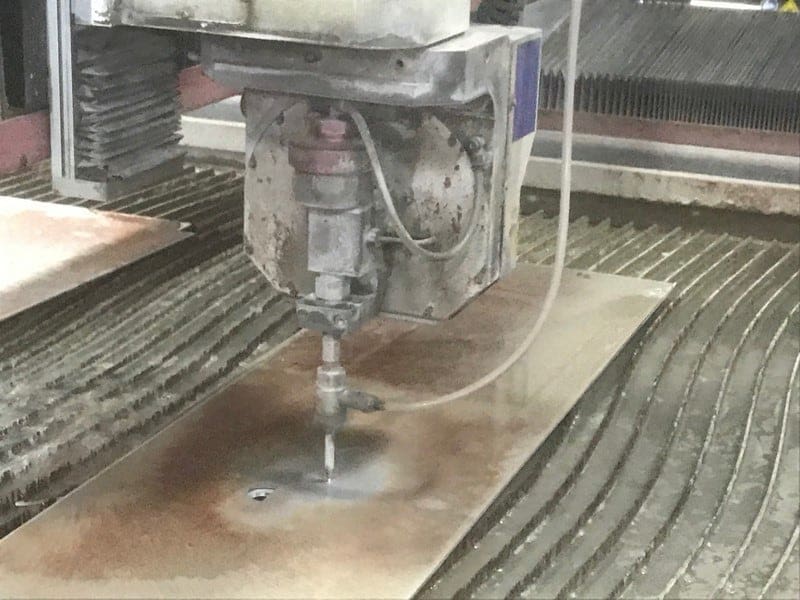

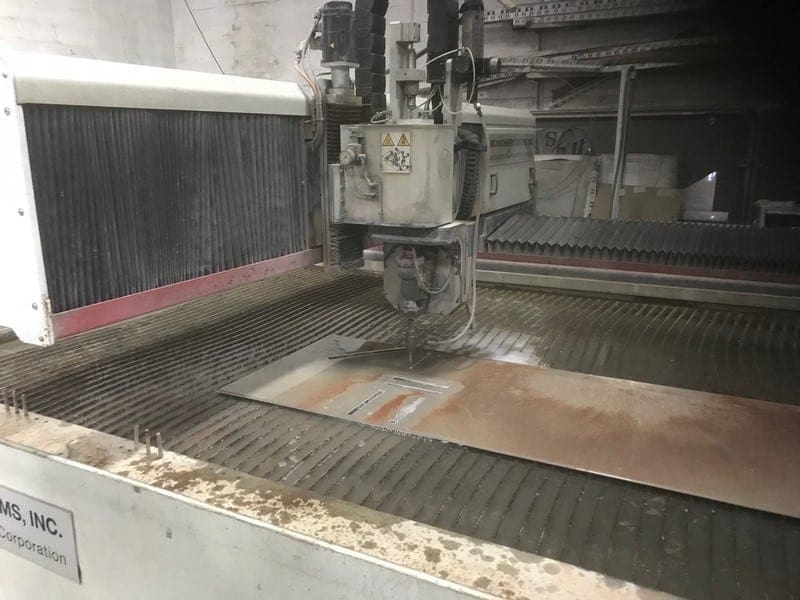

Bevel Head Unit includes a 4th Axis C-Axis and 5th Axis A-Axis the C-Axis allows for 180 degree rotation to allow the machine to cut any of the four sides of a typical plate. The A-Axis is a positioning axis only, without circular interpolation, and allows for up to 45 degrees angle rotation to cut beveled angles and weld prep angles into the plate material. |
Features
|
Ethernet Interface |
USB Port |
|
Abrasive Metering System Manally Adjust By Dial |
True Shape Nesting |
|
Automatic Z Axis Touch Probe And Programmable |

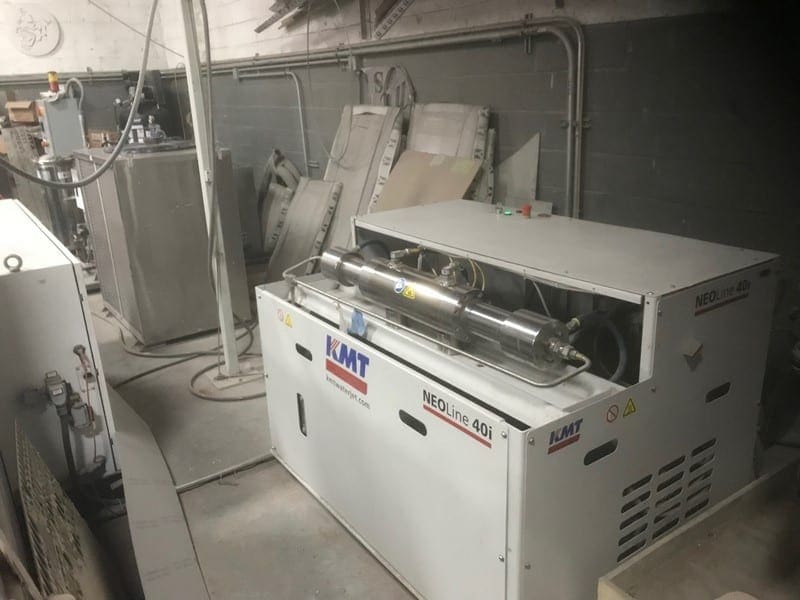

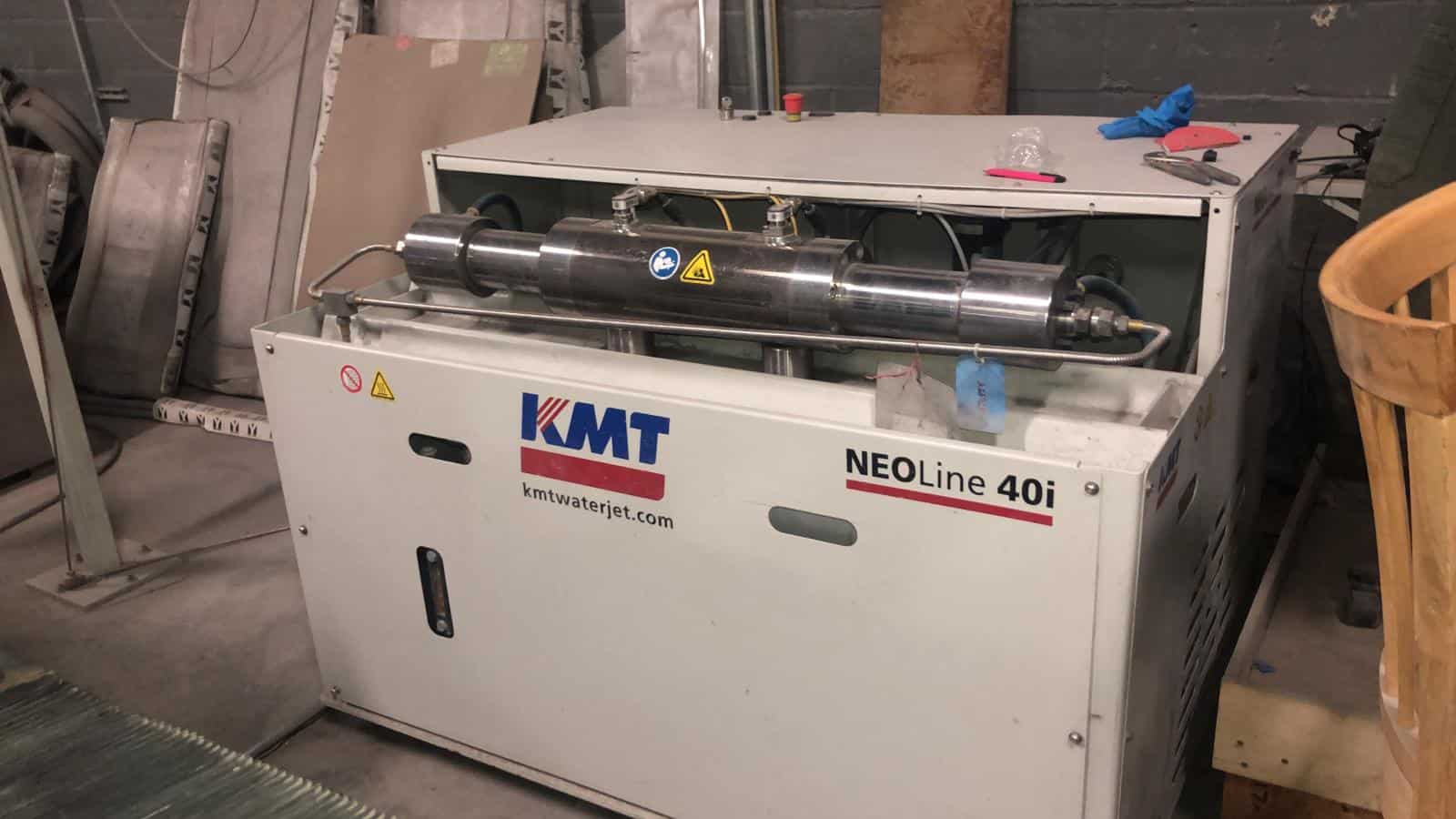

KMT Neoline 40i Intensifier Pump |
|
Metamation CAD/CAM Software |
