Year |
2012 |
|---|---|
Make |
Doosan |
Model |
Puma 700L |
Description |
CNC Lathe |
Reference # |
8078652 |
Price |
Activate Pricing |

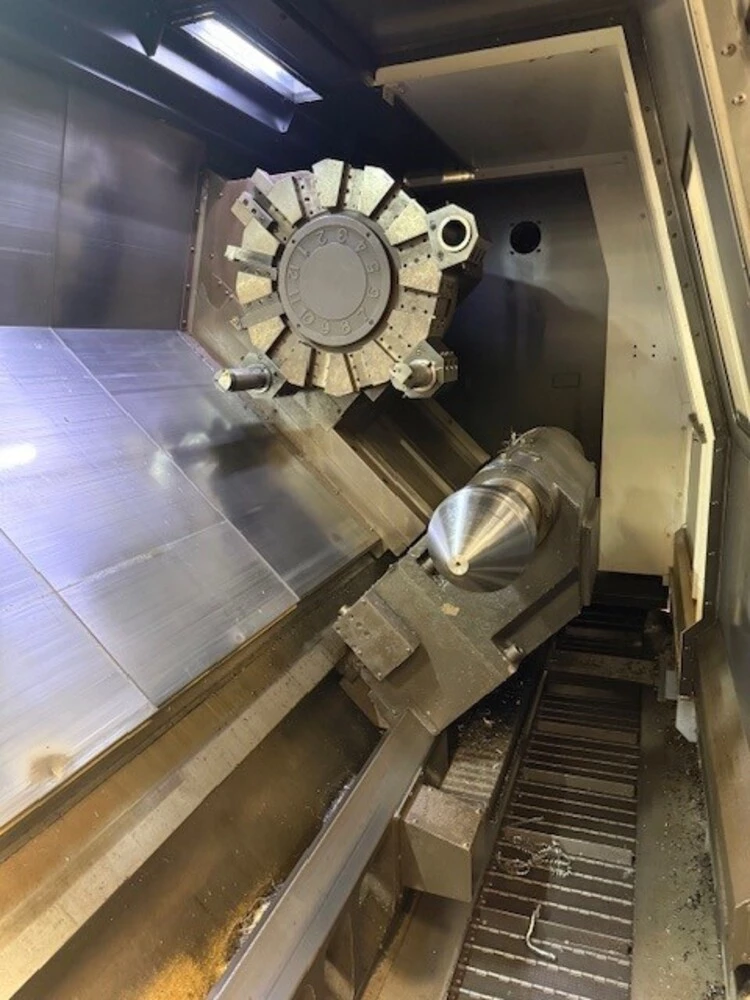

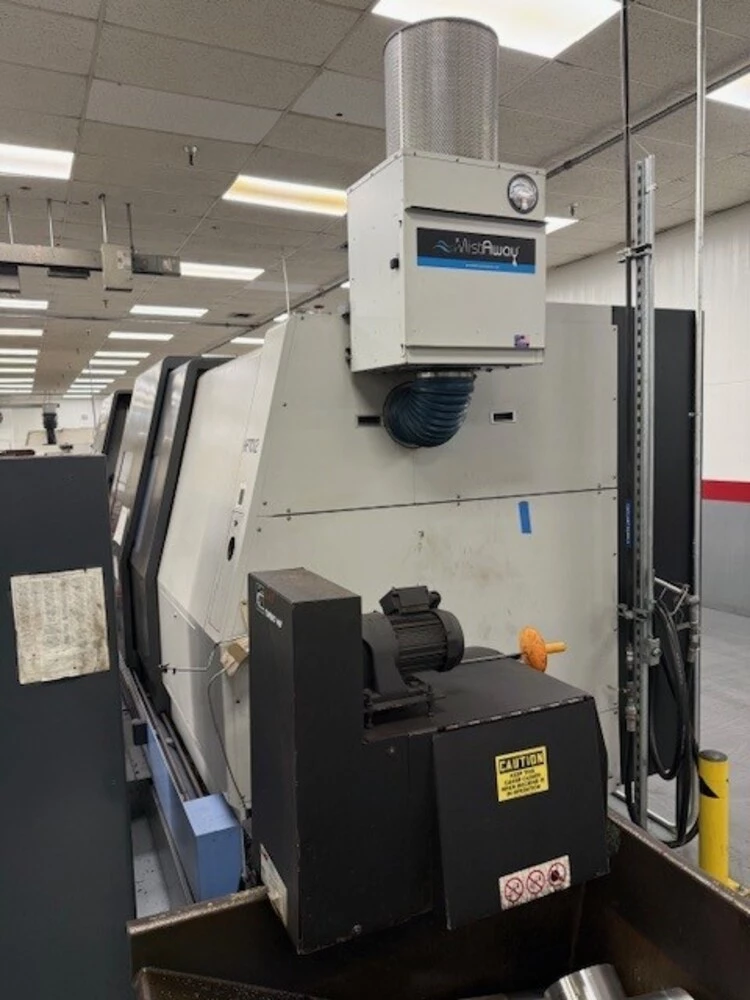

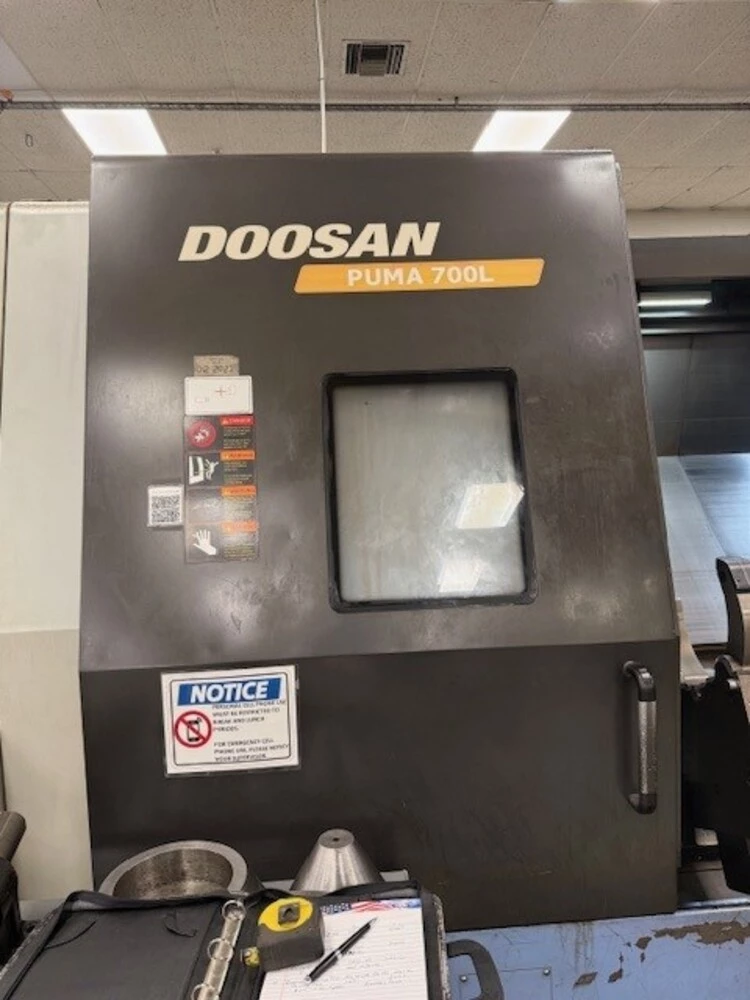

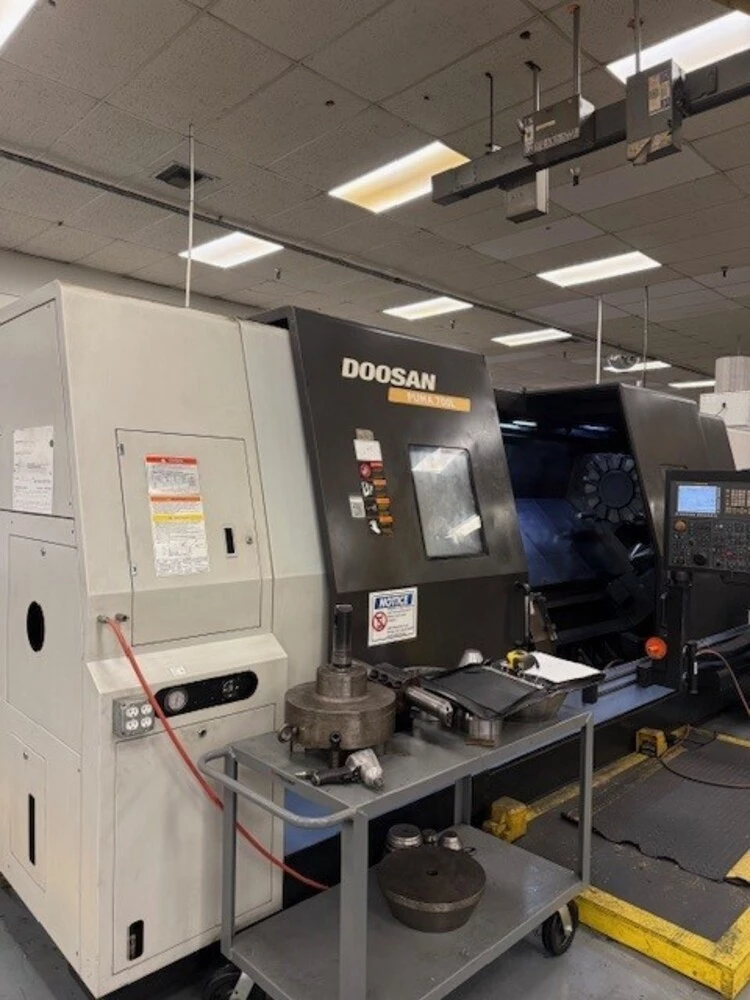

Used Doosan Puma 700L (2012) CNC Lathe for Sale. This large-capacity turning center runs a Fanuc 32i control with a 24″ chuck, 6.6″ bar capacity, 40.55″ swing and 35.4″ maximum turning diameter, with 126″ between centers. Spindle speed is rated to 1,500 RPM and tooling is held in a 12 station turret. Equipped with a Samchully 24″ 3-jaw open-center hydraulic chuck, SMW Auto Block steadyrest, tailstock and chip conveyor. The machine can be seen under power for an inspection by appointment. See more used CNC lathes or browse our other Doosan machines. Use Activate Pricing to view the current asking price, or Request a Quote and we will follow up with details, freight options and inspection scheduling.
Specifications
| Chuck Size |
24" |
|---|---|
| Bar Capacity |
6.6" |
| Swing |
40.55" |
| Turning Diameter |
35.4" |
| Spindle Speed |
1,500 RPM |
| Control |
Fanuc 32i |
| Distance Between Centers |
126" |
| Turret |
12 Station |
| Chip Removal |
Chip Conveyor |
Features
|

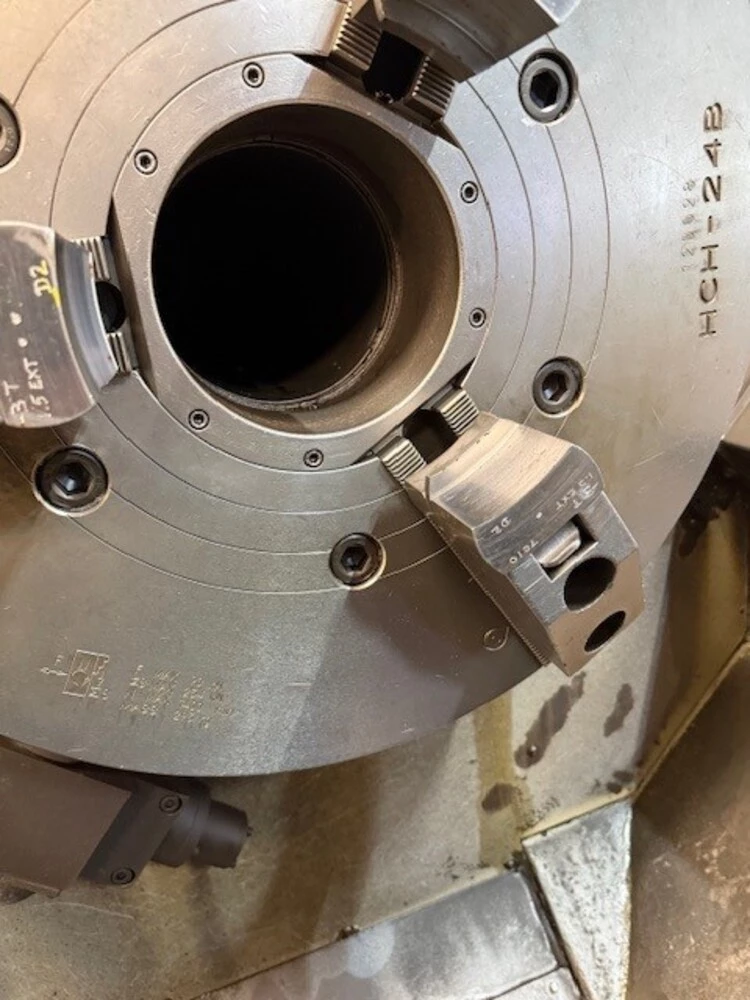

Samchully - 24" / 3-Jaw / Open-Center Hydraulic Chuck |

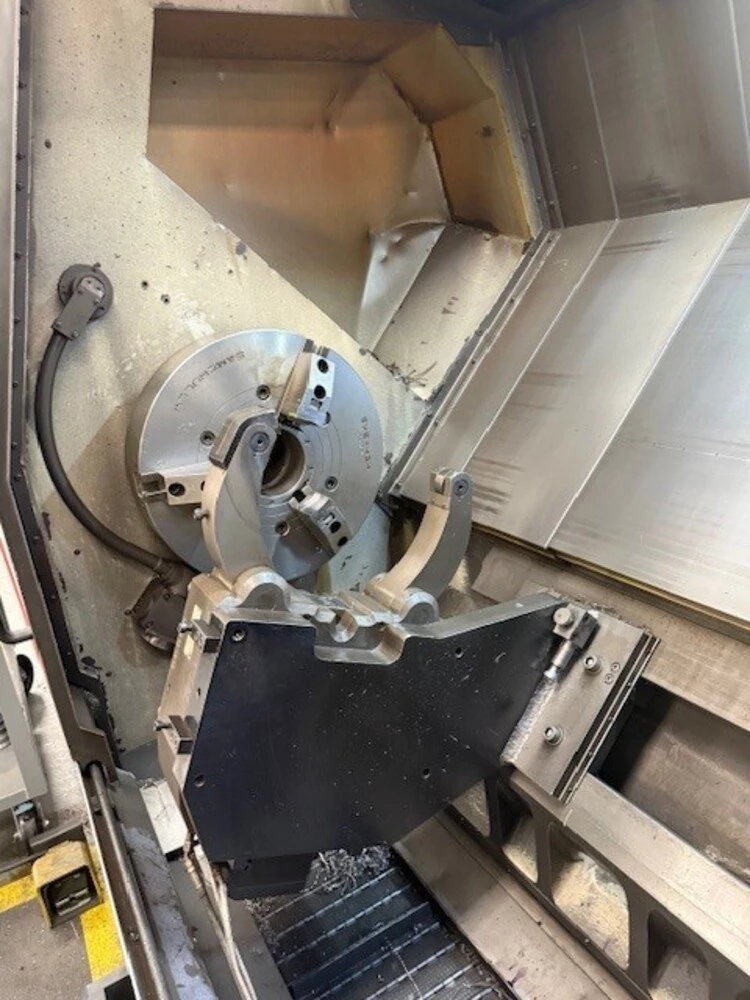

SMW Auto Block Steadyrest |
|
Tailstock |
