Year |
2011 |
|---|---|
Make |
Sumitomo |
Model |
SE30DUZ-C50 |
Description |
30 Ton 0.6 oz Shot Size Electric Injection Molding Machine |
Reference # |
8079125 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

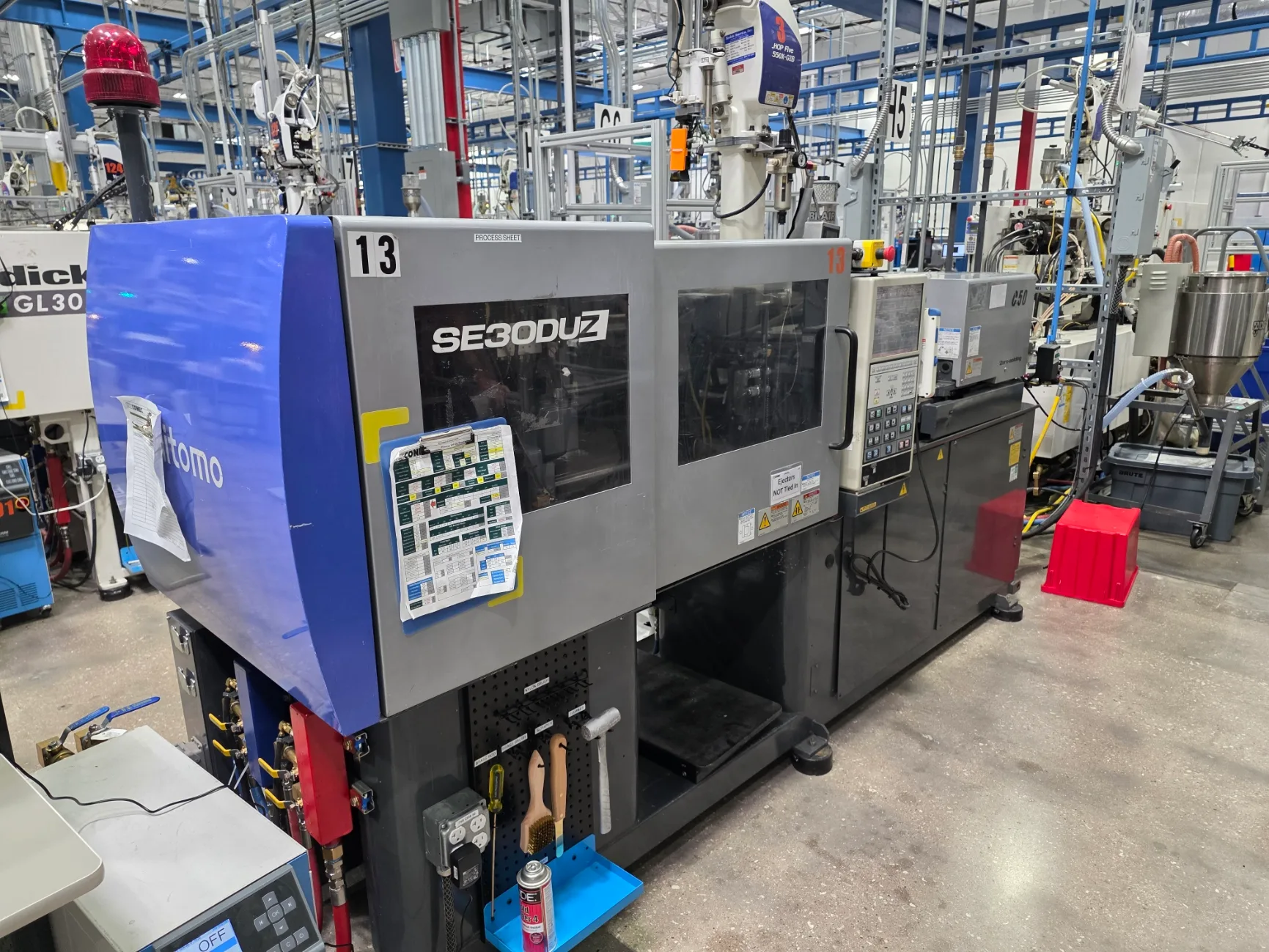

Used Sumitomo SE30DUZ-C50 (2011) Injection Molding Machine for Sale. This all-electric press is rated at 30 ton clamp capacity with a 0.6 oz shot size and an NV control. Platen size is 17.3″ x 16.5″ with tie bar spacing of 12.2″ x 11.4″, open daylight of 20.86″, minimum and maximum mold height of 5.9″ and 11.81″, and a maximum open stroke of 9.05″. Overall dimensions are 125″ x 39″ x 65″ and the machine weighs 4,000 lbs. It is currently under power and can be seen running for an inspection. Browse our other used plastic injection molding machines and additional used Sumitomo machines. Activate Pricing or use the Inquire Now button for details.
Specifications
| Capacity |
30 Ton |
|---|---|
| Shot Size |
0.6 oz |
| Platen Size |
17.3" x 16.5" |
| Tie Bar Spacing |
12.2" x 11.4" |
| Open Daylight |
20.86" |
| Min /Max Mold Height |
5.9"/11.81" |
| Max Open Stroke |
9.05" |
| Control |
NV |
| Dimensions |
125" x 39" x 65" |
| Machine Weight |
4,000 Lbs |
Features
|
Under Power |
