Year |
2011 |
|---|---|
Make |
DMG Mori |
Model |
DMF 260/11 |
Description |
CNC Vertical Machining Center |
Reference # |
8075840 |
Price |
Activate Pricing |

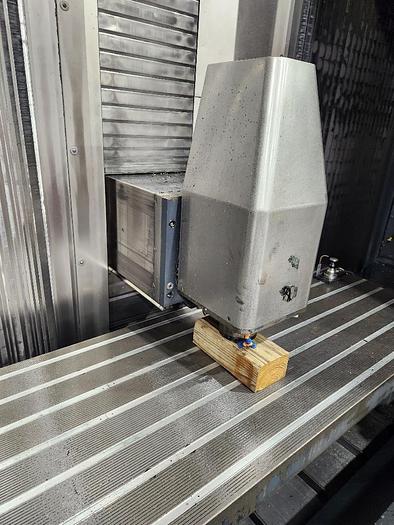

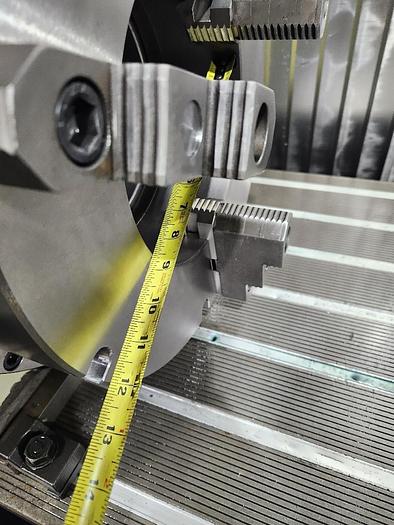

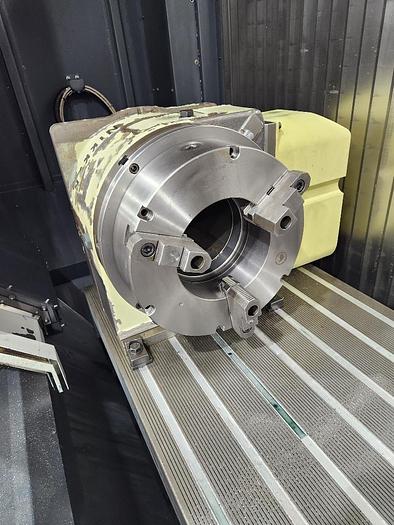

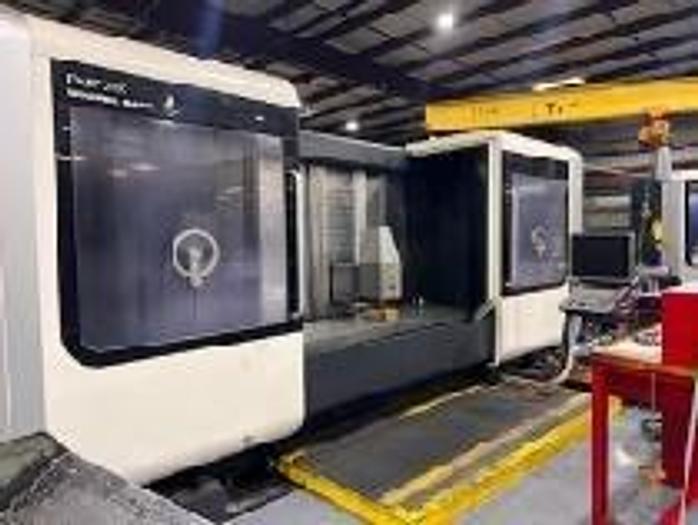

Used DMG Mori DMF 260/11 (2011) CNC Vertical Machining Center for Sale. This traveling column machine offers 102.4″ of X-axis travel, 43.3″ in Y, and 35.43″ in Z, with a spindle speed of 8,000 RPM and B-axis travel of +/- 100 degrees. It includes a 4th axis rotary table, a 16″ diameter 3-jaw chuck, and a tailstock. Maximum workpiece capacity is 55.1″ in diameter, 126″ in length, 43.3″ in width, and 36.6″ in height, with a maximum workpiece weight of 8,818.5 lbs. The machine can be seen under power for an inspection. Browse more CNC vertical machining centers or additional DMG Mori equipment, use Activate Pricing to view pricing, and Request a Quote for full details and availability.
Specifications
| X-Axis Travel |
102.4" |
|---|---|
| Y-Axis Travel |
43.3" |
| Z-Axis Travel |
35.43" |
| Spindle Speed |
8,000 RPM |
| Additional Axis |
4th Axis Rotary Table |
| B-Axis Travel |
+/- 100 Deg |
| Max Workpiece Diameter |
55.1" |
| Max Workpiece Height |
36.6″ |
| Max Workpiece Weight |
8,818.5 lbs |
| Max Workpiece Length |
126″ |
| Max Workpiece Width |
43.3″ |
| Equipped With |
Traveling Column With B Axis, 16″ Diameter 3-Jaw Chuck and Tailstock |
