Year |
2004 |
|---|---|
Make |
Haas |
Model |
Super Mini Mill |
Description |
CNC Vertical Machining Center |
Reference # |
8078839 |
Price |
Activate Pricing |

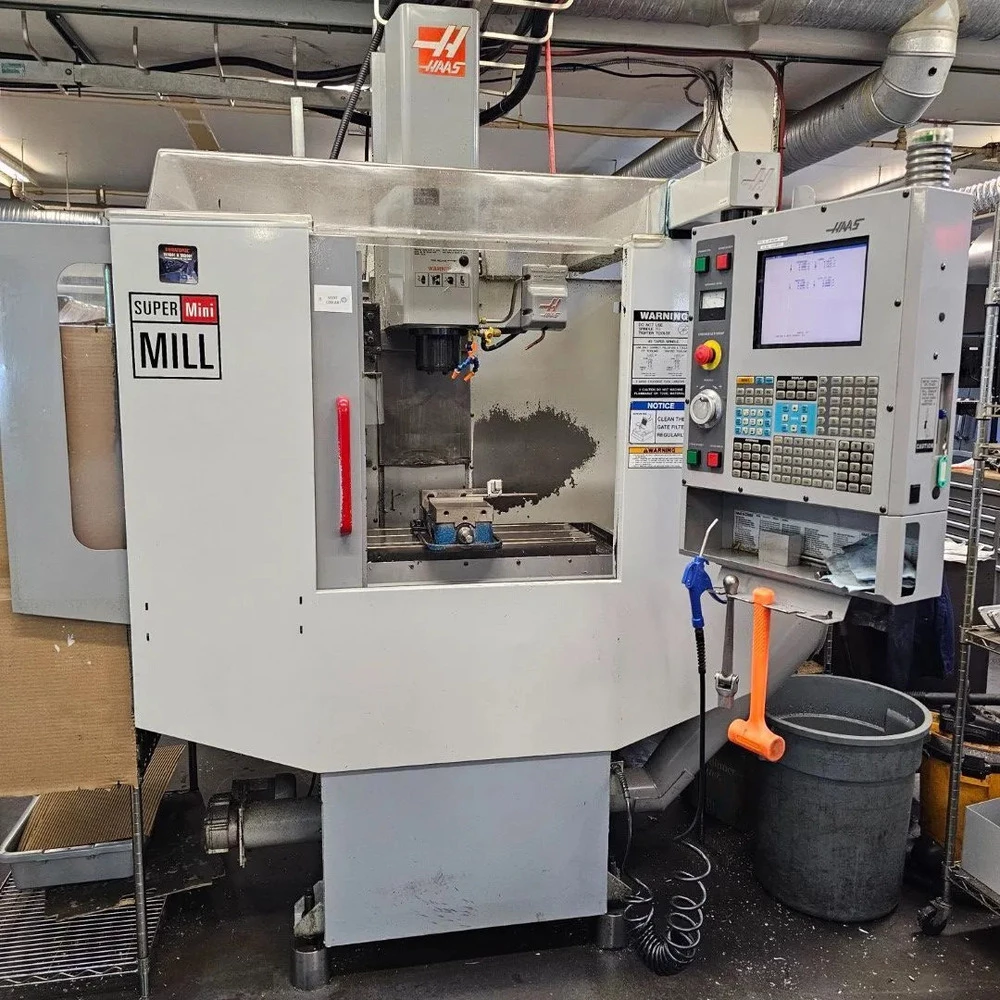

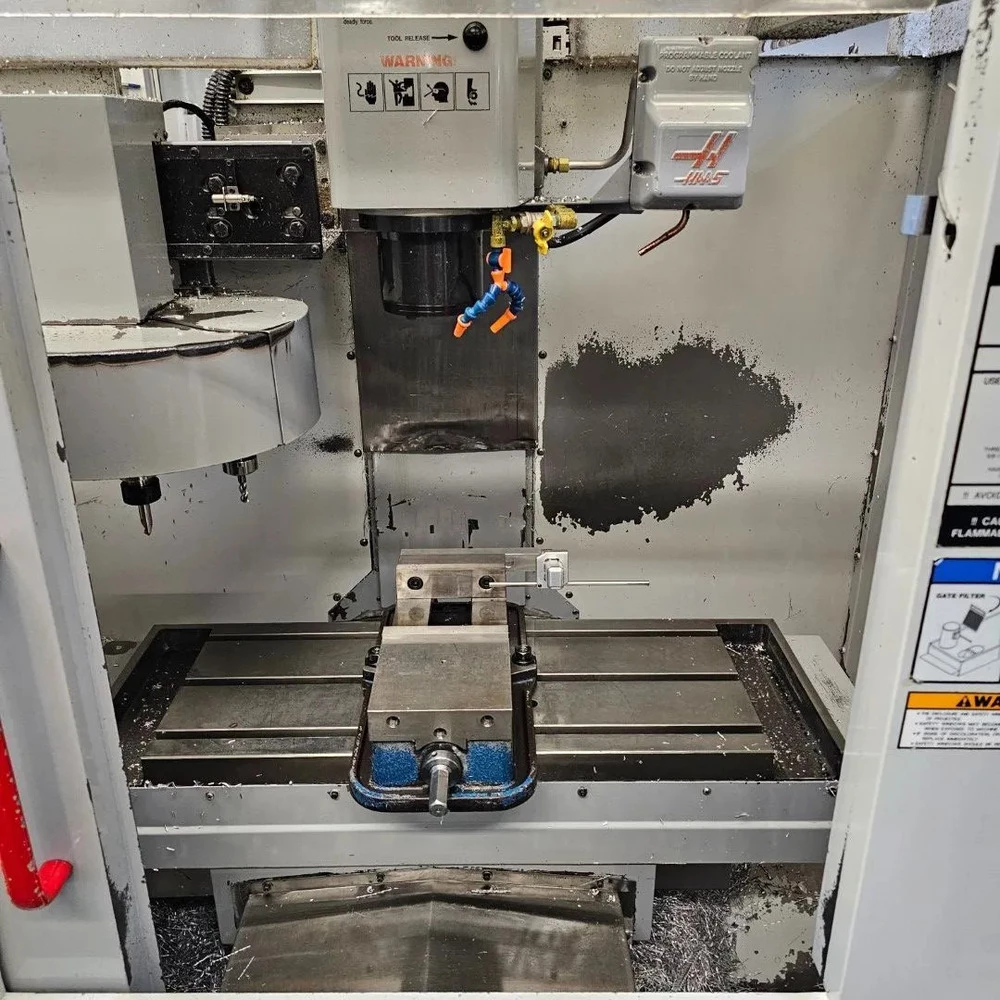

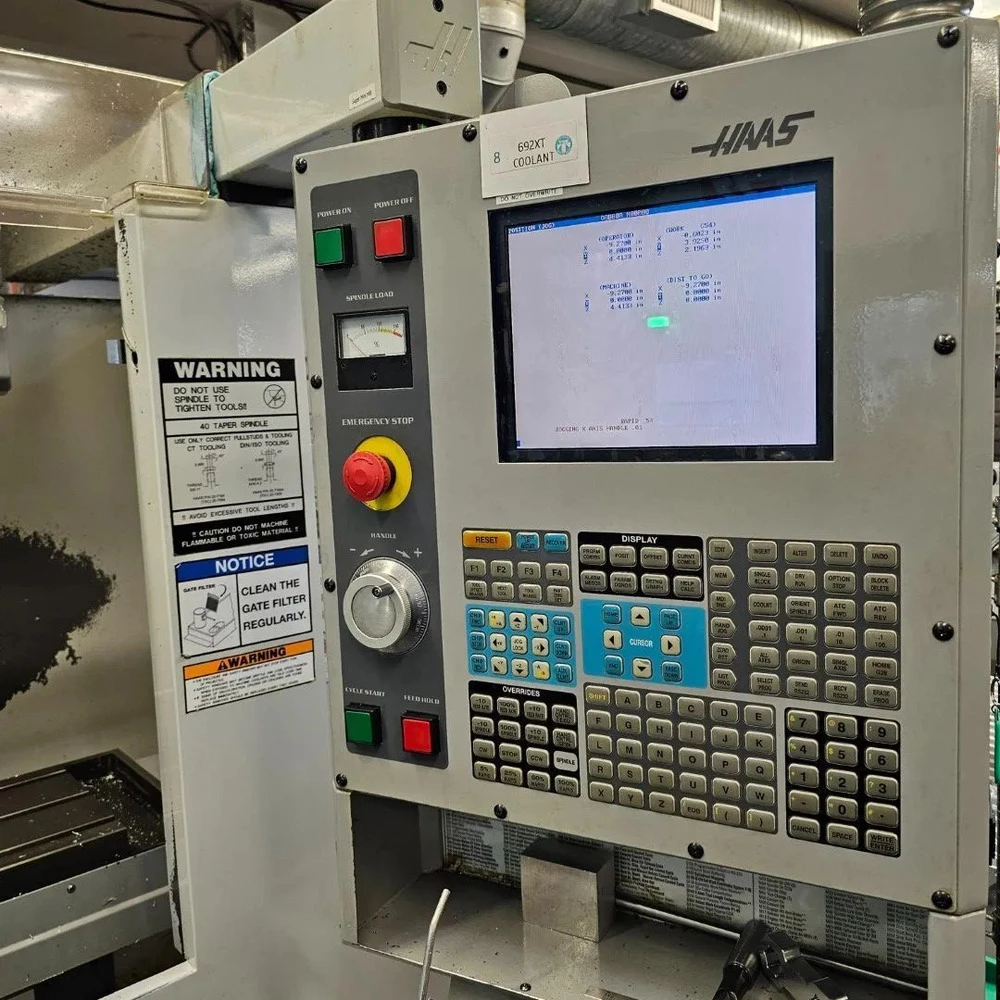

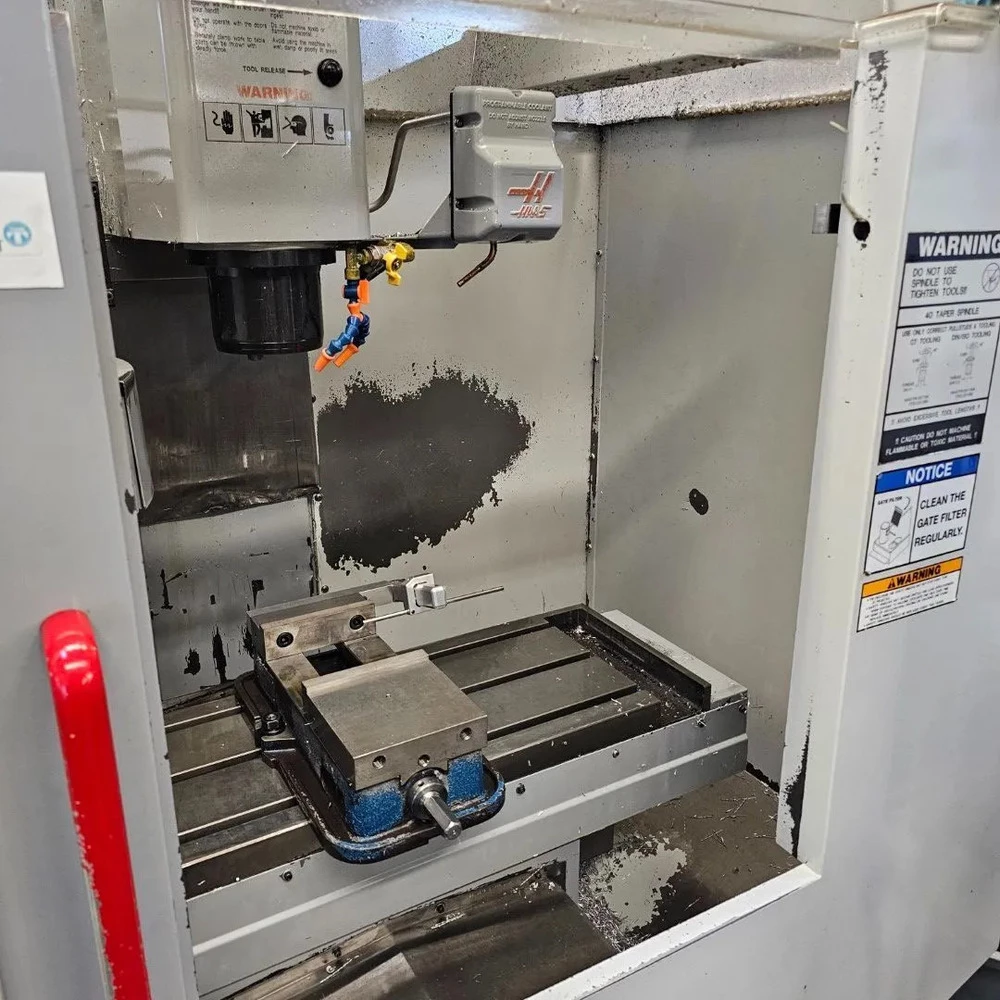

Used Haas Super Mini Mill (2004) CNC Vertical Machining Center for Sale. This machine offers 16″ of X-axis travel, 12″ of Y-axis travel and 10″ of Z-axis travel over a 12″ x 36″ table. The 15 HP spindle runs to 15,000 RPM with a CAT 40 taper, served by a 10-station ATC and the Haas CNC control. Equipped with a chip auger, programmable coolant, 3/4 HP coolant pump, RS232 port and USB interface, and rigid tapping. Power requirement is 240/1 or 208/3. The machine can be seen under power for an inspection. Browse more CNC vertical machining centers or additional Haas equipment. Activate Pricing to see the figure, or Request a Quote and we will follow up with details.
Specifications
| X-Axis Travel |
16" |
|---|---|
| Y-Axis Travel |
12" |
| Z-Axis Travel |
10" |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
15 HP |
| Tool Magazine Capacity |
10 ATC |
| Control |
Haas CNC |
| Chip Removal |
Chip Auger |
| Coolant |
Programmable |
| Power Requirement |
240/1 or 208/3 |
| Table Size |
12" x 36" |
Features
|
3/4 HP Coolant Pump |
S232 Port and USB Interface |
|
Rigid Tapping |
