Year |
2011 |
|---|---|
Make |
Anca |
Model |
FastGrind |
Description |
Tool & Cutter Grinder |
Reference # |
8068719 |
Price |
$128,995 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Travels |
17.13” 17.99” 10.83” 310° 360° |
|---|---|
| Fluting |
Capable up 1/2" in single pass |
| Size Ranging |
.04" - 3.0" diameter and up to 10' flute length |
| Position Feedback Resolution |
0.0000039” |
| Programming Resolution |
0.000039” |
| Software Axes |
B, V, U, W. Std software for endmills, drills, and step drills |
| Max Tool Diameter |
8.66" |
| Spindle Power |
3.7KW/5HP (S1) 8KW/10.7HP |
| RPM |
10,000 |
| Spindle Type |
ANCA Bi-Directional |
| Spindle Drive |
Integral Direct Drive |
| Nose Taper |
HSK 40F |
| Max. Wheel Diameter |
8” |
| Wheel Packs |
2 |
| Electrical Power |
13.2 KVA |
| Weight Approx. |
9,921lb |
| RAM |
1 GB |
| Maximum Tool Diameter |
8.66” |
| Maximum Weight |
44 Lbs |
Features
|
Pneumatic Headstock With Retention Fingers |
Renishaw Probe System |
|

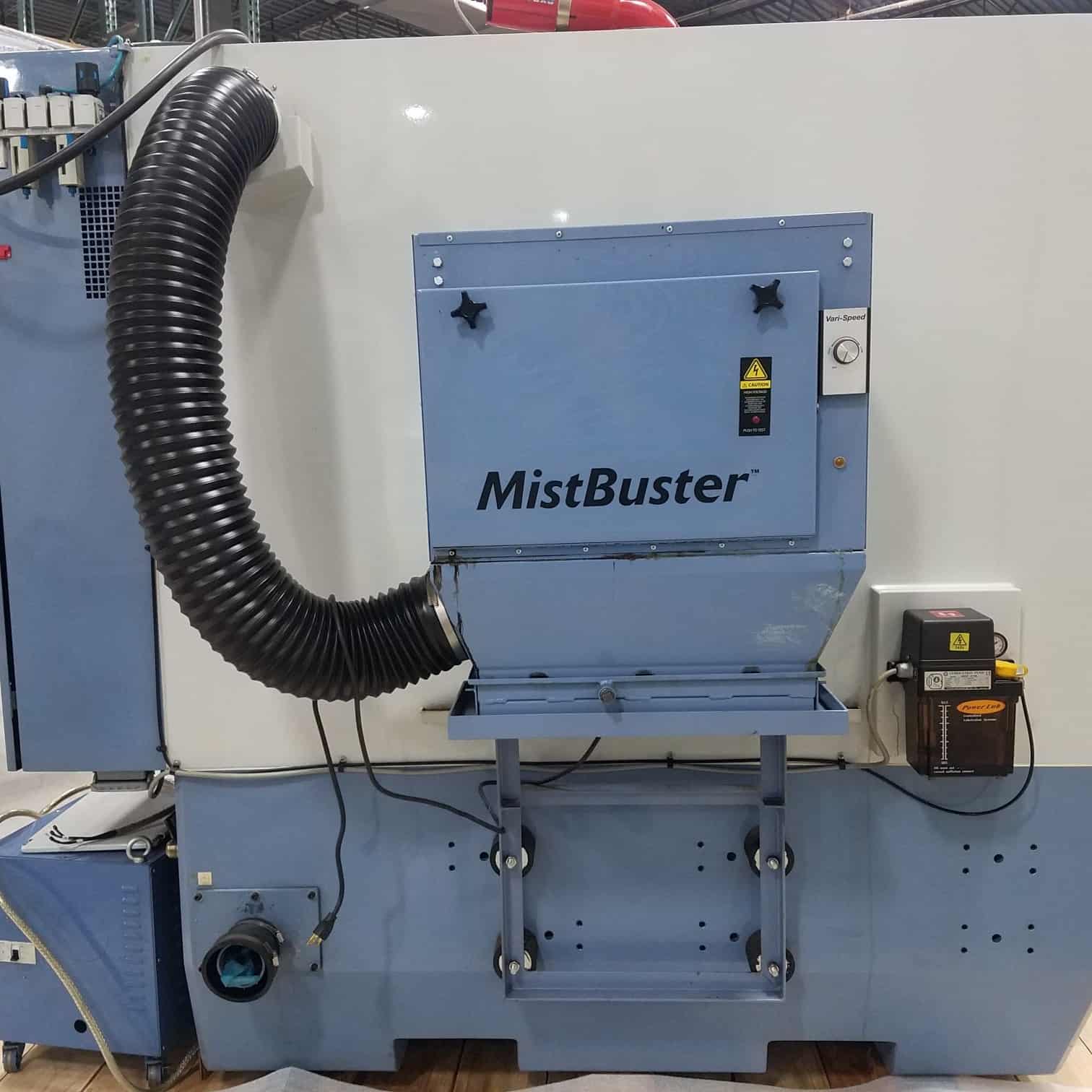

Mist Collector |
Steady Rest Bed |
|
Tool Holder Not Included |
Toolroom Software |
|
Version Software 33.1 |
Automatic Fire Suppression System |
|
Display LCD Screen |
Igrind Software Included |
|
Machine Transformer |
Network Ethernet |
|
New X |
Y |
|
Z Ballscrew And Rails |
