Year |
2010 |
|---|---|
Make |
Murata |
Model |
Motorum M-2548 |
Description |
27.5 Ton Turret Punch |
Reference # |
8074964 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

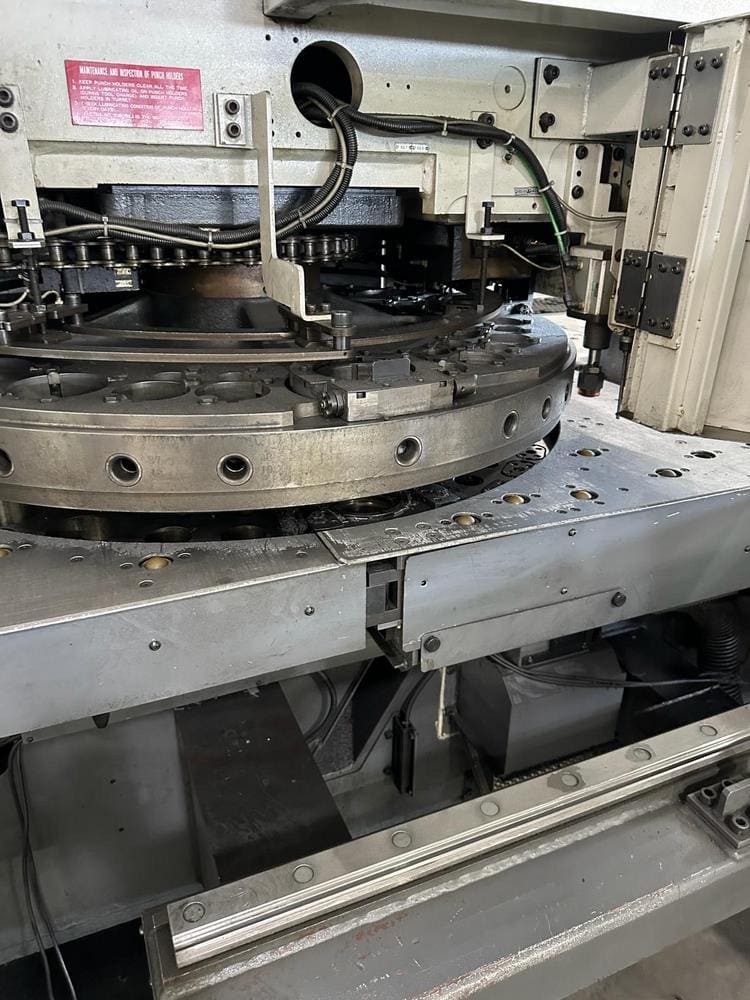

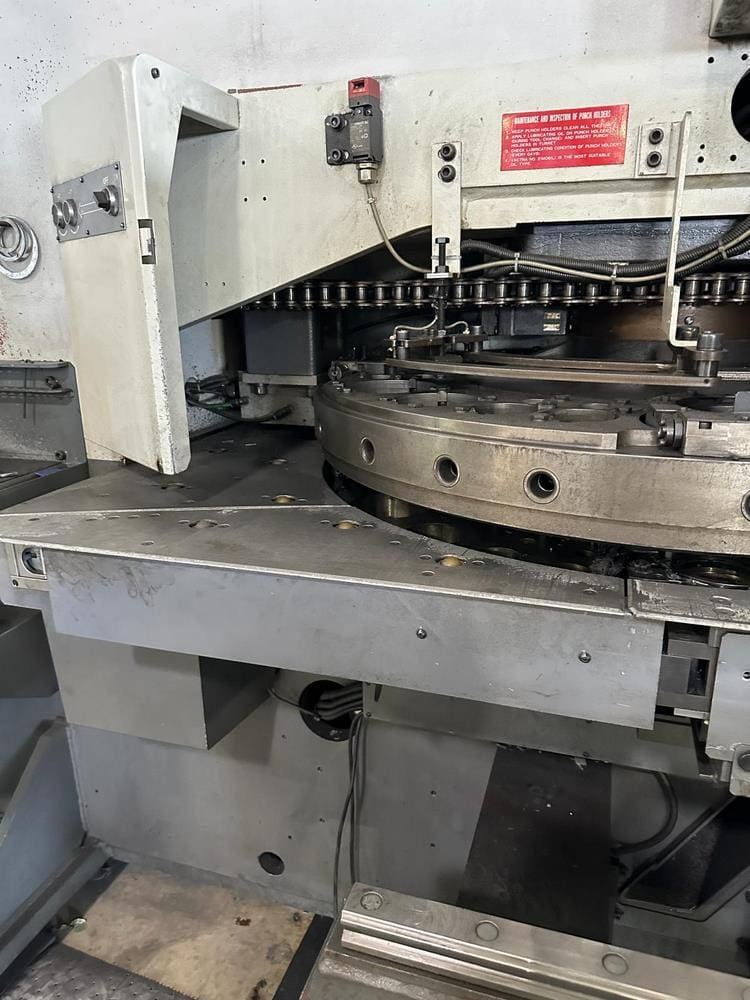

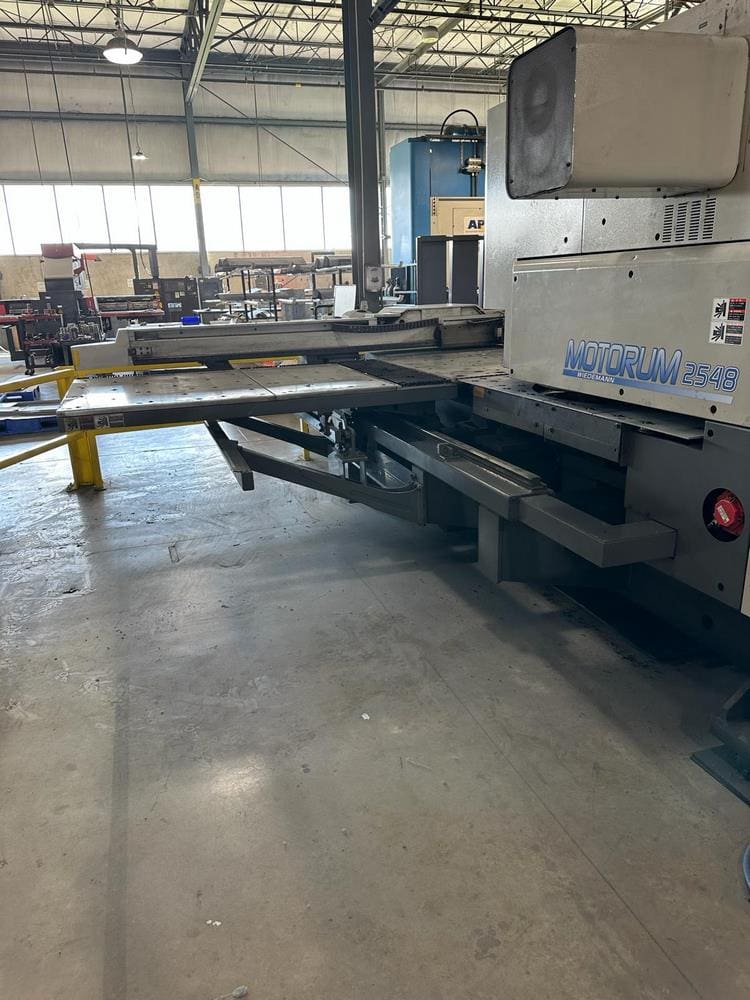

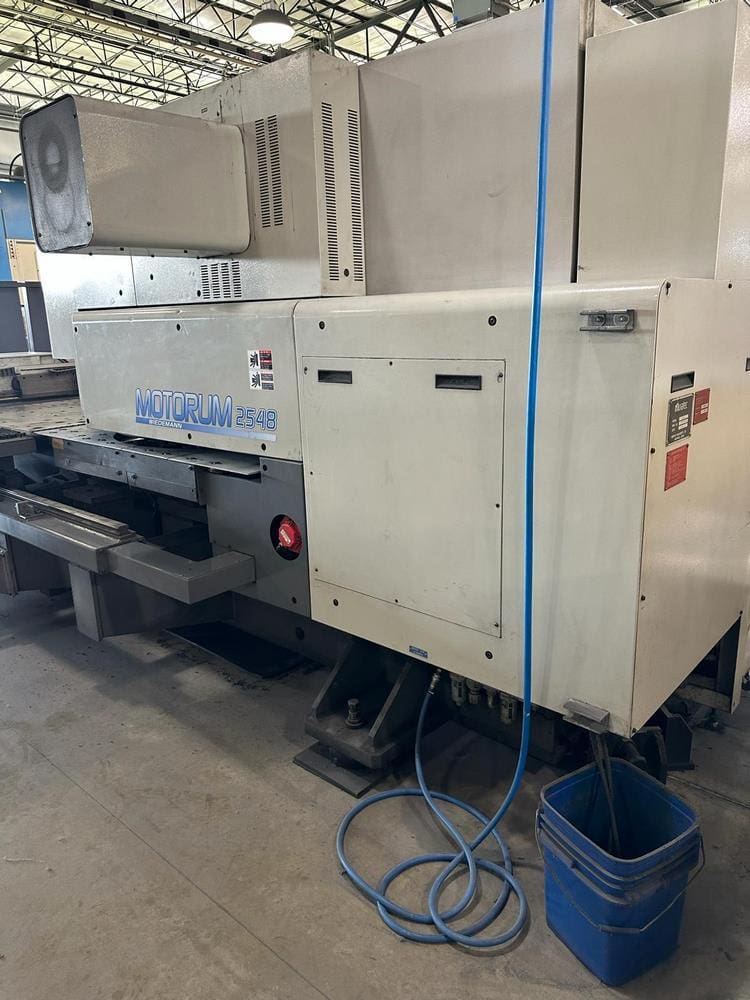

Used Murata Motorum M-2548 (2010) Turret Punch for Sale. This pre-owned Murata turret punch is located in the United States. If you have any questions regarding this Murata Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
27.5 Ton |
|---|---|
| Sheet Width |
48" |
| Sheet Length |
96" |
| Turret Stations |
44 with 4 A/I |
| Throat Depth |
52.7" |
| Max Sheet Thickness |
.250" |
| Max Sheet Weight |
330 Lbs |
| Max Hole Diameter |
4.75" |
| Ram Stroke |
1.3" |
| Punching Accuracy |
+/- .004" |
| Axis Repeatability |
+/- .001" |
| Tooling Style |

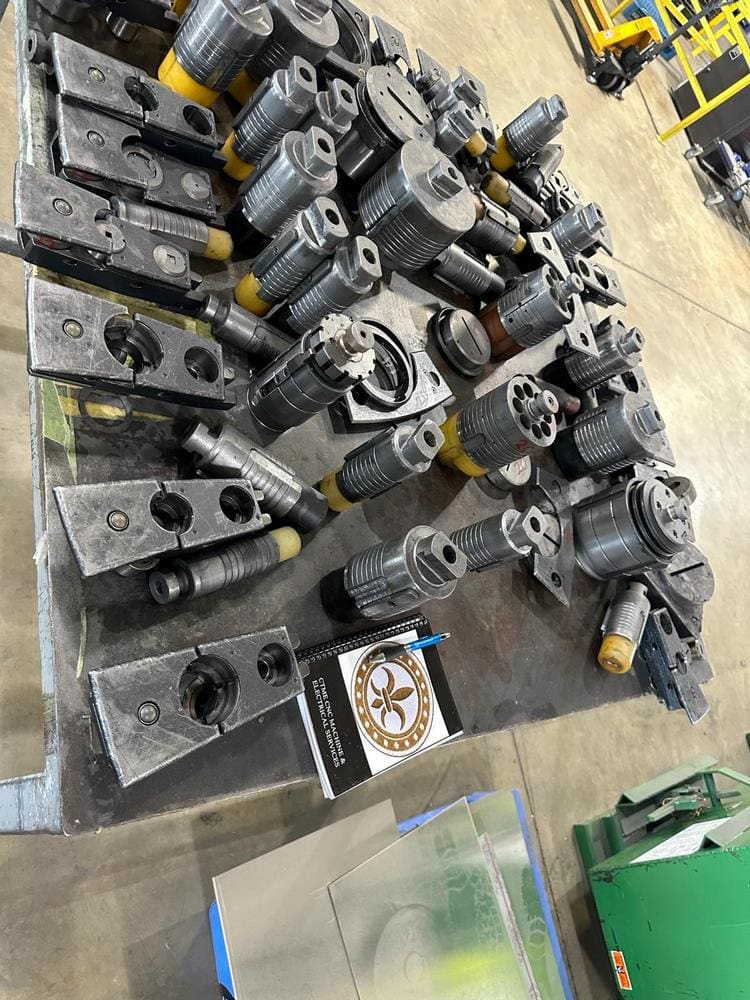

114, 112, Mate Marathon, Wilson HP |
| Table Travels (X / Y) |
100.4" x 63" |
| Table Height |
38.6" |
| Approx. Machine Dimensions |
198.8" x 204.7" x 88.6" H |
| Weight |
26,400 Lbs |
Features
|
Variable Die Penetration |
