Year |
2010 |
|---|---|
Make |
Mitsubishi |
Model |

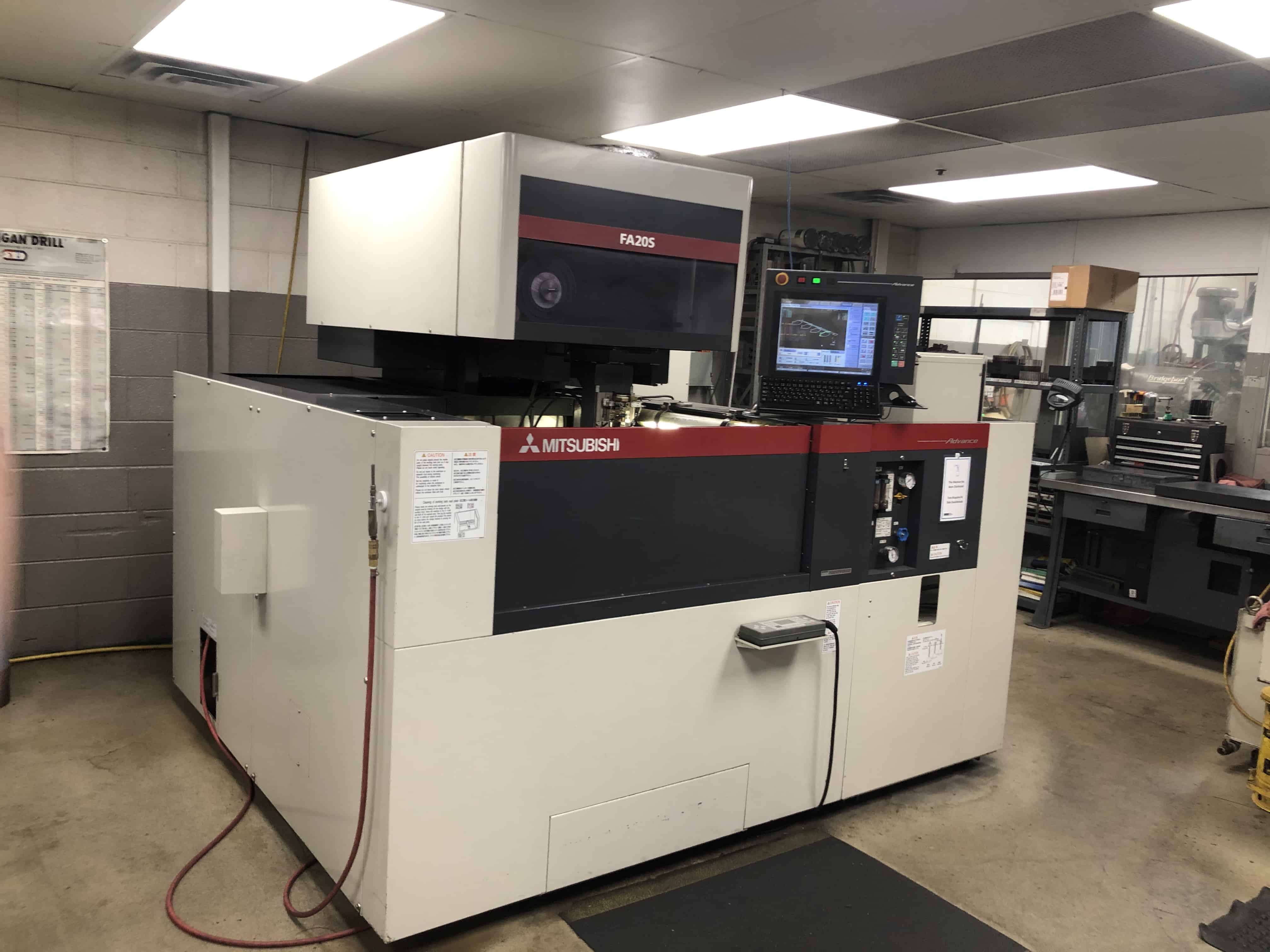

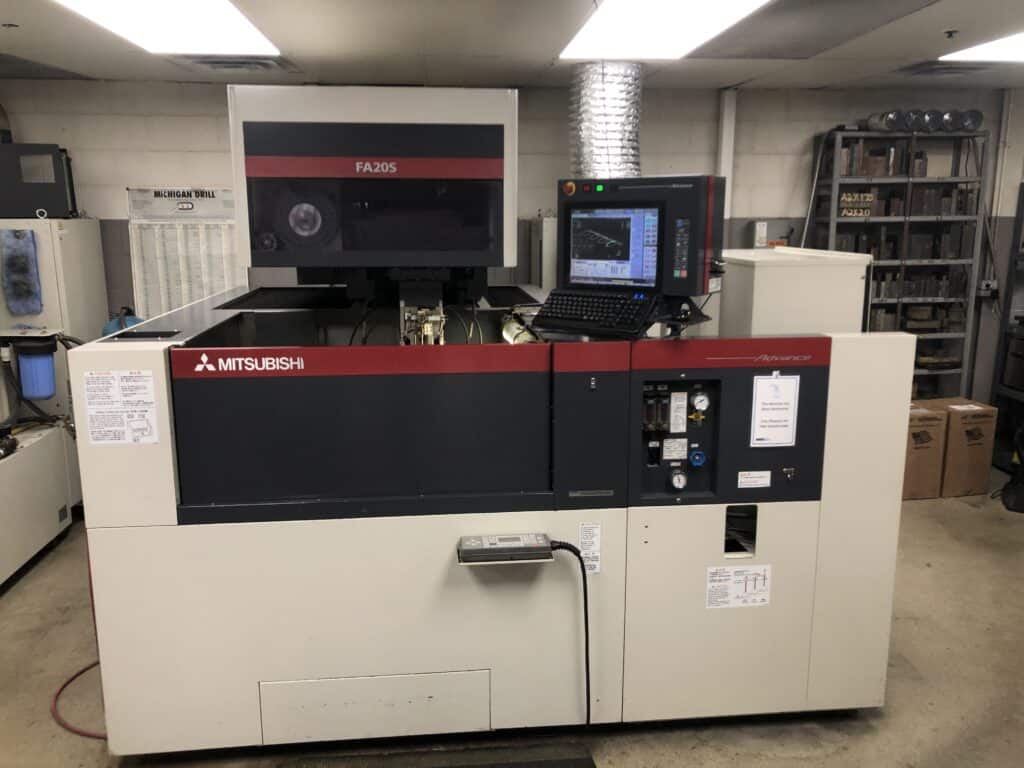

FA20S Advance |
Description |
EDM Wire |
Reference # |
8070451 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
19.6" |
|---|---|
| Y-Axis Travel |
13.7" |
| Z-Axis Travel |
11.8" |
| Control |
M750 Advance |
| U/V Axis Travel |
3.0" x 3.0" |
| Degree Taper Cutting |
15@10.25' |
| Inside Tank Dimensions |
41.34" x 31.50" |
| Power Requirement |
200-230/3/60 |
| Max Workpiece Dimensions |
41.34" x 31.5" x 11.61" |
| Max Workpiece Weight |
3,300 lbs |
| Table Dimensions |
30.71" x 24.8" |
| Table Rapid Feed (in/min) |
51.2 |
| Wire Diameter |
.006-.012" (0.10" Std) |
| Note |
Prepped by Mitsubishi Service Tech |
| Resolution |
.000002" (2 Millionths) |
| Filter Tank Capacity |
187 Gallons |
Features
|
4-Sided Table (One-Piece) |
Auto Power Recovery |
|
Auto Wire Threading |

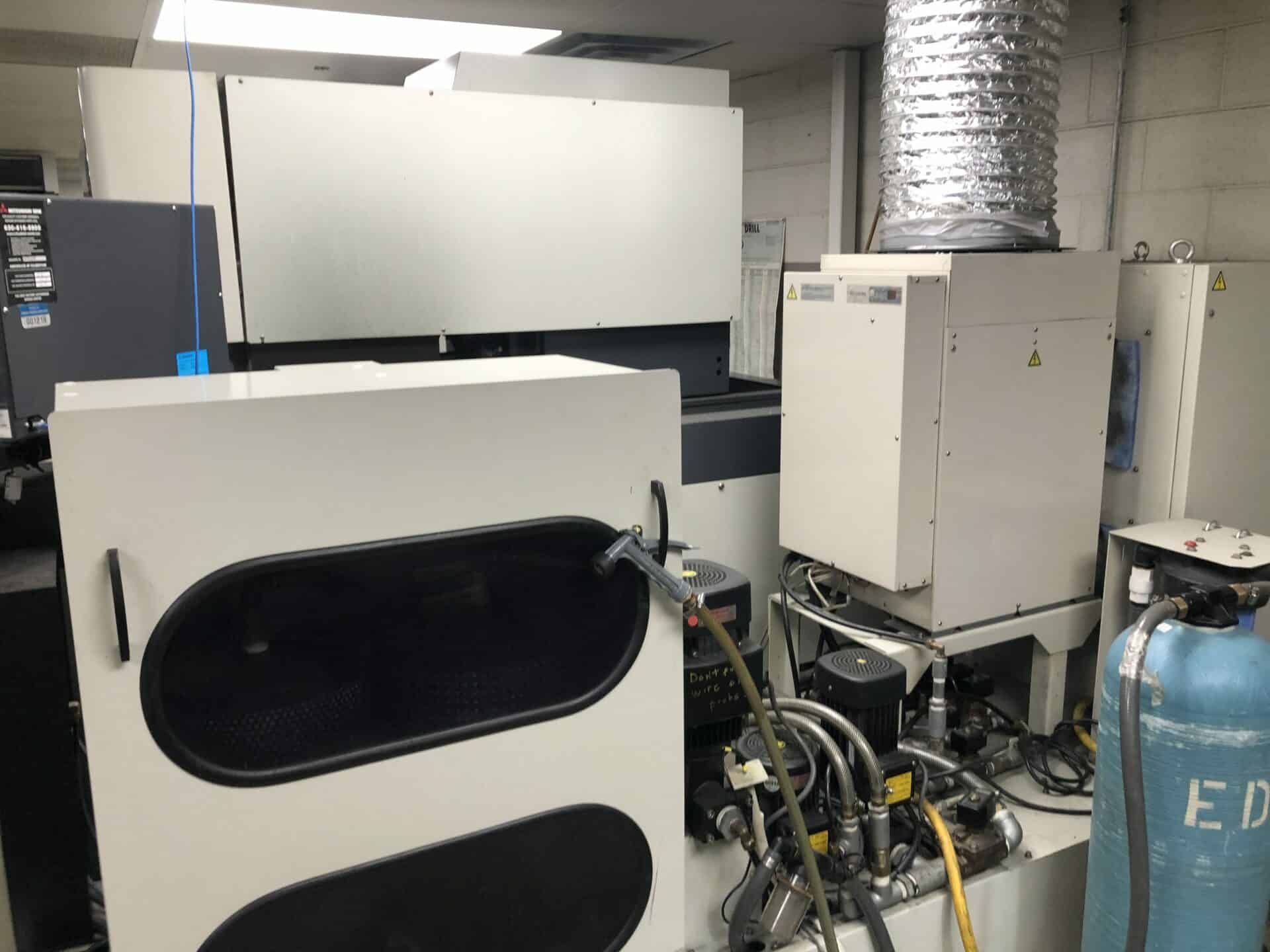

Chiller |
|
Fast Fill Pump |
10 KG (22lb) Wire Spool |
|

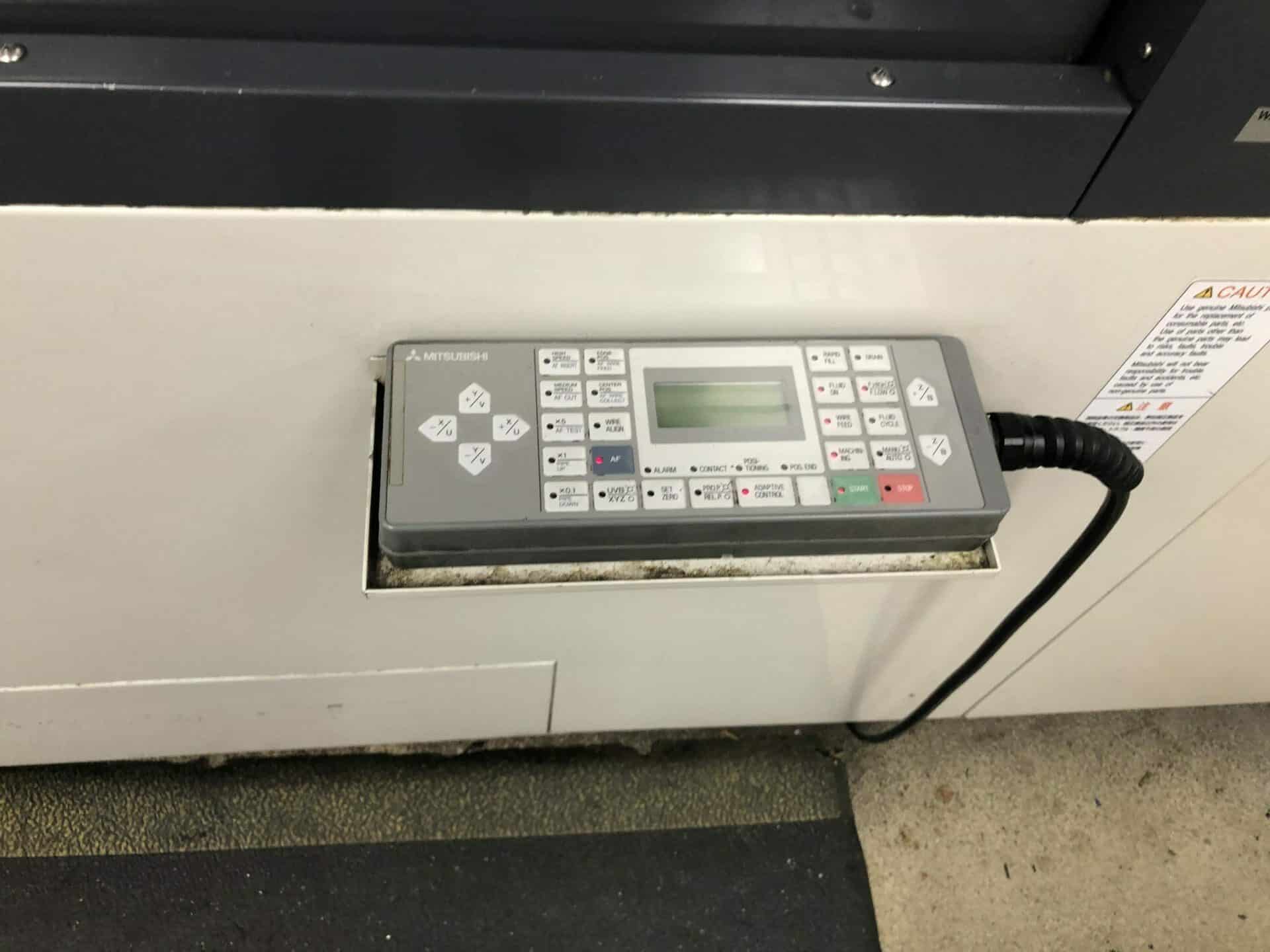

Hand Pendant Controller |
Wire Alignment Gauge |
|
Wire Chopper |
Submerged Threading & Insert At Break Point |
|
Adaptive Control (Protects Against Wire Breaks/Accuracy Losses/Finish Disruptions |
Anti-Electrolysis Power Supply |
|
Auto Oiler Standard |
Ethernet Connection with FTP |
|
Filter System Paper Cartridge |
Filter Type/Precision Type 7/3 Micron |
|
Fine Hole Insert |
X and Y Glass Scale Feedback |
