Year |
2010 |
|---|---|
Make |
Mitsubishi |
Model |
FA10S Advance |
Description |
EDM Wire |
Reference # |
8068584 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |
| Control |

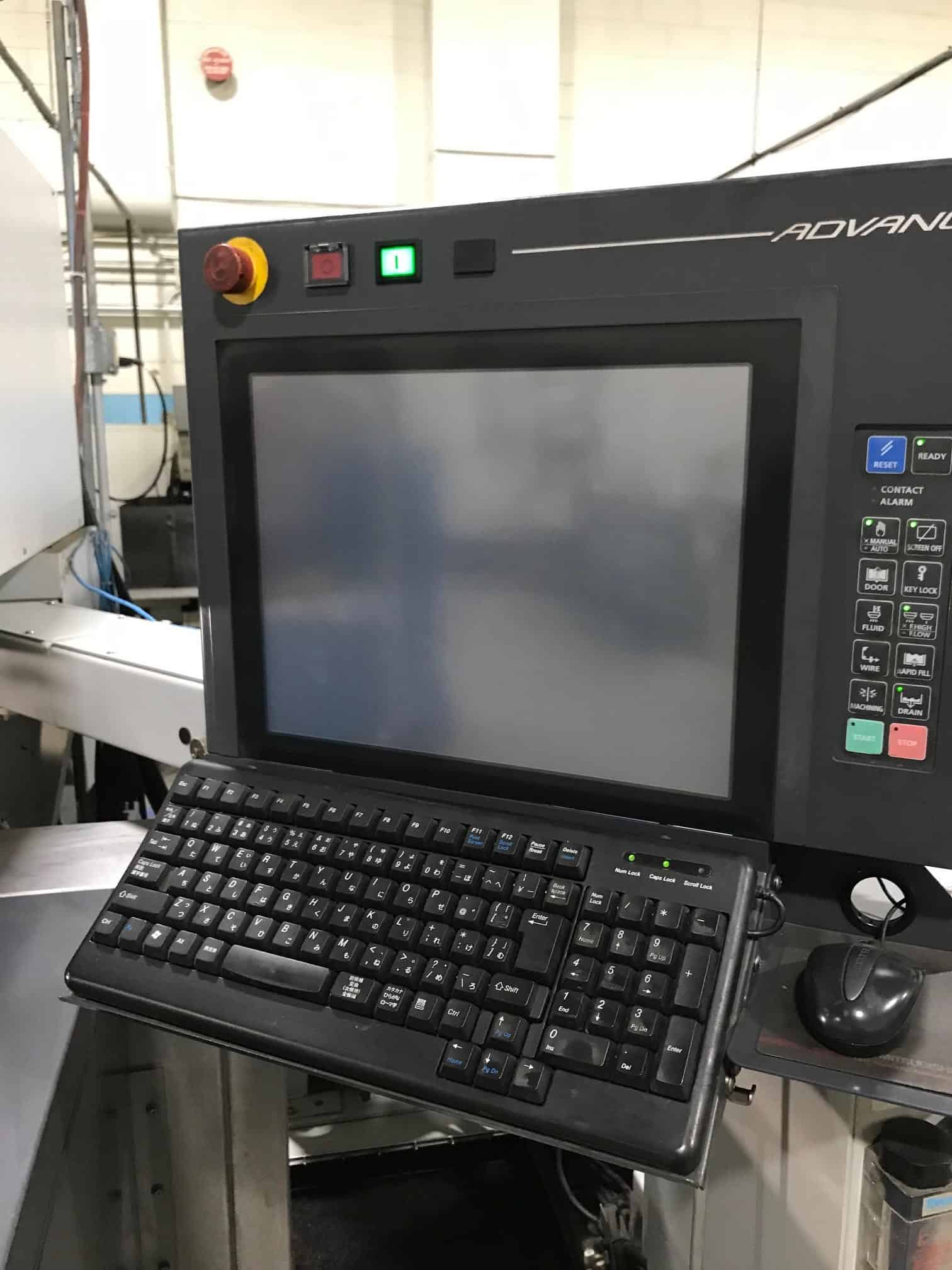

Mitsubishi M-700 Control |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-230/3/60 |
| Glass Scale Feedback |
Linear 4 Millionths |

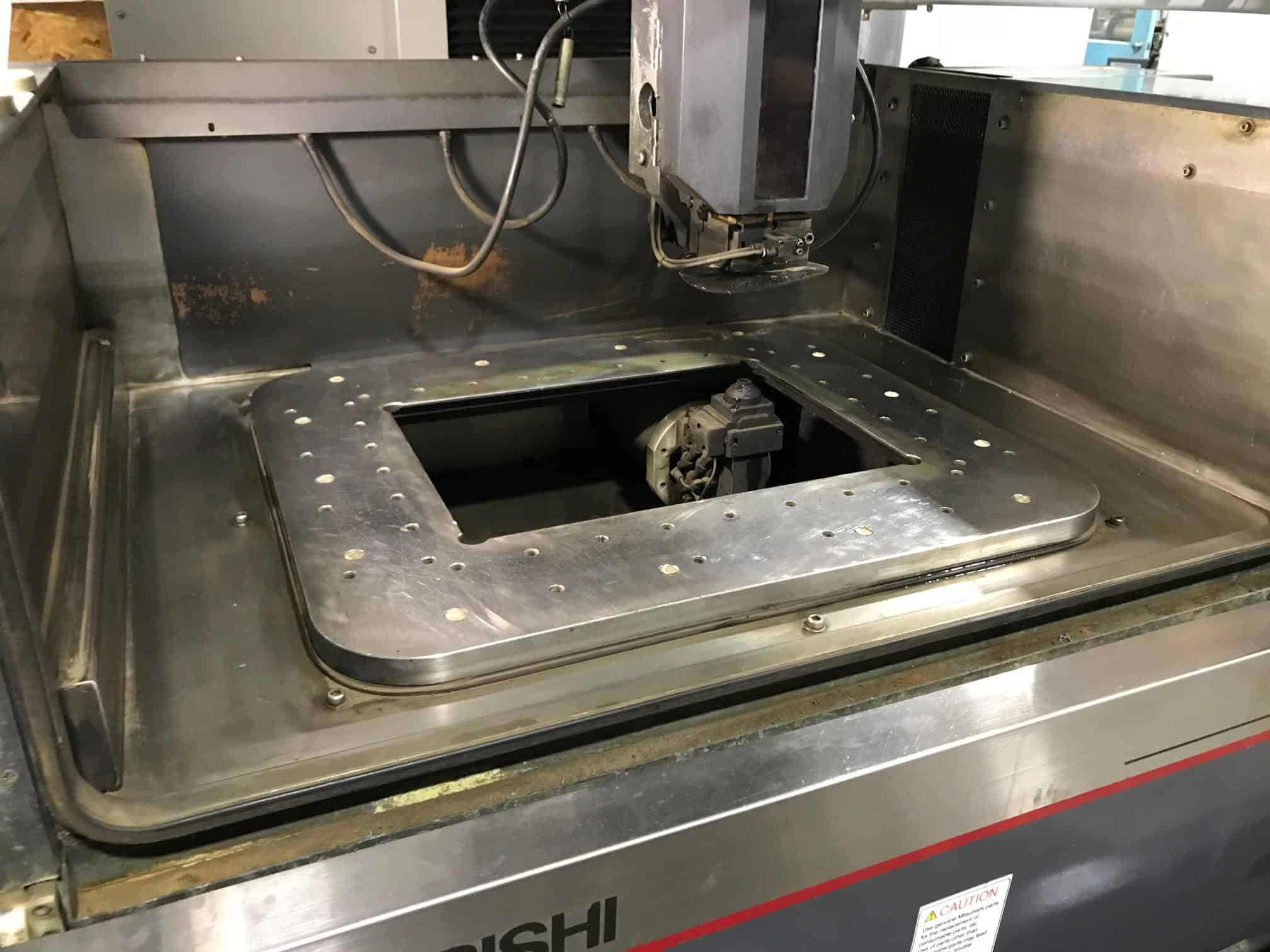

| Table Dimensions |
23.2" x 20.2" |
| Resolution |
.000002" (2 Millionths) |
| Table Rapid Feed (In / Min) |
51.2" |
| Wire Diameter |
.004"-.012" |
| Minimum Wire Thread Start Hole |
.020" |
| Maximum Workpiece AT Height |
8.6" |
| Wire Tension |
50~2,500 G |
| Wire Spooling Speed |
0~11.8"/Sec |
| Small Wire Device |
.004” |
| Dielectric System Dimensions |
31.25" x 63" x 65.25" |
| Dielectric System Weight |
616 Lbs |
| Overall Machine Unit Dimensions |
62.2" x 80" x 76" |
| Machine Weight |
4,400 |
| Max. Workpiece Dimensions |
31.4" x 23.6" x 8.4" |
| Workpiece Weight |
1,100 |
| Filter Tank Capacity |
116 Gallons |
Features
|
4 Sided Table (One-Piece) |
Auto Oiler |
|
Auto Power Recovery |

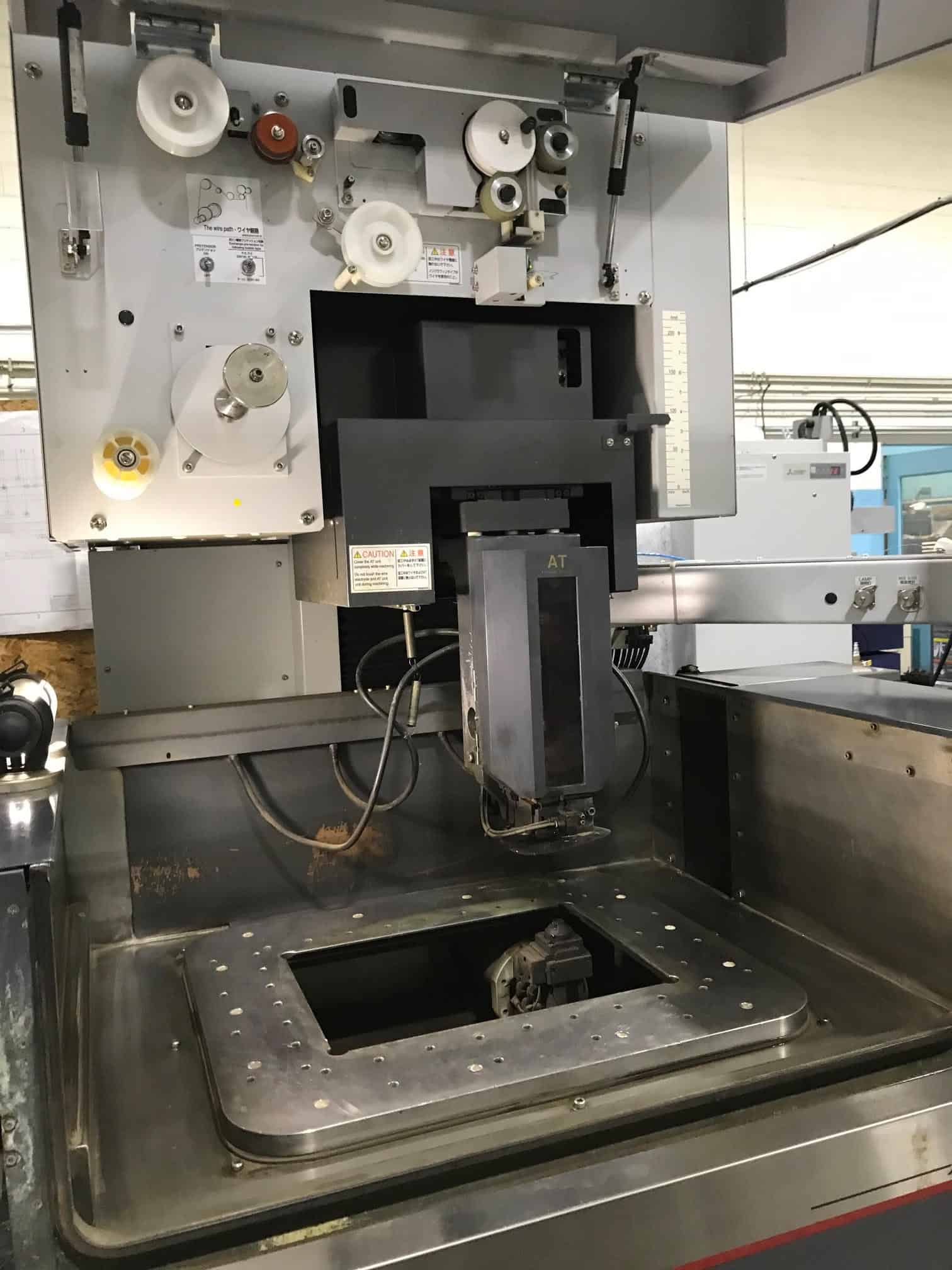

Auto Wire Threading |
|
Chiller |
Fast Fill Pump |
|
16-Step Programmable Flushing |
2 USB Ports & DNC Hardware (Ethernet FTP) |
|

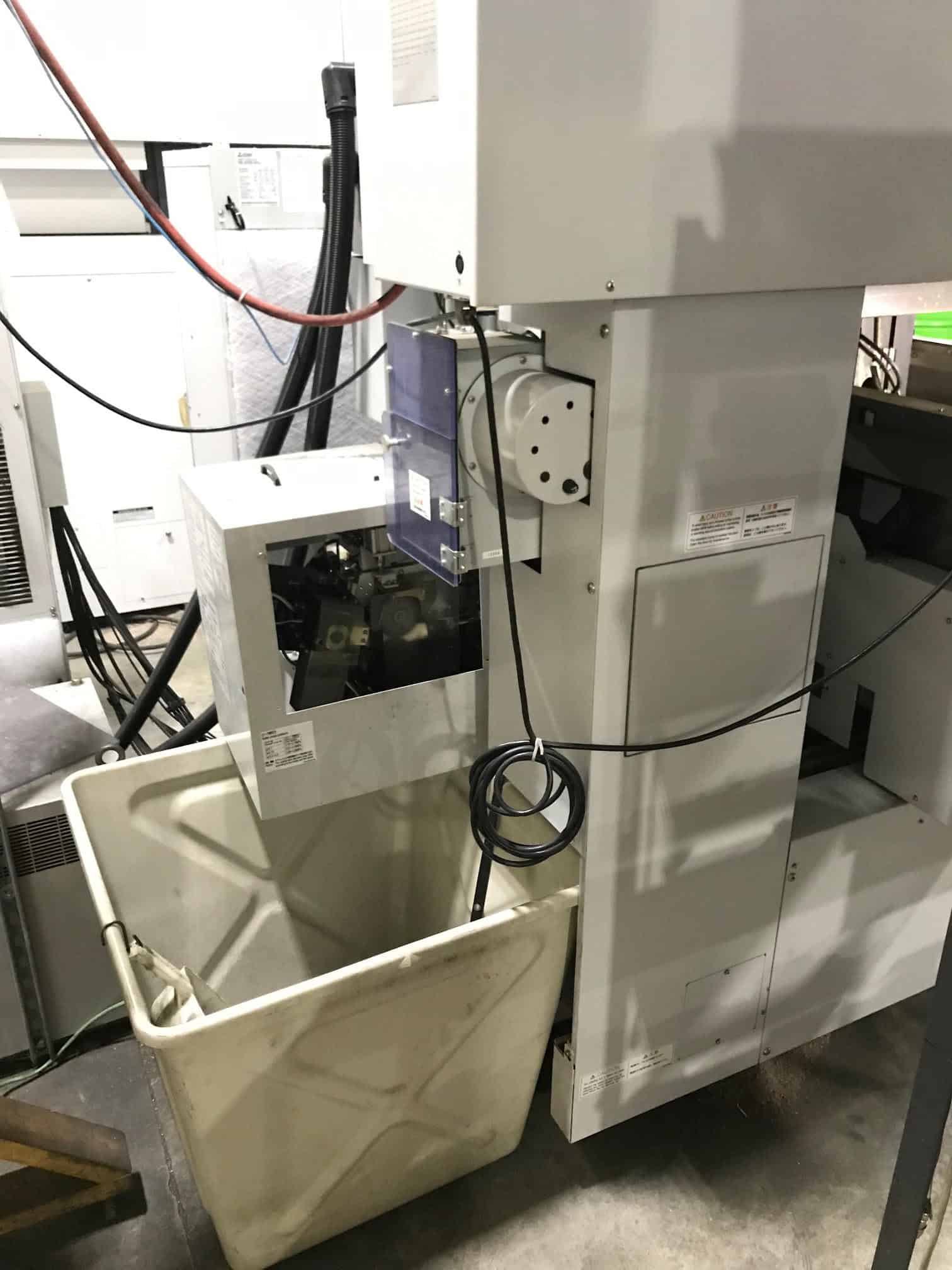

Wire Chopper |
AE Processing |
|
Filter System Paper Cartridge |
Fine Surface Machining |
|
Full Anti-Electrolysis Protection |
Linear Scales |
*
