Year |
2010 |
|---|---|
Make |
CMS |
Model |
Athena 3015 |
Description |
5 Axis CNC Router |
Reference # |
8076640 |
Price |
Activate Pricing |

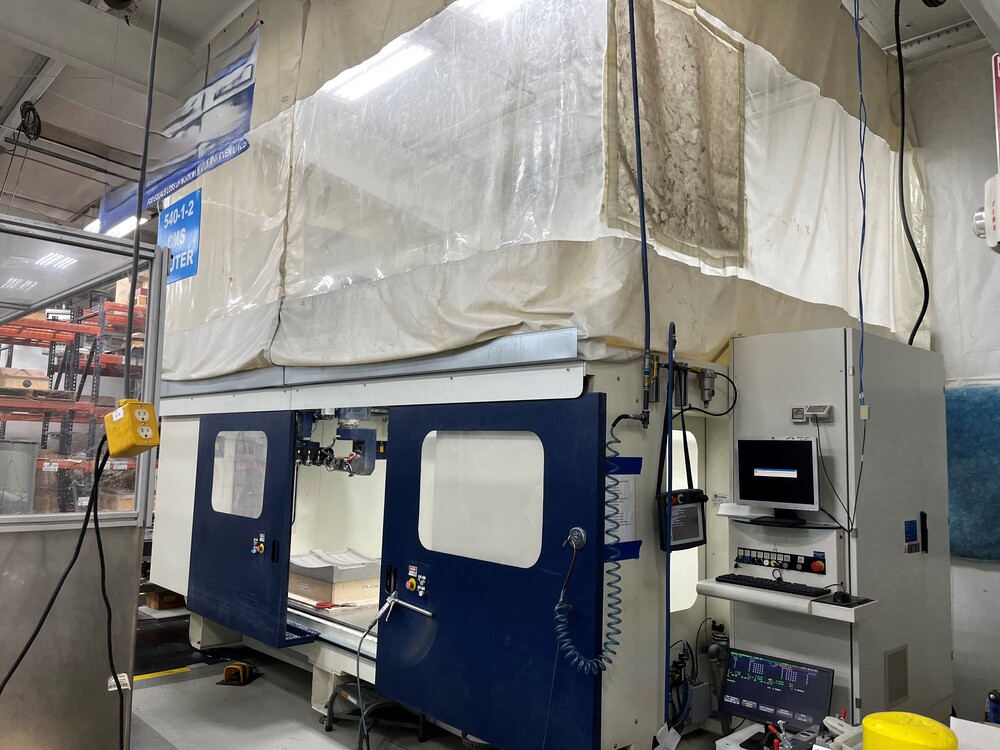

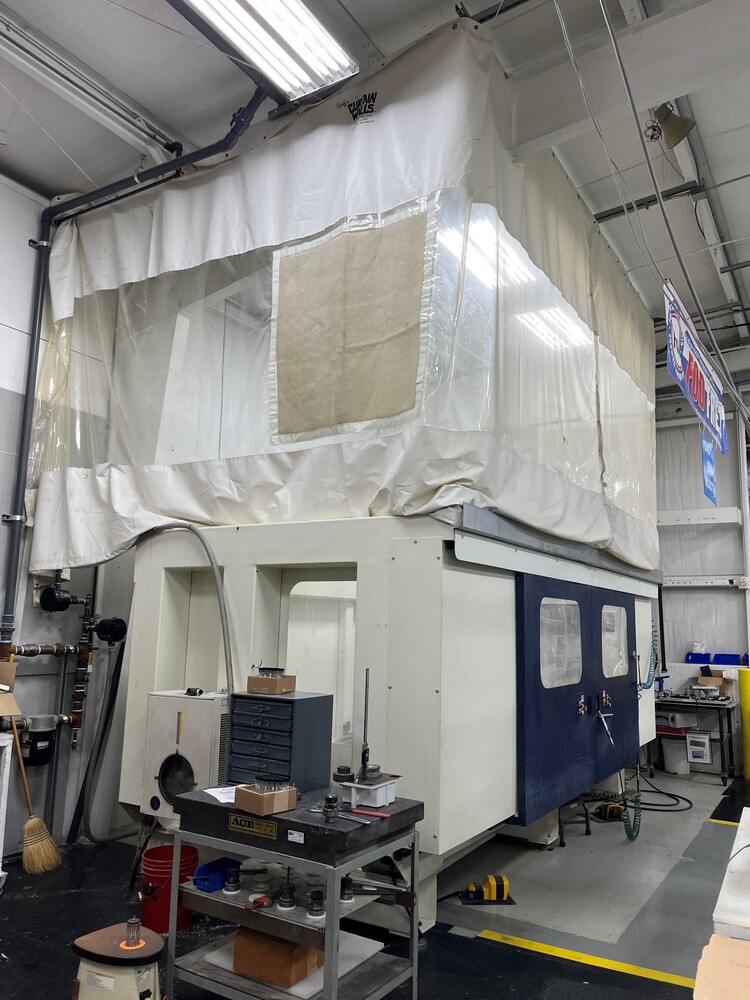

Used CMS Athena 3015 (2010) CNC Router for Sale. This 5-axis machine has a single table measuring 53.15″ wide by 112.2″ long, with 800 mm (31.49″) of Z-axis travel. It runs a TUCU electro spindle rated to 24,000 RPM with an 8.85 HP (6.6 kW) spindle motor, served by a 6-position auto tool changing rack. Control is an OSAI Type 10/510 S Series running Windows XP Pro Multilanguage, and the router is equipped with a handheld auto-teaching console. Power requirement is 480V, 3 phase. The machine can be seen under power for an inspection by appointment. See our other used CNC routers for comparable models, use Activate Pricing for figures, and Request a Quote to move forward.
Specifications
| Number of Axis |
5 |
|---|---|
| Number of Tables |
1 |
| Table Width |
53.15” |
| Table Length |
112.2" |
| Spindle Mfg |
TUCU Electro Spindle |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
8.85 HP (6.6 kW) |
| Tool Changer |
(6) Postion Auto Tool Changing Rack |
| Z-Axis Travel |
800 mm (31.49”) |

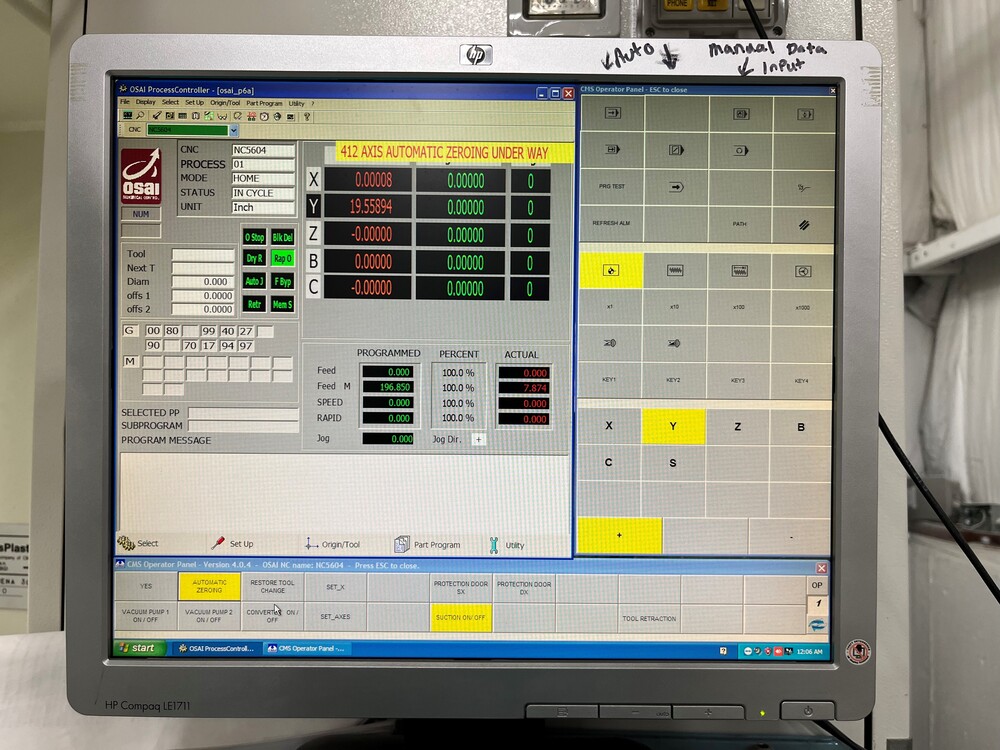

| Control |
OSAI Type 10/510 S Series |
| Operating System |
Windows XP Pro Multilanguage |
| Power Requirement |
480V - 3 Ph |
Features
|
Auto-Teaching Console (Handheld) |
