Year |
2009 |
|---|---|
Make |
Citizen |
Model |
A20VIIPL |
Description |
CNC Swiss Lathe |
Reference # |
8078989 |
Price |
Activate Pricing |

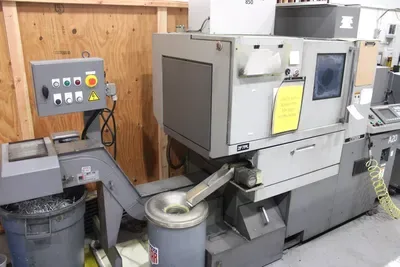

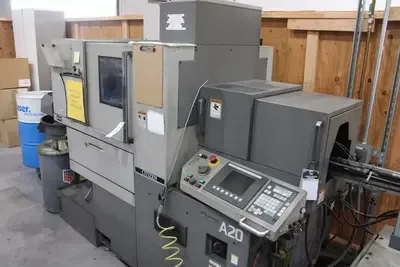

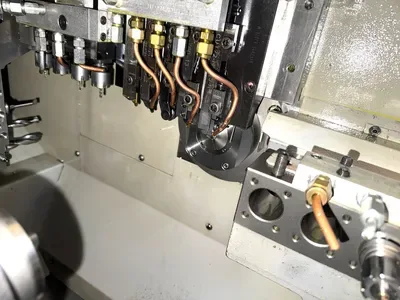

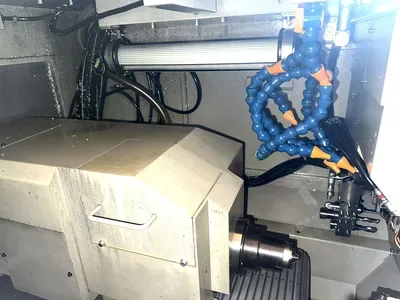

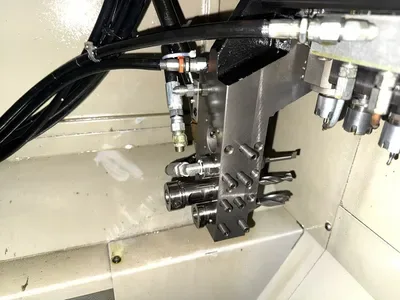

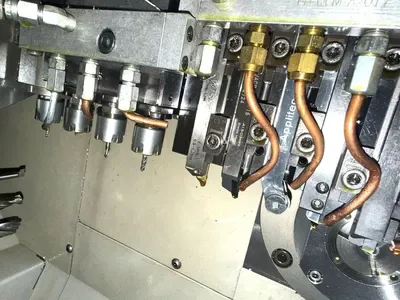

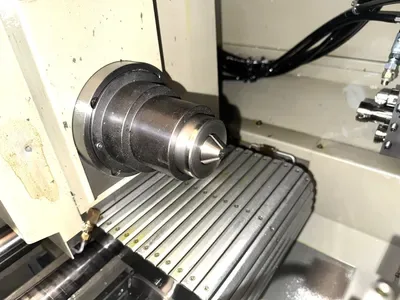

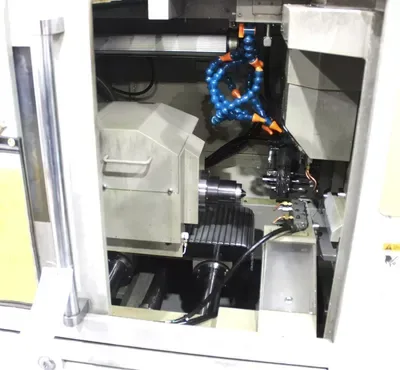

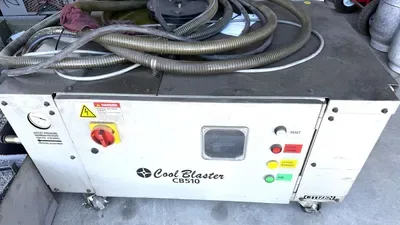

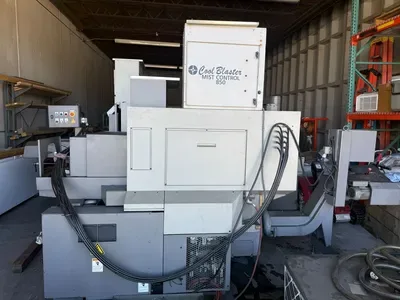

Used Citizen A20VIIPL (2009) CNC Swiss Lathe for Sale. This Swiss-type machine handles a 20mm max machining diameter and 165mm max machining length per chucking, with a main spindle running 100-8000 RPM on a 5 HP/3 HP drive and a 2 HP sub spindle at 100-8,000 RPM with a 20mm chuck. Full C-axis (.001 Deg) is provided on both main and sub spindles, along with (4) live cross milling spindles turning to 6,000 max RPM and rigid tapping. Tooling is 1/2″ square shank with 1″ diameter sleeves. Rapid traverse is 32mm/min on X2, Y1, Z1, Z2 and 18 m/min on X1. Fanuc 32iA CNC controls, Coolblaster high pressure coolant, parts catcher, chip conveyor, mist collector and an EDGE TECHNOLOGIES C-320 magazine feed 12′ bar feeder are included. Can be seen under power for an inspection. Browse more used CNC swiss lathes and used Citizen machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Max Machining Diameter |
20mm |
|---|---|
| Max Machining Length |
165mm/1 chucking |
| Main Spindle Speed |
100-8000 RPM |
| main-spindle-c-axis |
Full C-axis (.001 Deg) |
| Sub Spindle Speed |
100-8,000 RPM |
| Rotary Spindle Speed |
6,000 Max. RPM |
| Sub Spindle Chuck Size |
20mm |
| Tool Shank Size |
1/2" Square Shank 1" Diam. Sleeves |
| Rapid Traverse Rate |
32mm/min X2, Y1,Z1 Z2 & 18 m/min on X1 |
| Main Spindle Drive |
5 HP/3 HP |
| Sub Spindle Motor |
2 HP |
| Control |

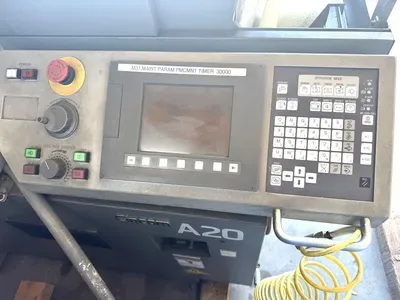

Fanuc 32iA CNC Controls |
| Live Tooling |
(4) Live Cross Milling Spindles |
| Sub-Spindle |
Yes |
| C-Axis |
C-Axis on Main & Sub Spindles |
| Coolant System |
Coolant System with Coolblaster high pressure pump |
| Parts Catcher |
Yes |
| Chip Removal |
Chip Conveyor |
| Mist Collector |
Yes |
| Barfeeder |

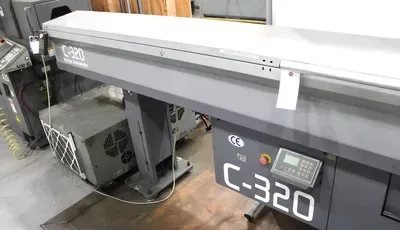

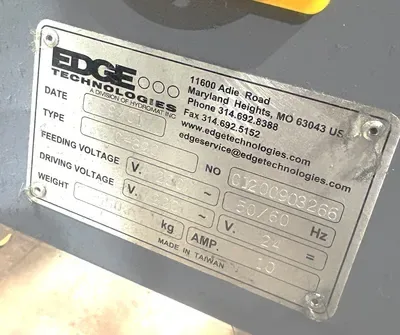

EDGE TECHNOLOGIES C-320 MAGAZINE FEED 12' BAR FEEDER |
| Rigid Tapping |
Yes |
