Year |
2009 |
|---|---|
Make |
Black Clawson Davis Standard |
Model |
4.5 EXTR B |
Description |
Extruder |
Reference # |
8075937 |
Price |
Activate Pricing |

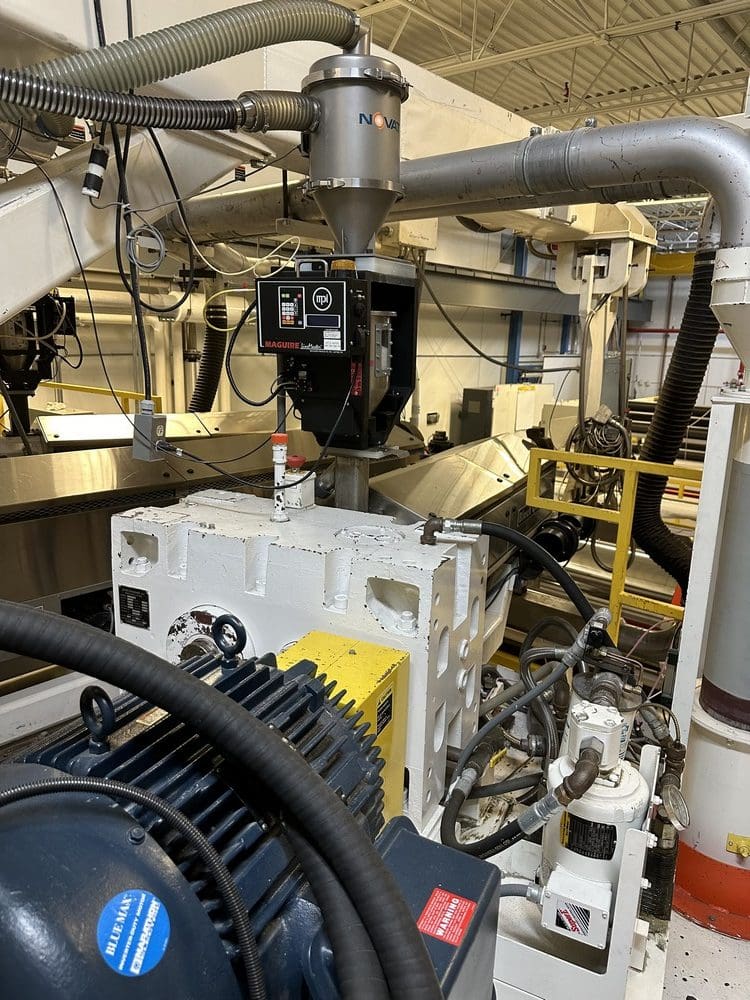

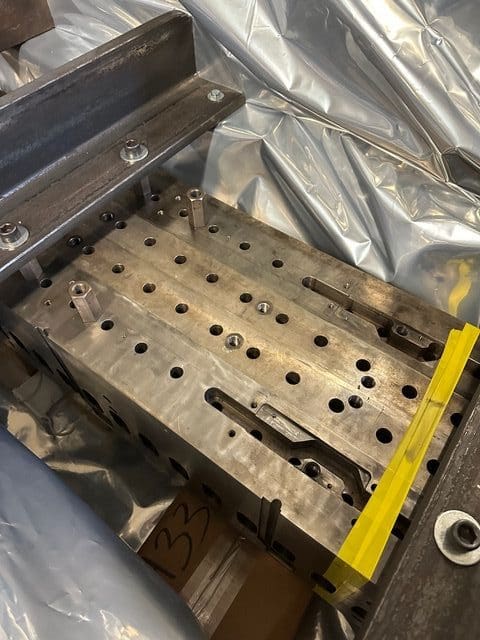

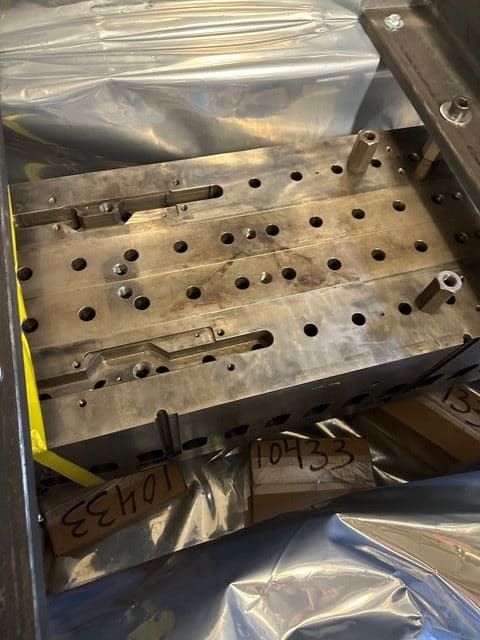

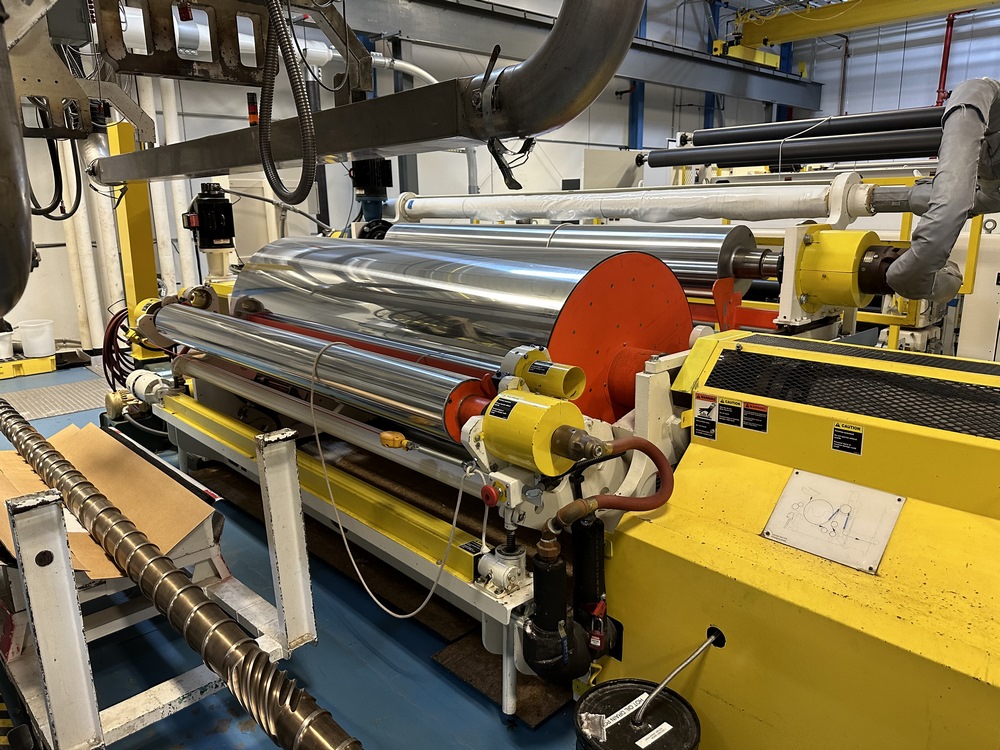

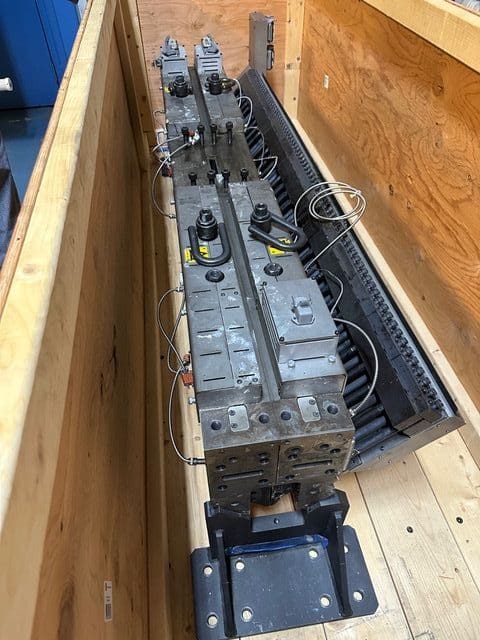

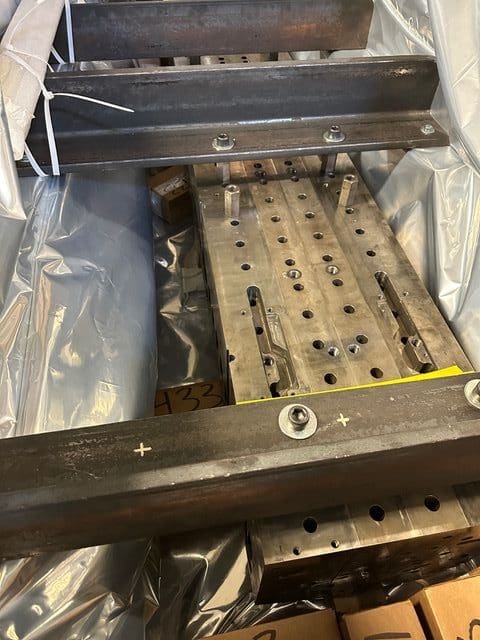

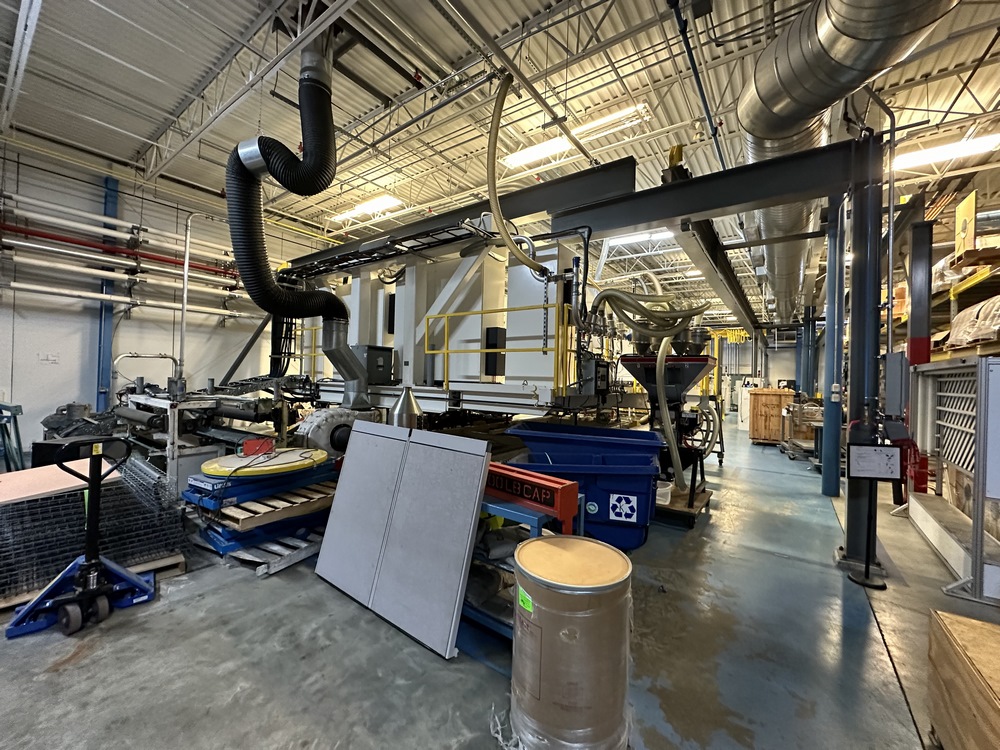

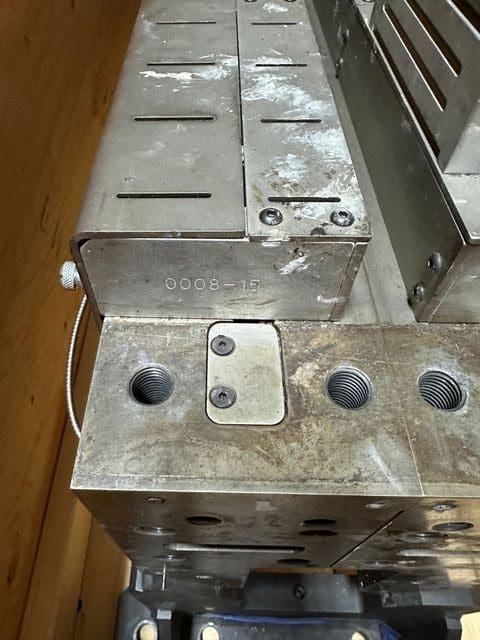

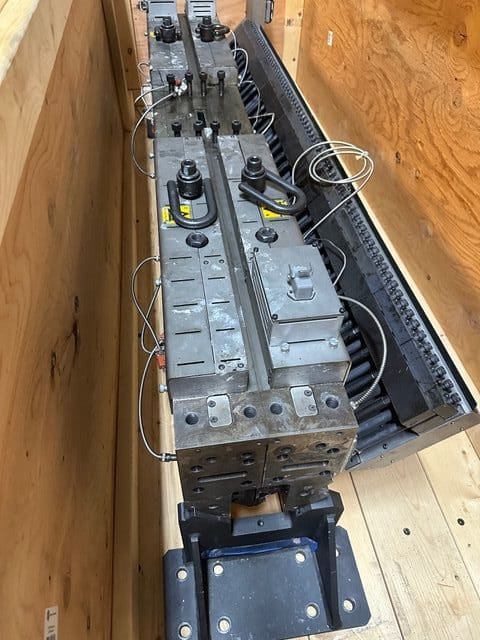

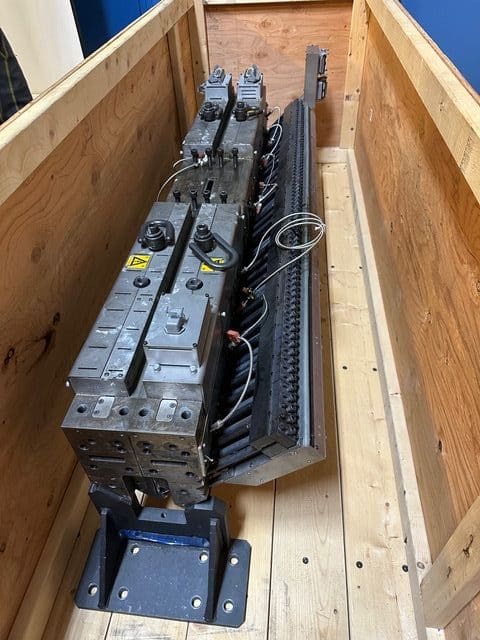

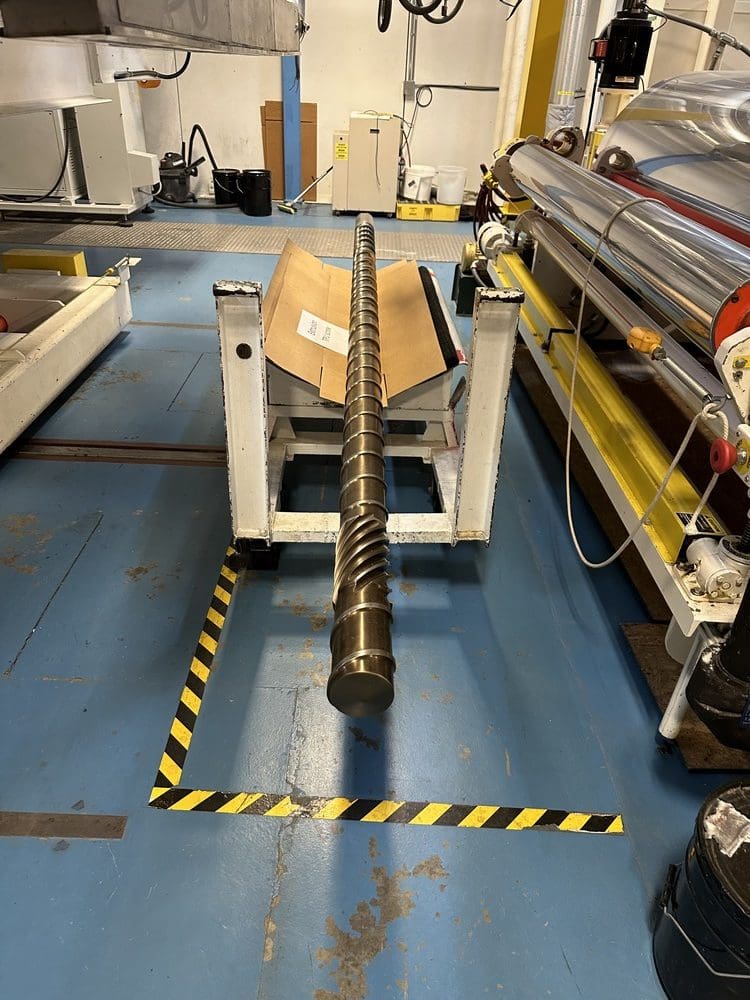

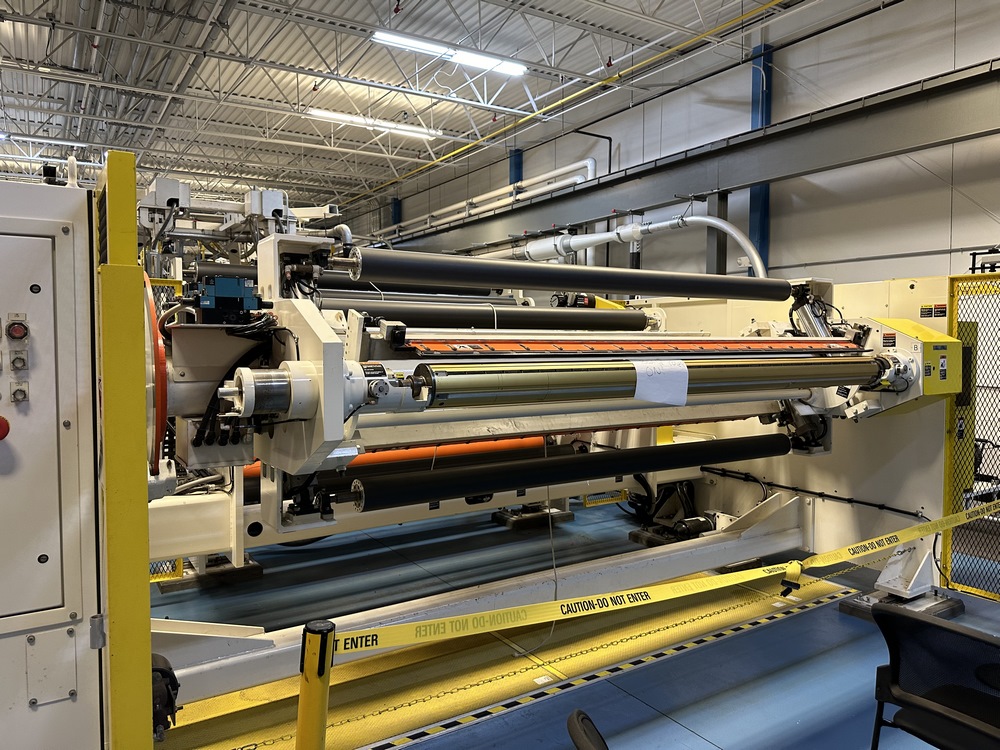

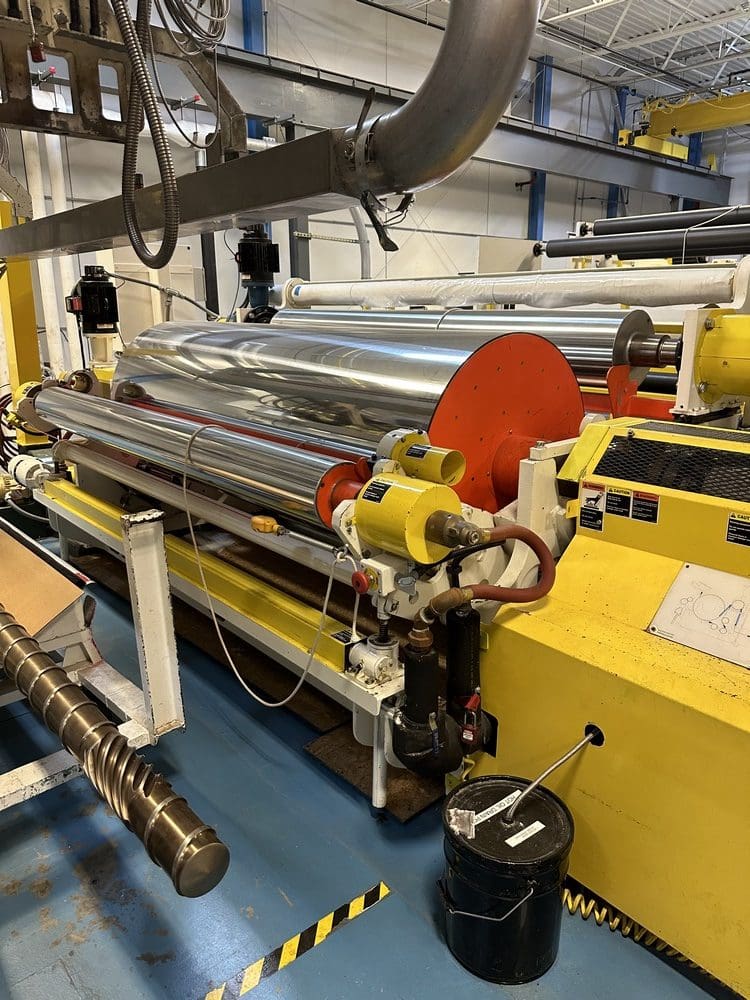

Used Black Clawson Davis Standard 4.5 EXTR B (2009) Extruder for Sale. This three-extruder line pairs two 2.5″ units, each 30:1 L/D at approximately 90-100 lbs/hr, with a 4.5″ 30:1 L/D extruder rated at approximately 1,000 lbs/hr. Configured for fluoro polymers in pellet form, it can also run TPU with the 96″ multi-manifold die. Maximum web width is 84″ trimmed / 92″ untrimmed, with a nominal 96″ roll face and 102″ at the winder for oscillation. Line speed runs 10-250 FPM, gear-in at 250 FPM, thread up to 50 FPM. Tension ranges are 5-50 lbs low and 50-150 lbs high. Winder takes 26″ rolls to 3,500 lbs on 6″ ID shafted fibre cores. Three pairs of edge trim razor slitters. Very low hours. The Sri-Air HP4-X 750 FM system is not included. New replacement cost $1.0 mil. Available for inspection under power. See more used plastic extruders, then Activate Pricing and Request a Quote.
Specifications
| Extruder #1 |
2.5", 30:1 L/D Ratio |
|---|---|
| Extruder #2 |
2.5", 30:1 L/D Ratio |
| Extruder #1 & #2 Throughput |
90-100 Lbs/Hr (Approx) |
| Extruder #3 |
4.5", 30:1 L/D Ratio |
| Extruder #3 Throughput |
1,000 lbs. / Hr. (approx) |
| Material Processed |
Fluoro Polymers (Pellet Form) |
| Maximum Web Width *1 |
84" Trimmed Finished / 92" Untrimmed |
| Maximum Web Width *2 |
56" Trimmed |
| Nominal Machine Roll Face |
96" / 102" at Winder (For Oscillation) |
| Machine Line Speed *1 *2 |
10-250 FPM |
| Gear-In Speed |
250 FPM |
| Adjustable Thread Speed |
Up to 50 FPM |
| Process Tension Ranges *1 |
Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. |
| Hand of Machine Except Winder/Drive Side *4 |
Right Side |
| Hand of Winder Only |
Left |
| Slitters |
Edge Trim Razor Blade (3 Pairs) |
| Max Roll Diameter (Winder) |
26" |
| Max Roll Weight (Winder) |
3,500 Lbs. |

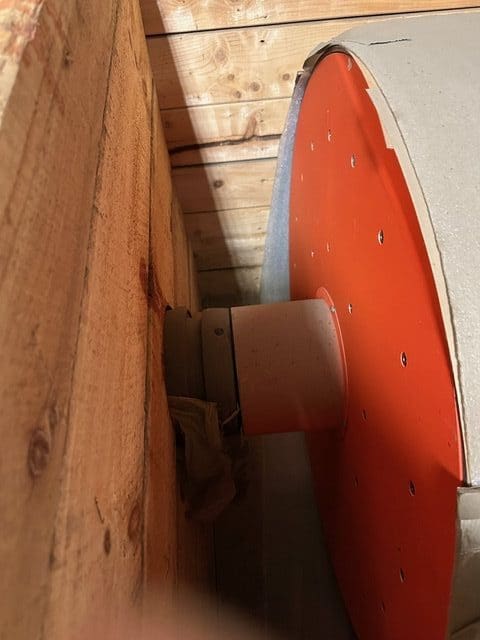

| Core Size Shafted *5 |
6" ID, 6 1⁄2" OD |
| Core Material |
Fibre |
| Web Tension Range *1 |
Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs. |
| Idler Rolls |
6" O.D. Live Shaft Carbon Fiber |
| Note |

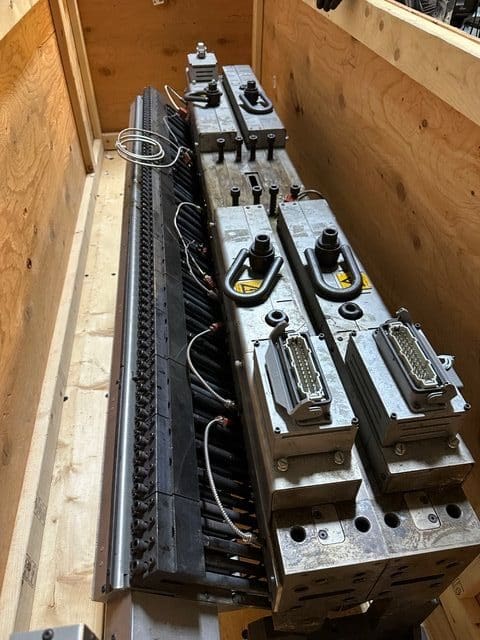

Very Low Hours, System can also run TPU (Thermoplastic Polyurethane) 96" Multi-Manifold Die.......New Replacement Cost - $1.0 mil., Sri-Air Model HP4-X 750 FM system - NOT INCLUDED |
