Year |
2009 |
|---|---|
Make |
Baykal |
Model |
APHS 3106x120 |
Description |

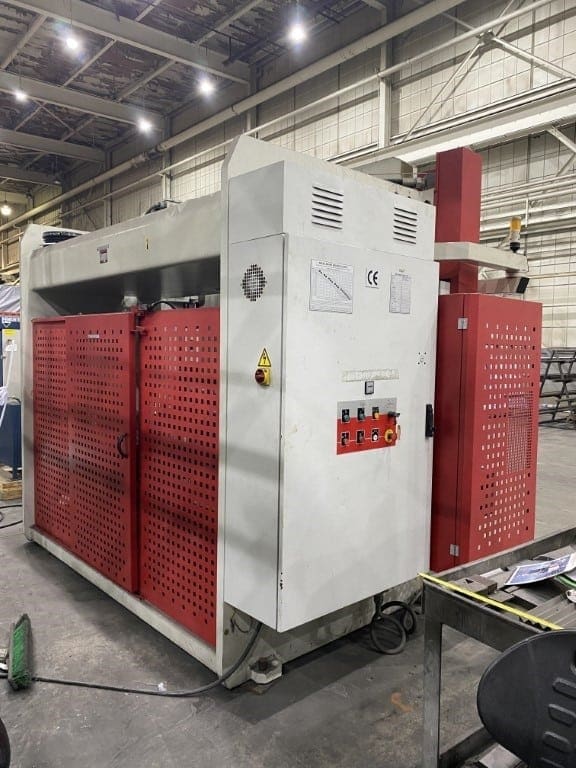

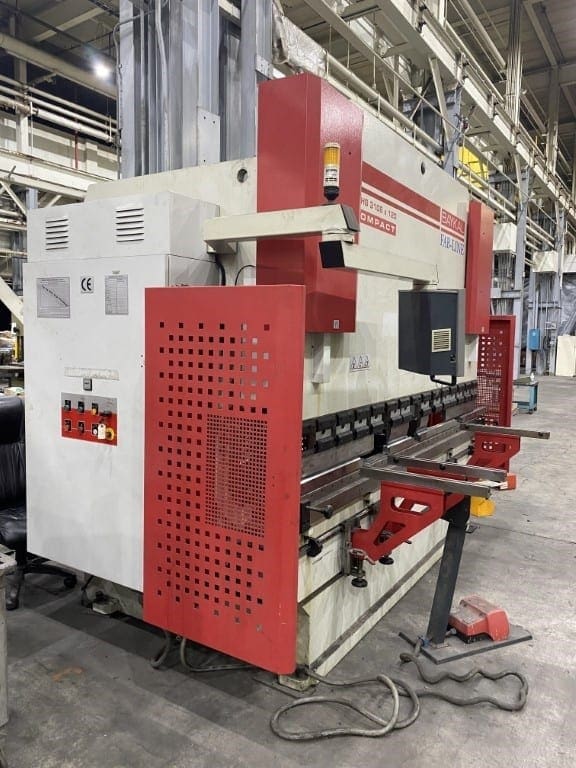

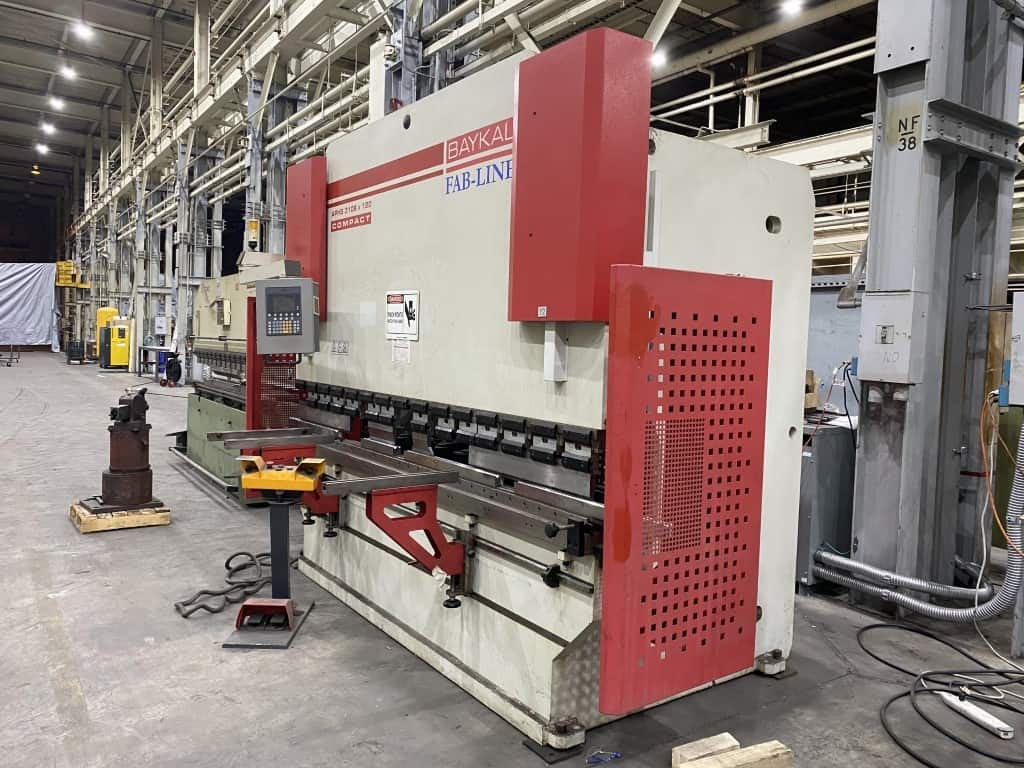

135 Ton x 10.16' Hydraulic Press Brake |
Reference # |
8069705 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
135 Ton |
|---|---|
| Overall Length of Bed |
10.16' |
| Control |

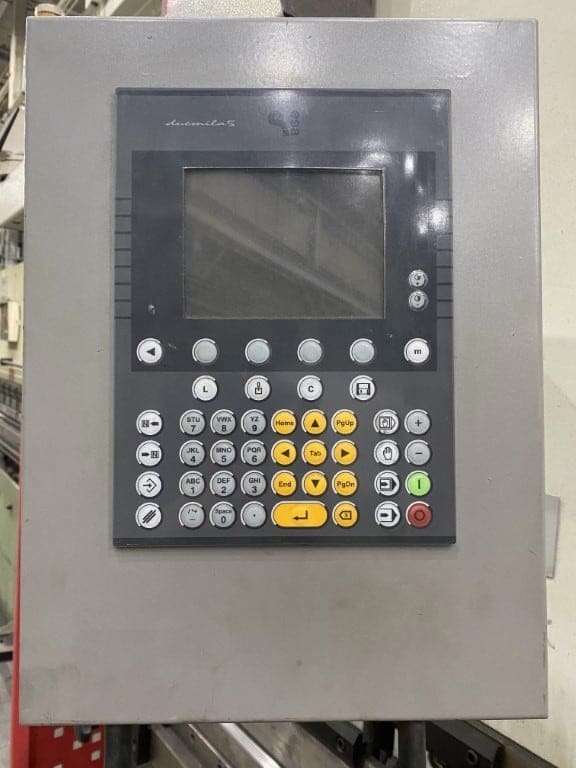

KVARA CNC |
| Distance Between Housings |
100" |
| Stroke |
10.23" |
| Throat Depth |
14.8" |
| Open Height |
17.5" |
| Closed Height |
7.27" |
| Power Requirement |
460/3/60 |
| Main Motor |
18 HP |
| Approach Speed |
236 IPM |
| Return Speed |
190 IPM |
| Approx Dems |
140"X 71" X 111" |
| Approx Shipping Weight |
19,800 Lbs |
Features
|
(2) Front Support Arms |
Programmable Ram Y1/Y2 |
|
Lower Die Holder |
2-Axis CNC Back Gauger (X/R) |
|
Electric Foot Switch Control |
Pedestal Palm Button Controls |
