Year |
2008 |
|---|---|
Make |
Ogden Welding System |
Model |
5 Station Panel Line |
Description |
Complete Multi-Station Panel Line Brochure Click Here |
Reference # |
8069771 |
Price |
$3,500,000 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

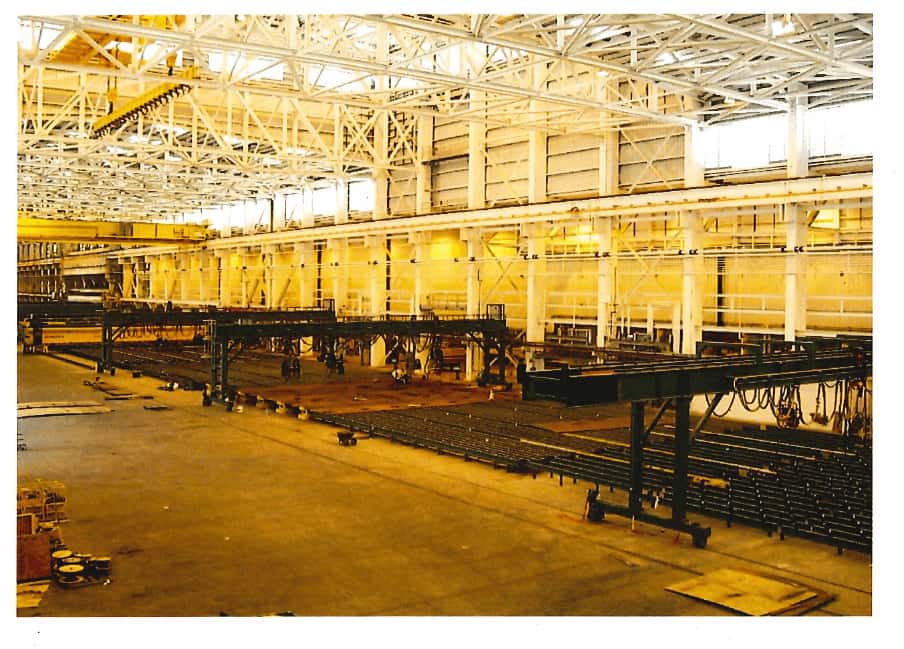

Ogden Welding System 5 Station Panel Line
Specifications
| Note |

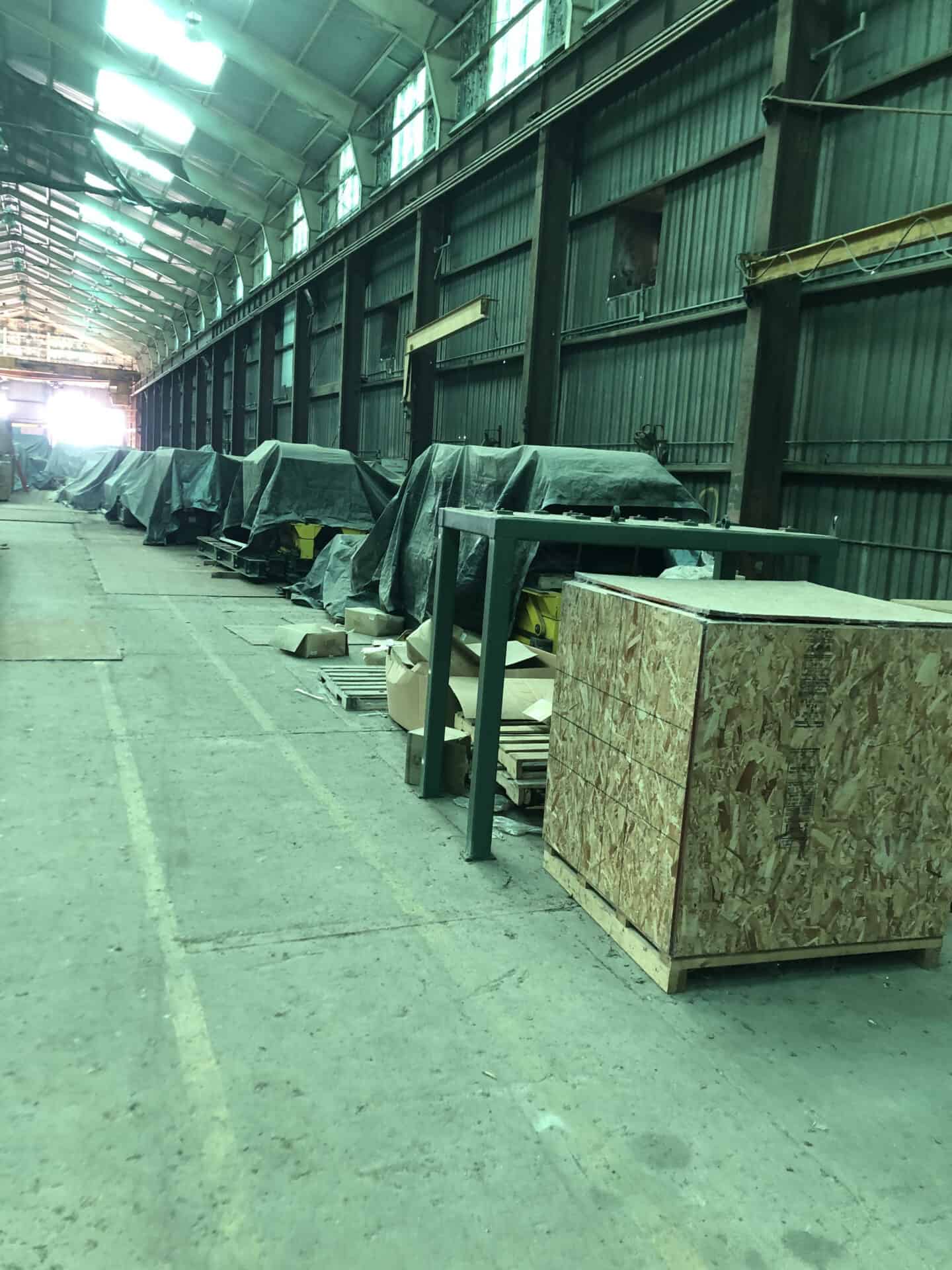

Never Installed Ogden Welding System Complete Multi-Station Avondale Panel Line Including Milling, One Side Welder, Grind, Cut & Marking on Downdraft Table, Stiffening Fitter & Stiffening Fillet Welding - Replacement Price of $22 Million |
|---|---|
| Station #1 |
Edge Blast & Plate Staging, 2 Portable Blast Units, Norton Edge Blaster |
| Station #2 |
Edge Mill & Plate Staging, Linsinger Milling Machine |
| Station #3 |
Insert Fit & Pre-Tack Area, 2 Independent Welding Stations |
| Station #4 |

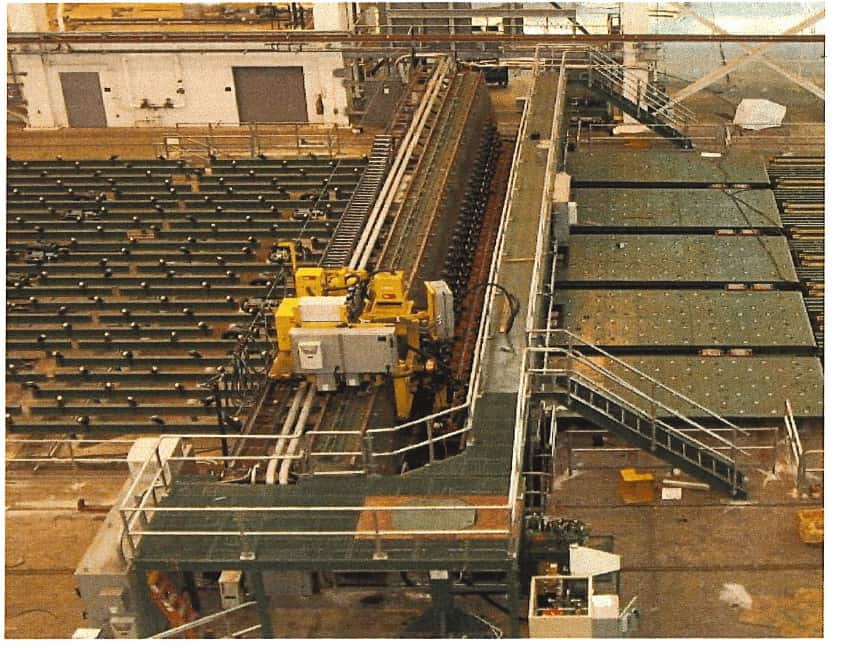

One Sided Butt Welding, Laser Tacking, SAW Single Side Butt Welder |
| Station #5 |

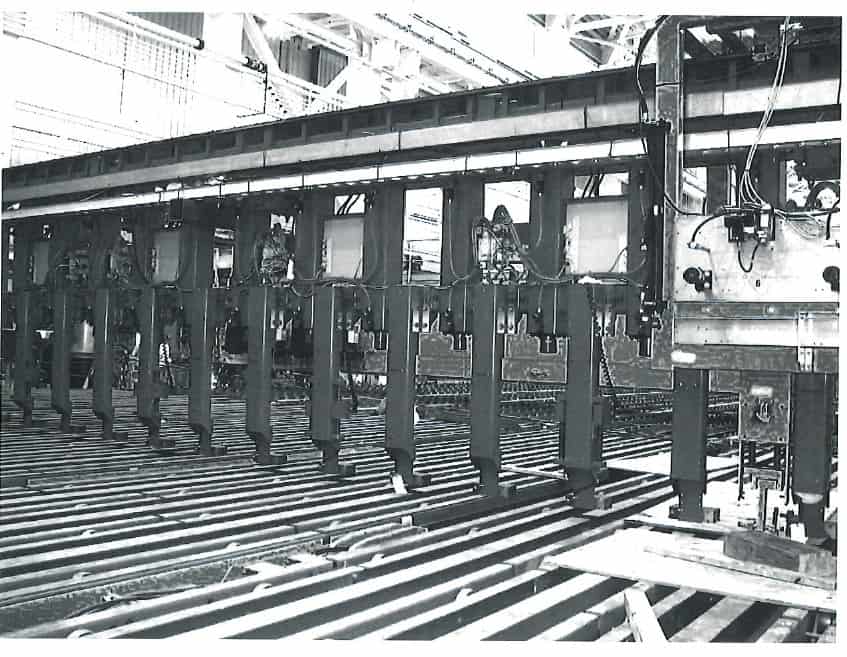

Insert Weld Station, 4 Drop-Down SAW Tractors, 2 Independent Welding Stations |
| Station #6 |
Insert Weld & Plate Turnover from Station 5 & 7 |
| Station #7 |

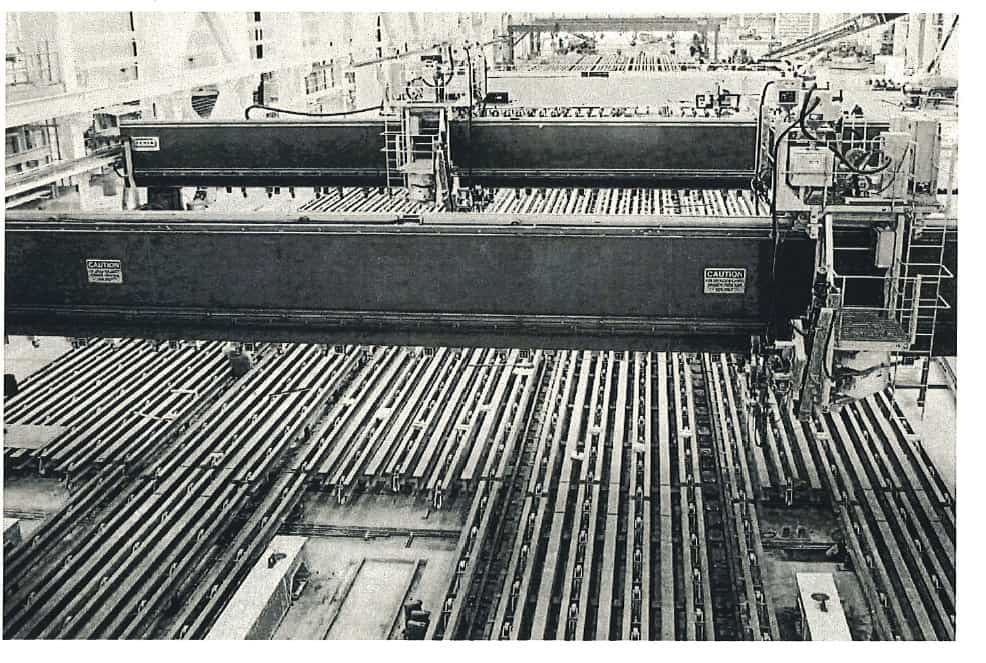

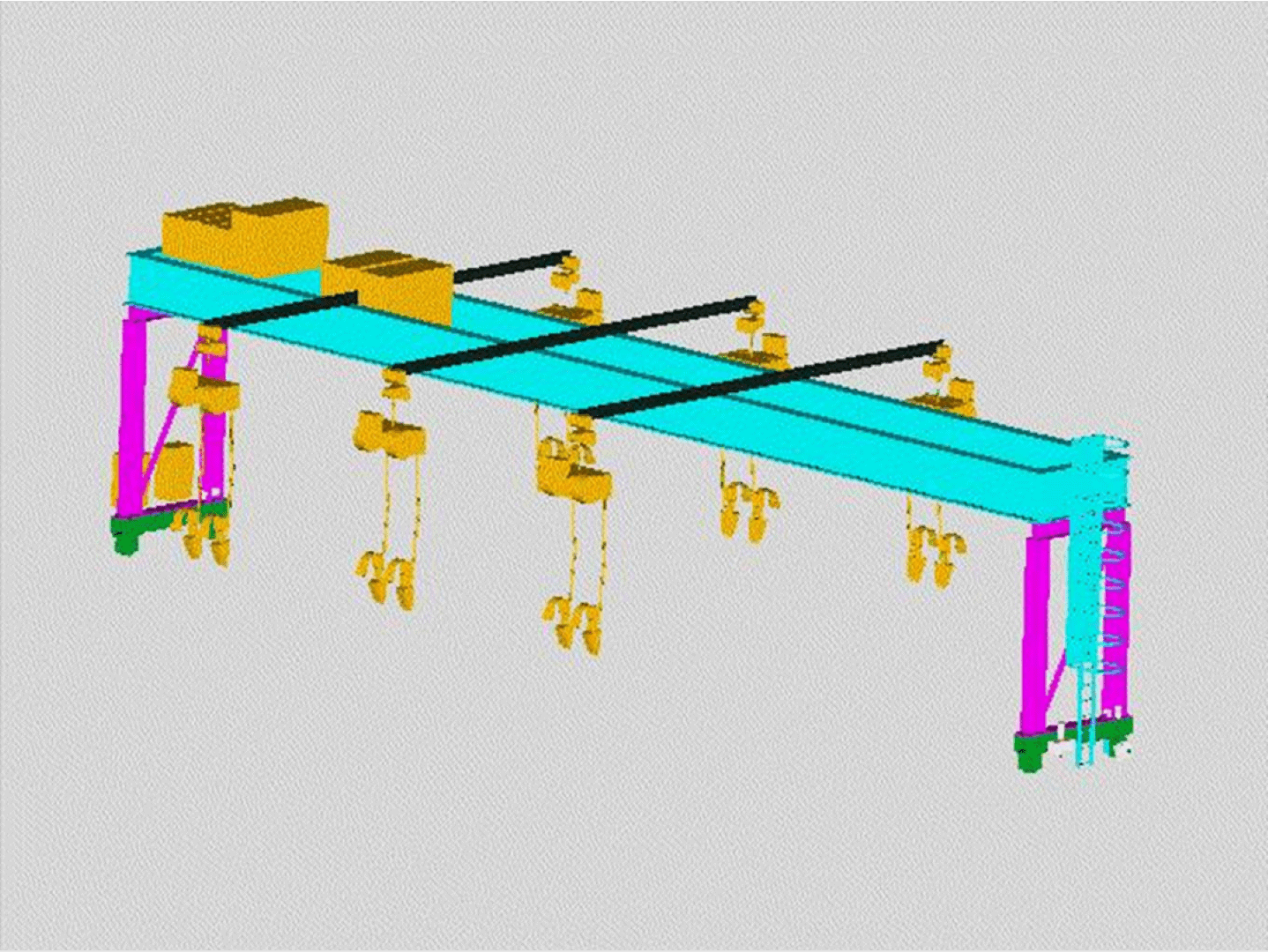

Insert Welding Service Gantry, 4 Drop-Down SAW Tractors, 2 Independent Controlled Welding Stations |
| Station #8 |
Grind, Cut, Mark with Downdraft Table, N/C Program, Grind and Laser Marking |
| Station #9 |

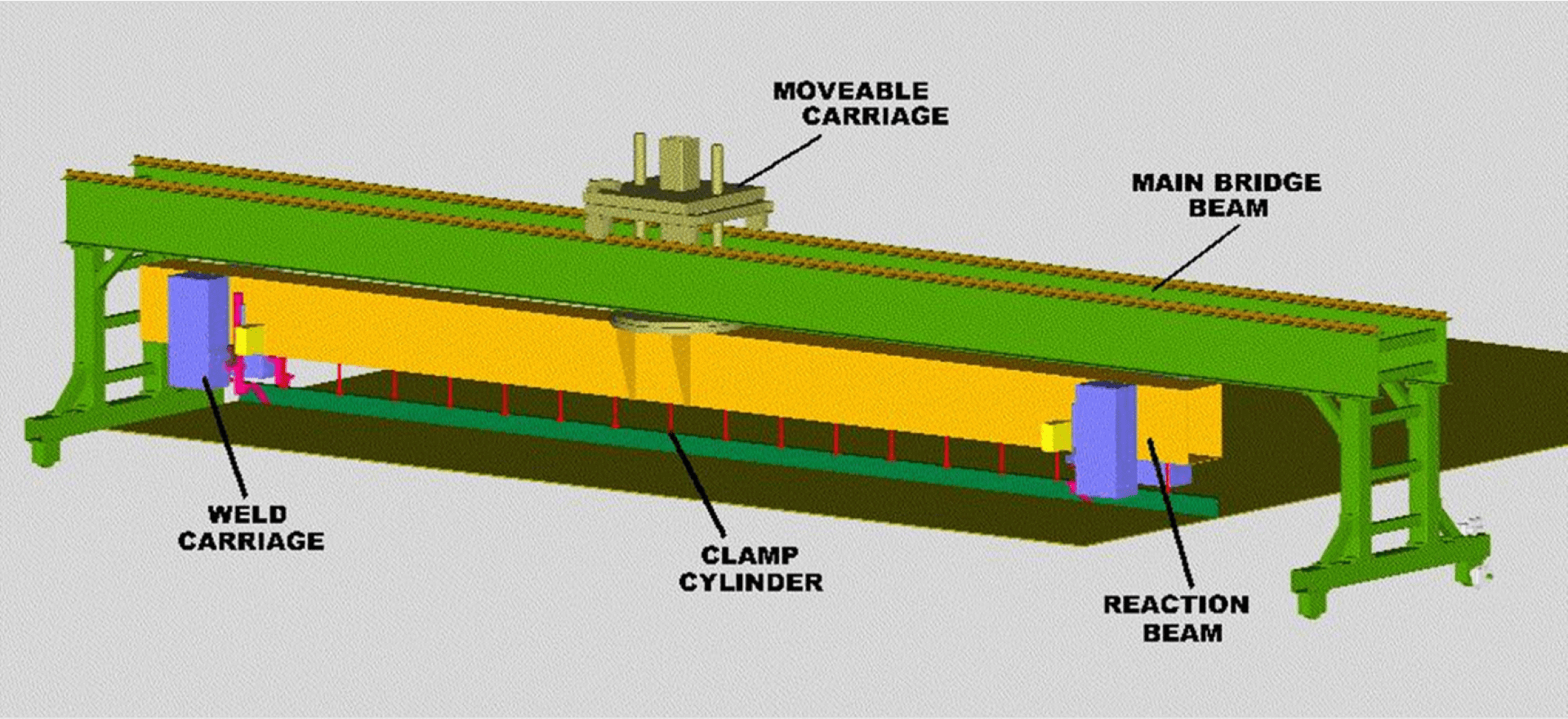

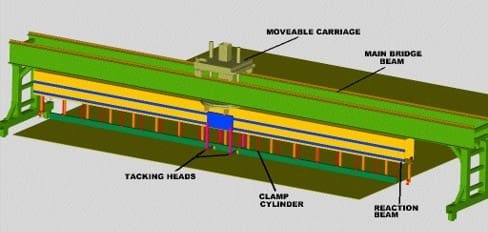

Stiffener Fitting Station, Carriage Has 6 GMAW Torches For Tacking |
| Station #10 & 11 |
Stiffener Fillet Welding, 4 Independent Weld Carriages (4 Simultaneous Welds) |
| Station #12 & 13 |
Manual Web Fitting Panel Movement By 4 Transport Trains |
| Station #14, 15, & 16 |
Web Welding, 6 Independently Controlled GMAW Welding & Cutting Stations |
| Station # 17 |
Panel Inspection Panel Movement By 4 Transport Trains |
