Year |
2008 |
|---|---|
Make |
Mitsubishi |
Model |
EA28V |
Description |

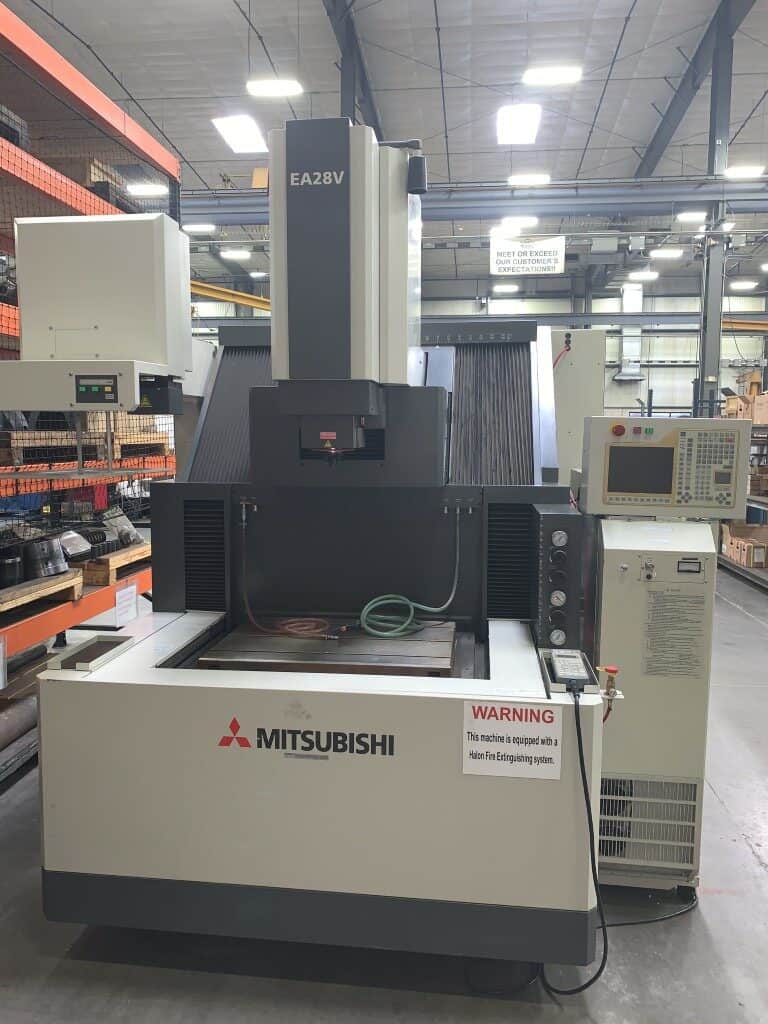

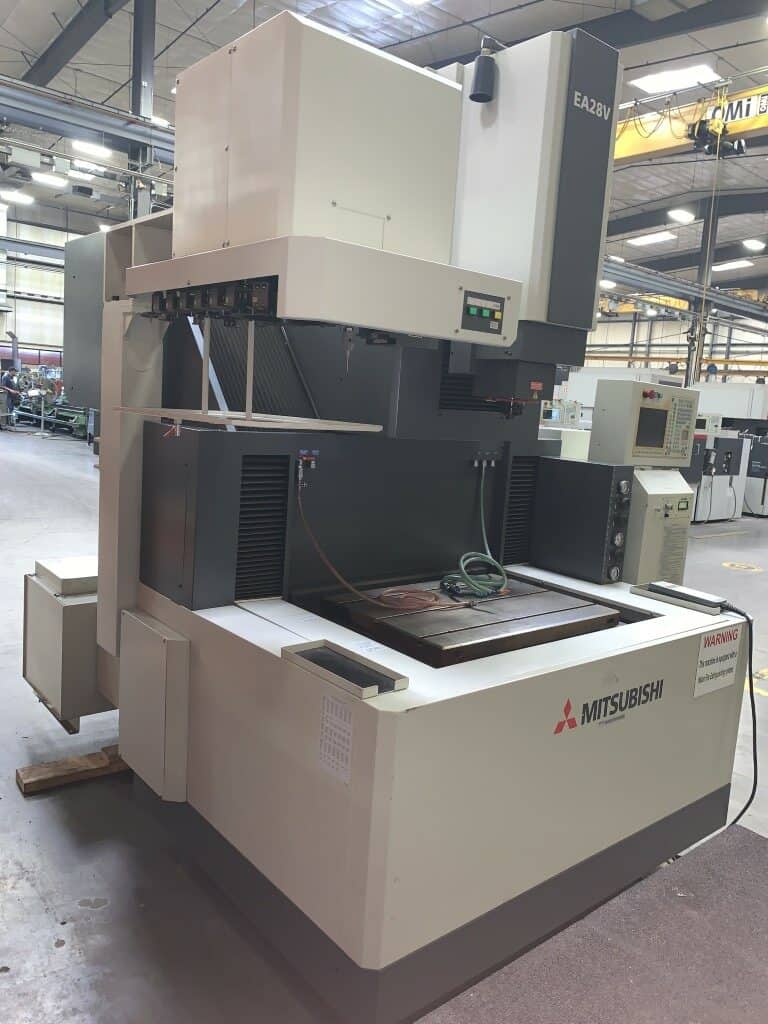

EDM Sinker |
Reference # |
8069495 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
25.59" |
|---|---|
| Y-Axis Travel |
17.71" |
| Z-Axis Travel |
13.77" |

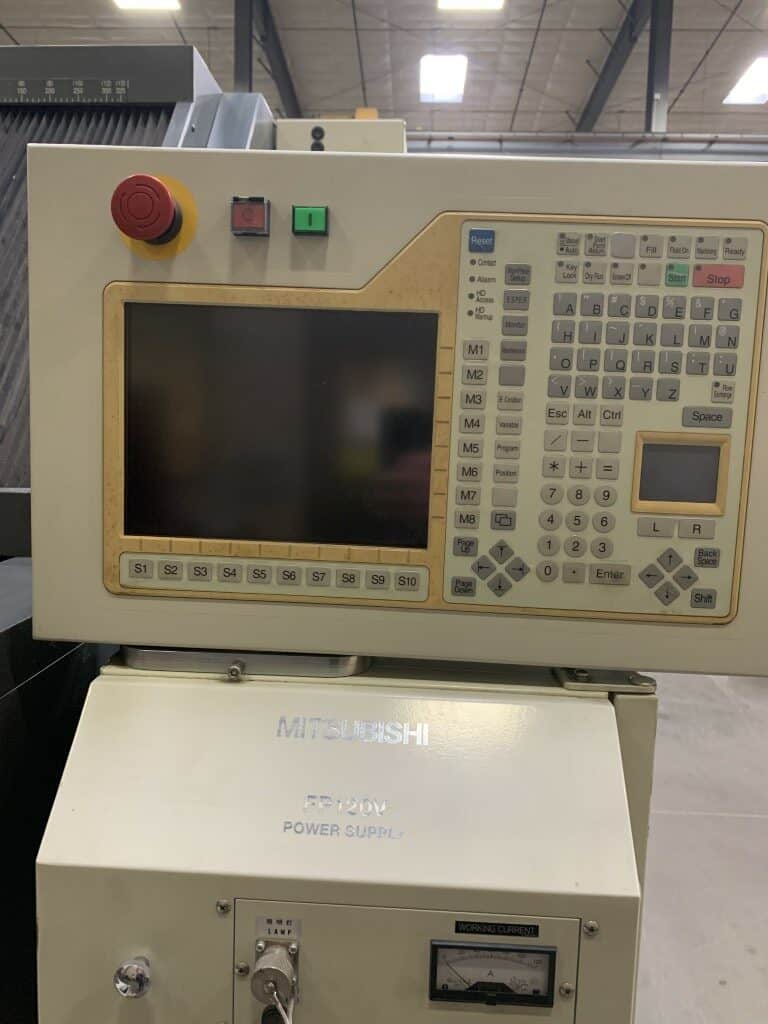

| Control |
Mitsubishi 700 Series |
| Tool Changer |
20 AEC |
| Power Source |
120 Amp Peak |
| Chuck |
3R |
| Power Requirement |
200-230/3/60 |
| Glass Scale Feedback |
X,Y, Z Axis Glass Scale |

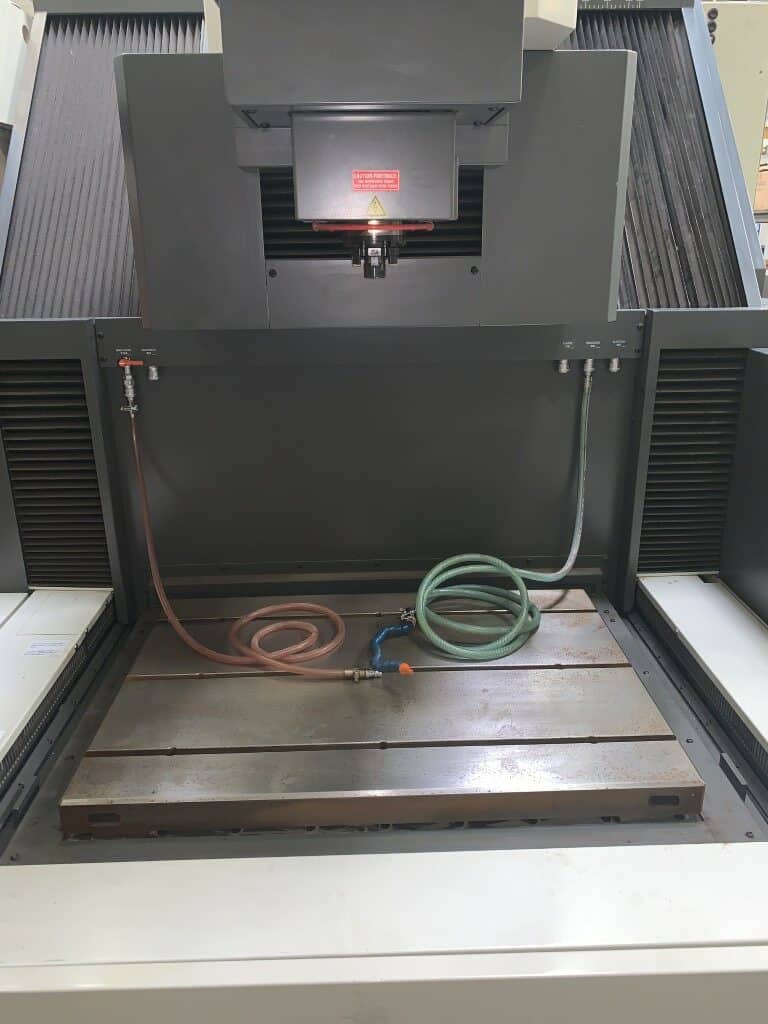

| Work Tank Internal Dimensions |
43.30” X 31.89” X 17.71” |
| Max. Dielectric Fluid Level |
15.71” |
| Table Dimensions |
33.46” X 23.62” |
| Max. Workpiece Weight |
4409 Lbs |
| Max. Electrode Weight |
440lbs |
| Table to Platen Distance |
11.8” - 25.59” |
| Floor to Table Level Distance |
35" |
| Rapid Travel Speed |
78.74 per Min |
| Min. Command Input |
.0001mm / .00001” |
| Min. Drive Resolution |
.00005mm / .000002” |
| Machine System Dimensions (W X D X H) |
86.41" X 98.89" X 102.95" |
| Machine Weight, Including Power Supply |
11,904 Lbs |
| Note |
Machine Was First Installed 2011 |
Features
|

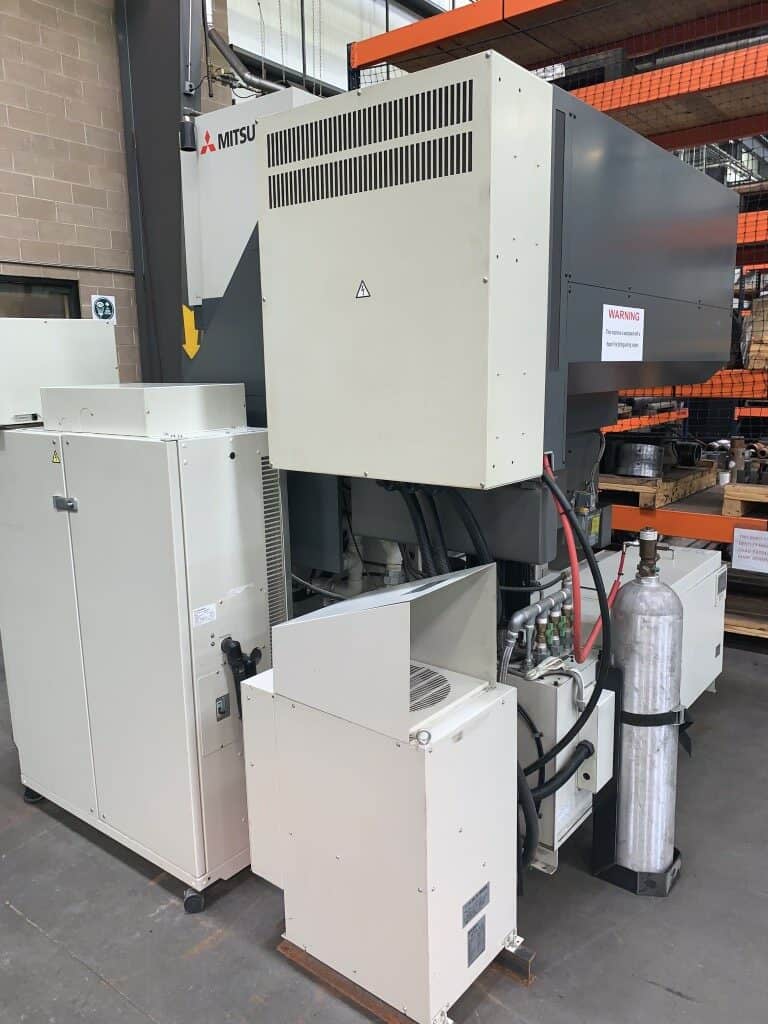

Chiller |
Rapid Fill / Drain Auto (Std) |
|

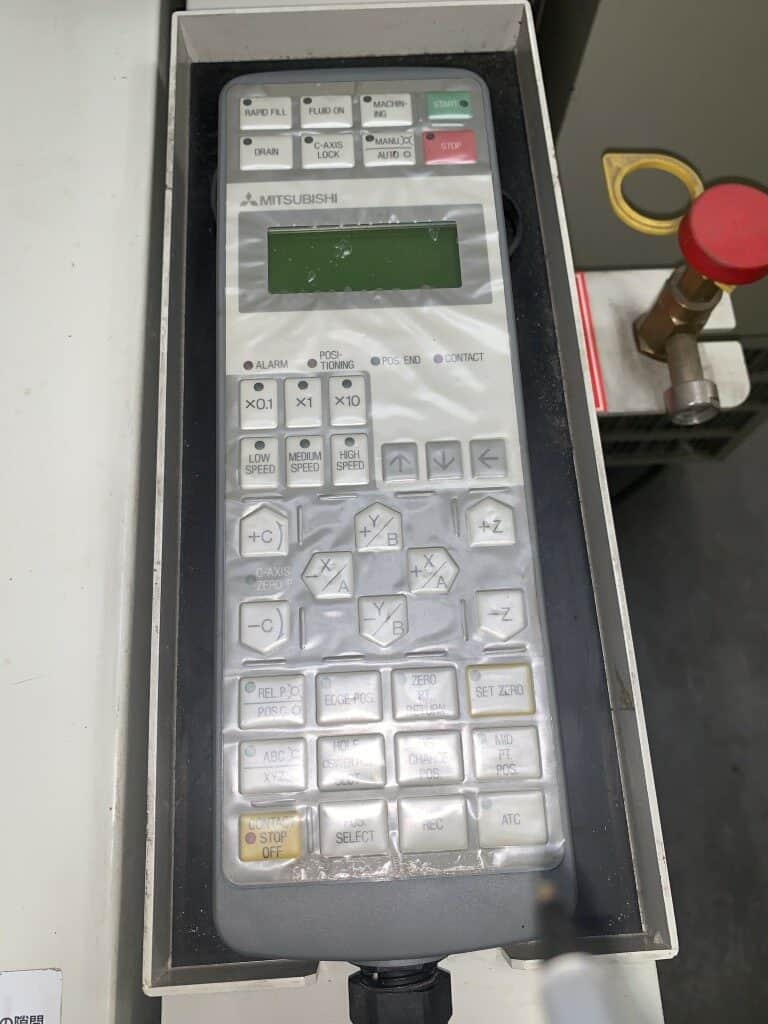

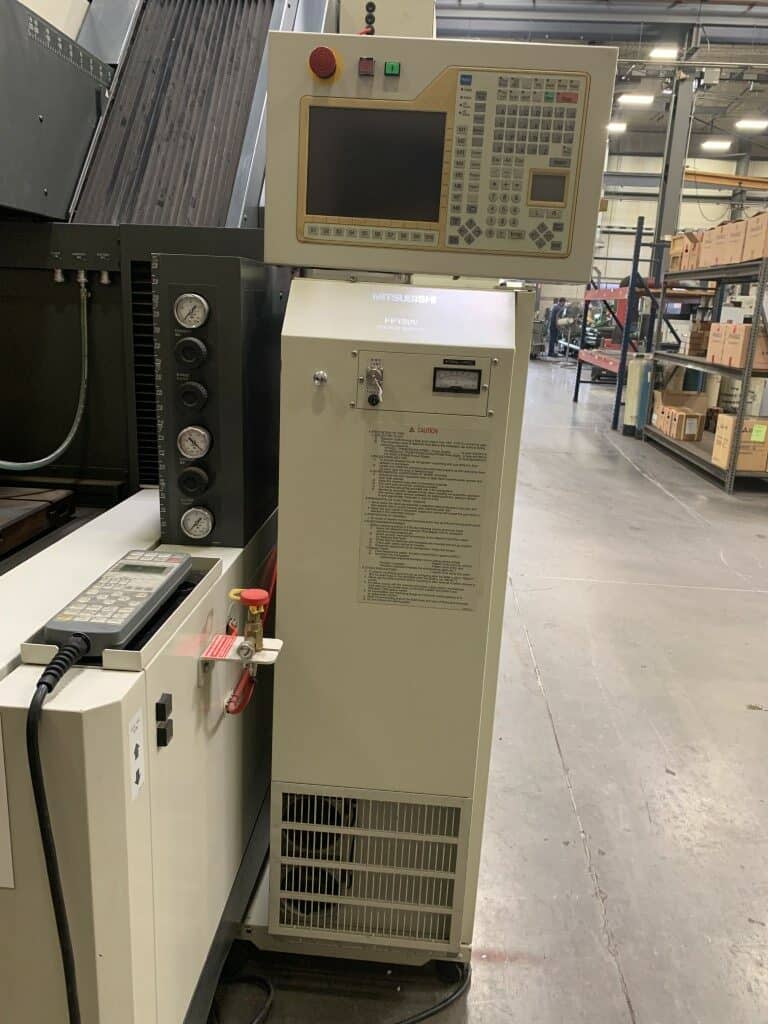

Remote Pendant Box |

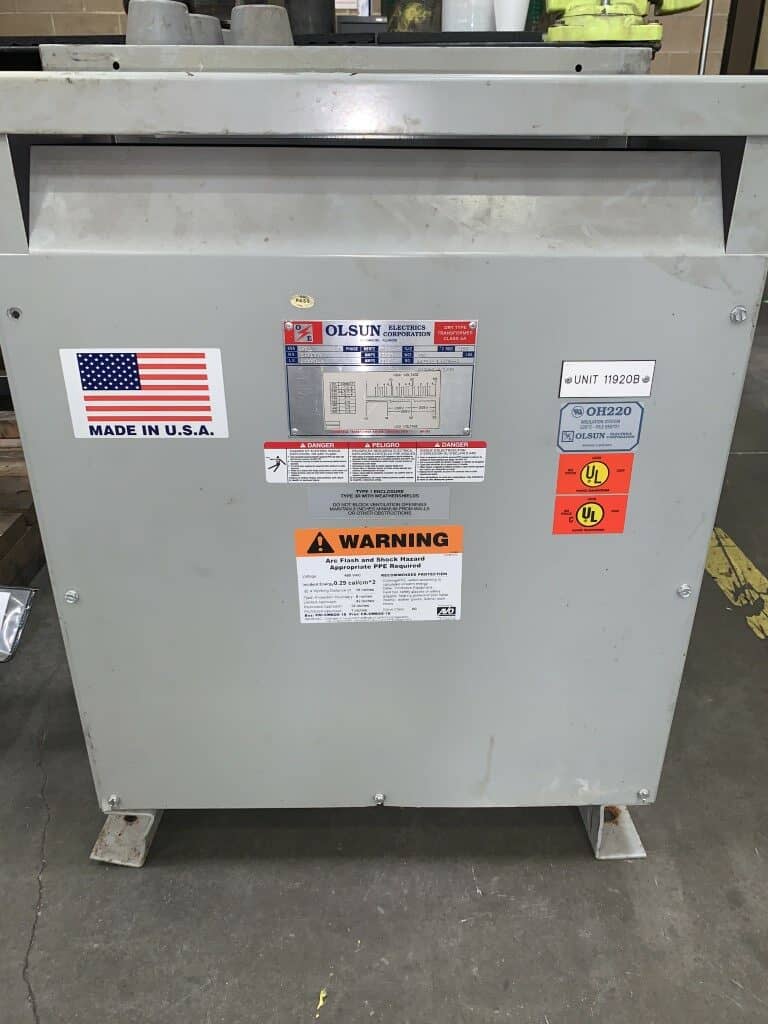

Transformer |
|
3D Lateral Servo Obits |

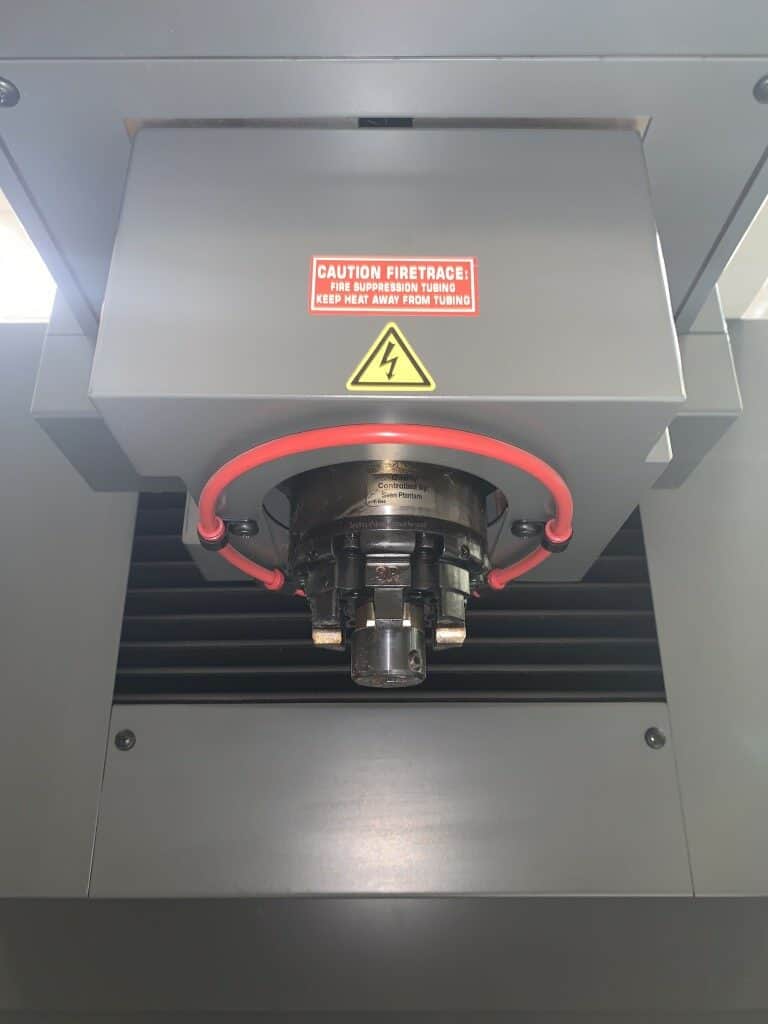

3R Macro C-Axis with 0-20 RPM Rotation |
|
Thermal Displacement Compensation Control |
64 Bit PC Based Controller |
|
Auto Lubrication |

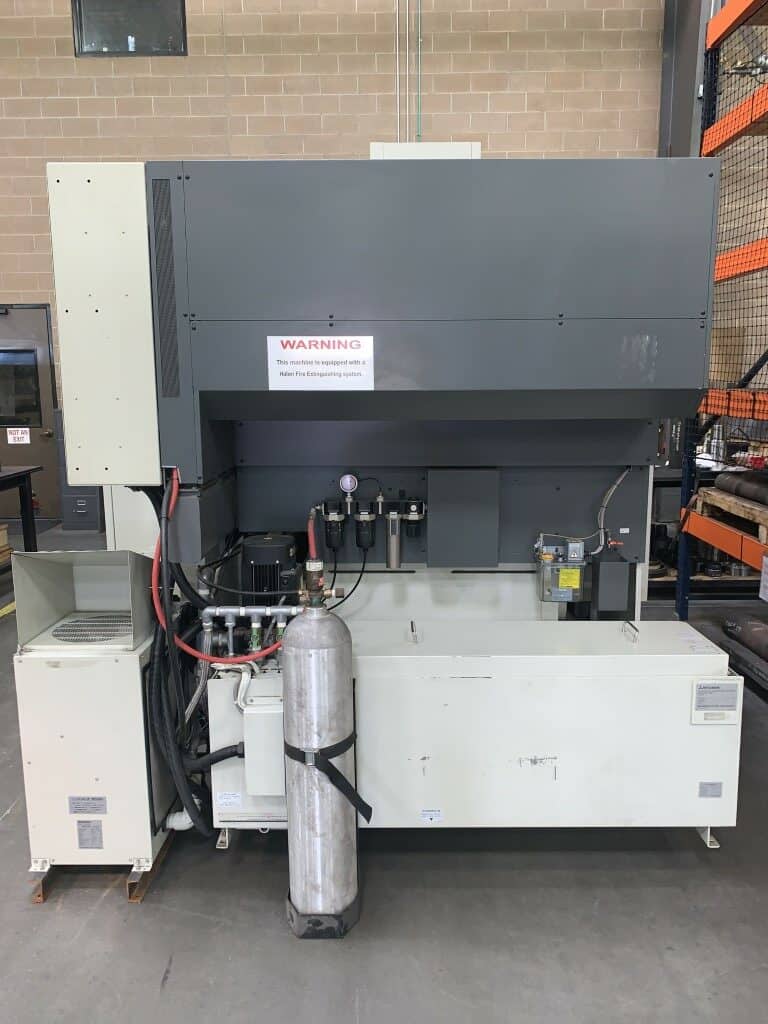

Fire Extinguisher |
|
Flushing Thru Head |
Fuzzy Logic/ Fuzzy Pro/ and Fuzzy Pro Plus |
|
Intelligent AC Servo Drives |
Machine Structure Fixed Table / Traveling Column |
|
Work Tank Access 3 Sided Drop Tank |
