Year |
2008 |
|---|---|
Make |
Flow |
Model |
IFB 6012 |
Description |
6' x 12' CNC Waterjet |
Reference # |
8074282 |
Price |
$19,999.00 |

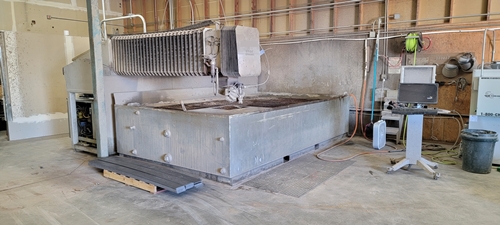

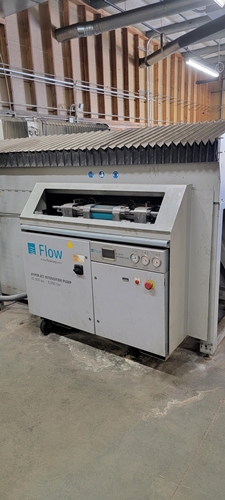

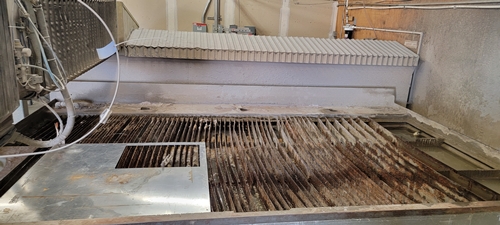

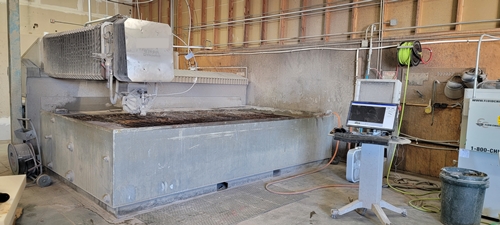

Used Flow IFB 6012 (2008) Waterjet for Sale. This machine has a 6′ by 12′ table, Flowmaster control, and a 50 HP pump with a maximum cutting pressure of 87,000 PSI and a speed range of 500 IPM. Equipped with a 600 lbs abrasive bulk tank, FlowCUT machine interface with SmartStream technology, FlowNEST for full geometric nesting, and the Flowpath CAD/CAM system with built-in CAD functions and automatic tool path generation. Rigid open gantry and flying bridge design allow access on three sides of the tank, with full wrap around bellows protecting the drive components and a heavy duty welded steel base and catcher tank. Ethernet network and USB drive compatible. Available to see under power for an inspection. See more used waterjets and other Flow machines, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |
| Control |
Flowmaster |
| Pump |
50 HP |
| Max Cutting Pressure |
87,000 PSI |
| Speed Range |
500 IPM |
Features
|
600lbs Abrasive Bulk Tank |
FlowCUT Machine Interface with SmartStream Technology |
|
FlowNEST - Optimizes Material Yield With Full Geometric Nesting |
Flowpath CAD/CAM System |
|
Rigid Open Gantry Design |
Built-in CAD Functions and Automatic Tool Path Generation |
|
Dynamic Taper Compensating Head |
Ethernet Network and USB Drive Compatible |
|
Flying Bridge Design Easy Access on 3 Sides of the Tank |
Full Wrap Around Bellows To Protect Drive Components |
|
Heavy Duty Welded Steel Base And Catcher Tank |
