Year |
2008 |
|---|---|
Make |
Finn Power |
Model |
C5 |
Description |
33 Ton Turret Punch |
Reference # |
8078125 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

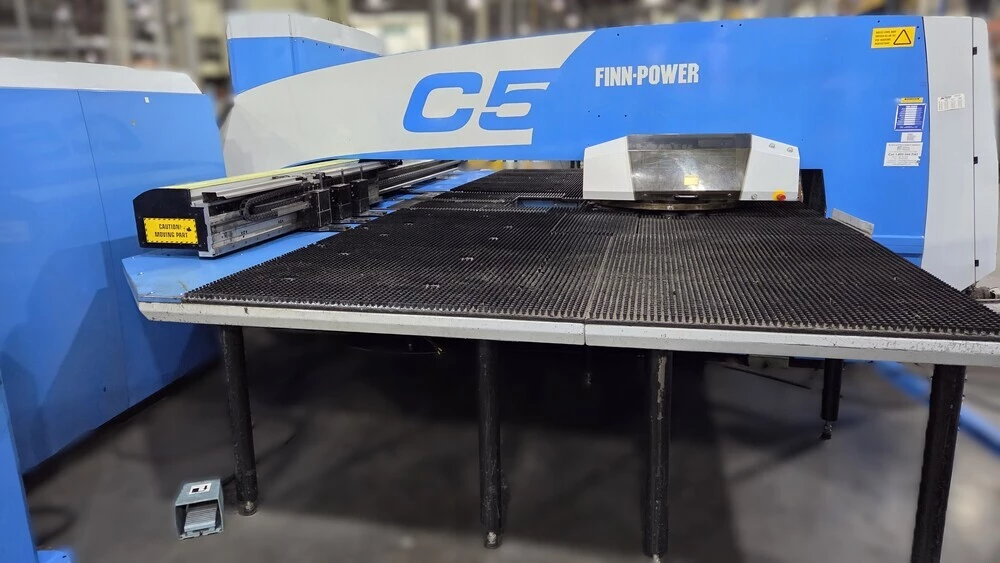

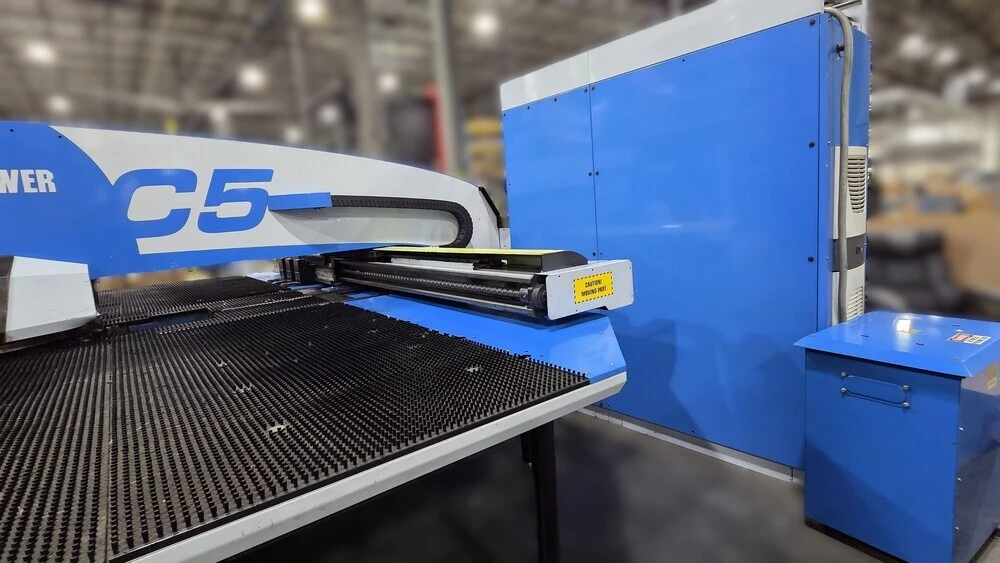

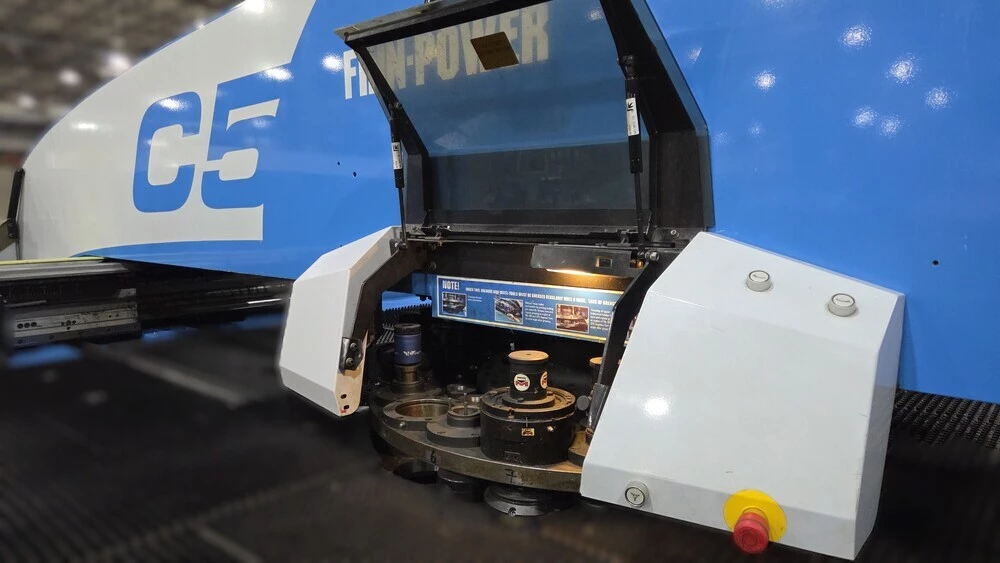

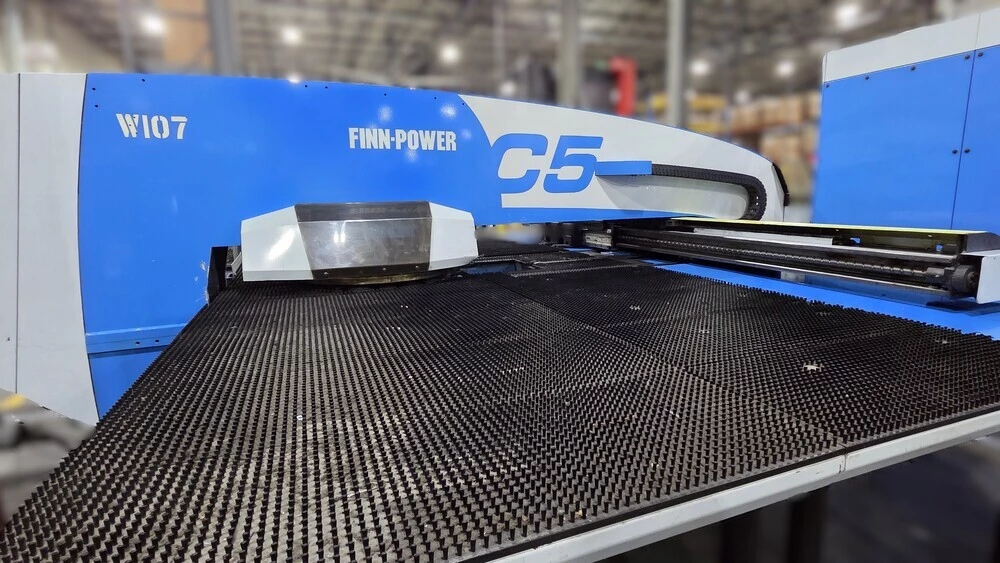

Used Finn Power C5 (2008) Turret Punch for Sale. This CNC turret punch offers 33 ton capacity with 48″ of X-axis travel, 96″ of Y-axis travel and a 48″ throat depth, handling sheets up to 99.6″ x 50″ without repositioning and a maximum traverse of 101.7″ x 51.8″. Maximum sheet thickness is 5/16″ and maximum sheet weight is 440 lbs. The 20-station thick turret indexes bi-directionally at 24 RPM and accepts punches up to 3.5″ diameter, with a maximum hit rate of 420 HPM on 1″ increment moves and 1100 SPM in continuous nibble mode. Table traverse speeds reach 3540 IPM in X and 2352 IPM in Y, under Siemens Sinumeric 840D control. Equipped with (8) auto-index stations, including (3) multi-tool holders; multi-tool compatible for (2) auto-index and (1) keyed station. Available to be seen under power for inspection. See more used turret punches or Request a Quote.
Specifications
| Capacity |
33 Ton |
|---|---|
| X-Axis Travel |
48" |
| Y-Axis Travel |
96" |

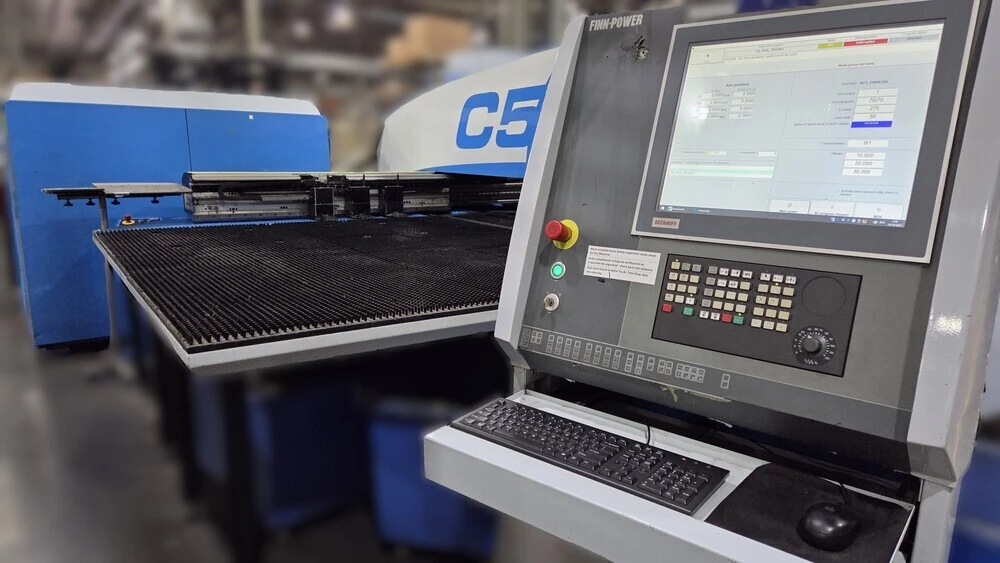

| Control |
Siemens Sinumeric 840D |
| Turret Stations |
20 |
| Throat Depth |
48" |
| Max Sheet Size Without Repositioning |
99.6" x 50" |
| Turret Configuration (Thick) |
20 Stations |
| Turret Speed |
24 RPM (Bi-Directional) |
| Max Hit Rate |
420 HPM (1" Increment Movement) |
| Hit Rate (Continuous Nibble Mode) |
1100 SPM |
| Max Table Traverse Speeds (X-Axis) |
3540 IPM |
| Max Table Traverse Speeds (Y-Axis) |
2352 IPM |
| Max Punch Diameter |
3.5" |
| Max Traverse |
101.7" x 51.8" |
| Max Sheet Weight |
440 Lbs |
| Maximum Sheet Thickness |
5/16" |
Features
|
(8) Auto-Index Stations |
Including (3) Multi-Tool Holders |
|
Multi-Tool Compatible for (2) Auto-Index and (1) Keyed Station |
