Year |
2008 |
|---|---|
Make |
Doosan |
Model |
Puma TL2500L |
Description |
CNC Lathe |
Reference # |
8078440 |
Price |
Activate Pricing |

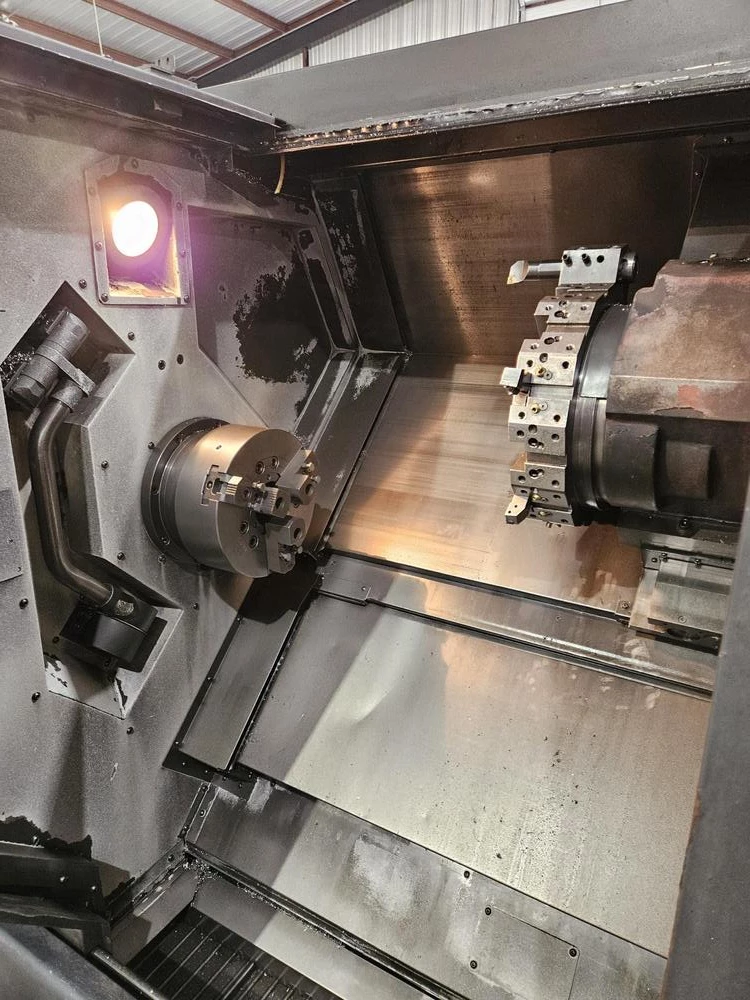

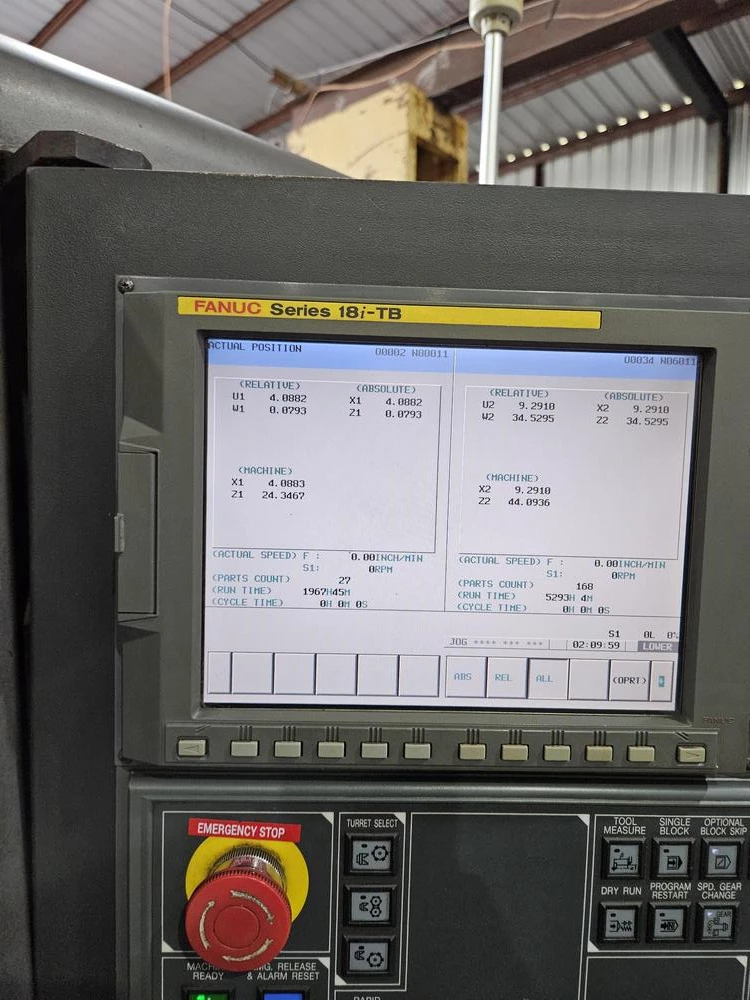

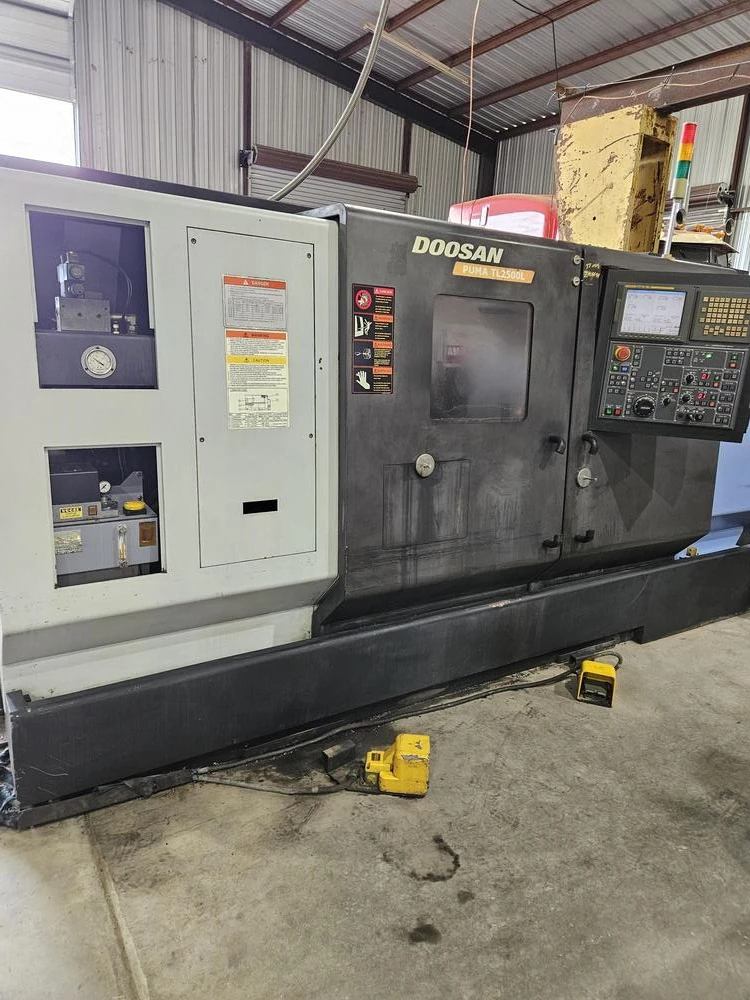

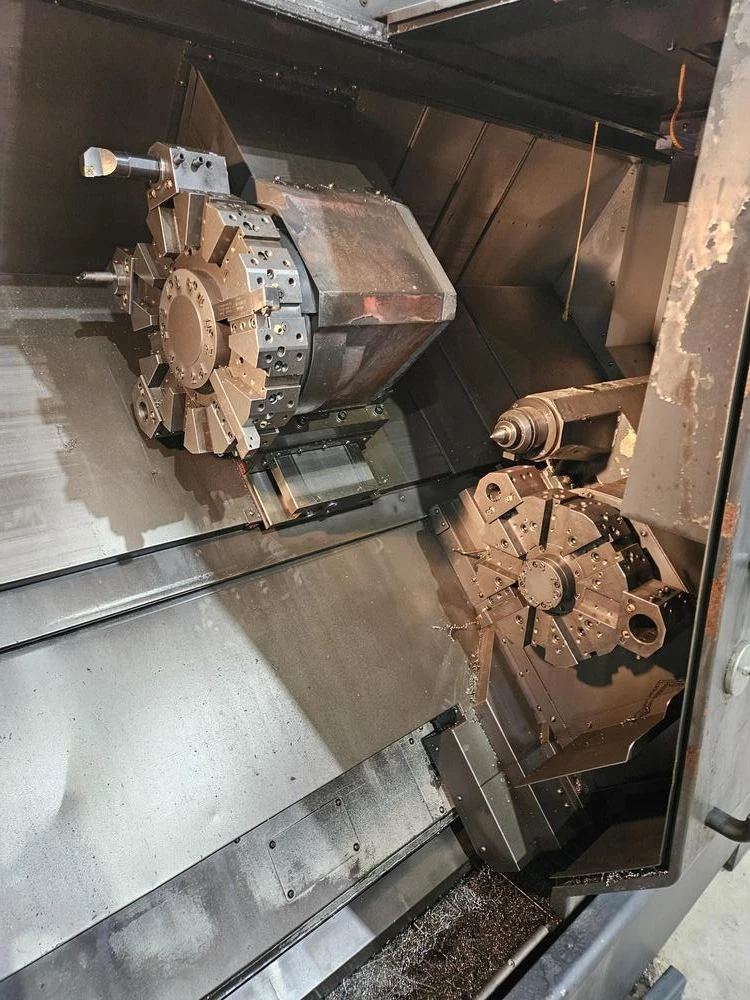

Used Doosan Puma TL2500L (2008) CNC Lathe for Sale. This dual-turret lathe carries a 12″ chuck with 3″ bar capacity, 14.6″ turning diameter and 39.4″ distance between centers. The spindle is driven by a 35 HP motor to 4,000 RPM and is run through a Fanuc Series 18i-TB control. Tooling is held in a 12-station upper turret and an 8-station lower turret. Equipped with heavy duty box guideways, auto tool presetter, tailstock and chip conveyor. Power requirement is 200/220V, 3 PH, 50/60Hz. The machine can be seen under power for an inspection. See more used CNC lathes or browse additional Doosan equipment. Activate Pricing to view the figure, then Request a Quote for full details.
Specifications
| Chuck Size |
12" |
|---|---|
| Bar Capacity |
3" |
| Turning Diameter |
14.6" |
| Spindle Speed |
4,000 RPM |
| Control |
Fanuc Series 18i-TB |
| Distance Between Centers |
39.4" |
| Turret |
(12) Upper/ (8) Lower |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
200/220V/ 3 PH/ 50/60Hz |
| Spindle Motor |
35 HP |
Features
|
Heavy Duty Box Guideways |
Auto Tool Presetter |
|
Dual Turret |
Tailstock |
