Year |
2008 |
|---|---|
Make |
Doosan |
Model |
HP 5100 |
Description |
CNC Horizontal Machining Center |
Reference # |
8076830 |
Price |
Activate Pricing |

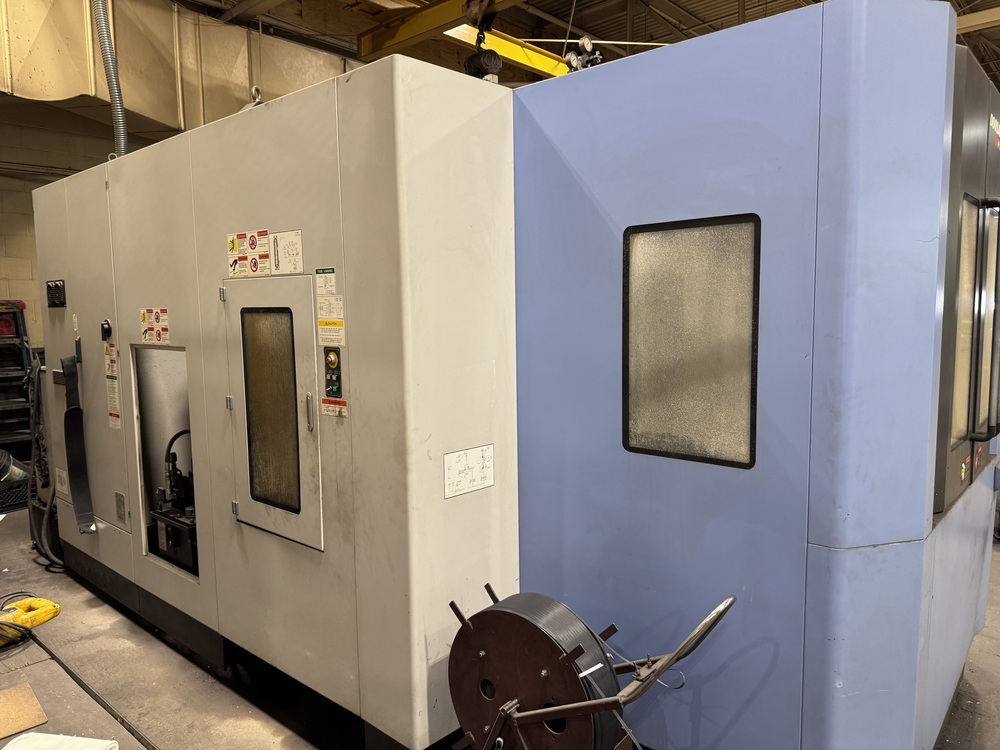

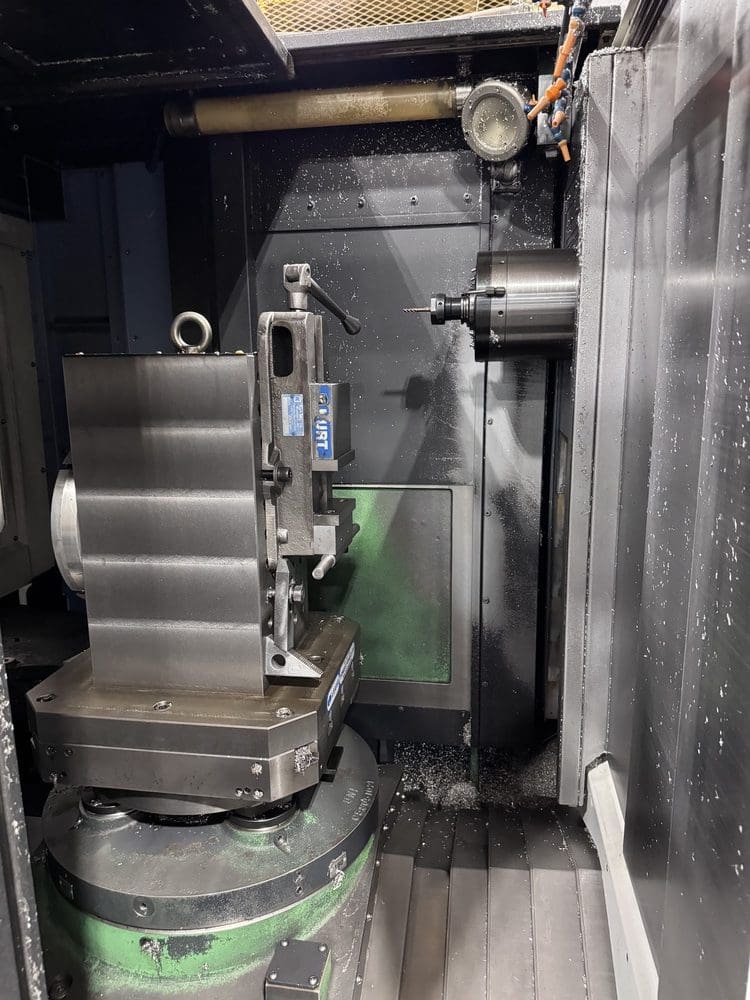

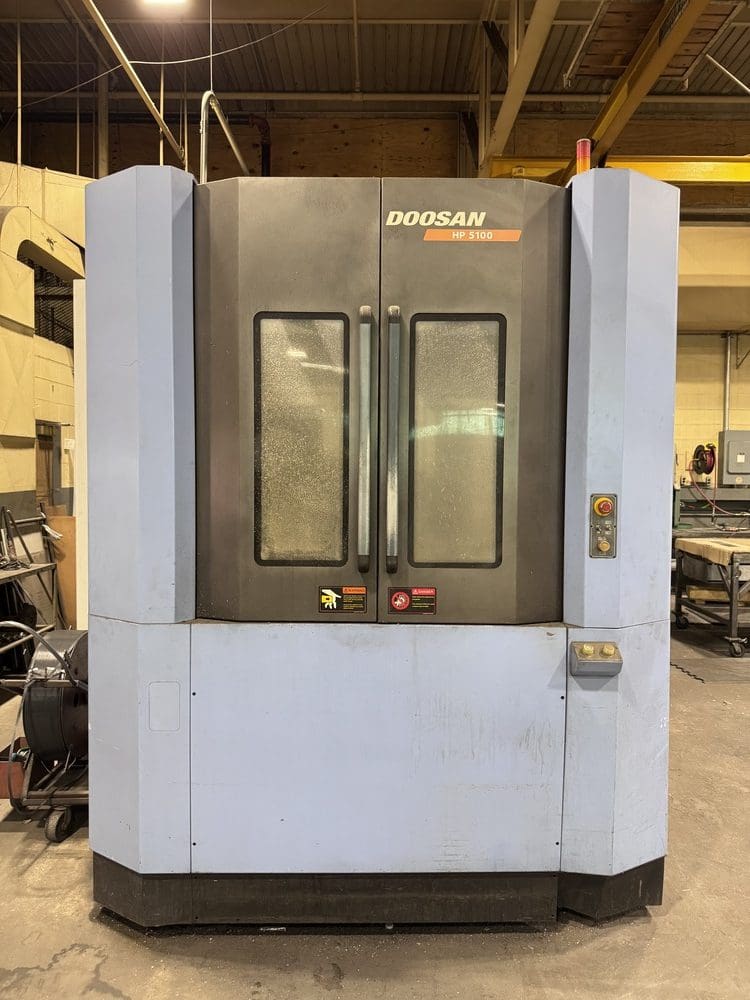

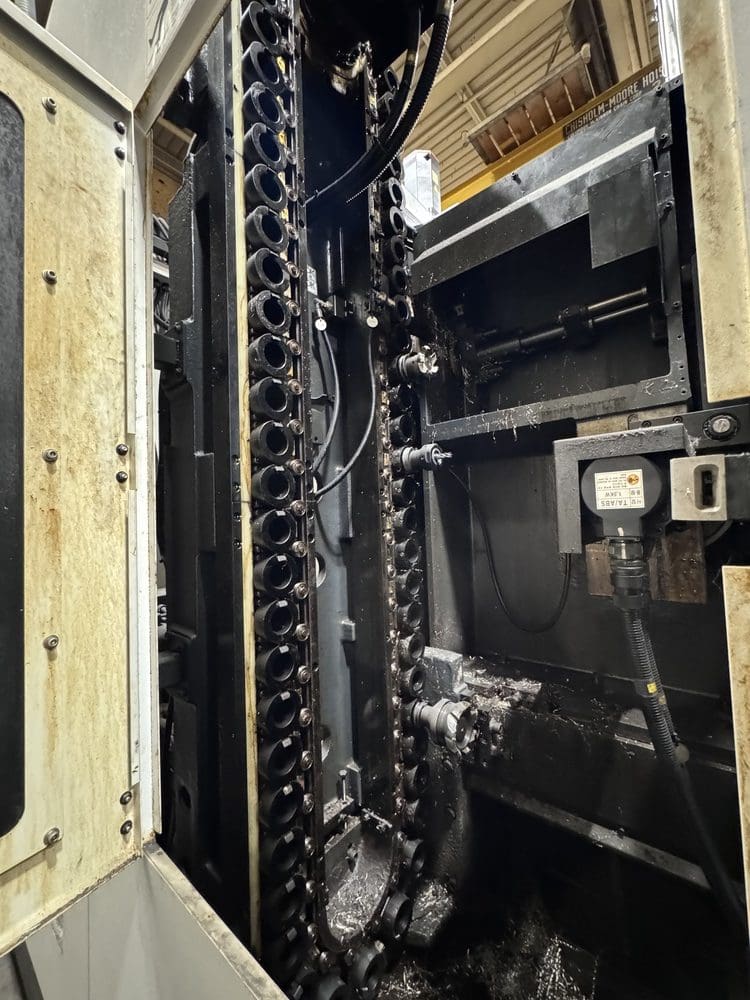

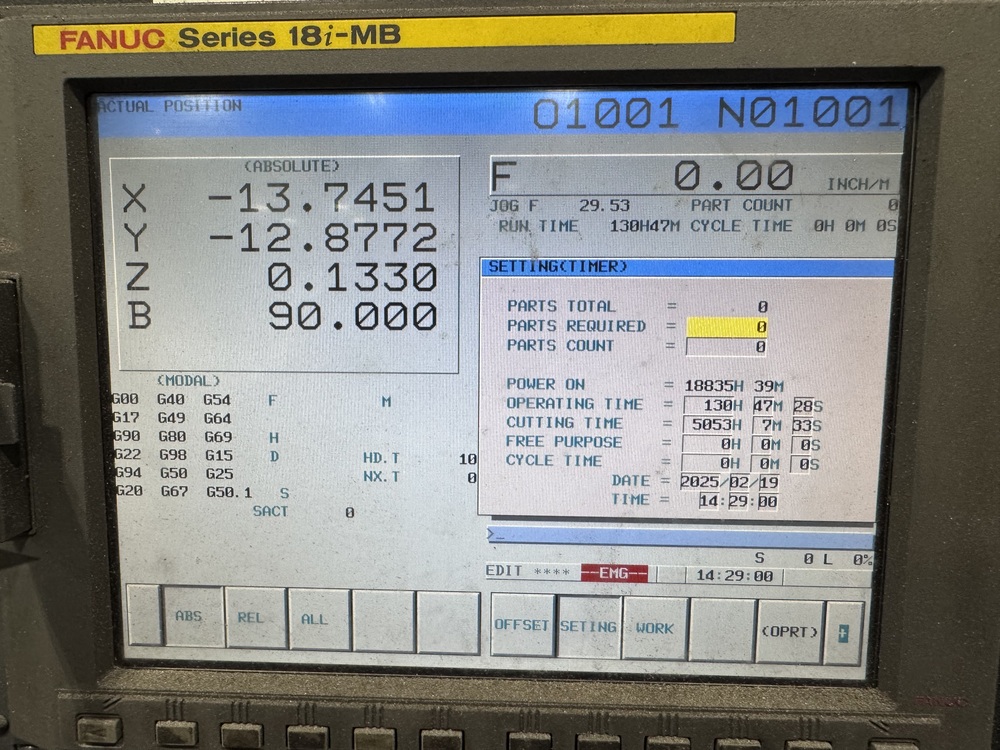

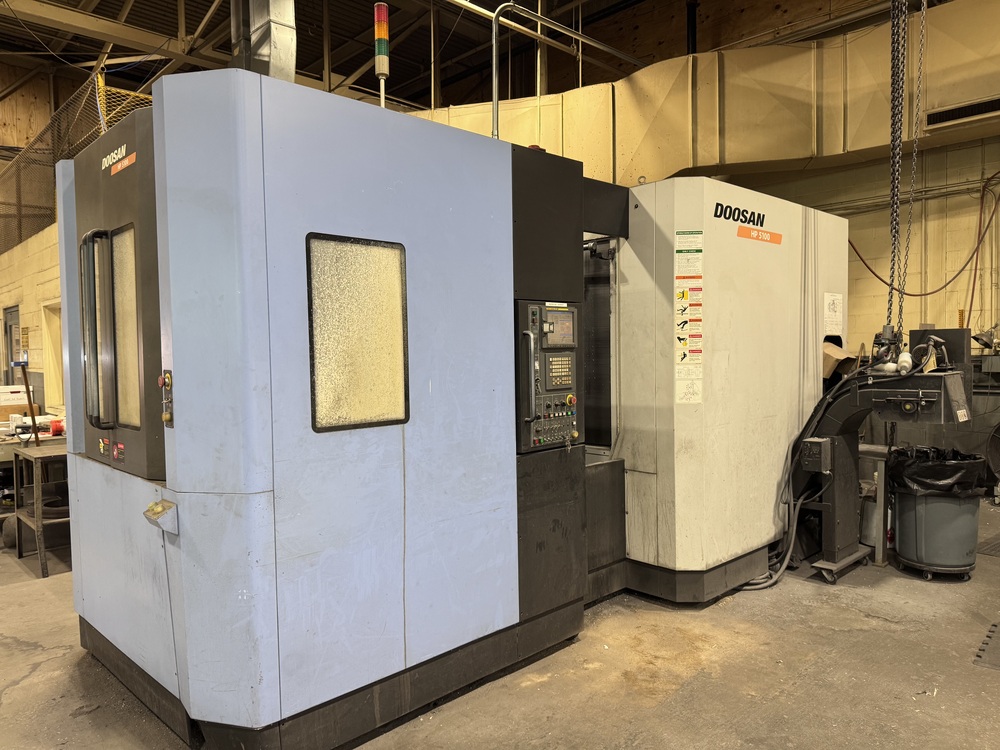

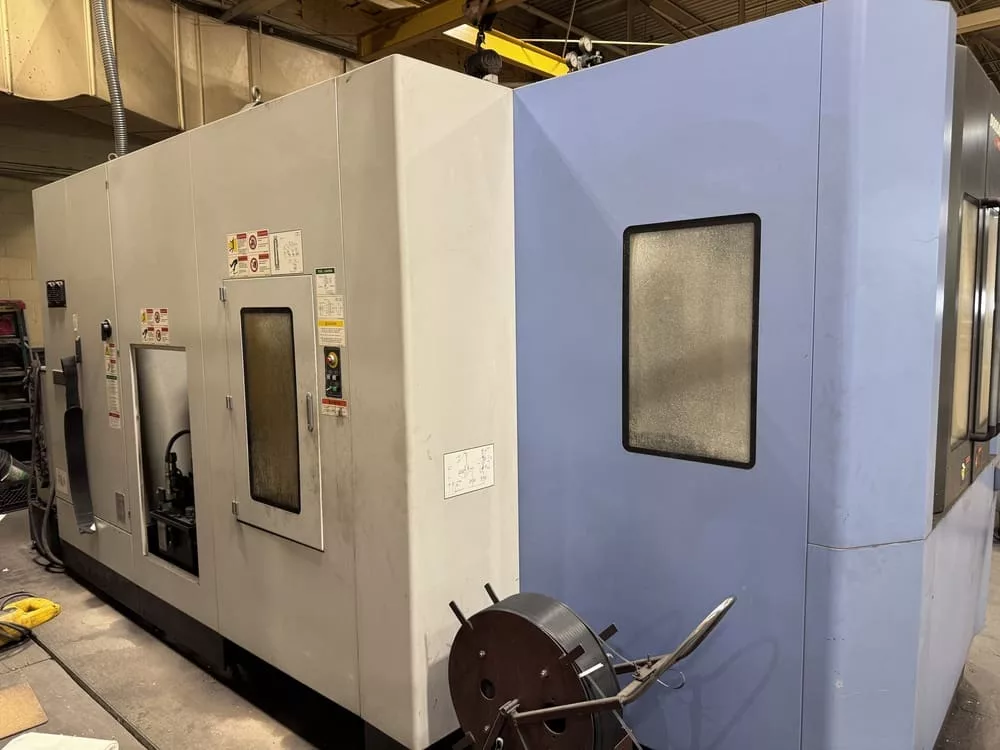

Used Doosan HP 5100 (2008) CNC Horizontal Machining Center for Sale. This machine has a 500 mm pallet measuring 19.7″ x 19.7″ with full 4th axis pallet indexing. Travels are 33.5″ in X, 27.6″ in Y and 29.5″ in Z. The spindle runs to 12,000 RPM with a CAT 40 taper and through-spindle coolant, and the 60-station ATC handles larger tool libraries. A chip conveyor is fitted, and the machine is run by a Fanuc control. It can be seen under power for an inspection before purchase. Browse more CNC horizontal machining centers or other Doosan equipment, use Activate Pricing to view current pricing, and Request a Quote for full details and delivery options.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.7" x 19.7" |
| X-Axis Travel |
33.5" |
| Y-Axis Travel |
27.6" |
| Z-Axis Travel |
29.5" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Fanuc |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Coolant |
Through-Spindle Coolant |
