Year |
2008 |
|---|---|
Make |
Hyundai |
Model |
Wia HS400 |
Description |
CNC Horizontal Machining Center |
Reference # |
8073649 |
Price |
Activate Pricing |

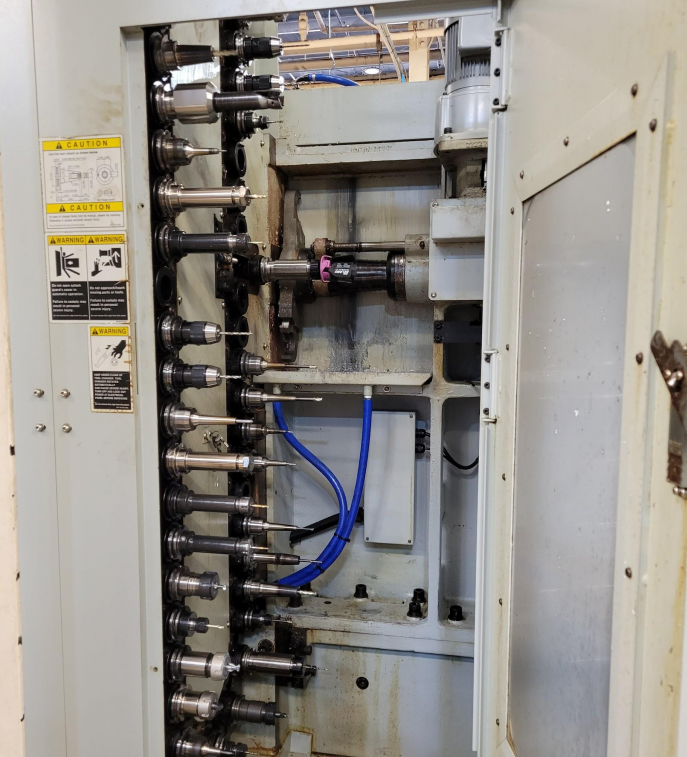

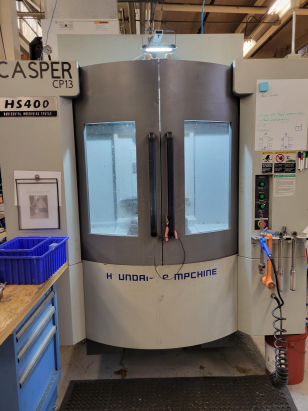

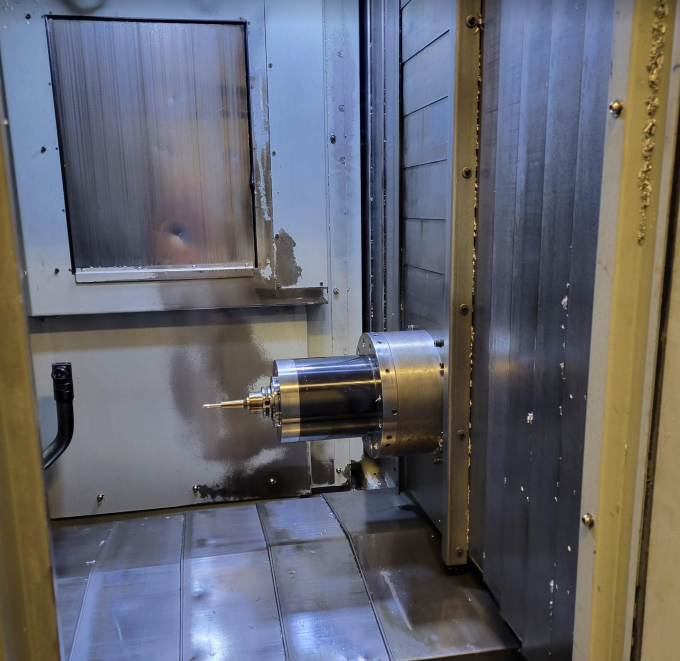

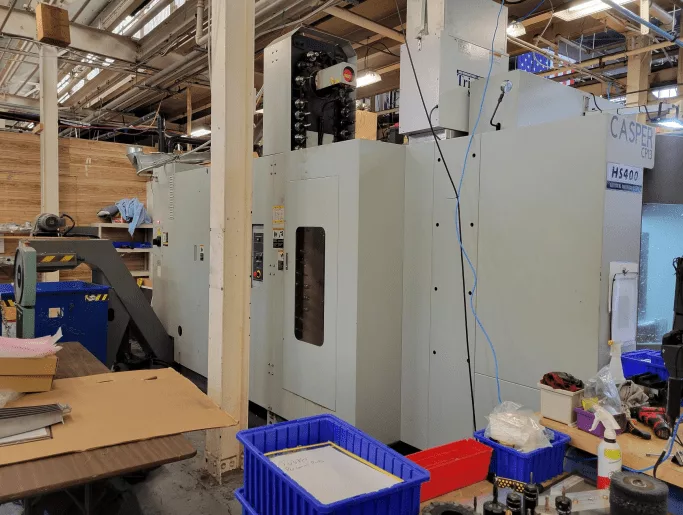

Used Hyundai Wia HS400 (2008) CNC Horizontal Machining Center for Sale. This machine has a 400 mm pallet measuring 15.8″ x 15.8″, with a pallet capacity of 1,102 lbs and 1 degree pallet indexing. Travels are 24.4″ in X, 22″ in Y and 25.6″ in Z. The 25 HP spindle turns to 15,000 RPM with a CAT 40 taper, served by a 60-tool ATC accepting tools up to 11.8″ long. Control is a Fanuc 18i-MB. Equipped with a 1000 PSI external through-spindle coolant system with 10 micron bag filtration (70 Bar), chip conveyor, operator coolant gun, and 2 bare tombstones (tools and work holding not included). Available to see under power for inspection. See more CNC horizontal machining centers and Hyundai Wia equipment, Activate Pricing, or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.8" x 15.8" |
| X-Axis Travel |
24.4" |
| Y-Axis Travel |
22" |
| Z-Axis Travel |
25.6" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |

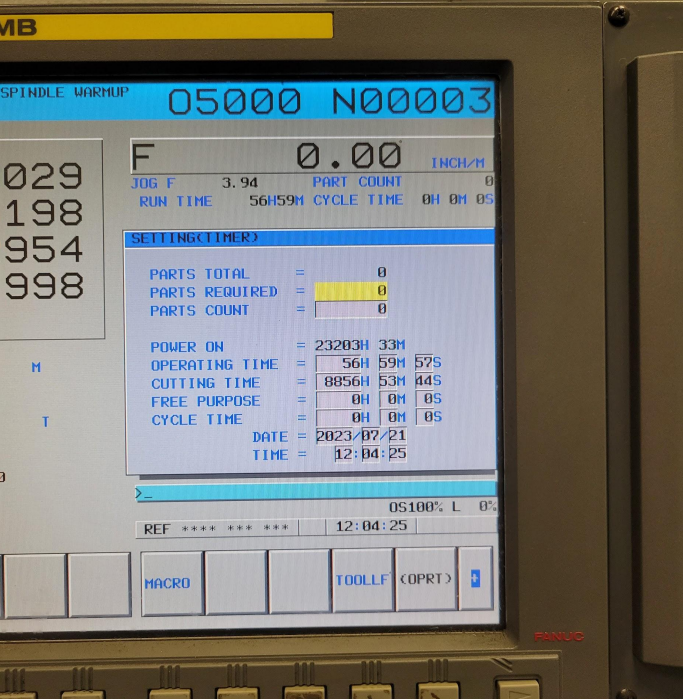

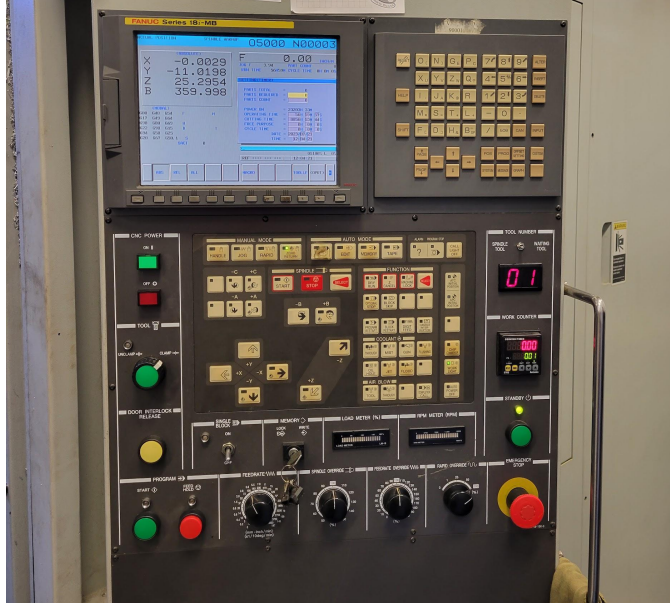

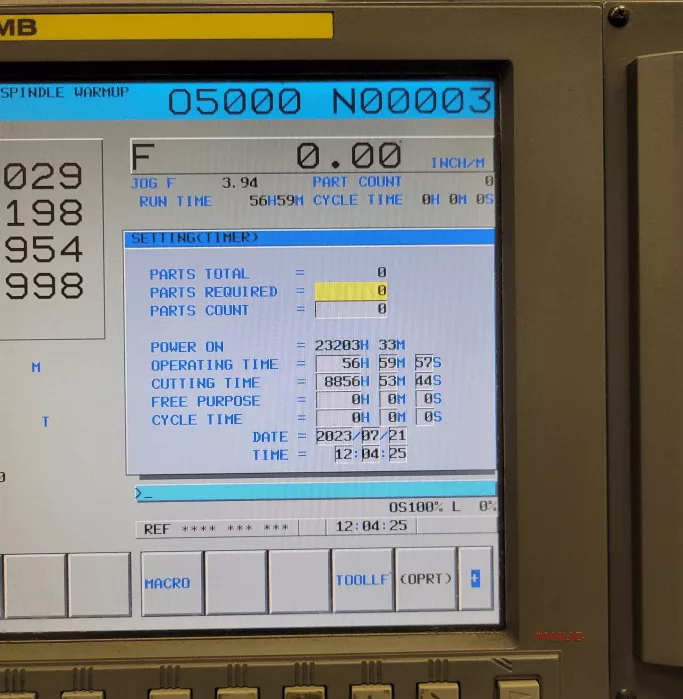

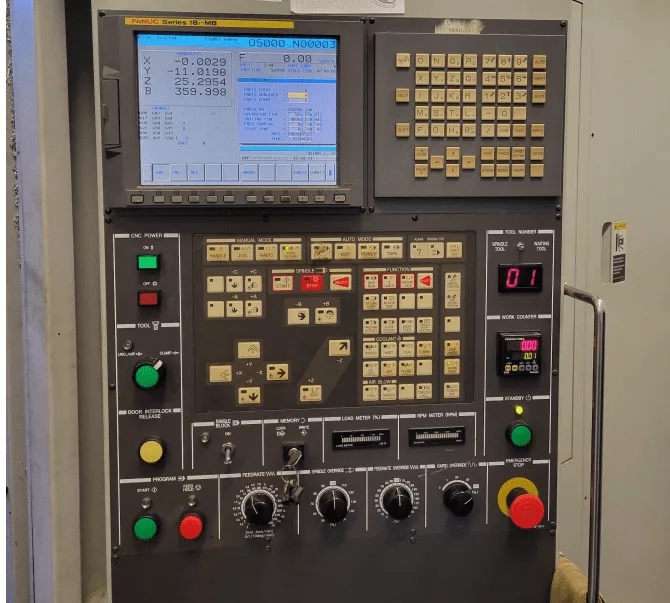

| Control |
Fanuc 18i-MB |
| Pallet Indexing |
1 Degree |
| Chip Removal |
Chip Conveyor |
| Coolant |
Through-Spindle Coolant |
| Spindle Motor |
25 HP |
| Max Tool Length |
11.8" |
| Pallet Capacity |
1,102 Lbs |
Features
|
1000 PSI External Through Spindle Coolant System with 10 Micron Bag Filtration (70 Bar) |

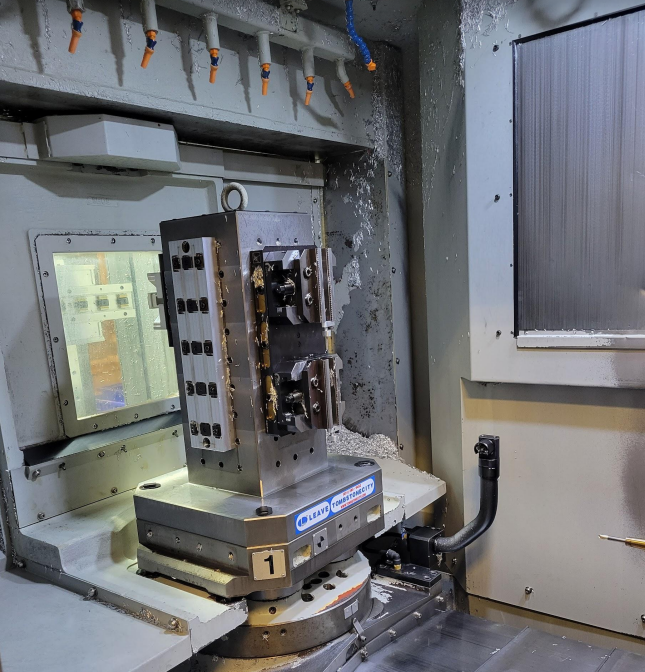

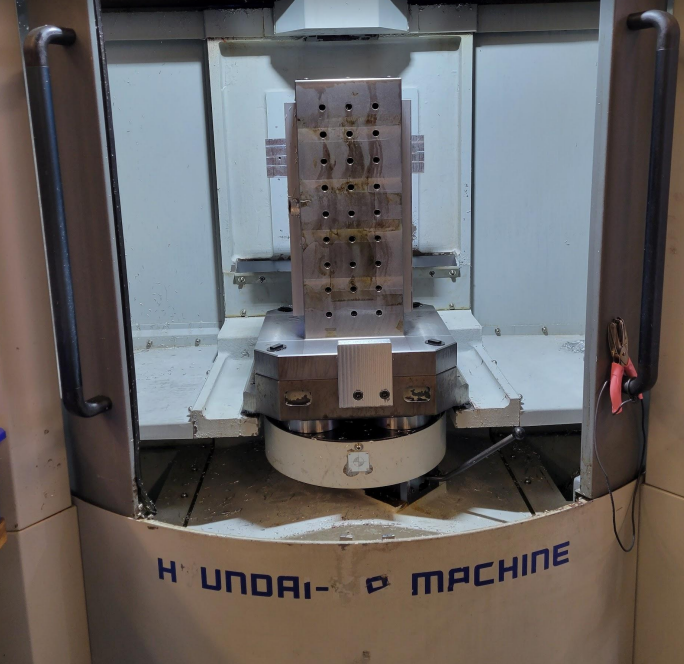

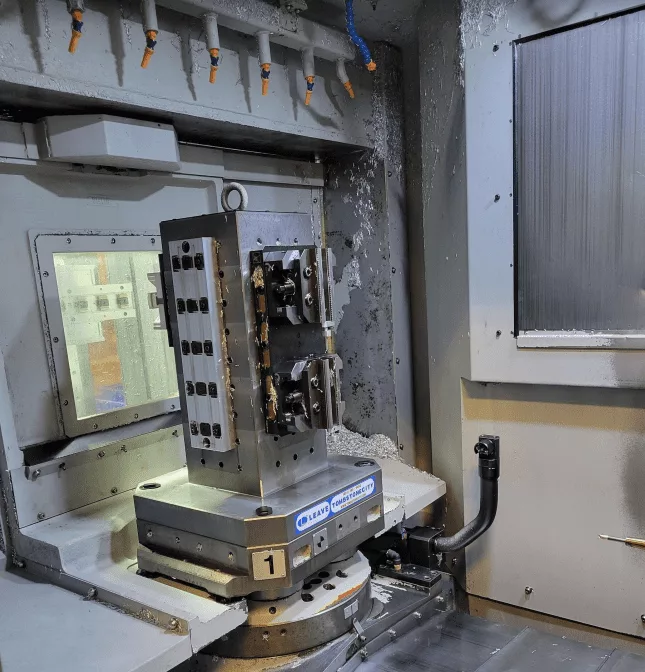

2 Bare Tombstones Included (Tools and Work Holding Not Included) |
|
Operator Coolant Gun |
