Year |
2007 |
|---|---|
Make |

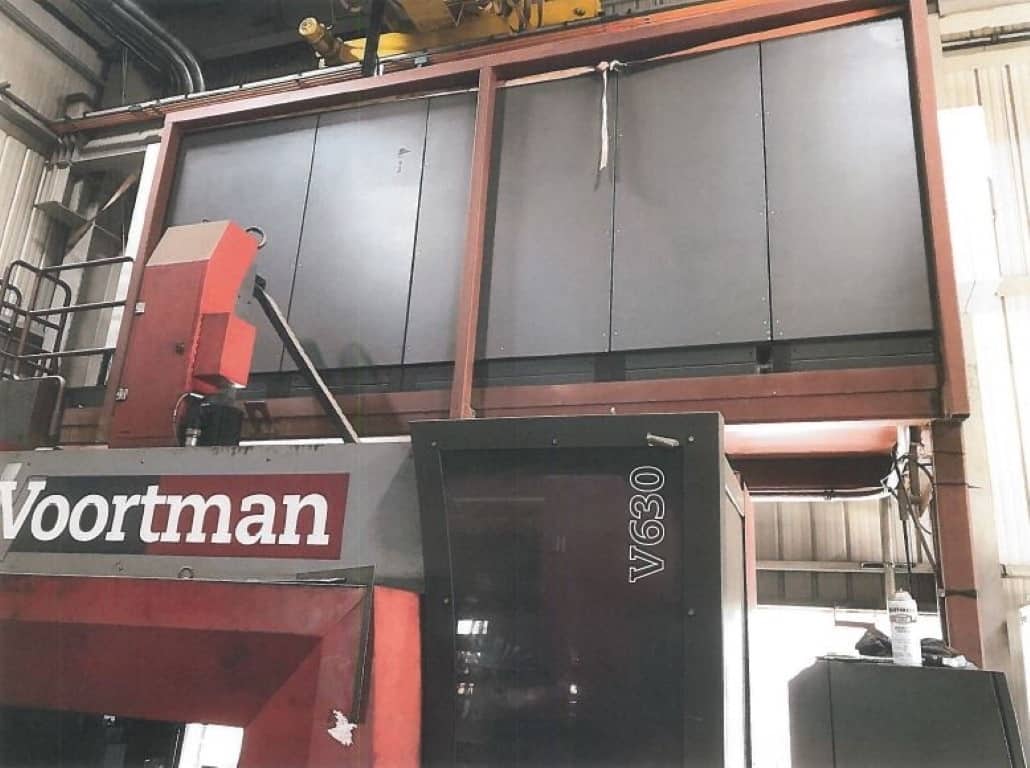

Voortman |
Model |

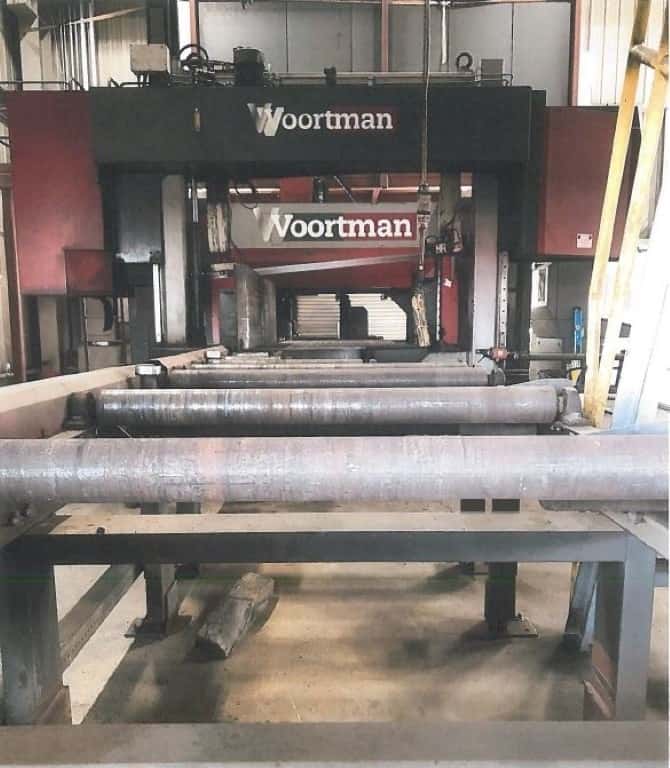

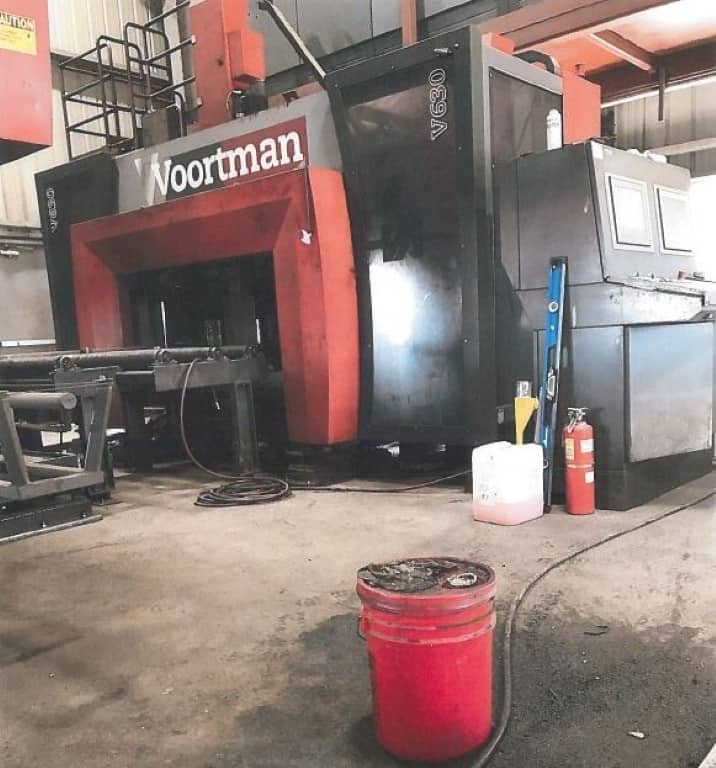

V630/1000 |
Description |
Beam/ Drill lines |
Reference # |
7801477 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Drill Height Capacity |
3/8"-18" |
|---|---|
| Drill Width Capacity |
2.5"-42" |
| Drill Weight Capacity |
300 Lbs/Ft |
| Drill Positioning Speed X |
130 Ft/Min |
| Drill Positioning Speed Y |
115 Ft/Min |
| Drill Positioning Speed Z |
115 Ft/Min |
| Drill Positioning Weight Capacity |
29,000 Lbs |
| Drill Tapping Capacity |
3/8"-1" |
| Drill Spindle Motor |
40 HP |
| Drill Spindle RPM |
100-2,500 |
| Drill Tool Holder |
SK40 |
| Drill ATC |
VTC5/40 2 S 5 Position |
| Drill Weight |
24,250 Lbs |
| Drill Diameter |
5/16" - 1-9/16" |

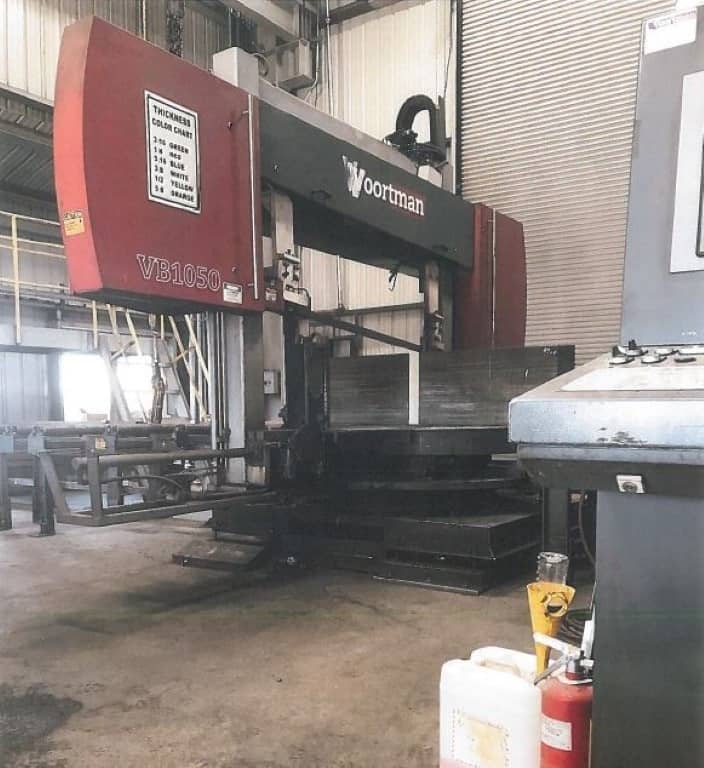

| Mitering Bandsaw Model |
VB1050 |
| Mitering Bandsaw Capacity @ 90 Deg |
20" x 44" |
| Mitering Bandsaw Capacity @ 15 Deg |
20" x 41" |
| Mitering Bandsaw Capacity @ 30 Deg |
20" x 36" |
| Mitering Bandsaw Capacity @ 45 Deg |
20" x 28" |
| Mitering Bandsaw Capacity @ 60 Deg |
20" x 18.5" |
| Mitering Bandsaw Feed Approach |
20 Ft/Min |
| Mitering Bandsaw Blade Motor |
10 HP |
| Mitering Bandsaw Blade Width |
2-1/8" |
| Mitering Bandsaw Blade Speed |
130 - 400 Ft/Min |
| Mitering Bandsaw Cant In Head |
5 Deg |
| Mitering Bandsaw Weight |
18,750 Lbs |
| Drill Equipped With |

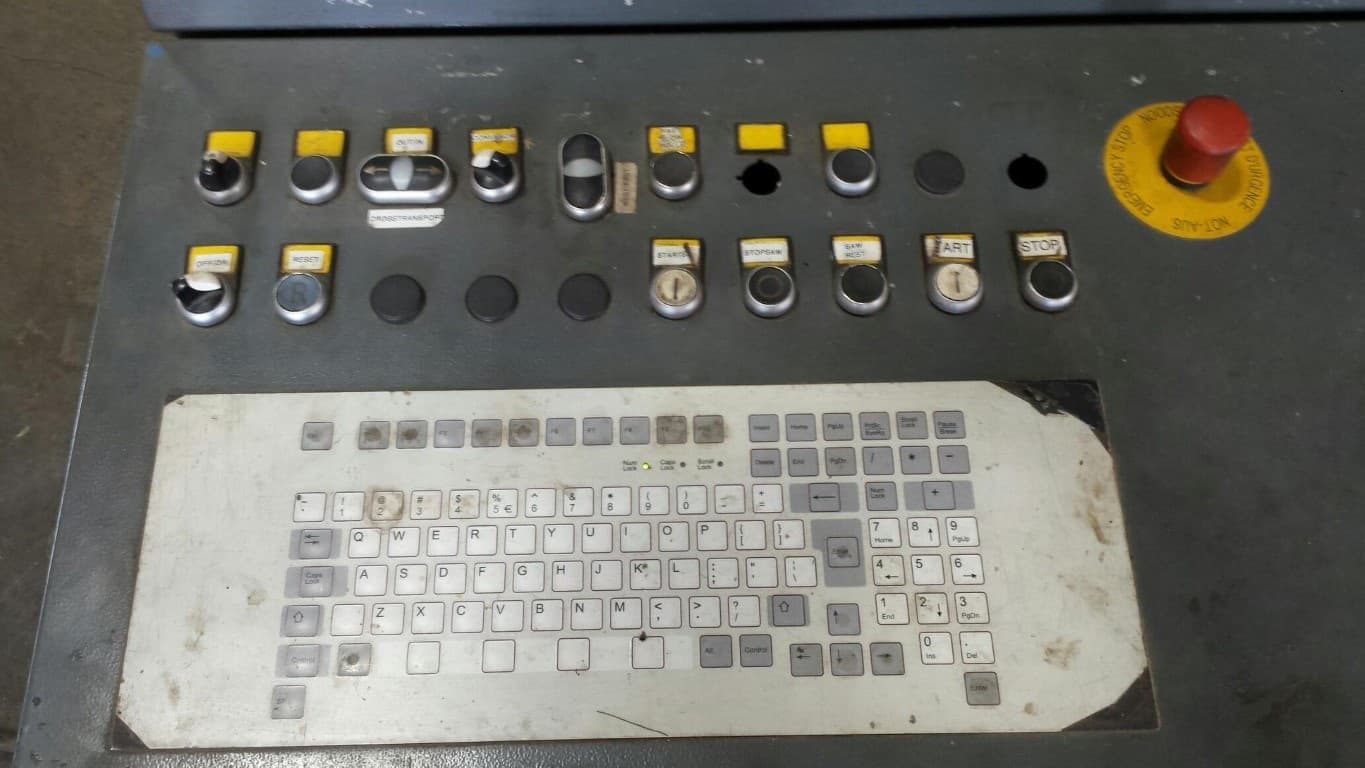

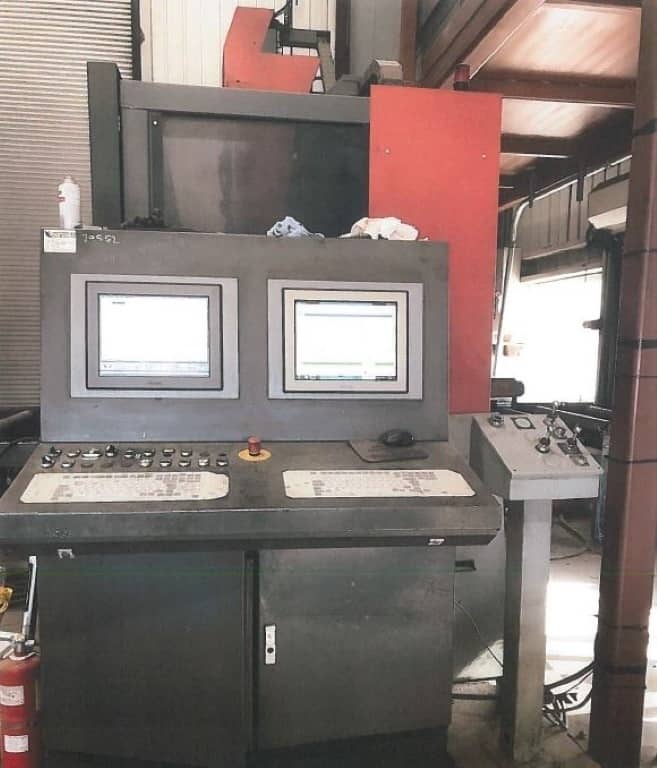

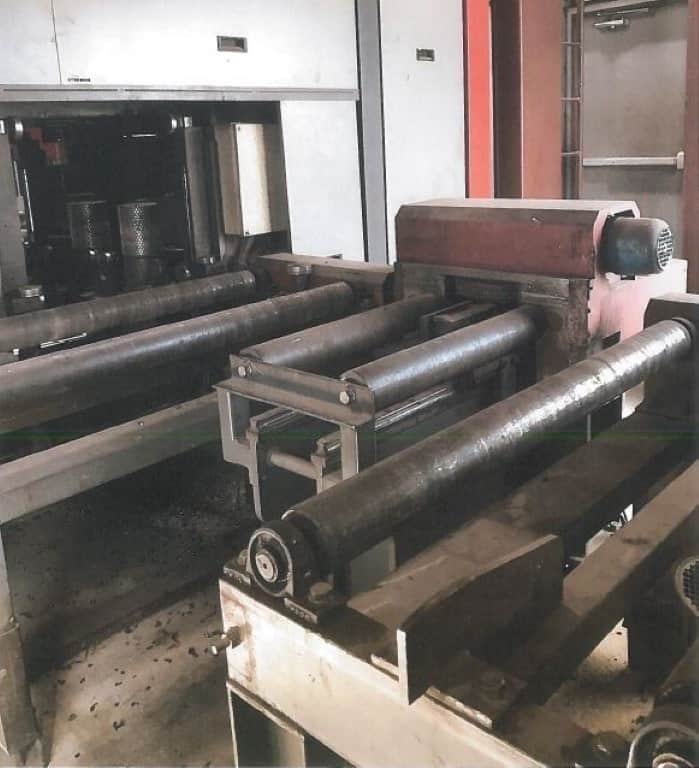

Voortman CNC Control, (3) Drill Units Each With 5-Station Automatic Tool Changers, Height And Width Measuring, Power In & Out Roller Conveyor, 4-Side Layout Marking, Roller Feed Measuring, Carbide Drilling Capable, Servo Motors For Drilling And Positioning |
| Bandsaw Equipped With: |
116' Of Straight Conveyor, Fast Rotation For Mitre Cuts, Contact Free, Fast Rotation, Moves To Correct Angle At Any Degree, Position Fixed By A Disk Brake |
