Year |
2007 |
|---|---|
Make |
Roku Roku |
Model |
MEGA S-400 |
Description |
CNC Vertical Machining Center |
Reference # |
8077212 |
Price |
Activate Pricing |

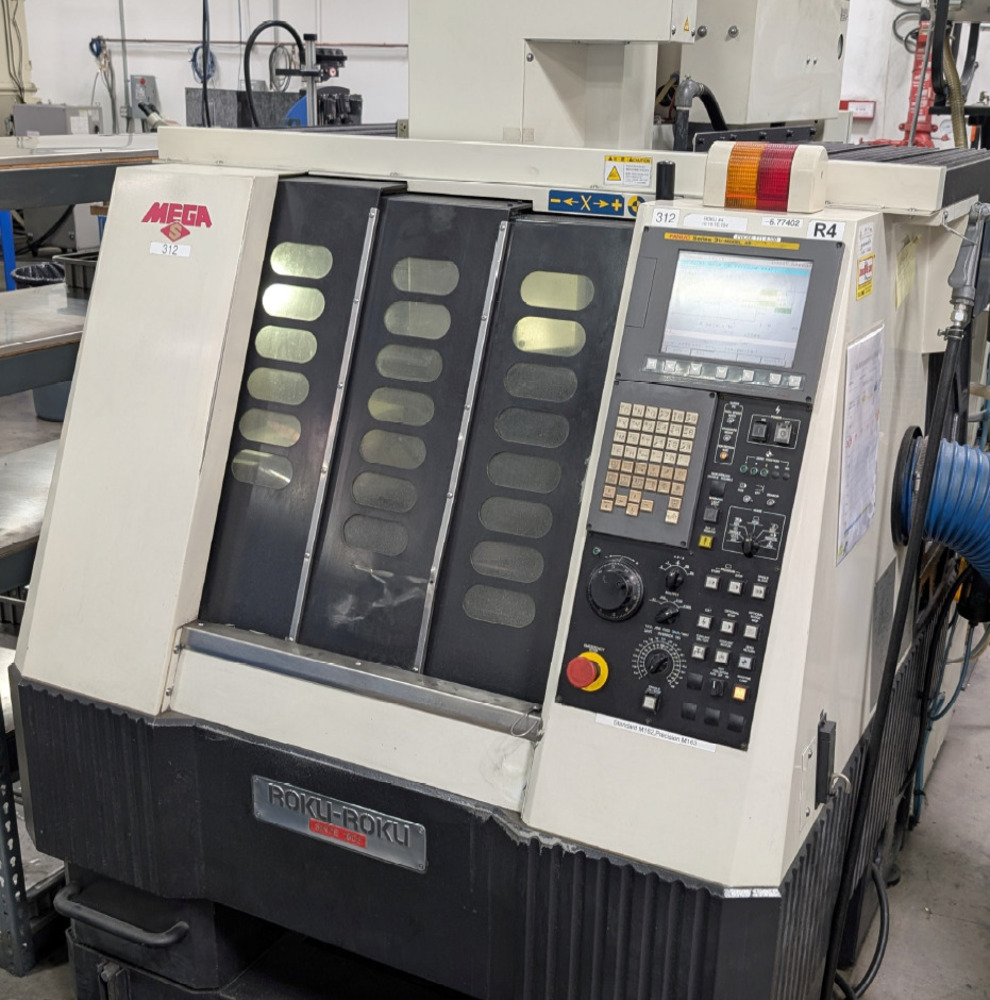

Used Roku Roku MEGA S-400 (2007) CNC Vertical Machining Center for Sale. This high speed mill offers 16.14″ of X-axis travel, 12.99″ in Y, and 7.87″ in Z, with a 40,000 RPM spindle on an HSK-E25 taper driven by a 5.5 HP motor. Tool changes are handled by an 11-station ATC, and motion is directed by a Fanuc 31i-A5 control. Power requirement is 12.5 KVA. Equipped with automatic centering (Renishaw infrared), oil-mist lubricated spindle, Z-axis thermal growth compensation, rigid tap, spindle chiller, and high speed processing. The spindle was replaced in 2021 and an accuracy measurement report was completed in 2022. The machine can be seen under power for an inspection. See more CNC vertical machining centers, Activate Pricing, or Request a Quote.
Specifications
| X-Axis Travel |
16.14" |
|---|---|
| Y-Axis Travel |
12.99" |
| Z-Axis Travel |
7.87" |
| Spindle Speed |
40,000 RPM |
| Spindle Taper |
HSK-E25 |
| Spindle Motor |
5.5 HP |
| Tool Magazine Capacity |
11 ATC |
| Control |

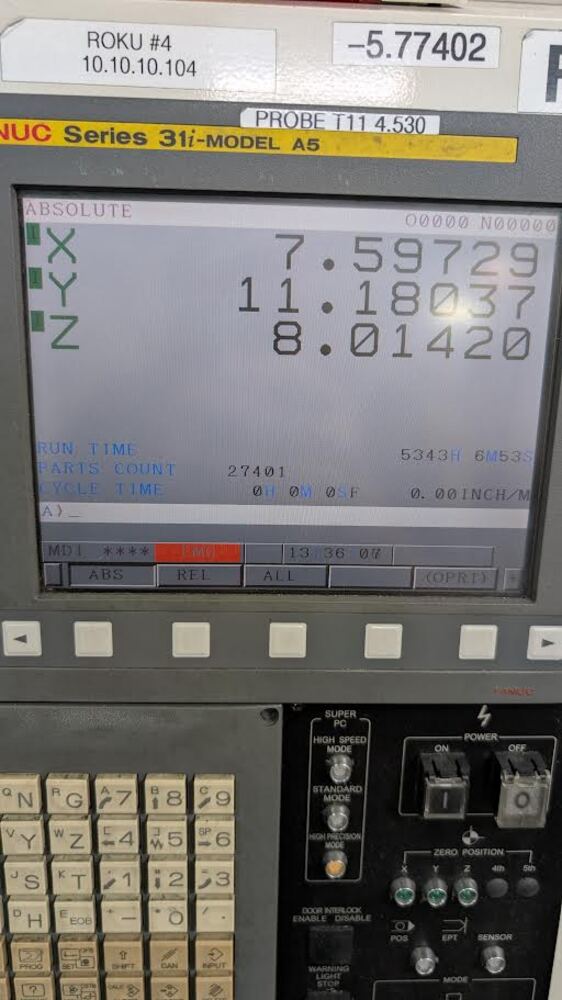

Fanuc 31i-A5 |
| Power Requirement |
12.5 KVA |
| Note |
Spindle Was Replaced 2021 / Accuracy Measurement Report Completed 2022 |
Features
|

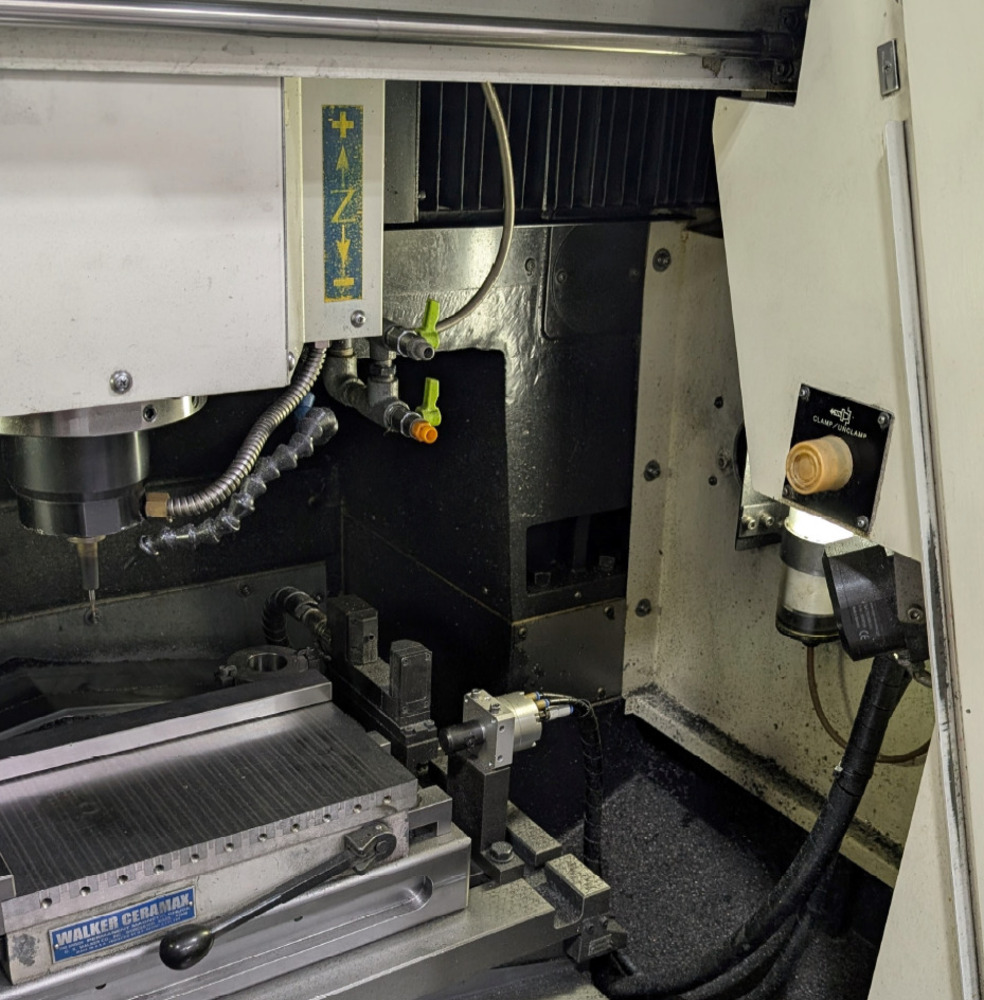

Automatic Centering (Renishaw Infrared) |
Oil-Mist Lubricated Spindle |
|
Z-Axis Thermal Growth Compensation |
Rigid Tap |
|
Spindle Chiller |
High Speed Processing |
