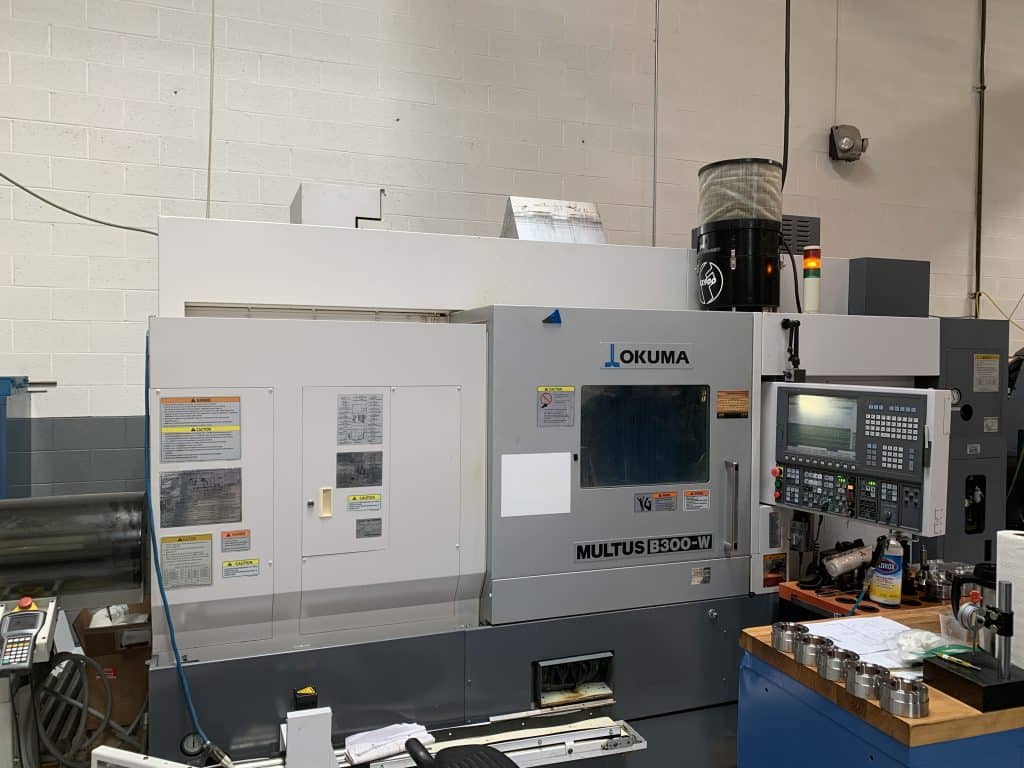

Year |
2007 |
|---|---|
Make |
Okuma |
Model |

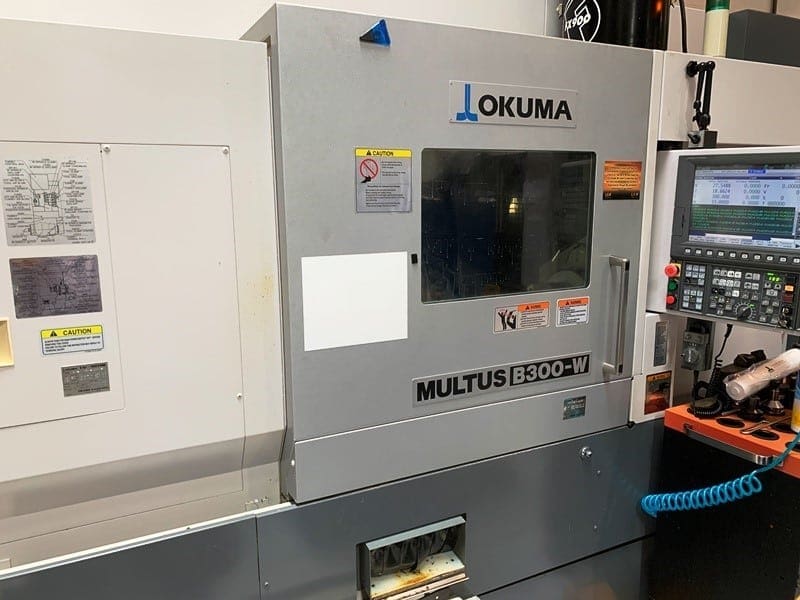

Multus B300-W |
Description |
CNC Lathe |
Reference # |
8069042 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
2.8" |
| Swing |
24.8" |
| Turning Diameter |
17.72" |
| Spindle Speed |
3,800 RPM |

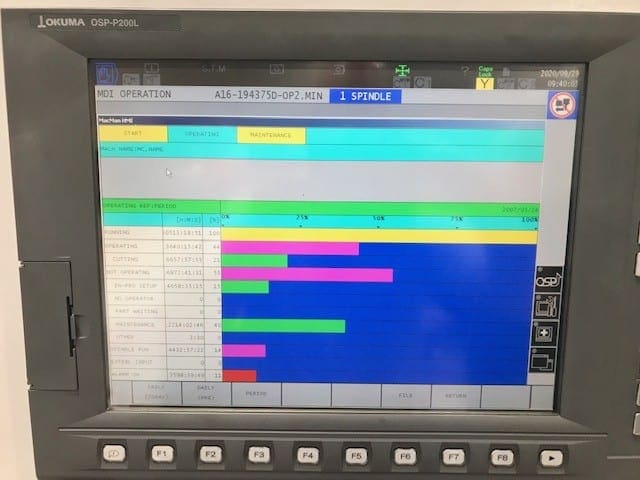

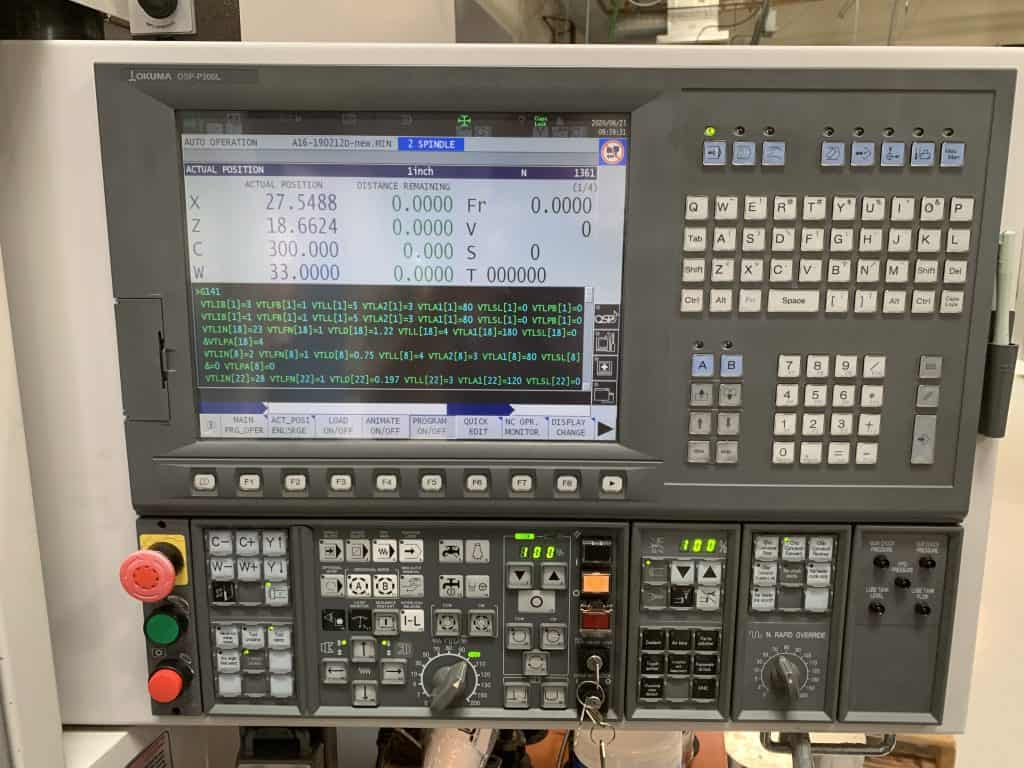

| Control |
Okuma OSP-P-200L |
| Distance Between Centers |
35" |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Live Tooling Horsepower |
15 HP |
| Live Tooling Speed Range (Capto C6) |
90-10,000 RPM |

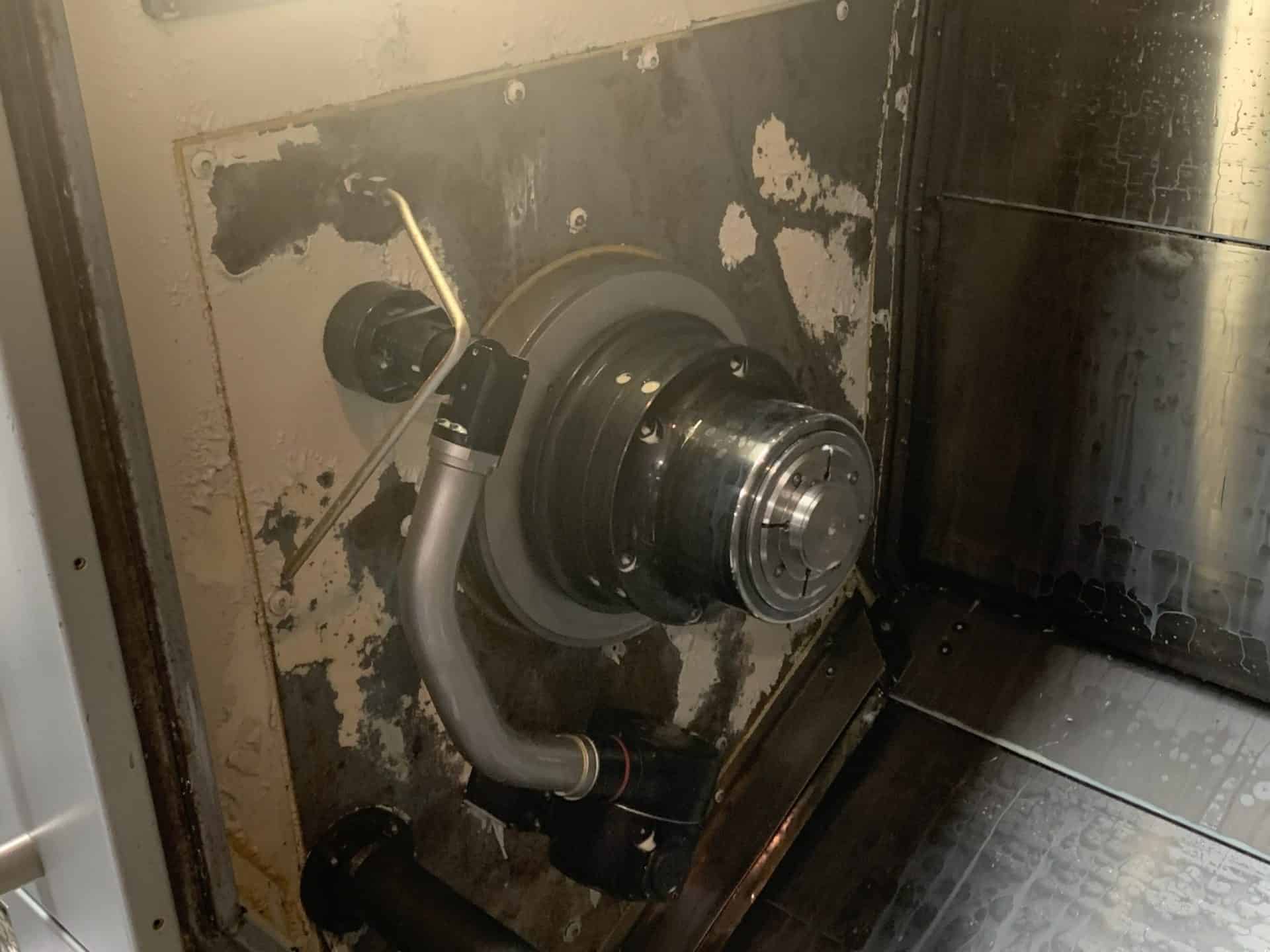

| Sub-Spindle |
2.8" |
| Max Working Distance Between Spindles |
35.43" |

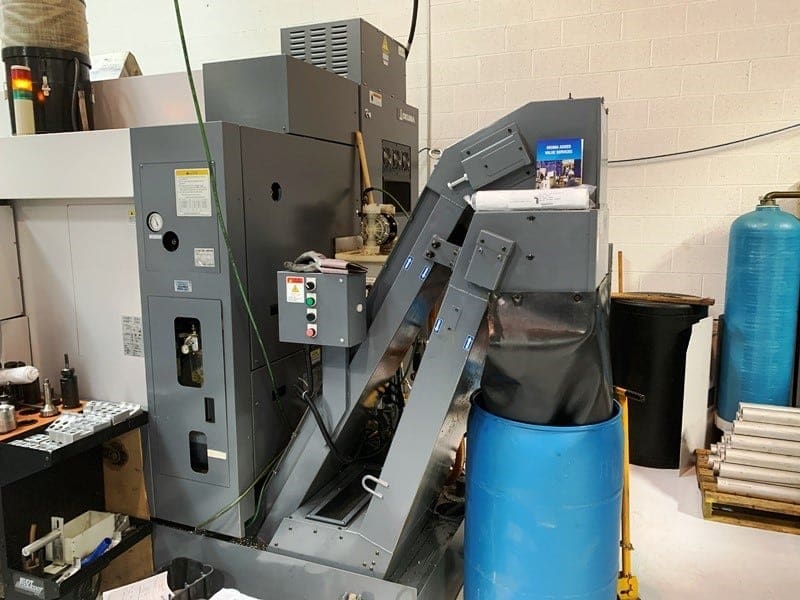

| Chip Removal |
Chip Conveyor |
| Y-Axis Travel |
6.299" |
| Cross Travel (X-Axis) |
22.83 |
| Longitudinal Travel (Z-Axis) |
37.80" |

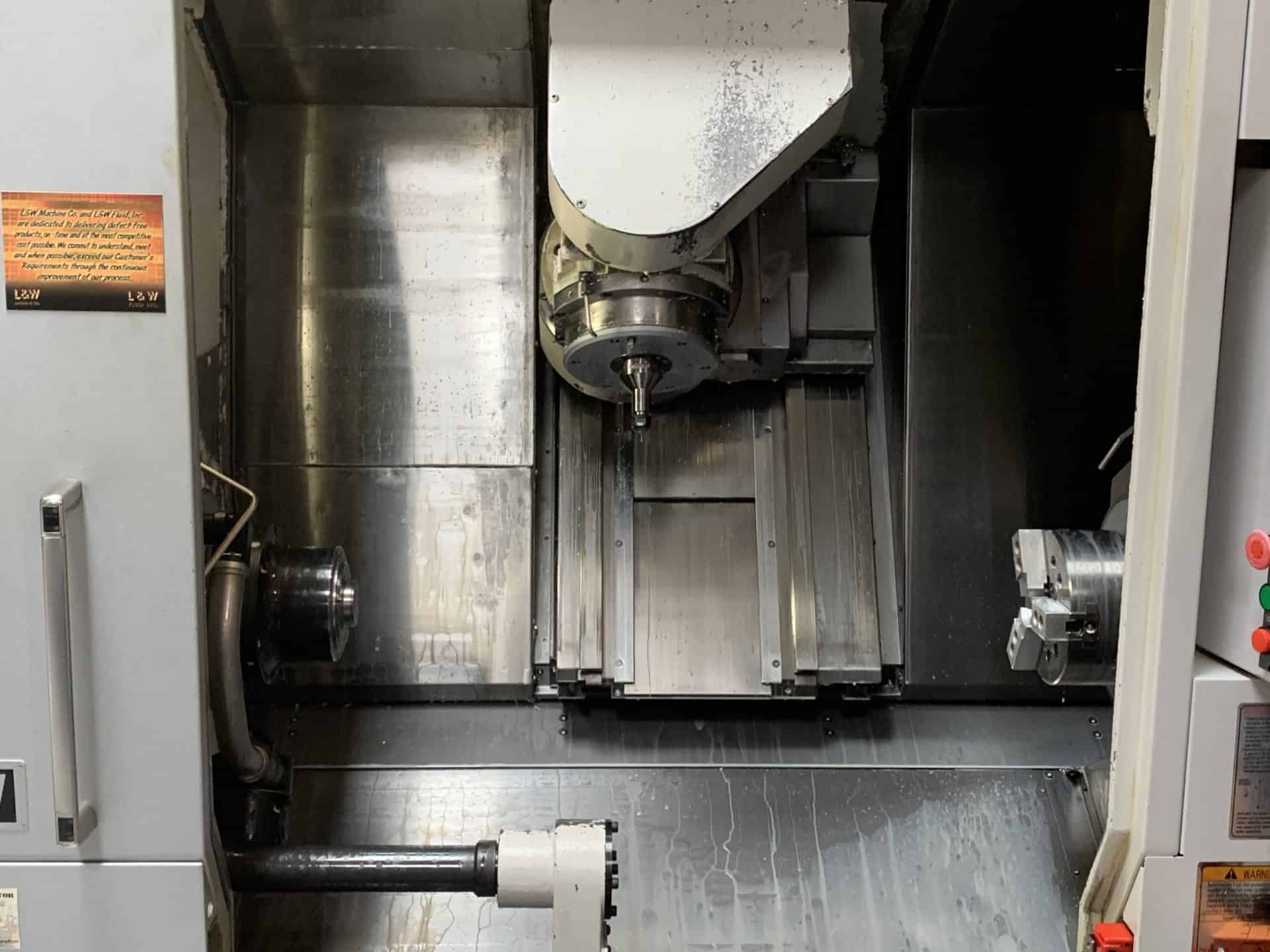

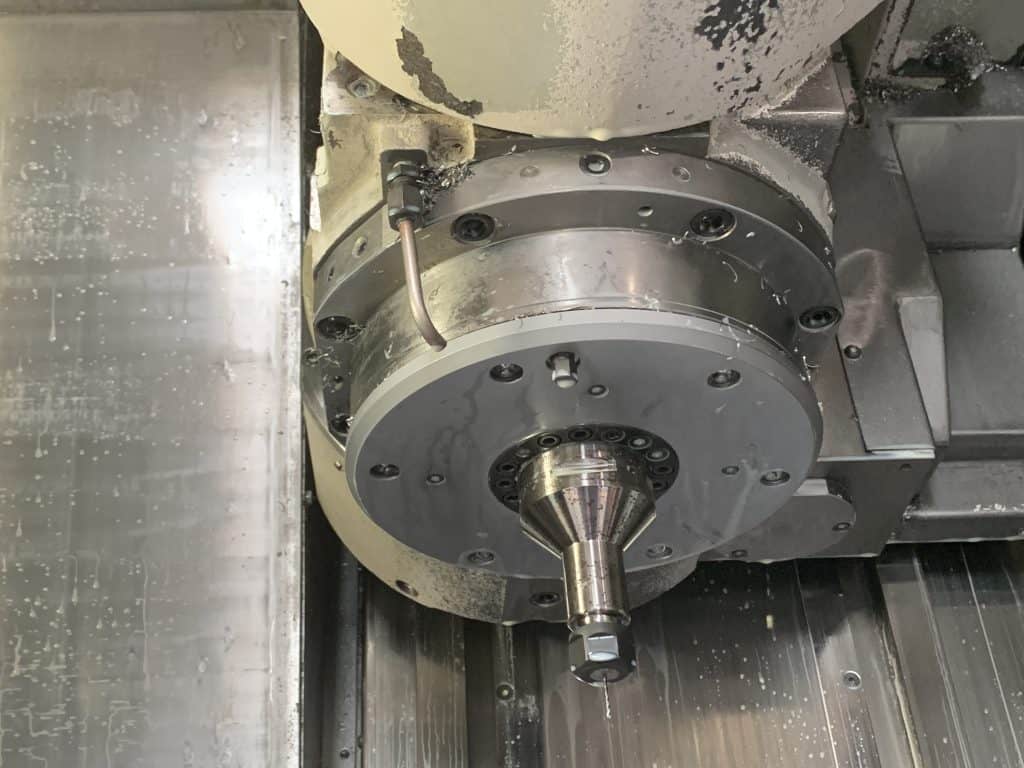

| B-Axis Universal Head Swivel |
225 Degree |
| W-Axis Sub-Spindle Slide |
33.46" |
| C-Axis on Both Spindles |
.001 Degree |
| Tool Positions |
40 Total |
| Spindle Bore |
3.1" |
| Spindle Nose |
A2-8 |
| Opposed Spindle Range |
38-5,000 RPM |

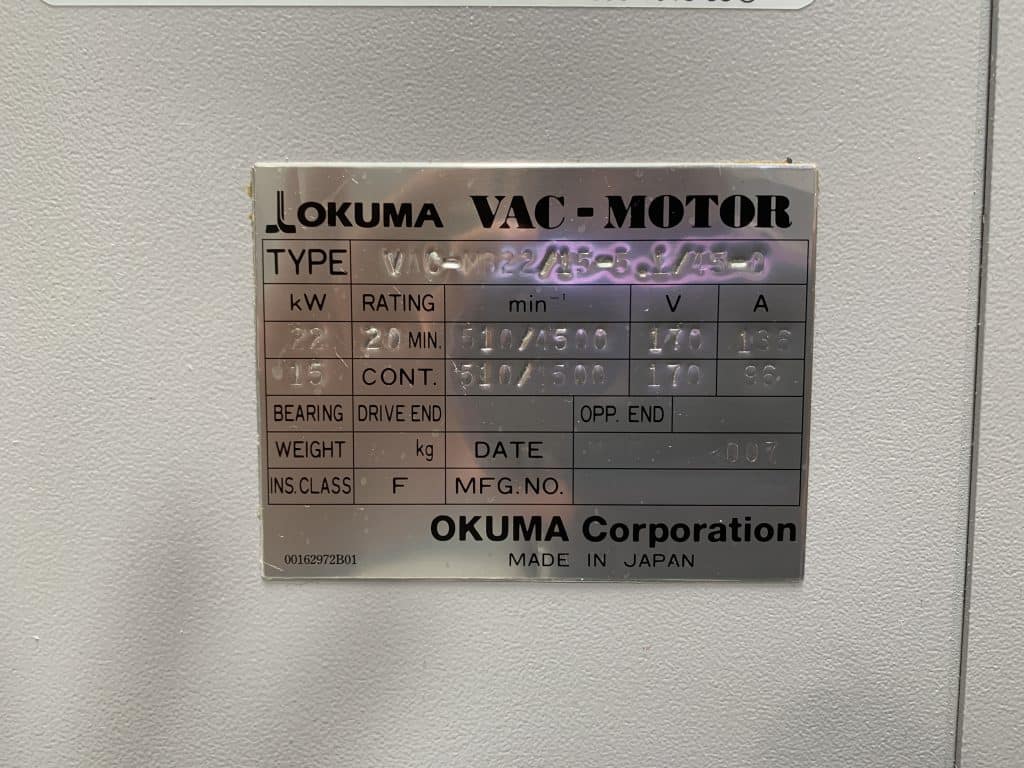

| Spindle Horsepower on Both Spindle |
20 HP |
| Approximate Machine Dimensions |
166" x 90" x 102" |
| Approximate Machine Weight |
24,000 lbs |
Features
|
(4) Sets Spare M Codes |
Rapid Traverse Override |
|

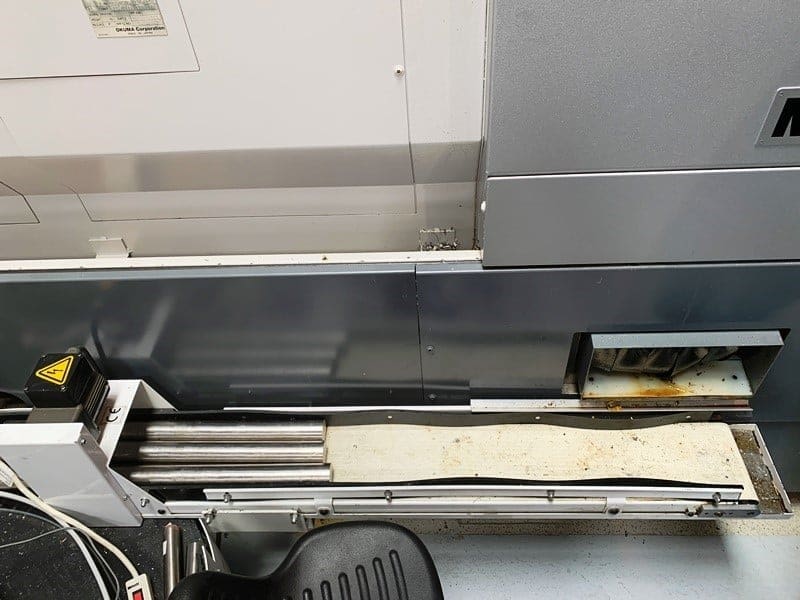

Parts Catcher |
Through Spindle Coolant |
|
TouchSetter |
A2-8 True Length Collet Chuck |
|
Auto Gauging Renishaw RMP60 |
Big Bore A2-8 |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
