Year |
2007 |
|---|---|
Make |
Okuma |
Model |
LU400M |
Description |
CNC Lathe |
Reference # |
8074660 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

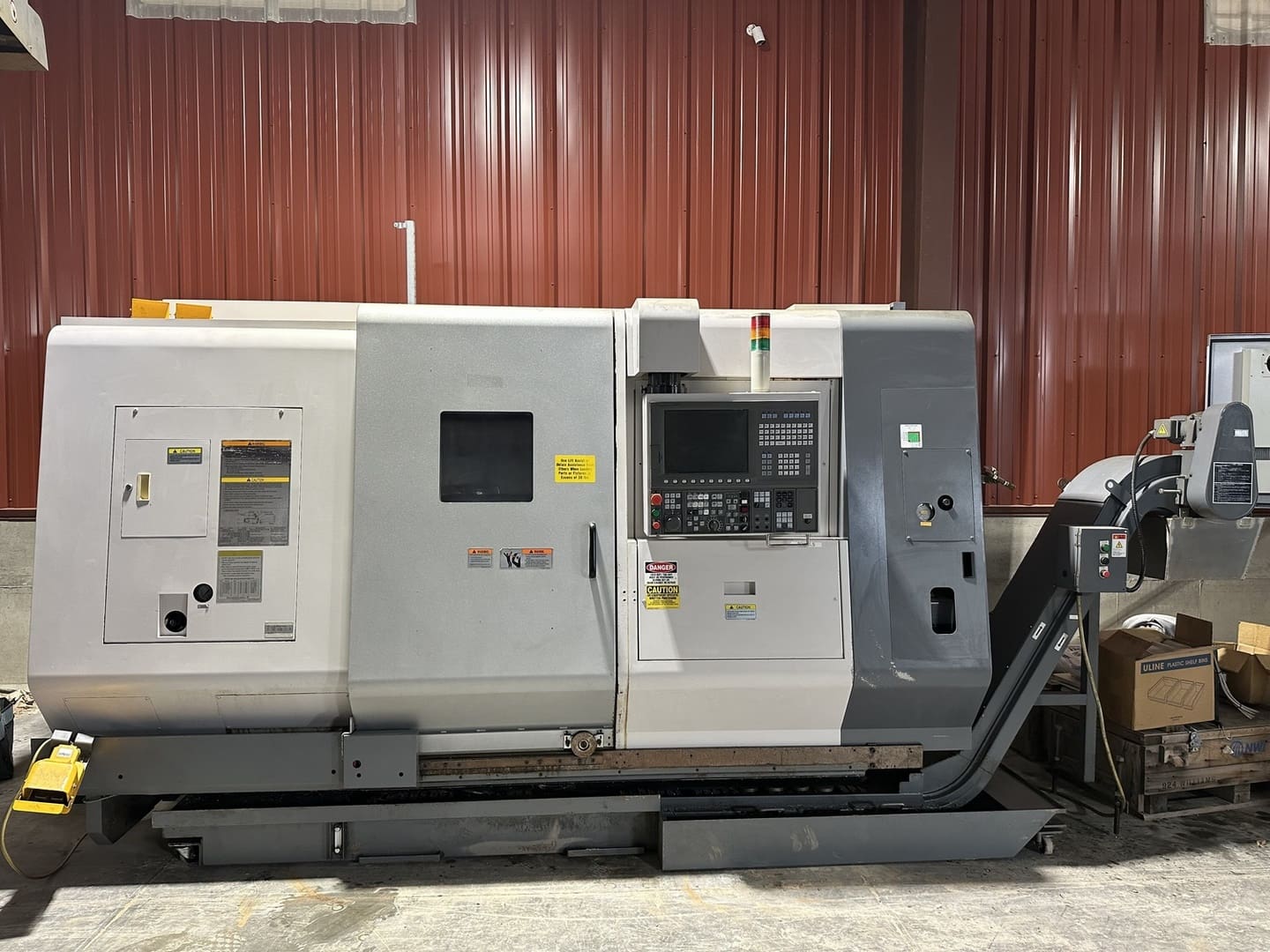

Used Okuma LU400M (2007) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

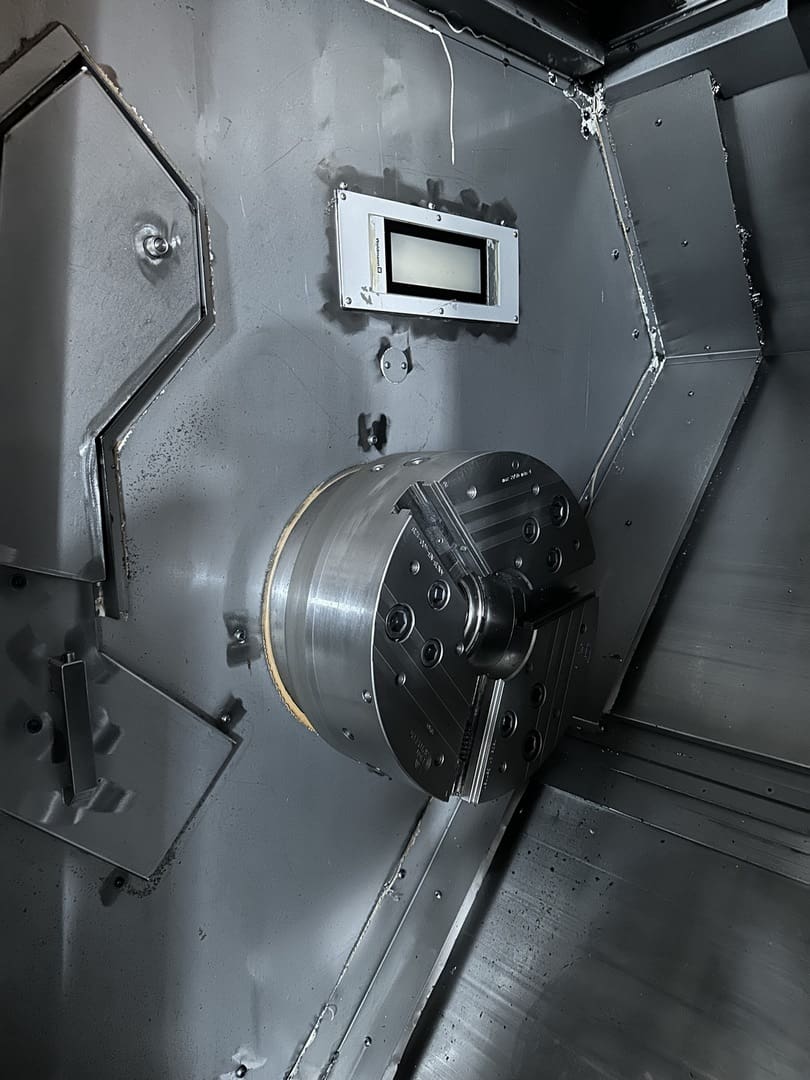

| Chuck Size |
15.75" |
|---|---|
| Bar Capacity |
3.15" |
| Swing |
25.59" |
| Turning Diameter |
16.5" |
| Spindle Speed |
3,800 RPM |

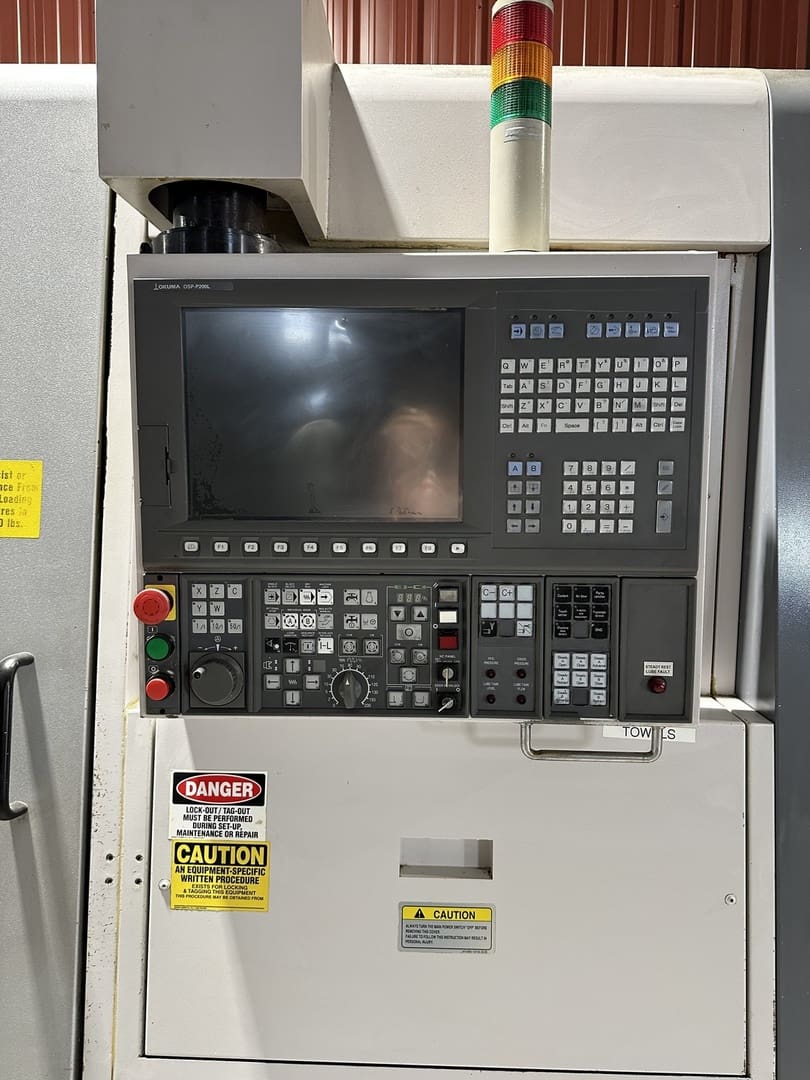

| Control |
Okuma OSP-P200L |
| Distance Between Centers |
26.59" |

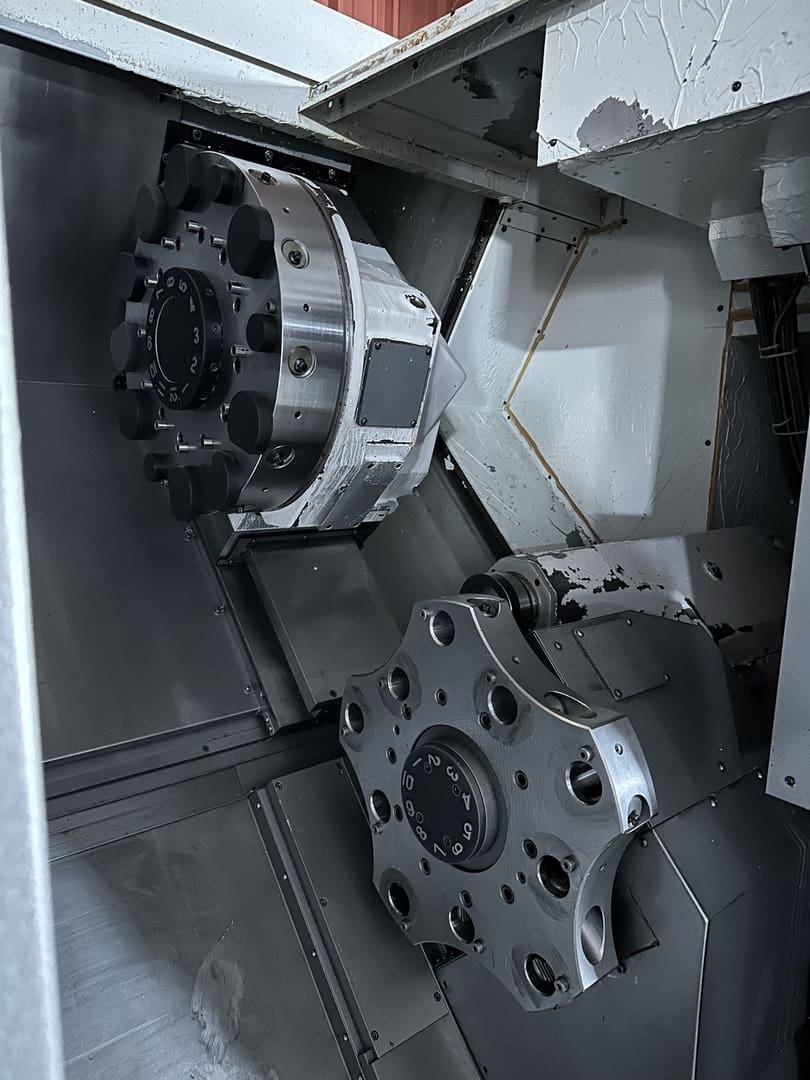

| Turret |
12 Station |
| Max Swing Over Carriage |
16.54" |
| Sub-Spindle |
Dual Turret |
| Spindle Bore |
3.5" |
| Chip Removal |
Chip Conveyor |
| Rapid Traverse X,Z-Axis |
984 IPM |
| X-Axis Travel Upper/Lower |
11.73" / 7.67" |
| Z-Axis Travel Upper/Lower |
26.57" / 26.38" |
| Overall Dimensions |
137" x 85" x 86″ High without Conveyor / 169" x 85" x 86″ with Conveyor |
| Weight |
19,800 Lbs |
Features
|
MT-5 Tailstock |
Auto Tool Presetter |
|
A2-8 Spindle Nose |
