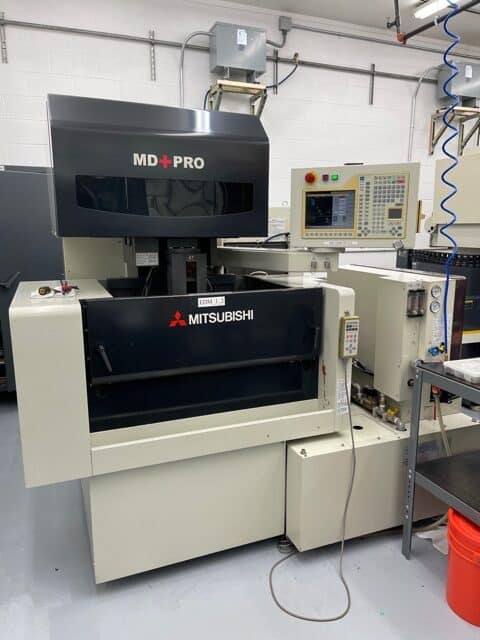

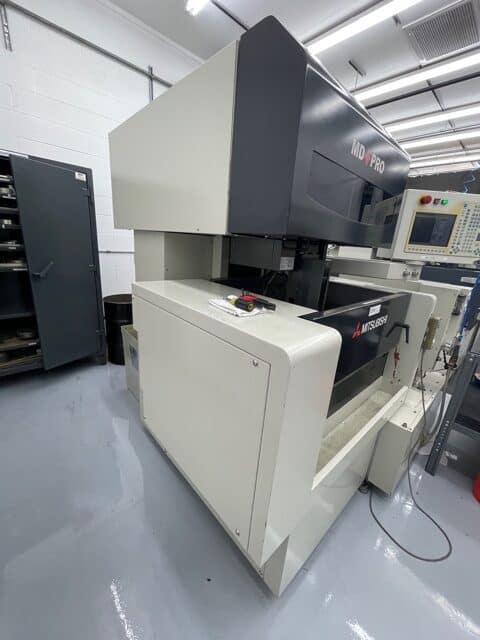

Year |
2007 |
|---|---|
Make |
Mitsubishi |
Model |
FA10 MD PRO |
Description |
EDM Wire |
Reference # |
8070071 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |

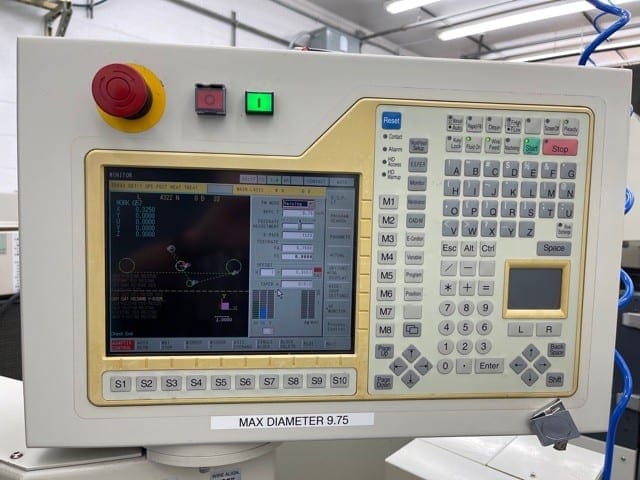

| Control |
Mitsubishi |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-220/3/60 |
| Glass Scale Feedback |
Glass Rotary Encoders |
| Max. Workpiece Dimensions |
31.4” X 23.6” X 8.4” |
| Workpiece Weight |
1,100 lbs |
| Table Dimensions |
23.2” X 20.2” |
| Resolution |
.000002” (2 Millionths) |
| Table Rapid Feed |
51.2 IPM |
| Wire Diameter |
.004” - .012” |
| Minimum Wire Thread Start Hole |
.020” |

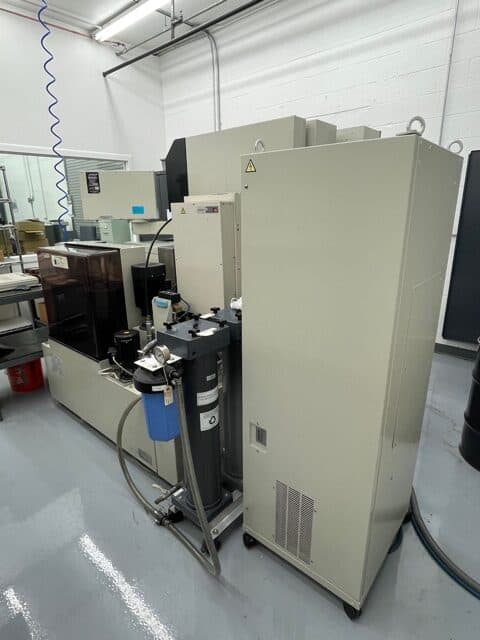

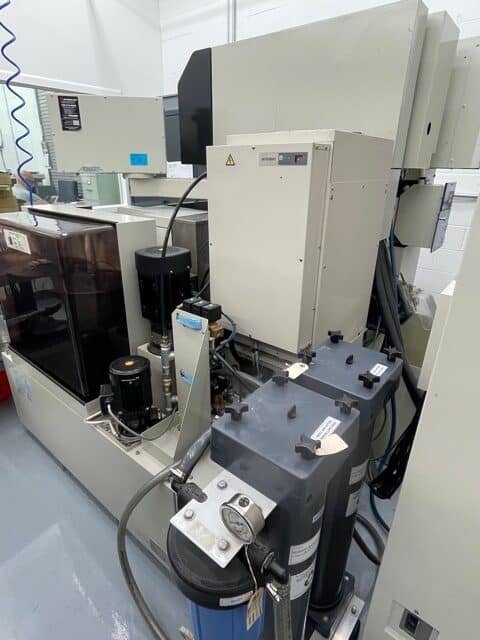

| Filter System |
Paper Cartridge (2x) |
| Ion-Exchange Resin |
1 Ft³. (6.4 Gal Dry) |
| Filter Tank Capacity |
116 Gallons |
| Dielectric System Dimensions |
31.25” X 63.0” X 65.25” |
| Overall Machine Unit Dimensions |
62.2” X 80.0” X 76.0” |
| Machine Weight |
6,800 lbs |
Features
|

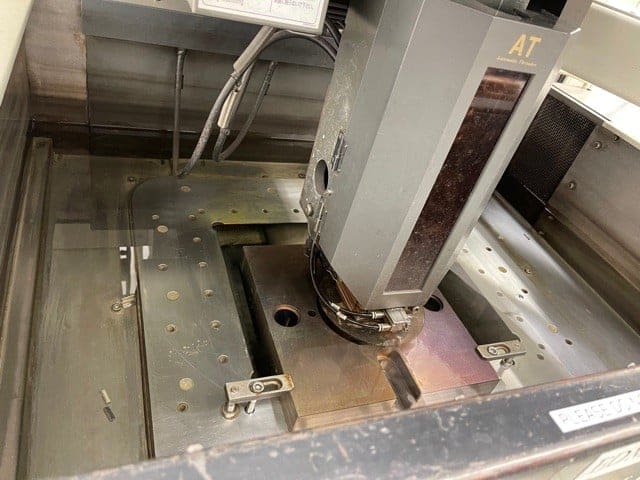

Auto Wire Threading |
Chiller |
|
22 lbs Wire Spool |
2D & 3D Graphics |
|
Wire Chopper |
Submerged Threading at Break Point |
|
Anti-Electrolysis Power Supply |
Corner & Power Master |
|
Fine Hole Insert |
*
