Year |
2007 |
|---|---|
Make |
Hydmech |
Model |
S-20A |
Description |
Automatic Horizontal Band Saw |
Reference # |
8076851 |
Price |
Activate Pricing |

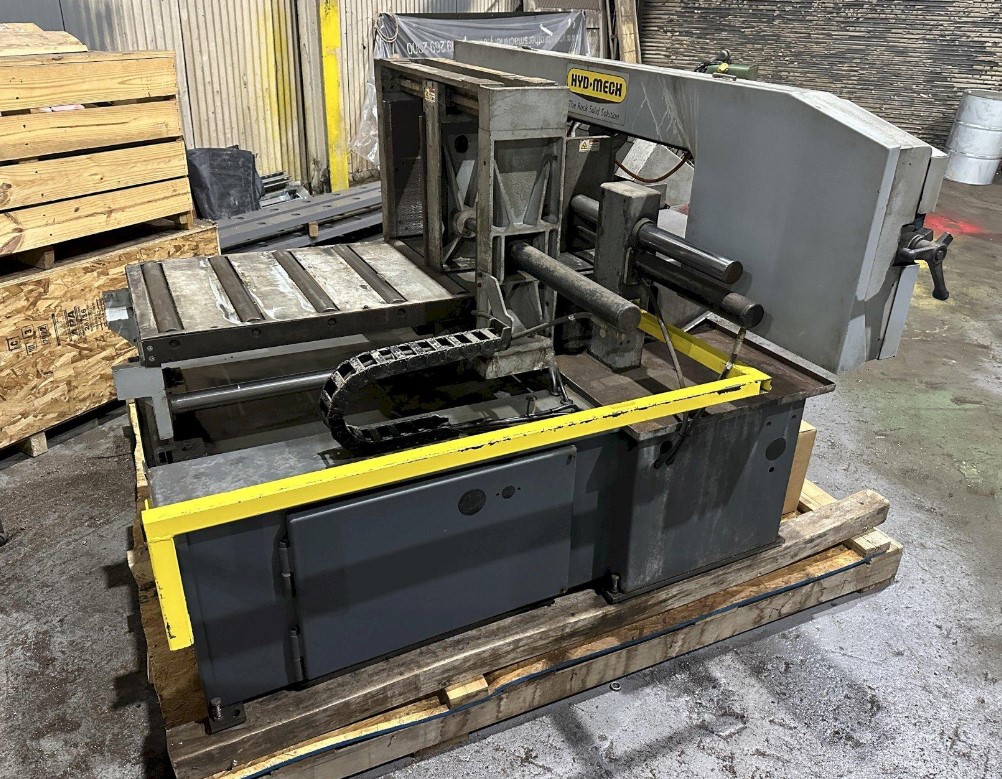

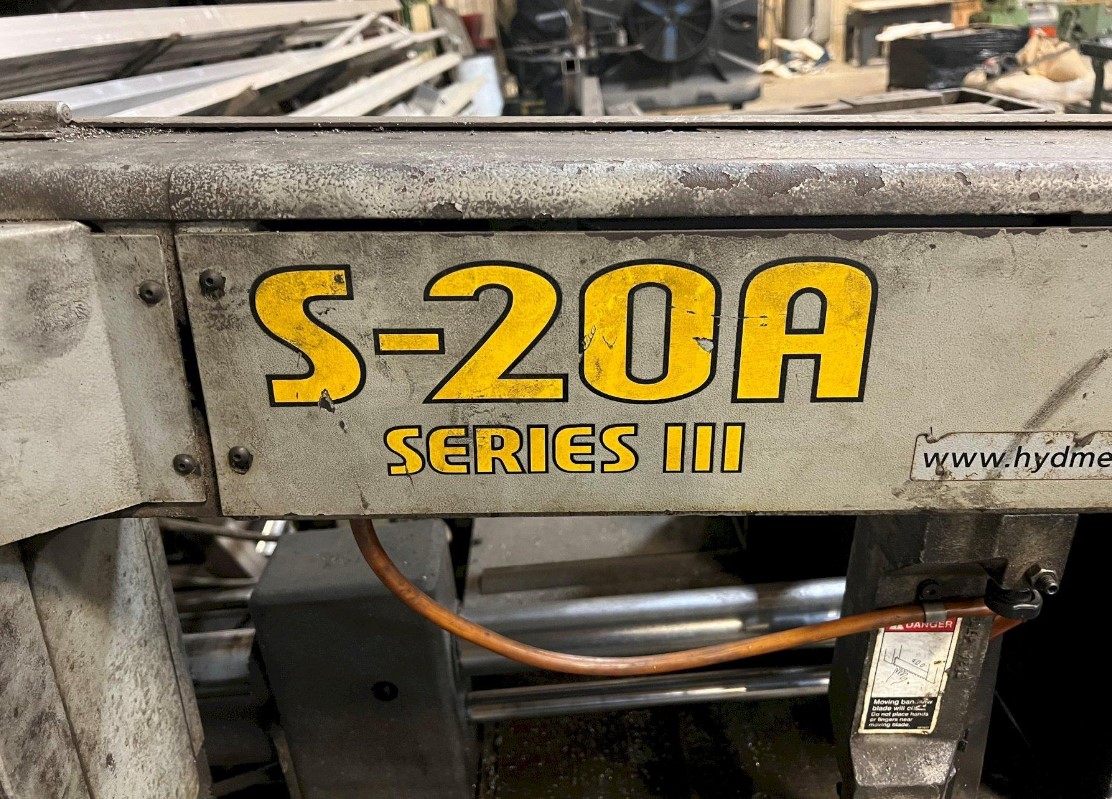

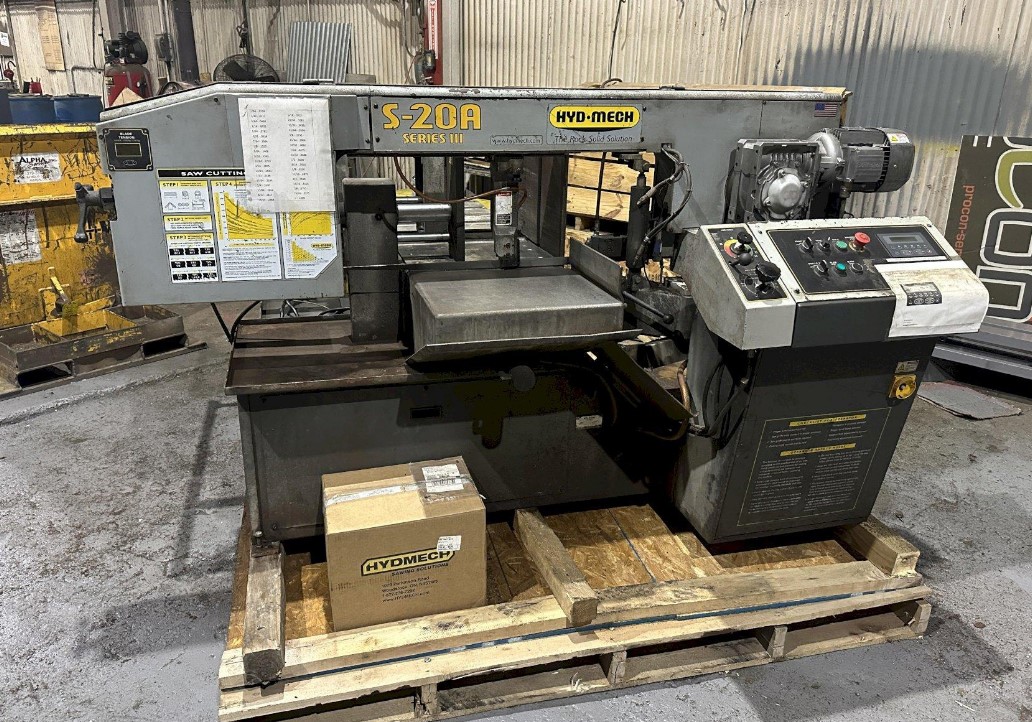

Used Hydmech S-20A (2007) Other Equipment for Sale. This horizontal band saw cuts 13″ H x 18″ W at 90 degrees, 13″ H x 10.9″ W at 45 degrees, and 13″ H x 7.3″ W at 60 degrees. Blade speeds run 75 to 350 SFPM through a 5HP VFD blade drive, with a 17.75″ blade wheel diameter and 1″ x 14’10” blade. Automatic feed provides a 27″ single stroke plus multi indexing, and the table is rated for 5,000 lbs. Equipped with hydraulic clamp and hydraulic blade tension. The machine can be seen under power for an inspection. See more listings in our used saws category, use Activate Pricing to view the price, and Request a Quote for full details. This machine is located in Ohio.
Specifications
| Capacity @ 90° |
13" H x 18" W |
|---|---|
| Capacity @ 45° |
13" H x 10.9" W |
| Capacity @ 60° |
13" H x 7.3" W |
| Blade Speeds |
75 - 350 SFPM |
| Blade Wheel Diameter |
17.75" |
| Blade Dimensions |
1" x 14'10" |
| Automatic Feed |
27" Single Stroke and Multi Indexing |
| Table Capacity |
5,000 Lbs |
Features
|
5HP VFD Blade Drive |
Hydraulic Clamp |
|
Hydraulic Blade Tension |
