Year |
2006 |
|---|---|
Make |
VisionWide |
Model |
VB-2516 |
Description |
CNC Vertical Machining Center |
Reference # |
8069838 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

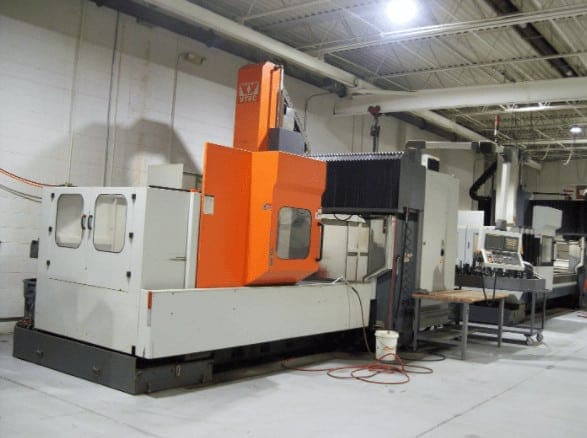

Used VisionWide VB-2516 (2006) CNC Vertical Machining Center for Sale. This pre-owned VisionWide CNC vertical mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this VisionWide Vertical Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
98.4" |
|---|---|
| Y-Axis Travel |
63" |
| Z-Axis Travel |
31" |
| Spindle Speed |
6,000 RPM |
| Spindle Taper |
CAT 50 |
| Tool Magazine Capacity |
32 ATC |
| Spindle Motor |
35 HP |
| Table Size |
98.4" x 51" |
| Max Load on Table |
19,800 lbs |
| Control |

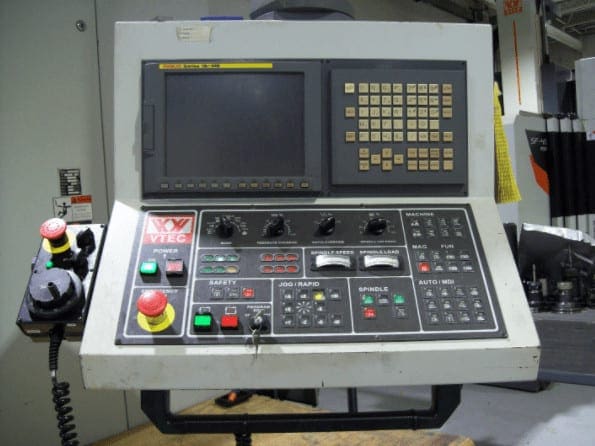

Fanuc 18i-MB |
| Chip Removal |
Chip Conveyor |
| Coolant |
Flood Coolant |
| Approx Machine Weight |
56,000 lbs |
| Approx Dimensions (LxWxH) |
337" x 210" x 159" |
Have a VisionWide VB-2516 to sell?
This VisionWide VB-2516 has sold. KD Machinery buys the VisionWide VB-2516 and other used vertical machining centers outright. Tell us what you have and how to reach you; the make and model are enough to start.
