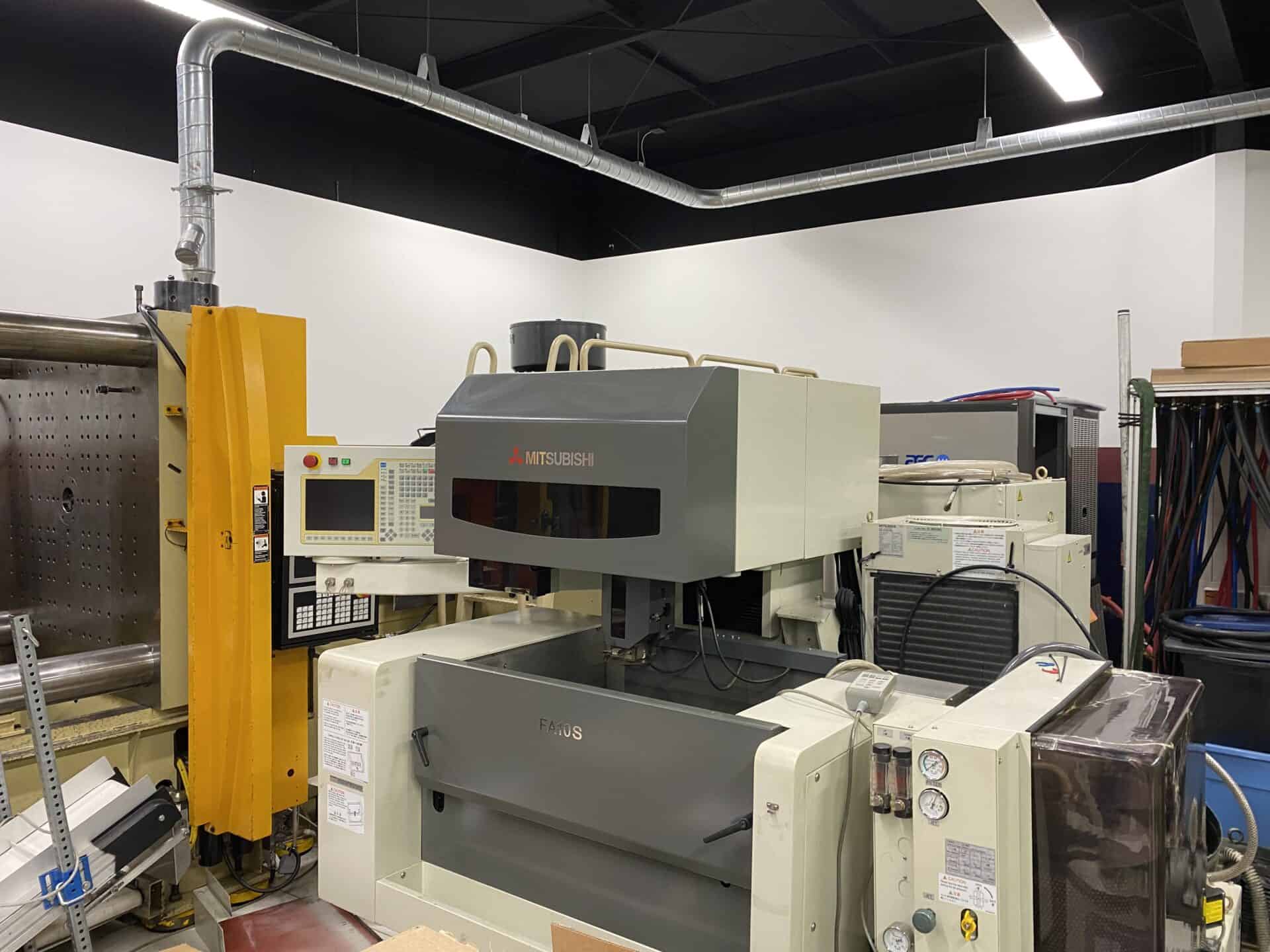

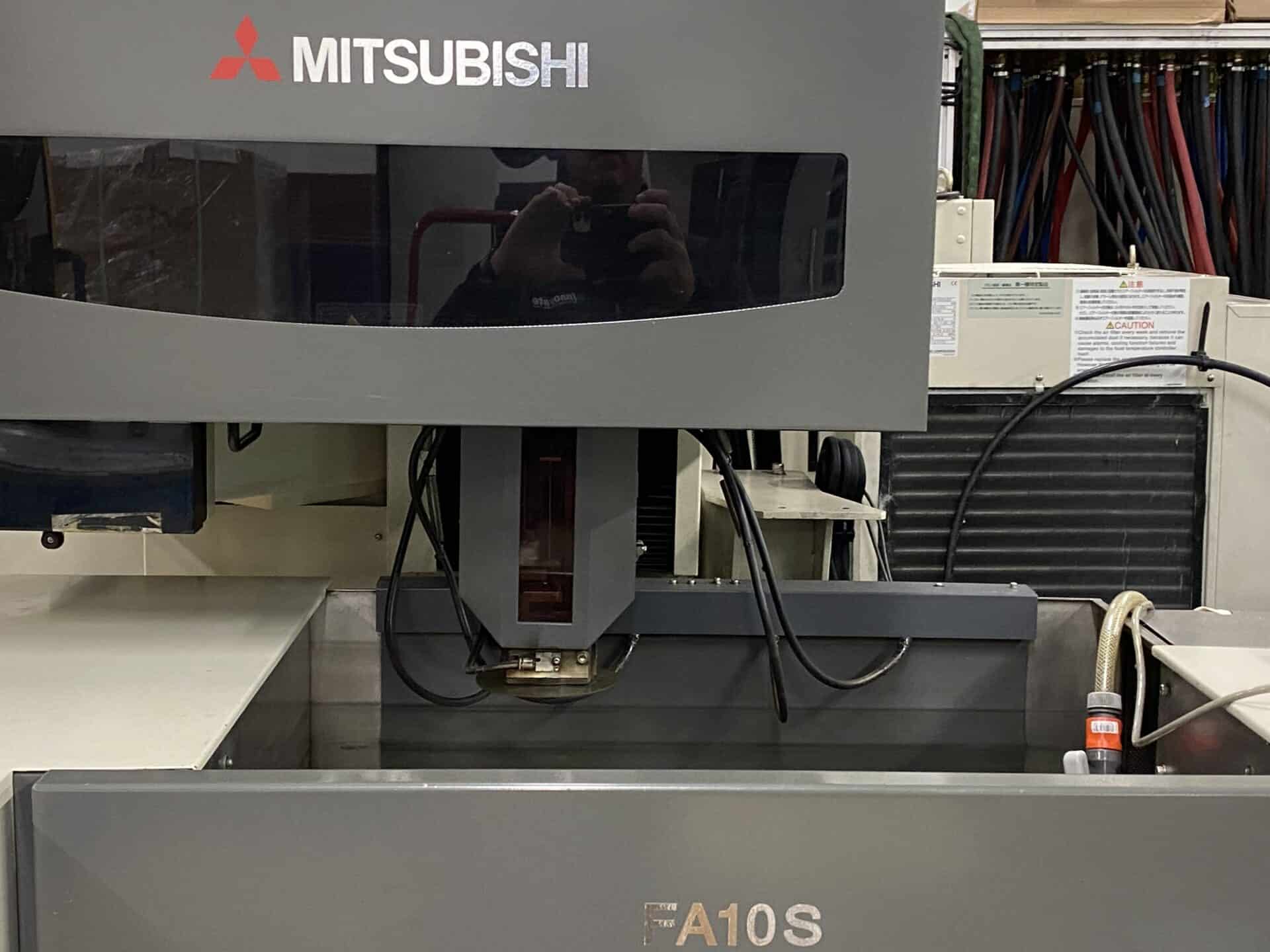

Year |
2006 |
|---|---|
Make |
Mitsubishi |
Model |
FA10SM |
Description |
EDM Wire |
Reference # |
8069892 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |

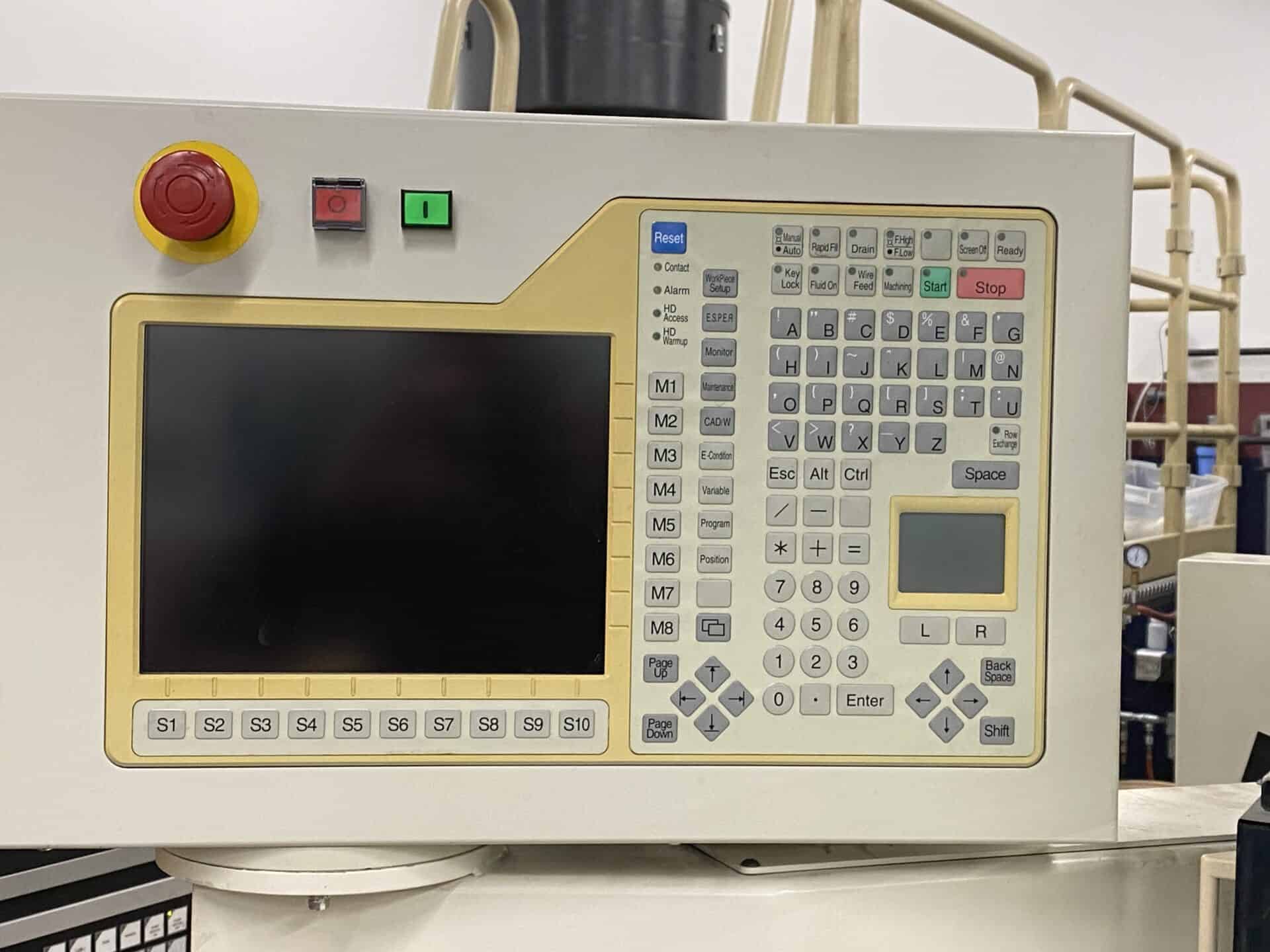

| Control |
64 BIT PC Control |
| U/V Axis Travel |
1.25"/1.25" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
23.2" x 20.2" |
| Power Requirement |
200-230/3/60 |
| Max Workpiece Dimensions |
31.4" x 23.6" x 8.4" |
| Max Workpiece Weight |
1100 lbs |
| Table Dimensions |
23.2" x 20.2" |
| Maximum Output Current |
50 Amps |
| Machine Dimensions |
62.0" x 65.6" x 75.9" |
| Machine Weight |
5,400 lbs |
Features
|

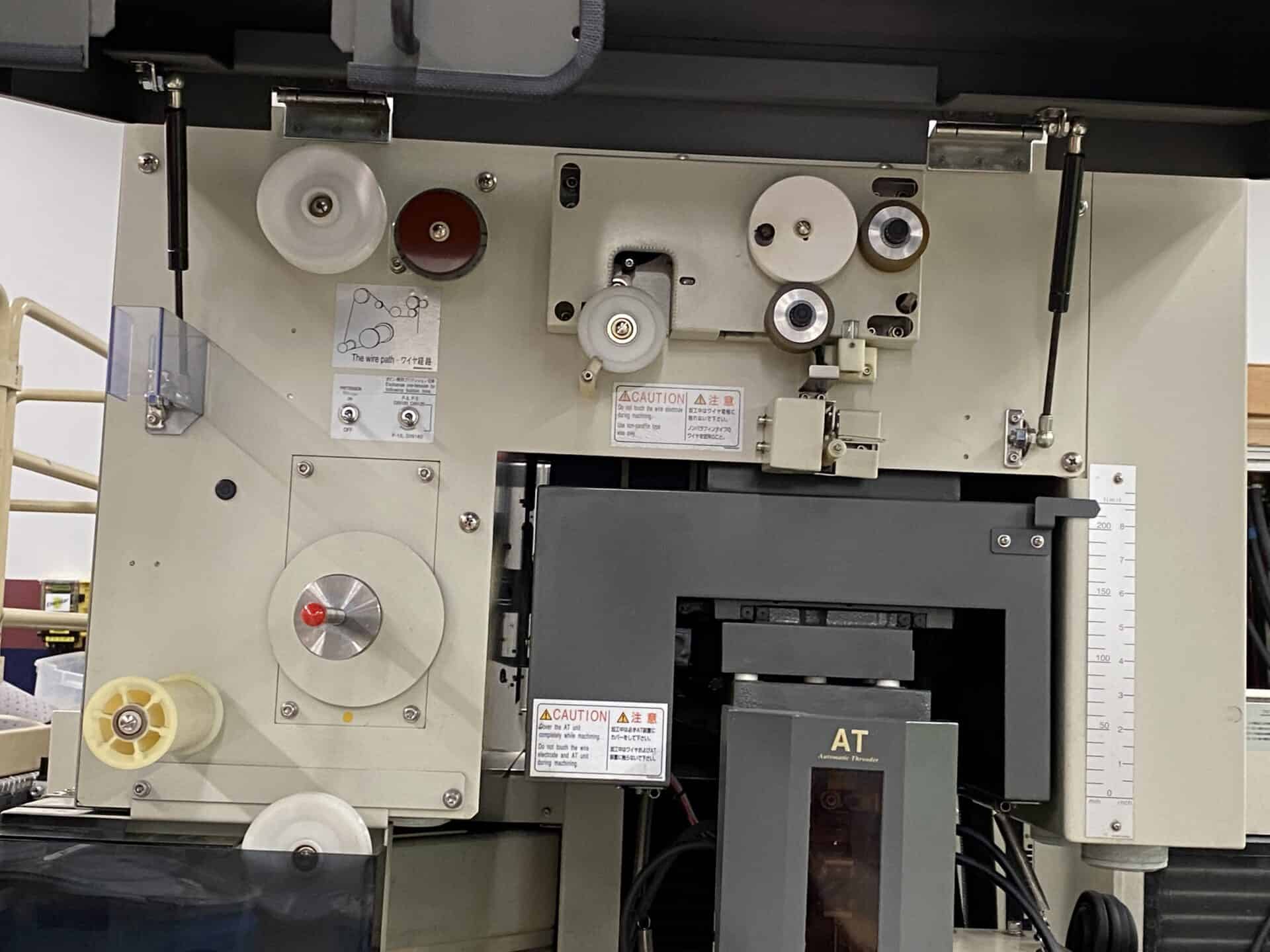

Auto Wire Threading |

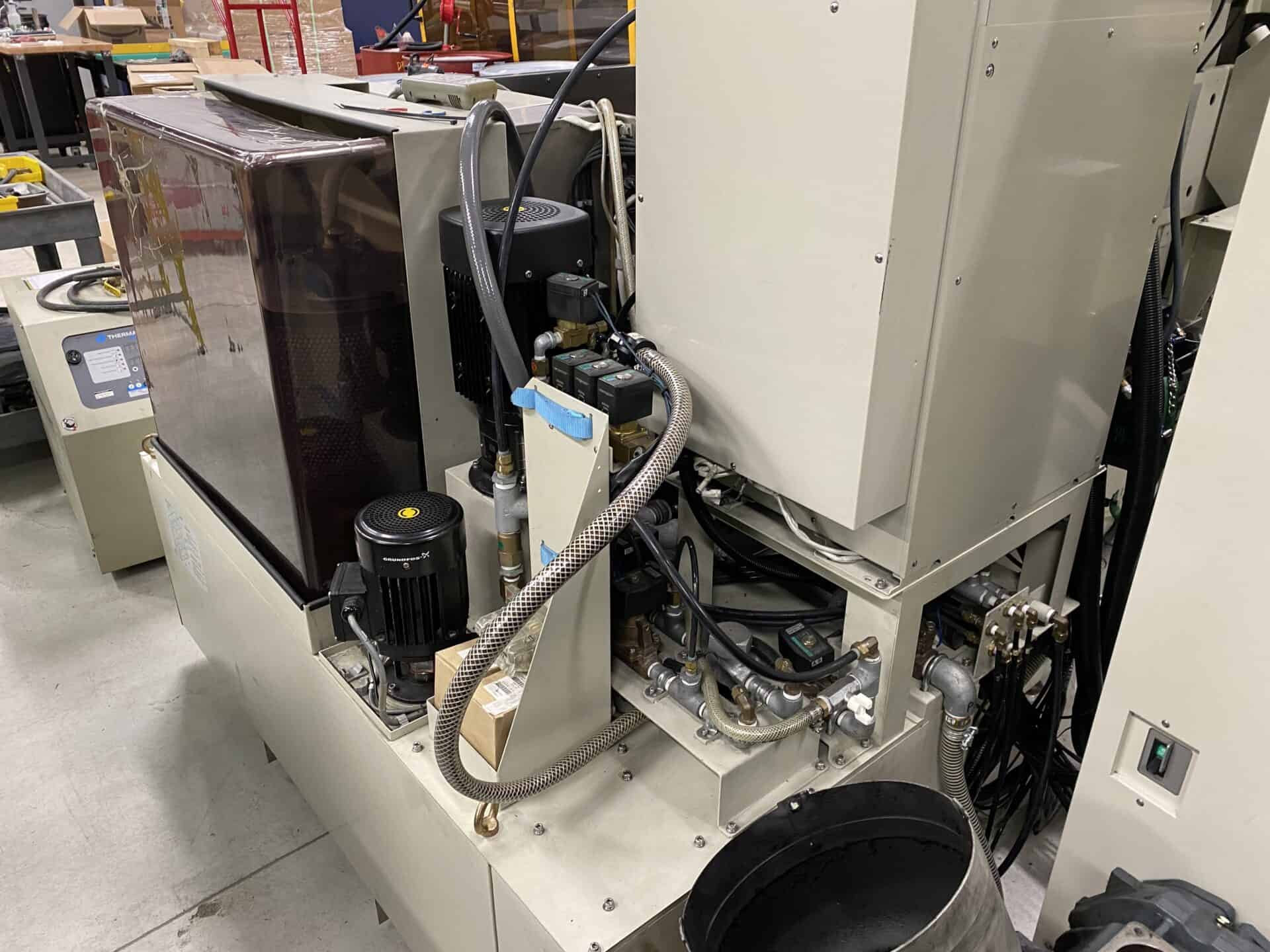

Chiller |
|
Fine Resolution Encoder Feedback |
Glass Scale Feedback |
|
Linear Motion Guide Ways |

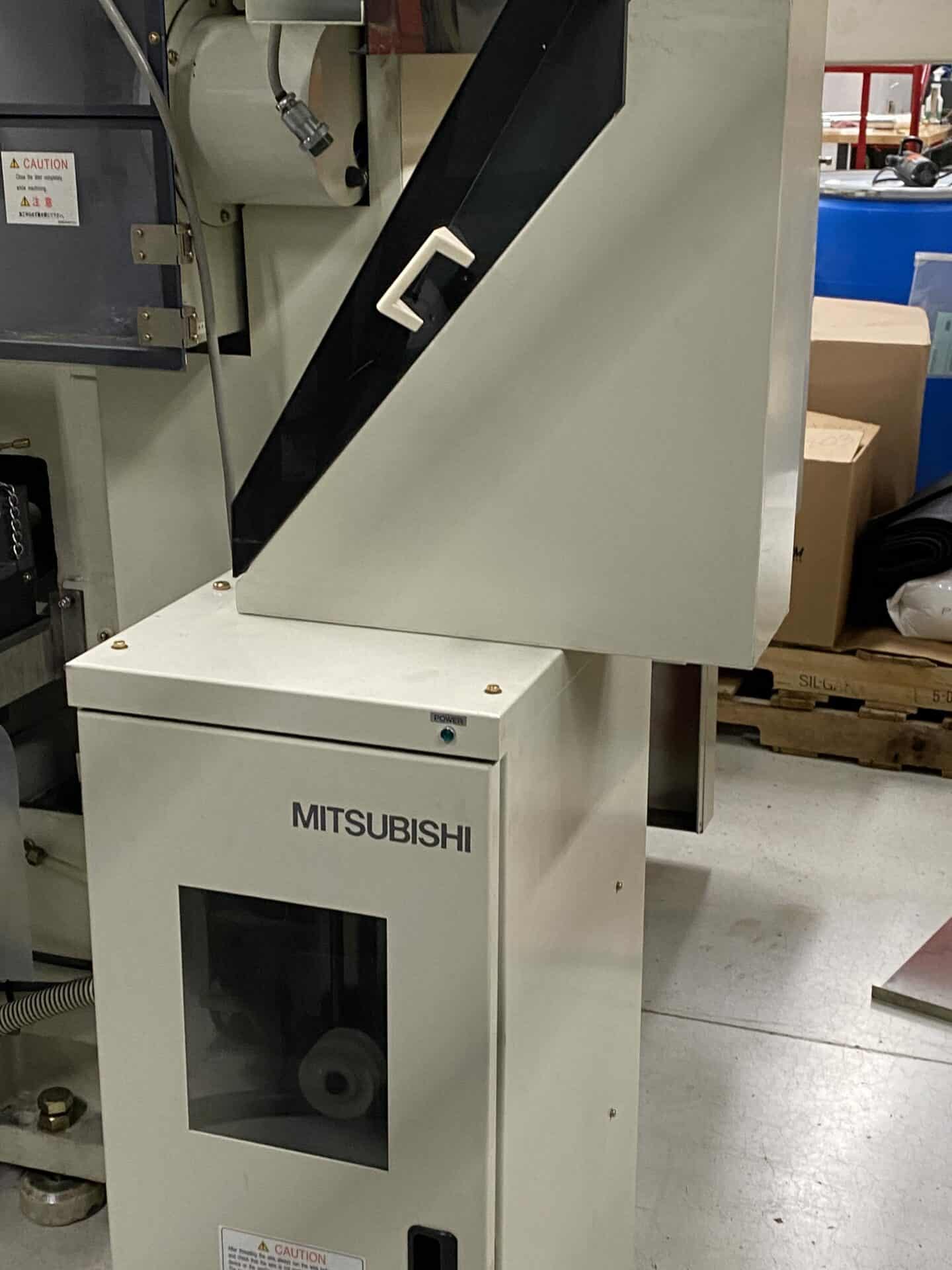

Wire Chopper |
|
44lb Wire Spool Option |
Upper and Lower Power Feeds |
|
All-Axes Absolute Control System |
Automatic Level Control |
|
DC-Servo (Closed Loop) Torque Control Wire Tensioning System |
PF Fine Finishing Circuit |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
