Year |
2006 |
|---|---|
Make |
Geka |
Model |
Hydracrop 165/SD |
Description |
165 Ton Hydraulic Ironworker |
Reference # |
8078611 |
Price |
Activate Pricing |

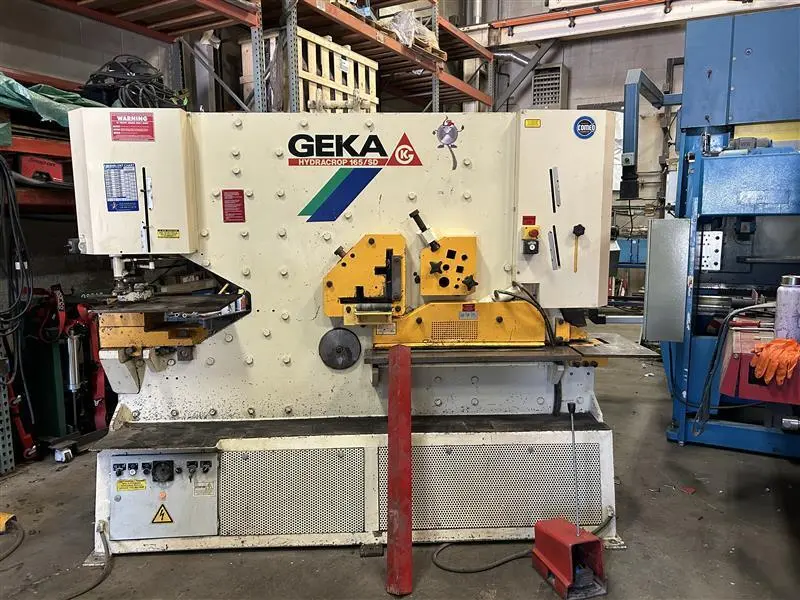

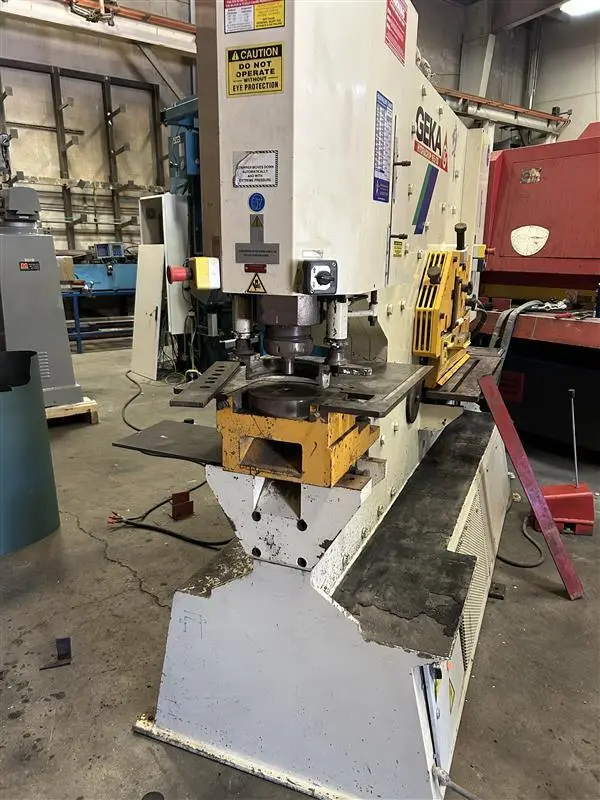

Used Geka Hydracrop 165/SD (2006) Ironworker for Sale. This hydraulic ironworker is rated at 165 ton and handles angle at 8″ (L1/L2) and 0.75″ (T). Maximum punching capacity is listed at 40 x 30 mm (1.5″ x 1.18″) and 34 x 34 mm (1.33″ x 1.33″). Shearing of angles at 90 degrees is 205 x 205 x 18 mm (8.07″ x 8.07″ x .70″). Flat bar shearing is 750 x 20 mm (29.52″ x .78″) and 400 x 30 mm (15.74″ x 1.18″), with round and square bar shearing to 60 mm (2.36″). Rectangular notching is 90 x 58 x 16 mm (3.54″ x 2.28″ x .62″). The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Tonnage |
165 Ton |
|---|---|
| Angle (L1/L2) |
8" |
| Angle (T) |
0.75" |
| Max Capacity |
40 x 30 mm (1.5'' x 1.18'') / 34 x 34 mm (1.33'' x 1.33'') |
| Shearing of Angles at 90 deg |
205 x 205 x 18 mm (8.07'' x 8.07'' x .70'') |
| Shearing of Flat Bars |
750 x 20 mm (29.52'' x .78'') / 400 x 30 mm (15.74'' x 1.18'') |
| Shearing of Round & Square Bars |
60 mm (2.36'') |
| Rectangular Notching |
90 x 58 x 16 mm (3.54 x 2.28 x .62'') |
