Year

2005

Make

ONA

Model

AE1000

Description

EDM Wire

Reference #

8072738

Price

$49,995

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

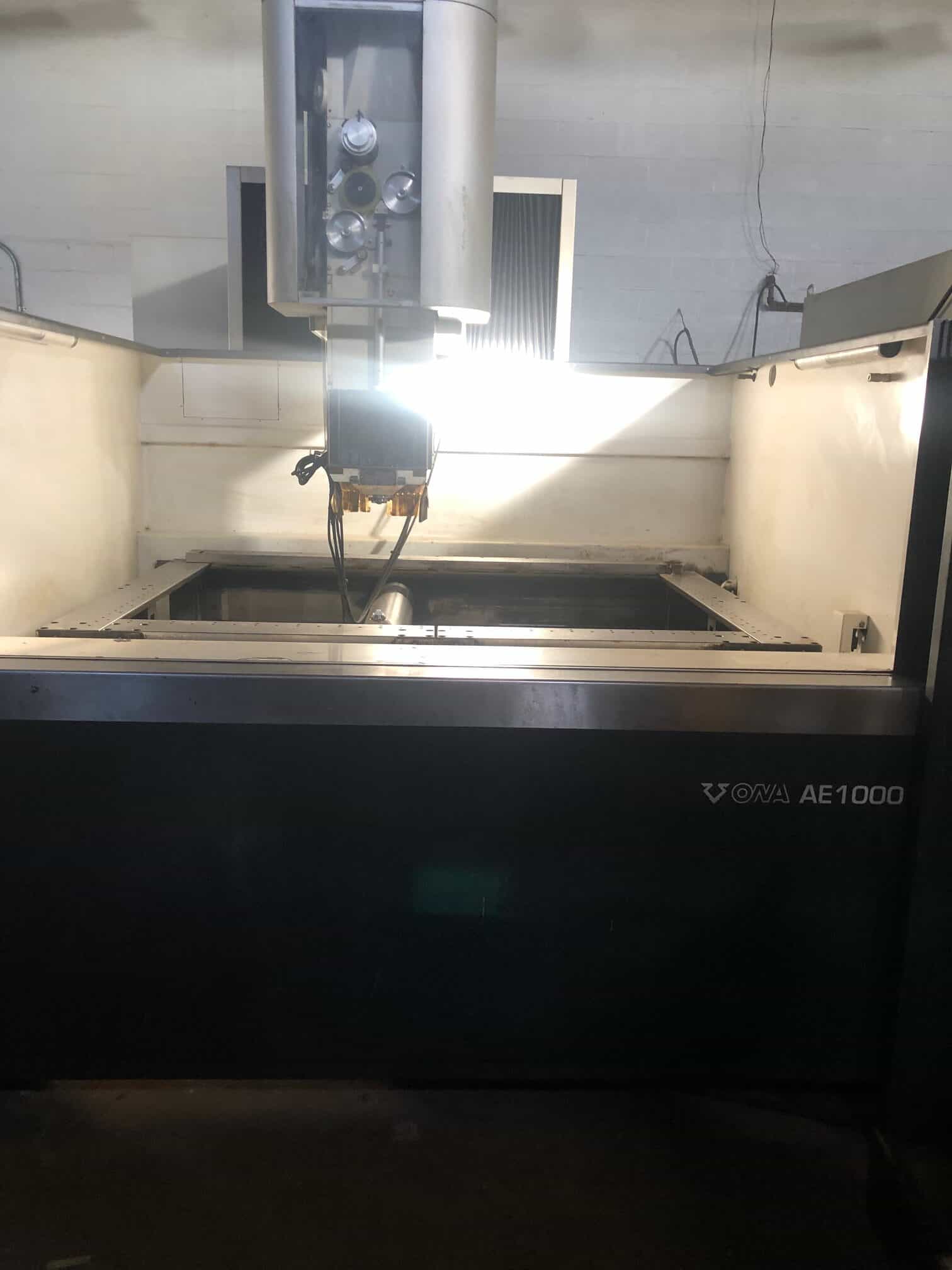

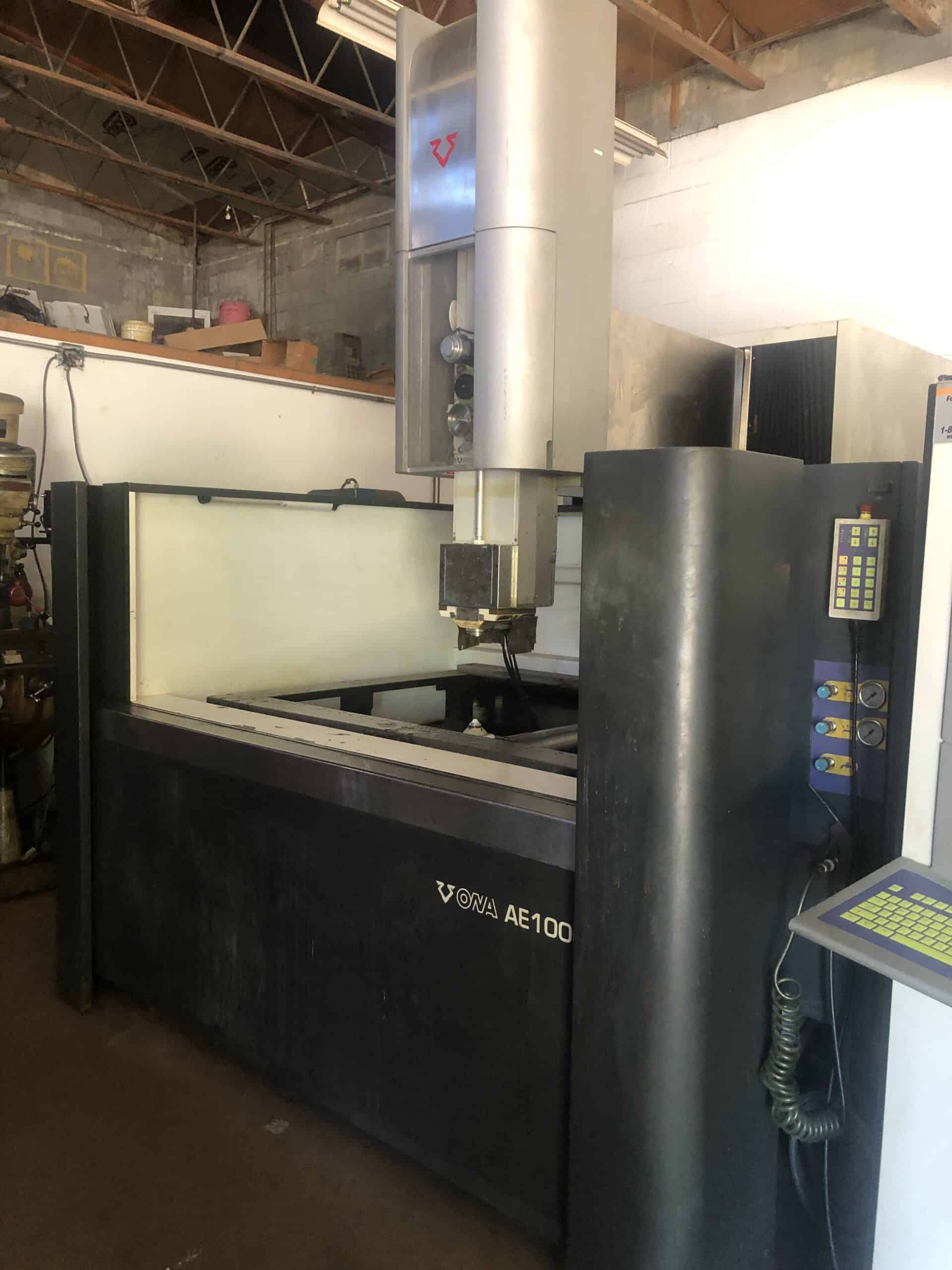

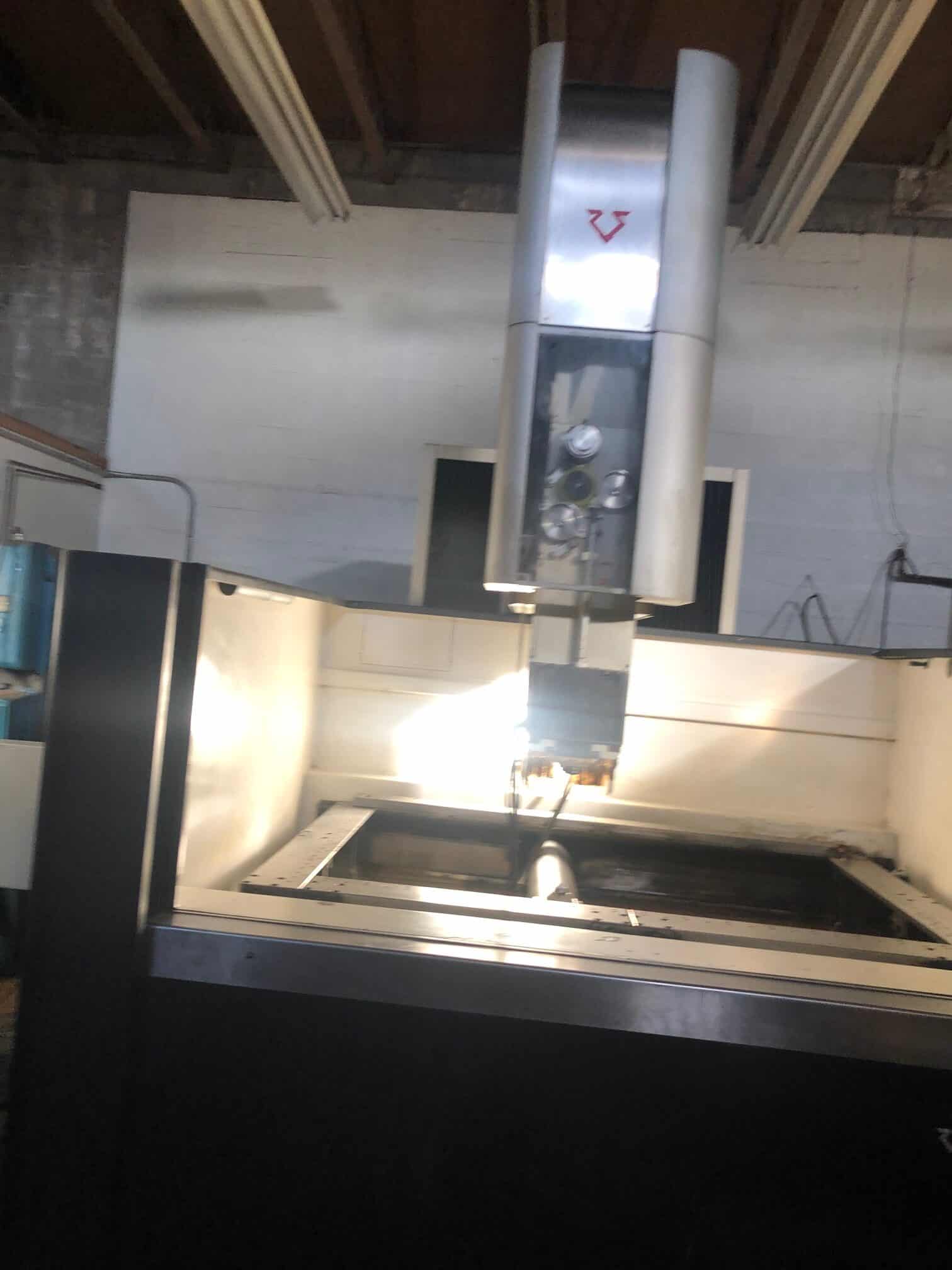

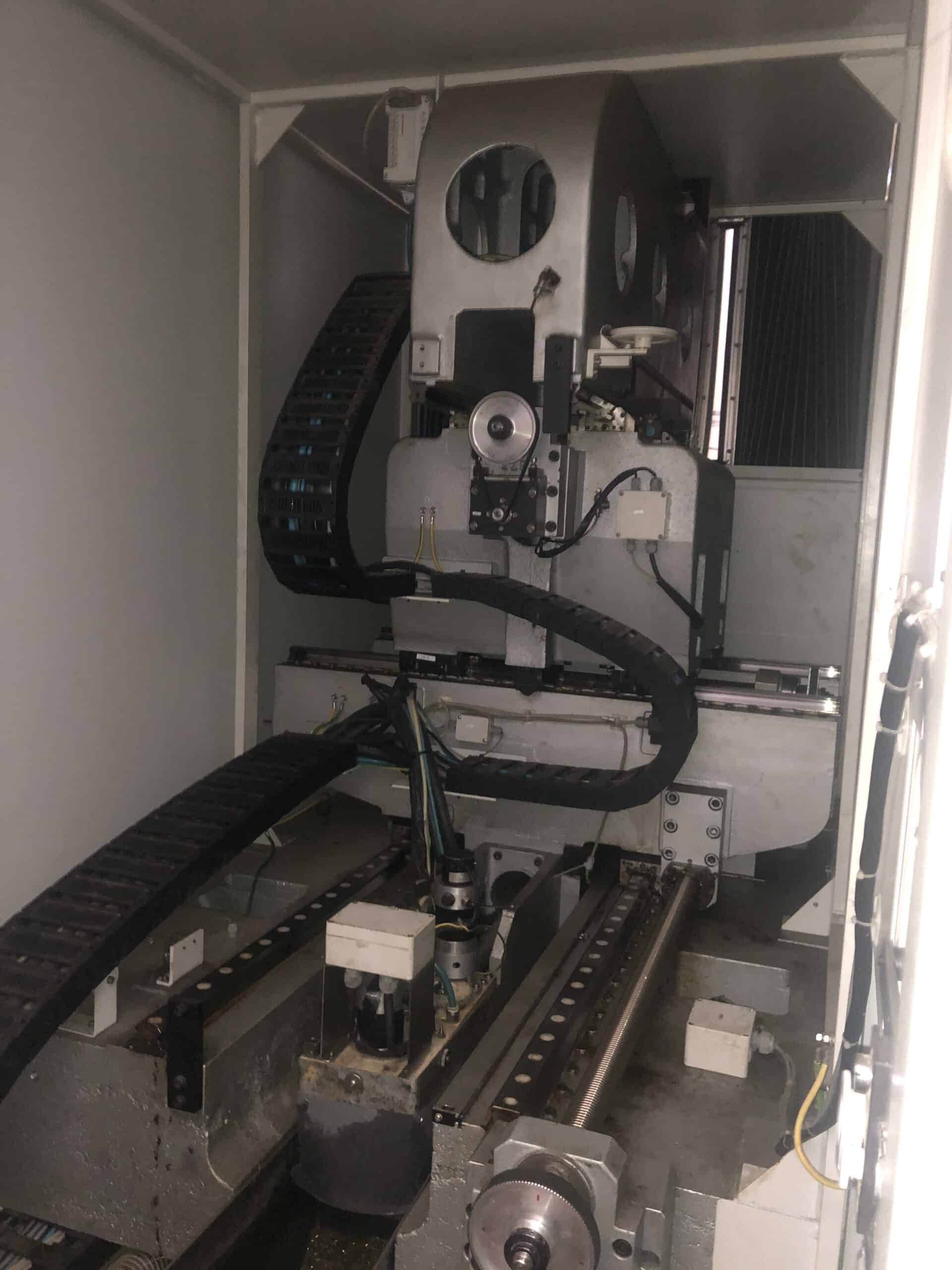

Used ONA AE1000 (2005) CNC EDM for Sale.  This pre-owned ONA CNC EDM wire is located in The United States.  If you have any questions regarding this ONA EDM, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

X-Axis Travel

59.1"

Y-Axis Travel

39.4"

Z-Axis Travel

23.6"

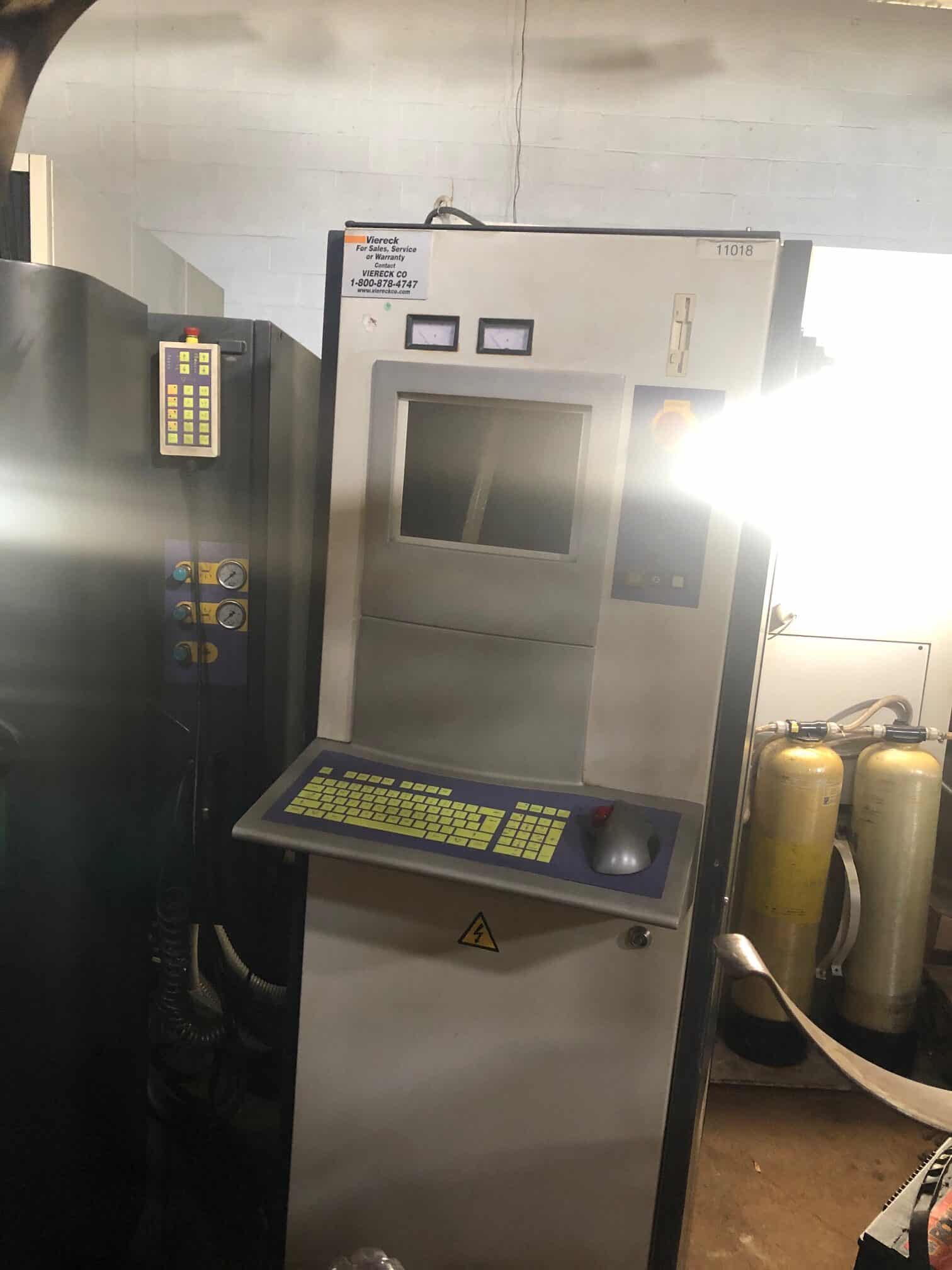

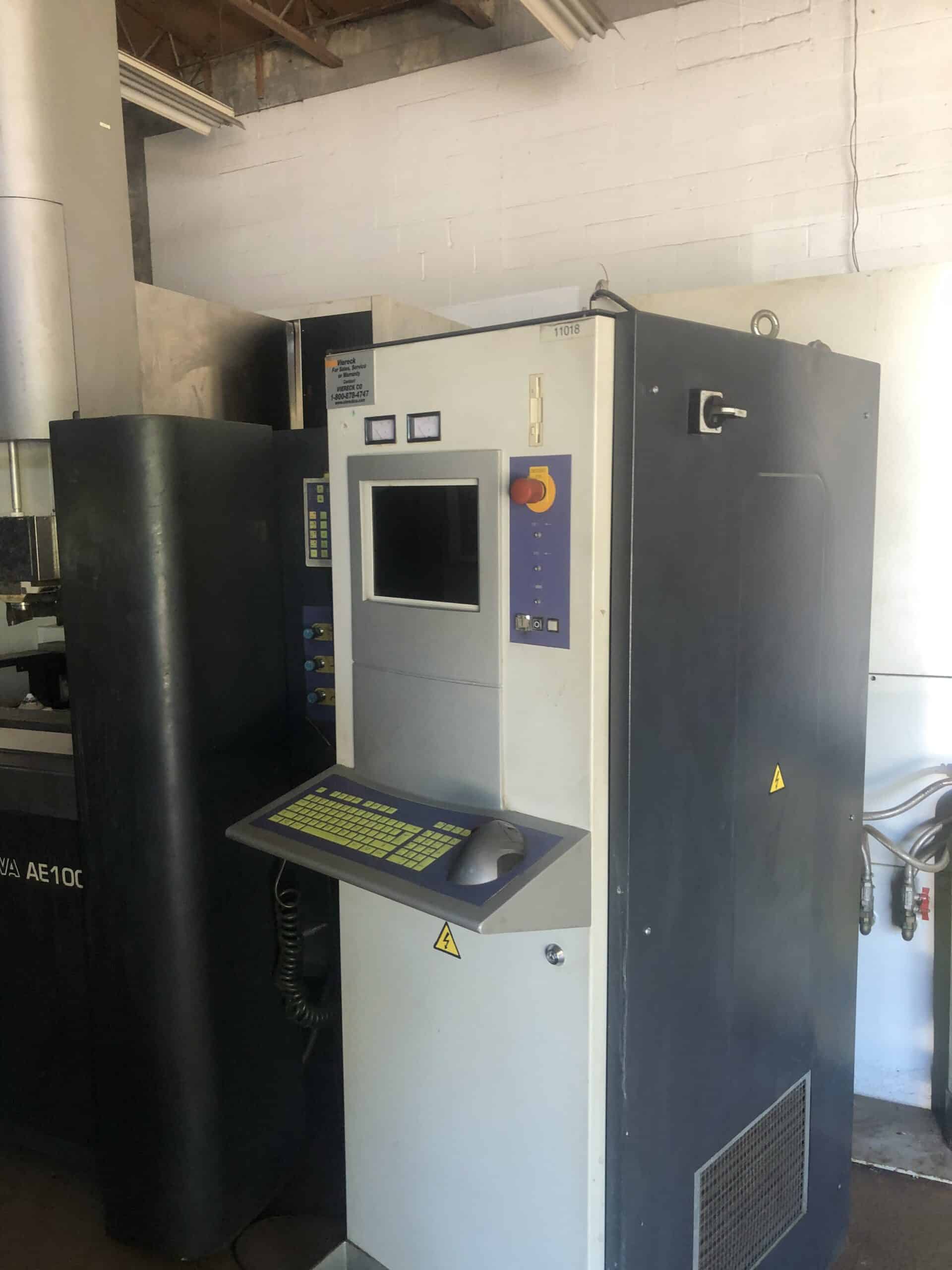

Control

PC Based ONA

U/V Axis Travel

19.7" X 19.7"

Degree Taper Cutting

+/- 30 @ 2" Thick

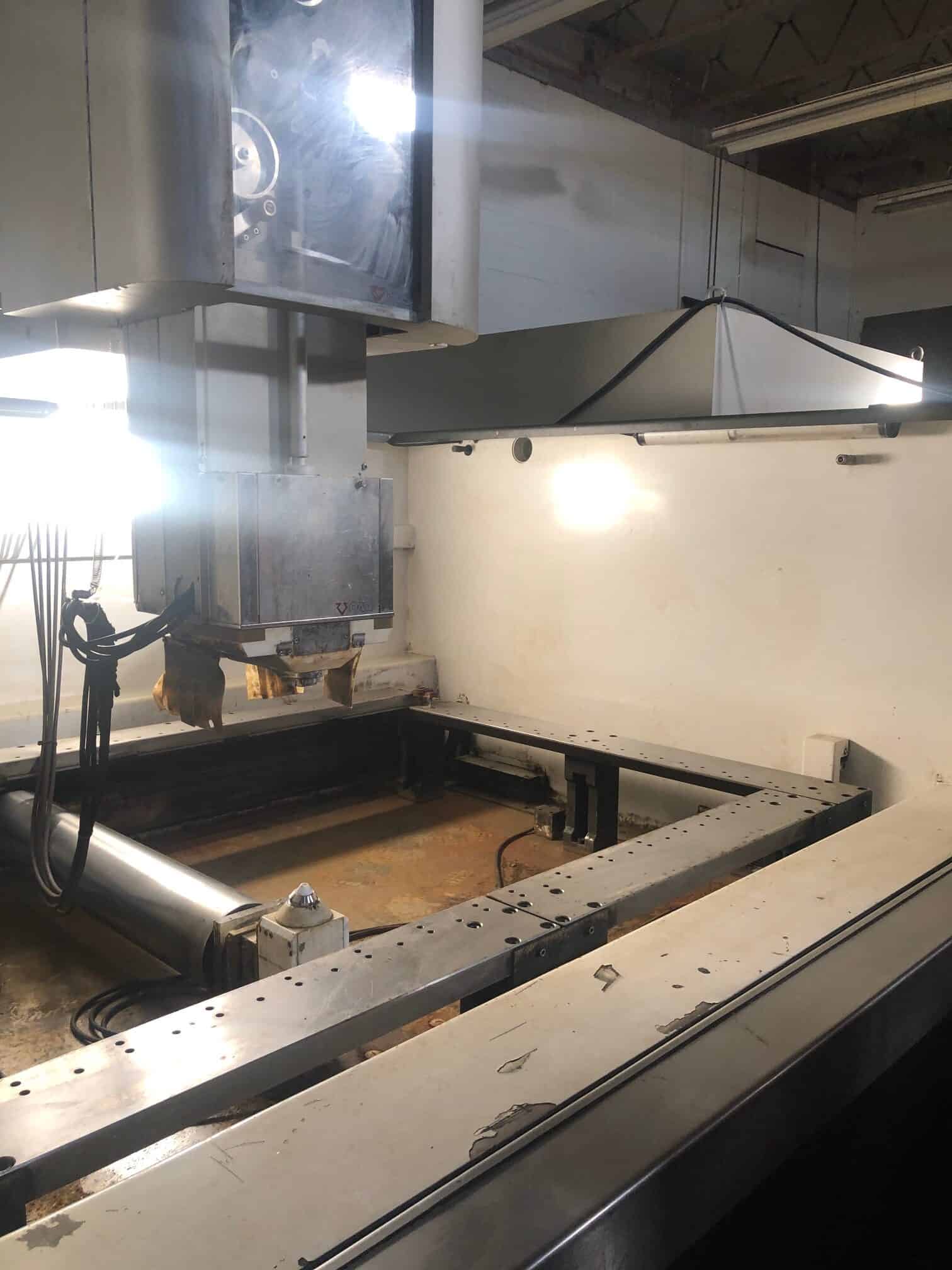

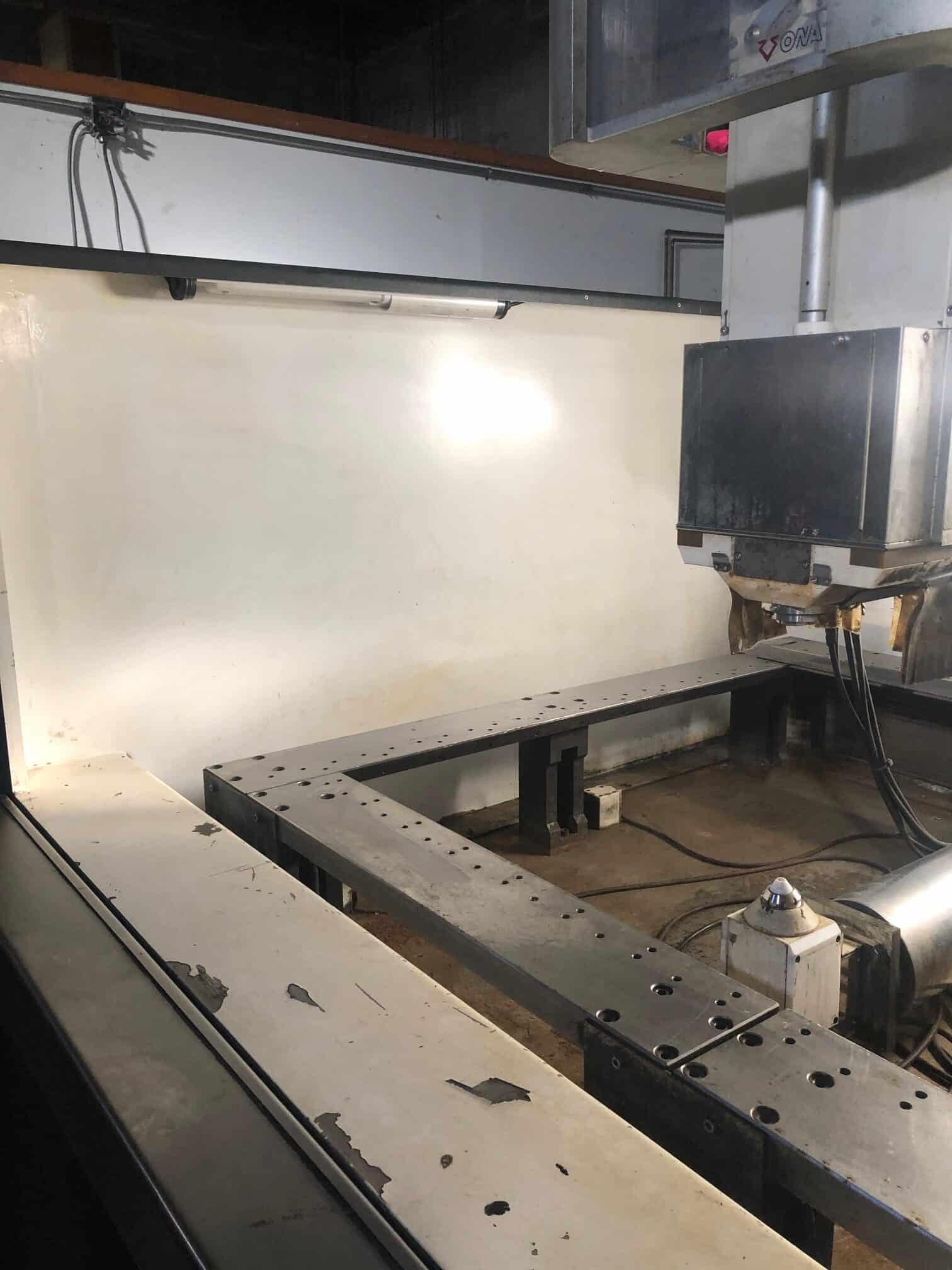

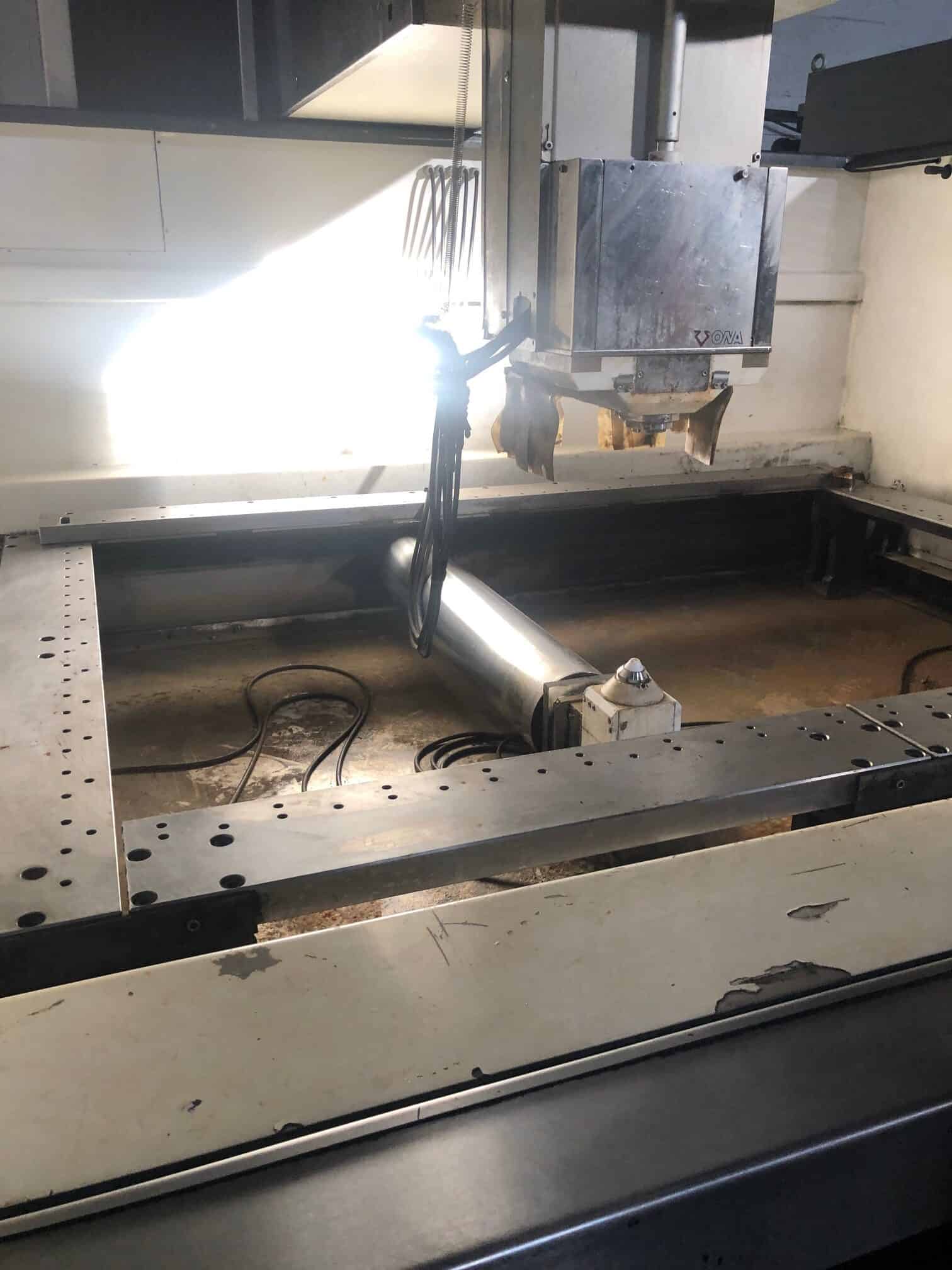

Inside Tank Dimensions

76.8" x 63"

Power Requirement

240-400/3/60

Min Increment

.000039"

Max Table Speed

80 IPM

Max Workpiece

22,000 Lbs

Machine Weight

46,000 Lbs

Note

Refurbished by Original Manufacturer in 2011

Features

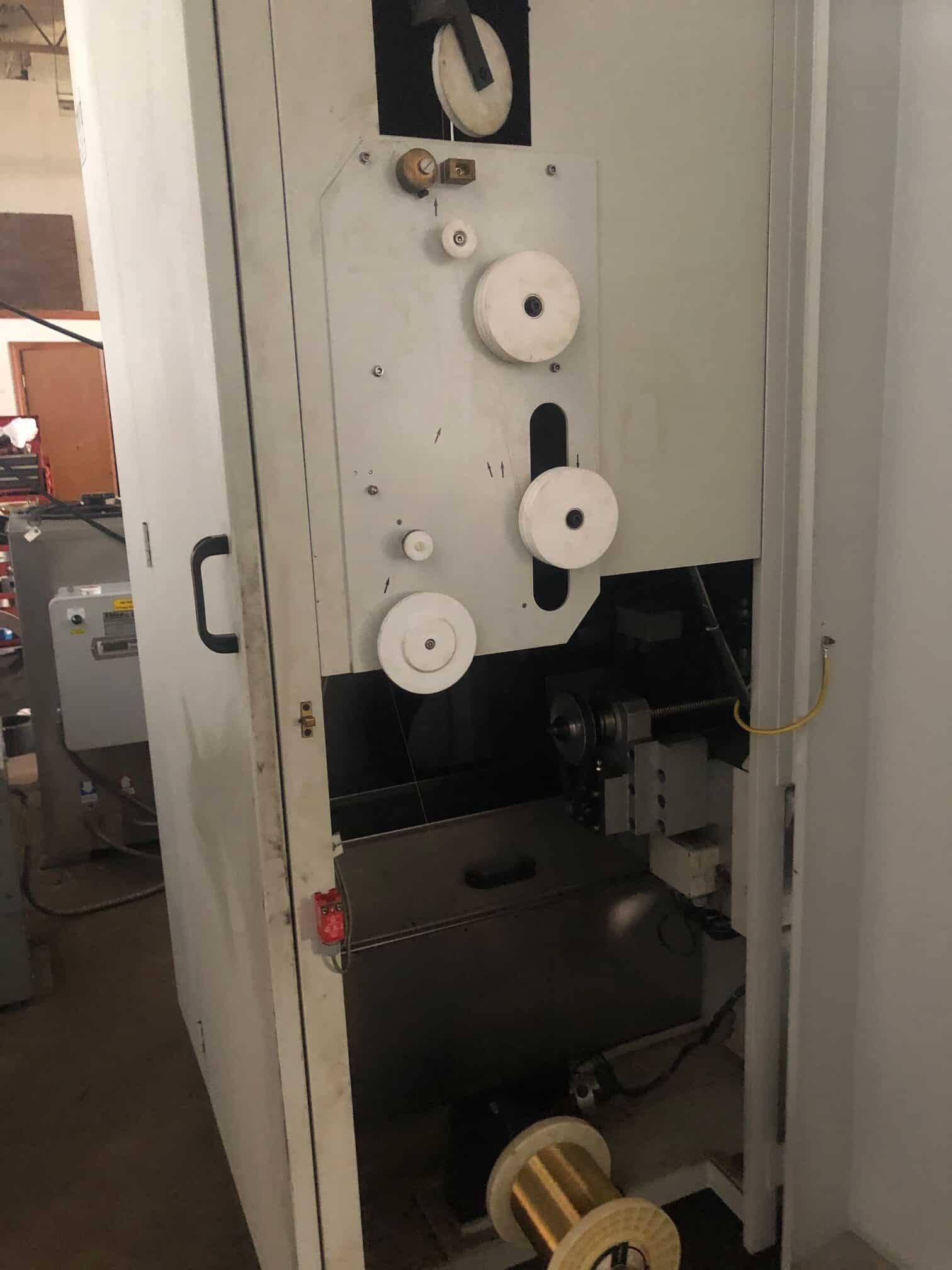

100 Lb Spool Capacity

2MB RAM

Auto Wire Threading

Automatic Power Supply Parameters

Digital FET Tech Power Supply

Glass Scale Feedback

12.1" Color LCD

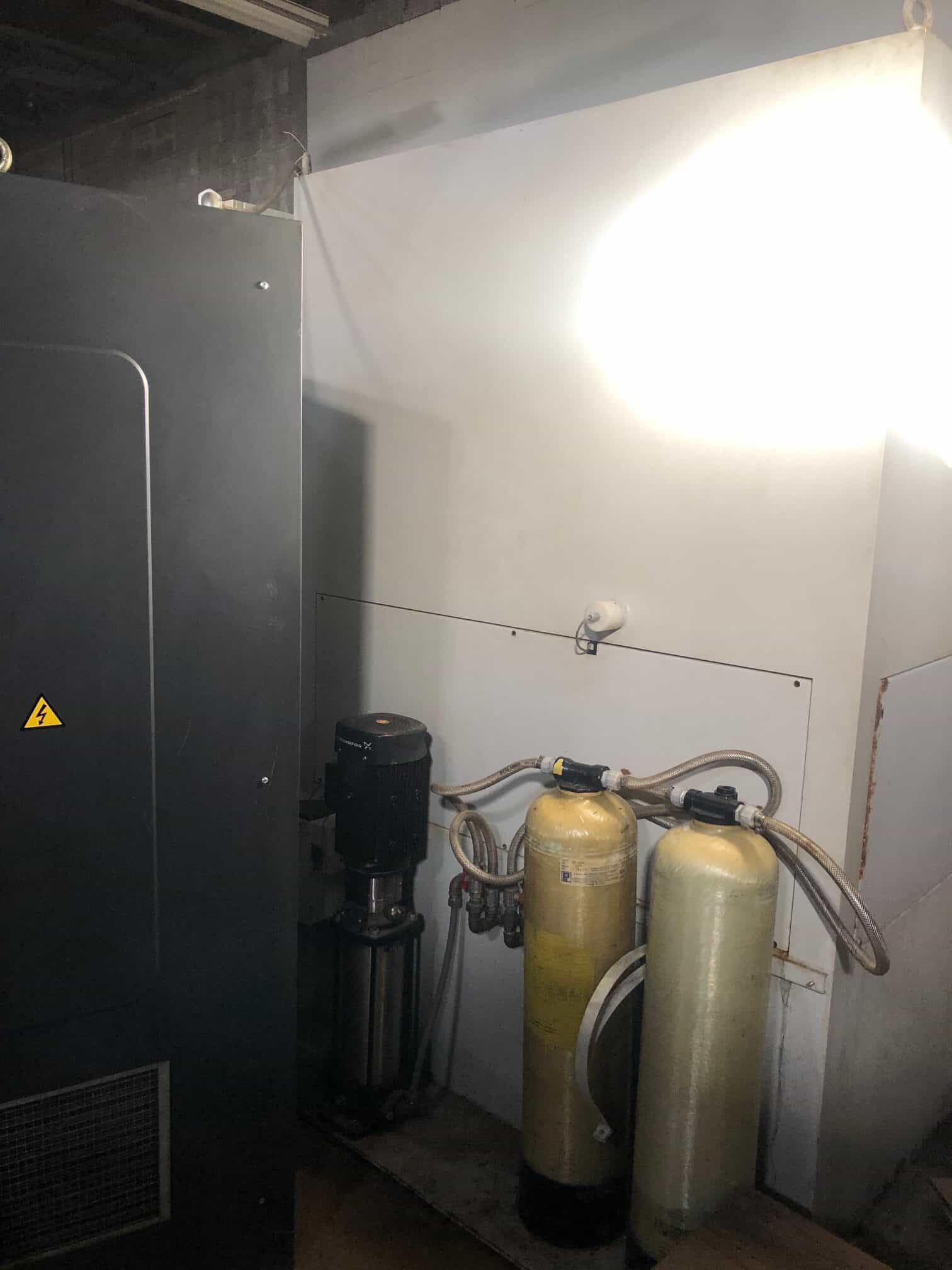

Maintenance-Free Mineral Filter

Multi-tap Transformer (16 Kva)

Sealed Keyboard

Simultaneous Programming During Machining

Wire Chopper

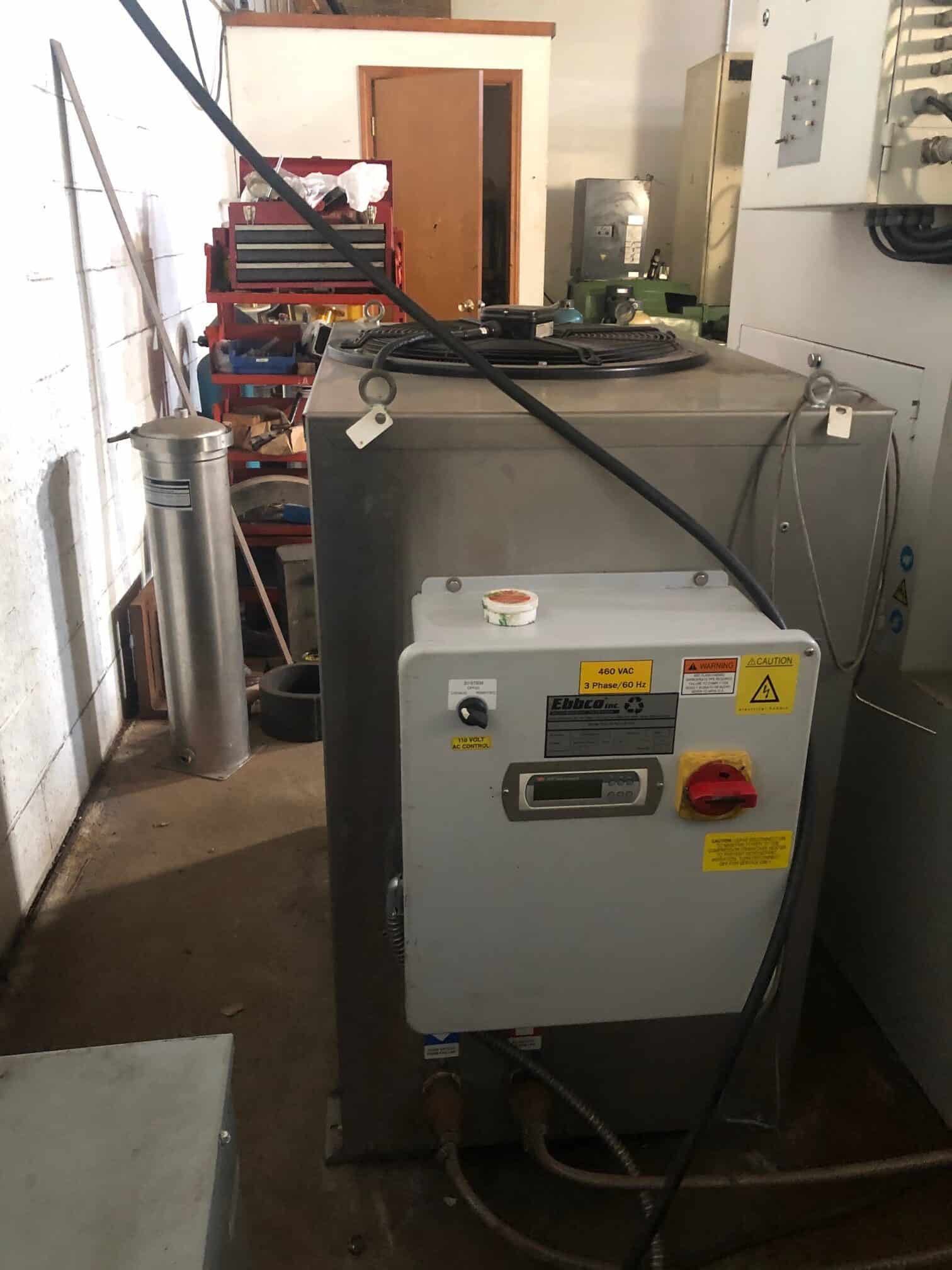

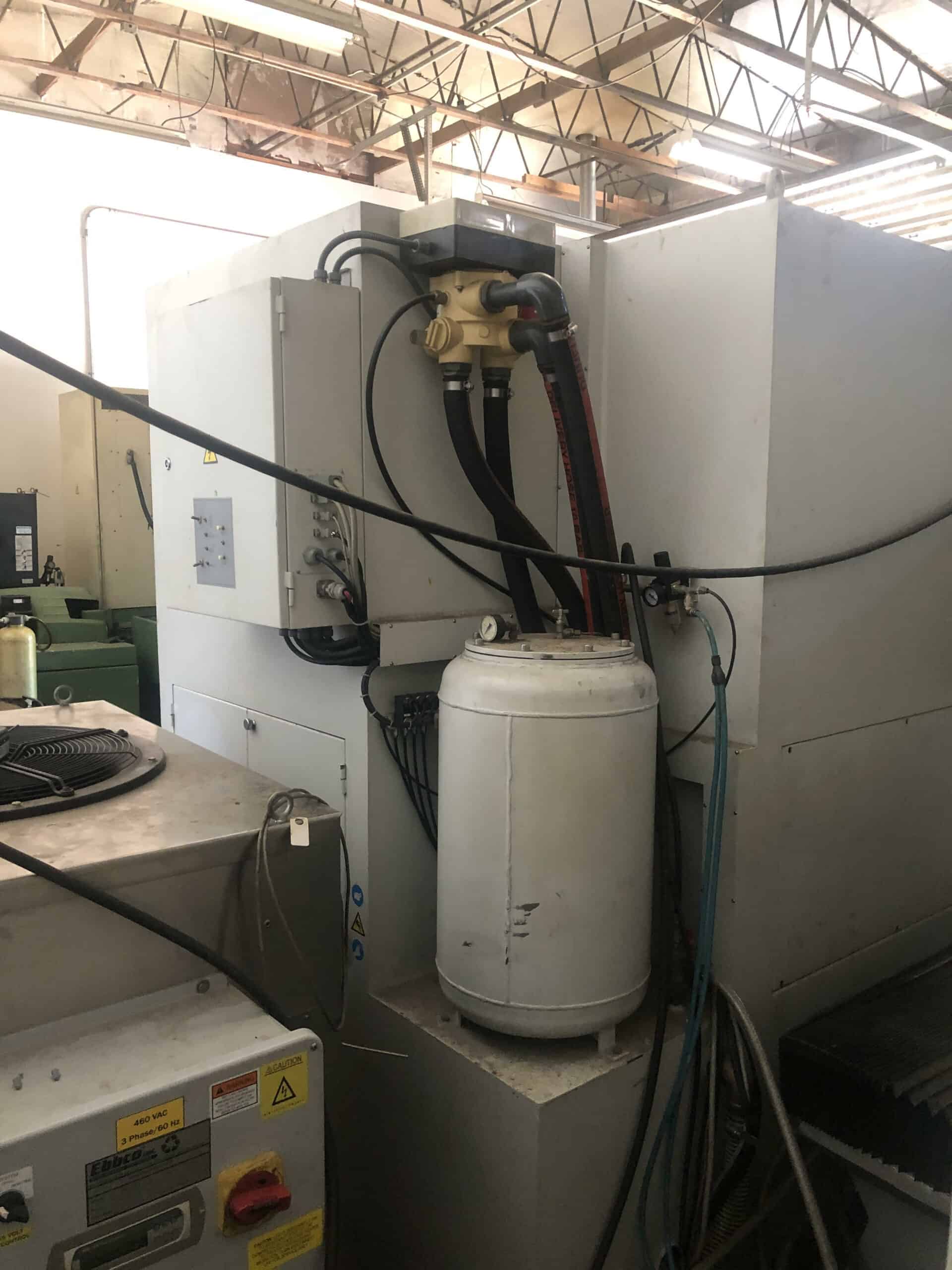

Dielectric Chiller

Graphical Display

Pendant Control

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
