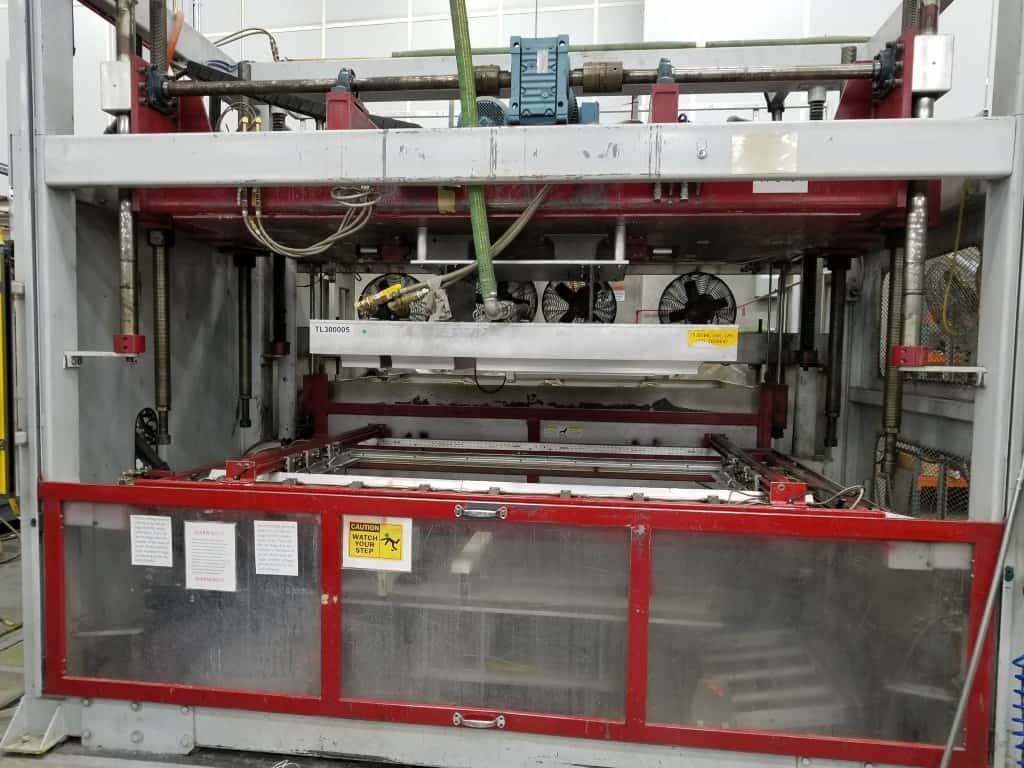

Year |
2005 |
|---|---|
Make |
AVT |
Model |
2SPAVT |
Description |

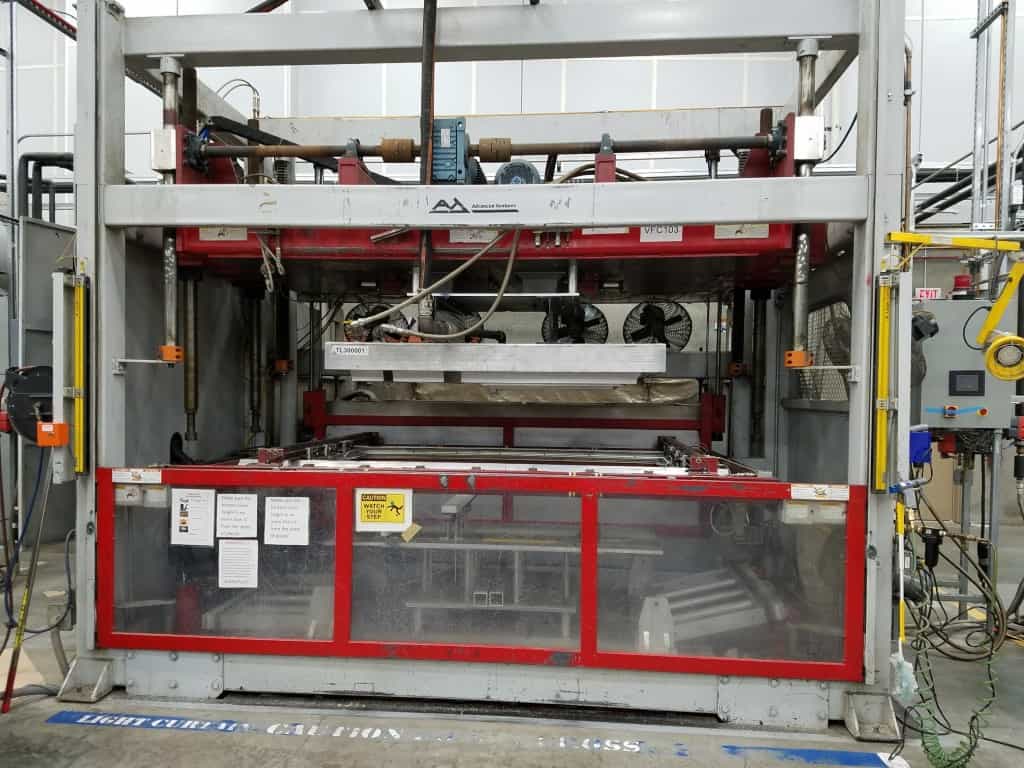

Thermoformer |
Reference # |
7797181 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Max Mold Size |
60" X 96" X 36" High |
|---|---|
| Max Sheet Size |
63" X 99" |

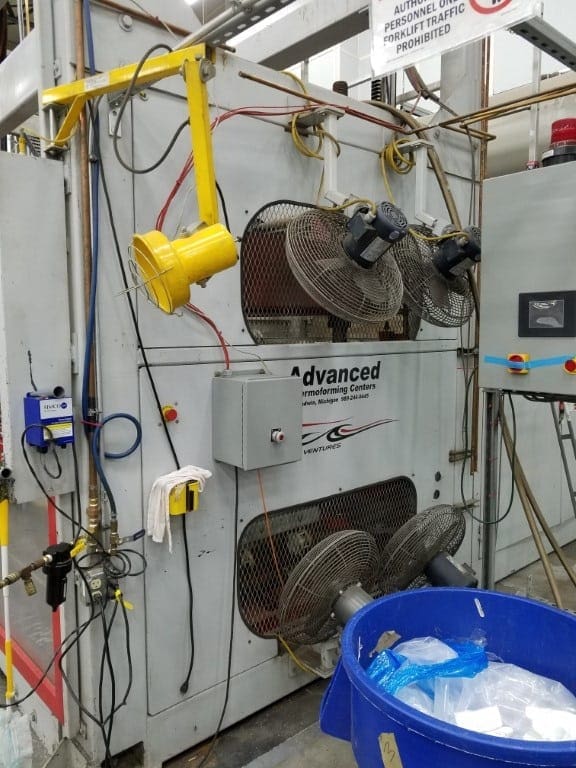

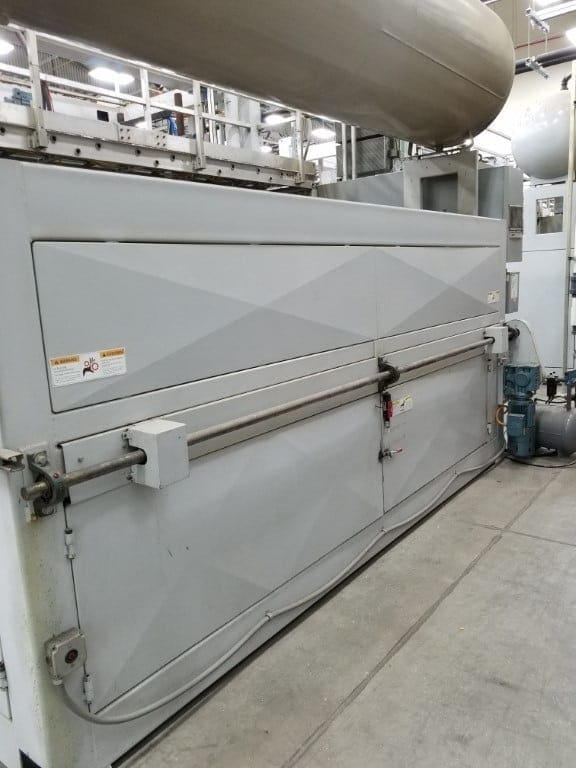

| Top Oven |
Ceramic Elements |
| Top Oven Zones |
76 |
| Bottom Oven |
Ceramic Elements |
| Bottom Oven Zones |
76 |
| Upper Oven Adjustment |
8" - 20" To Sheet Line |
| Lower Oven Adjustment |
12" - 36" From Sheet Line |
| Top Platen Stroke |
60" |
| Bottom Platen Stroke |
60" |

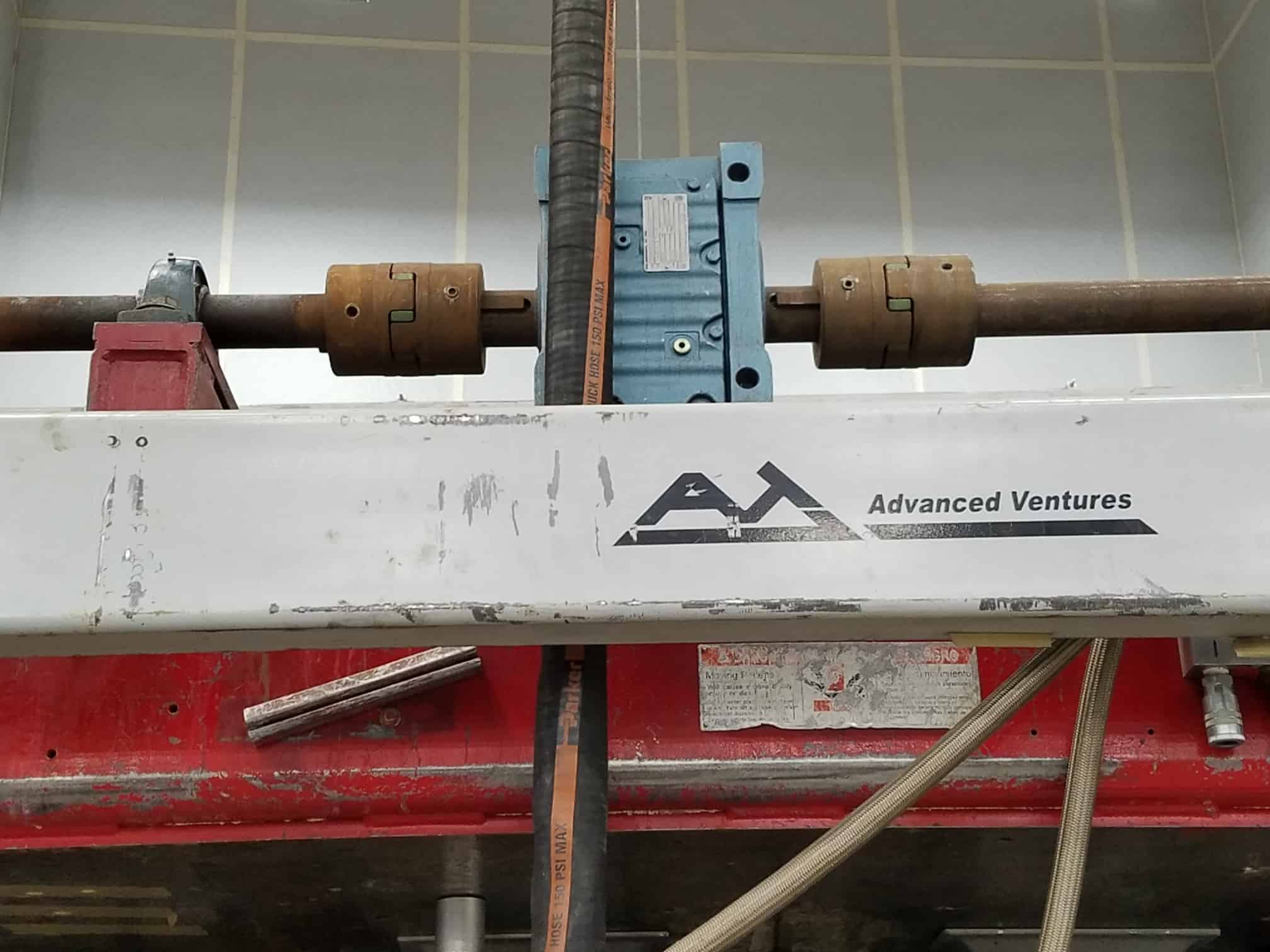

| Electric Platens Top & Bottom |
2 @ 12.5 Horsepower Each |
| Platen Lifting Capacity |
4300 Lbs. |
| Thick Aluminum Bolster Plate |
62" X 98" X 2.5" Thick, With 6" Dia. Air Bags For Pressure |

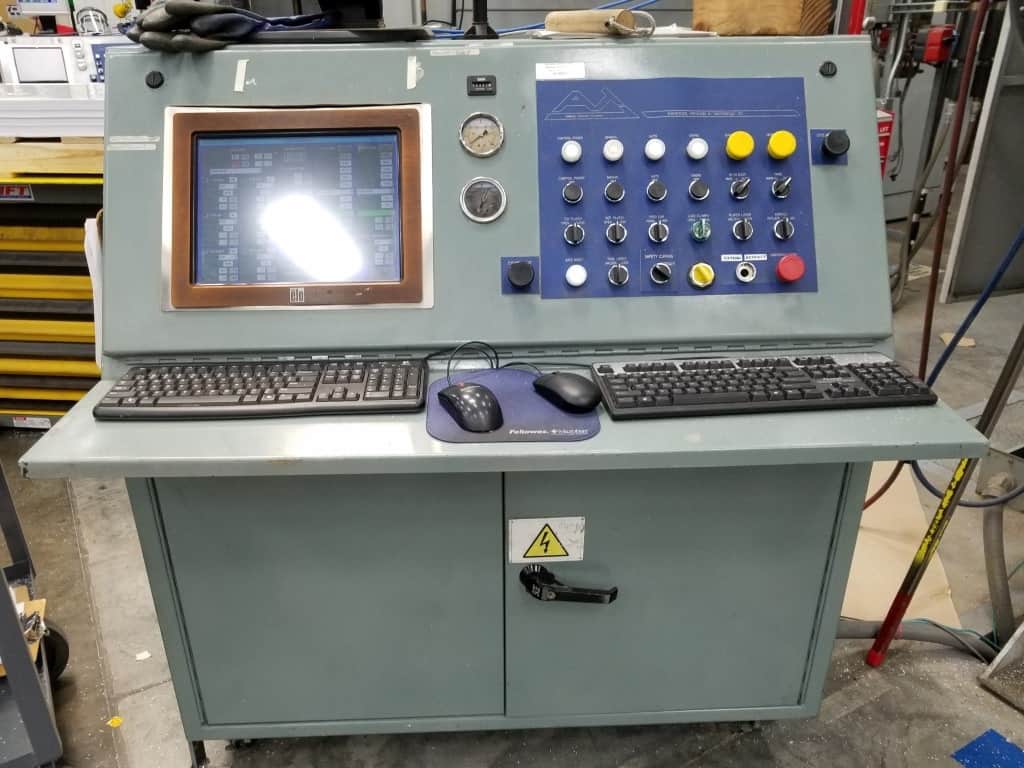

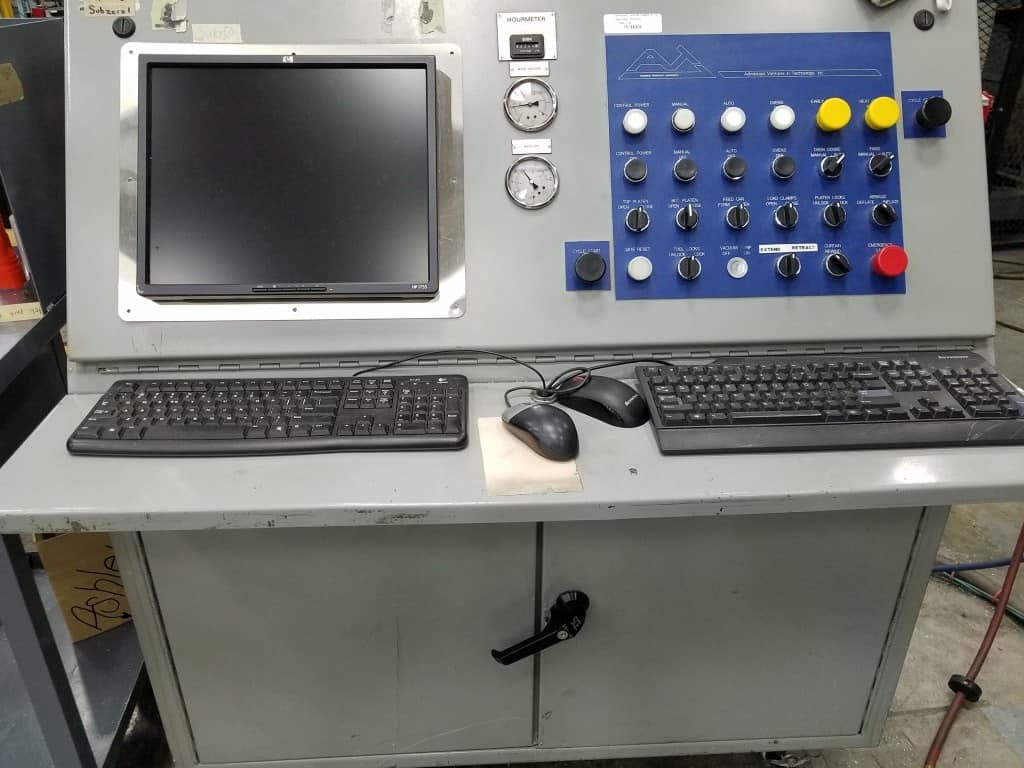

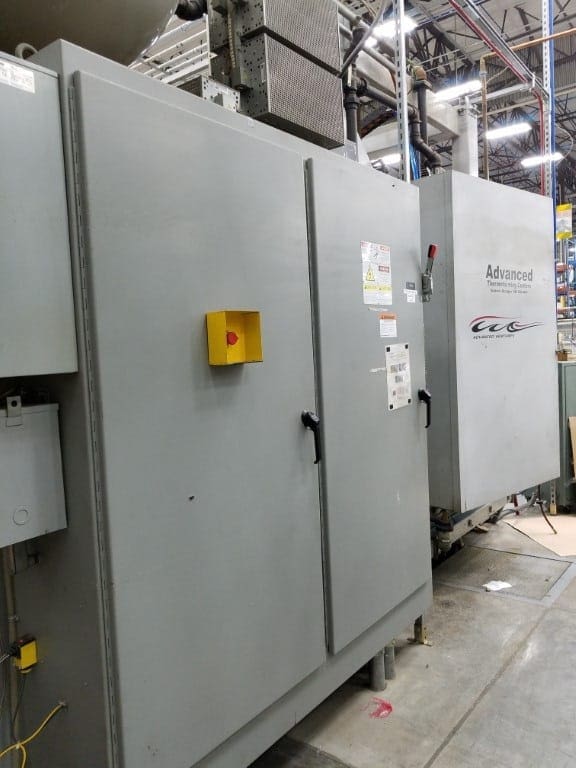

| Control |
PLC |
| Electrics |
480v - 3 - 60 (500 Amps) |
Features
|

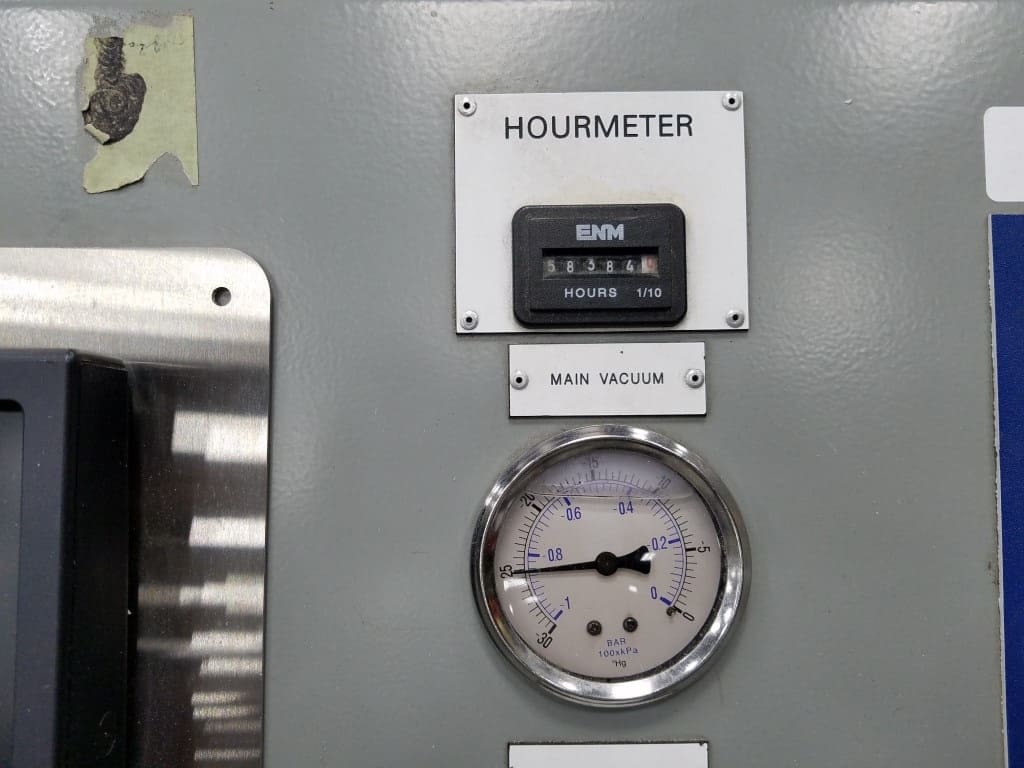

RPM Meter |
RS 232 Port Interface |
|
Safety Curtain |
Semi Auto Loader |
|
Added 2014 - Advanced Air Control System For Better Control Of Pressure |
Vacuum & Eject |
|
Added 2014 - Segen Quick-Change For Quicker Tool Changing & Easier/More Accurate Mold Alignment |
Added 2014 - Servo Driven Cover For Lower Oven To Prevent Damage Which Is Activated By Ir Sensor |
|
Vacuum Pump & Tank |
Variable Speed Servo Platens |
|
Disk Brake Platen Safety |
Infrared Red Sensor In Lower Oven |
|
Photo Eye To Detect Deflection |
