Year |
2002 |
|---|---|
Make |
Toyo |
Model |
Si-500-II |
Description |
500 Ton 37 oz Shot Size Electric Injection Molding Machine |
Reference # |
8078115 |
Price |
Activate Pricing |

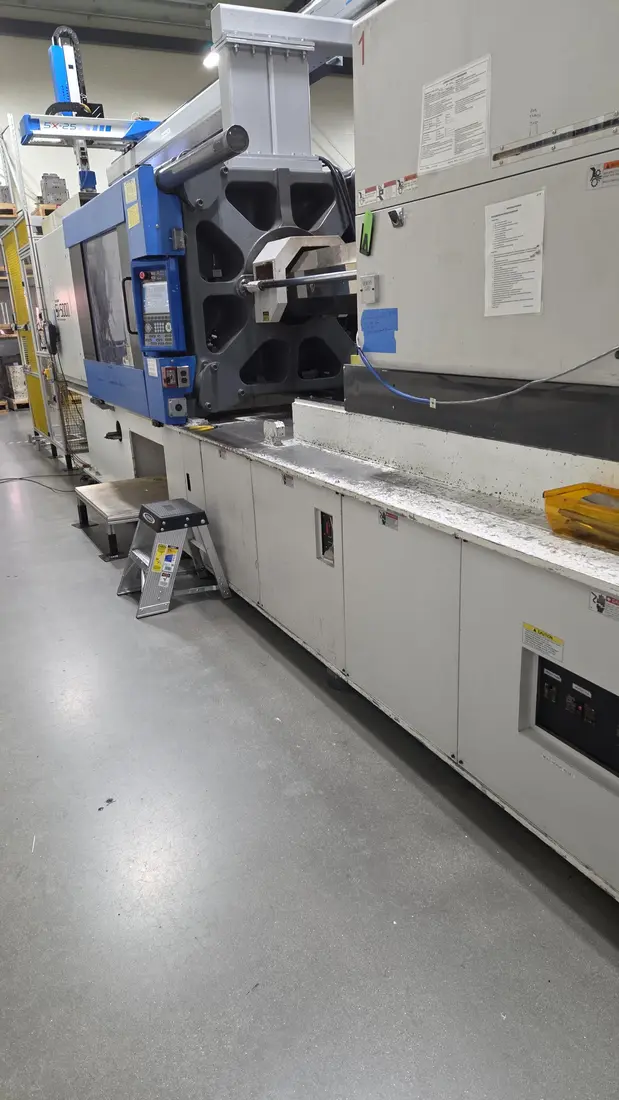

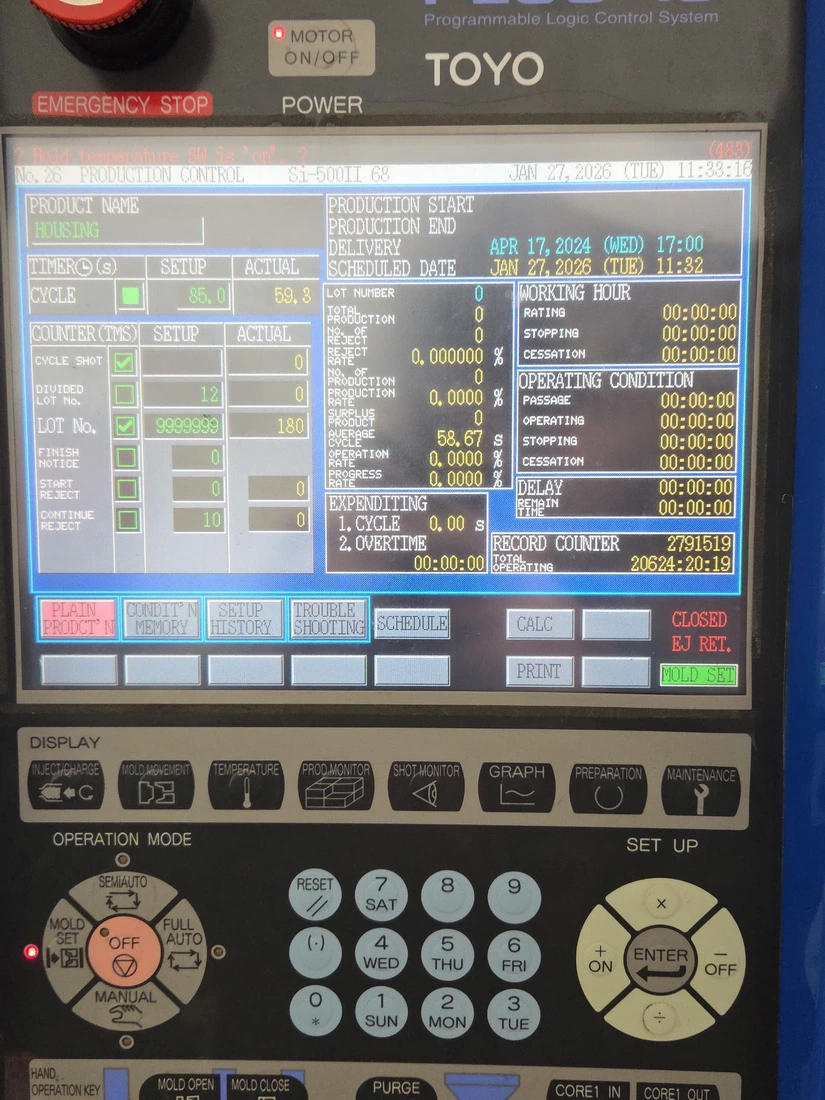

Used Toyo Si-500-II (2002) Injection Molding Machine for Sale. This 500 ton machine carries a 37 oz shot size and runs on a PLCS-11 control. Tie bar spacing is 36.02″ x 36.02″ with platens measuring 48.03″ x 48.03″, a clamp stroke of 31.49″, minimum and maximum mold heights of 13.77″ and 35.43″, and a 7.08″ ejector stroke. Equipped with an extra 55 oz screw and barrel, air blow, and robot interface. Listed with low hours. Overall dimensions are 343″ x 73″ x 96″ and the machine weighs 53,000 lbs. It is under power and can be seen running during an inspection. See more injection molding machines or browse our Toyo inventory, then Activate Pricing and Request a Quote.
Specifications
| Capacity |
500 Ton |
|---|---|
| Shot Size |
37 oz |
| Tie Bar Spacing |
36.02" x 36.02" |
| Platen Size |
48.03" x 48.03" |
| Clamp Stroke |
31.49" |
| Control |
PLCS-11 |
| Min /Max Mold Height |
13.77"/35.43" |
| Ejector Stroke |
7.08" |
| Dimensions |
343" x 73" x 96" |
| Weight |
53,000 Lbs |
Features
|
Extra 55 oz Screw and Barrel |
Air Blow |
|
Low Hours |
Robot Interface |
|
Under Power |
