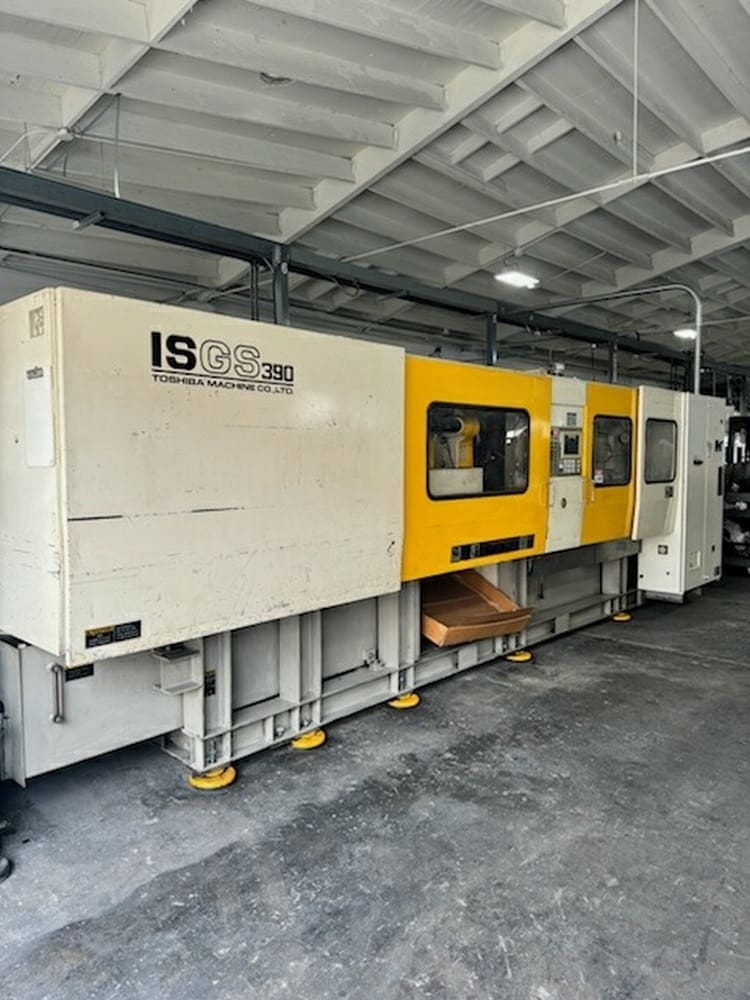

Year |
2000 |
|---|---|
Make |
Toshiba |
Model |
ISG390V10-19B |
Description |
390 Ton 32 oz Shot Size Injection Molding Machine |
Reference # |
8075110 |
Price |
Activate Pricing |

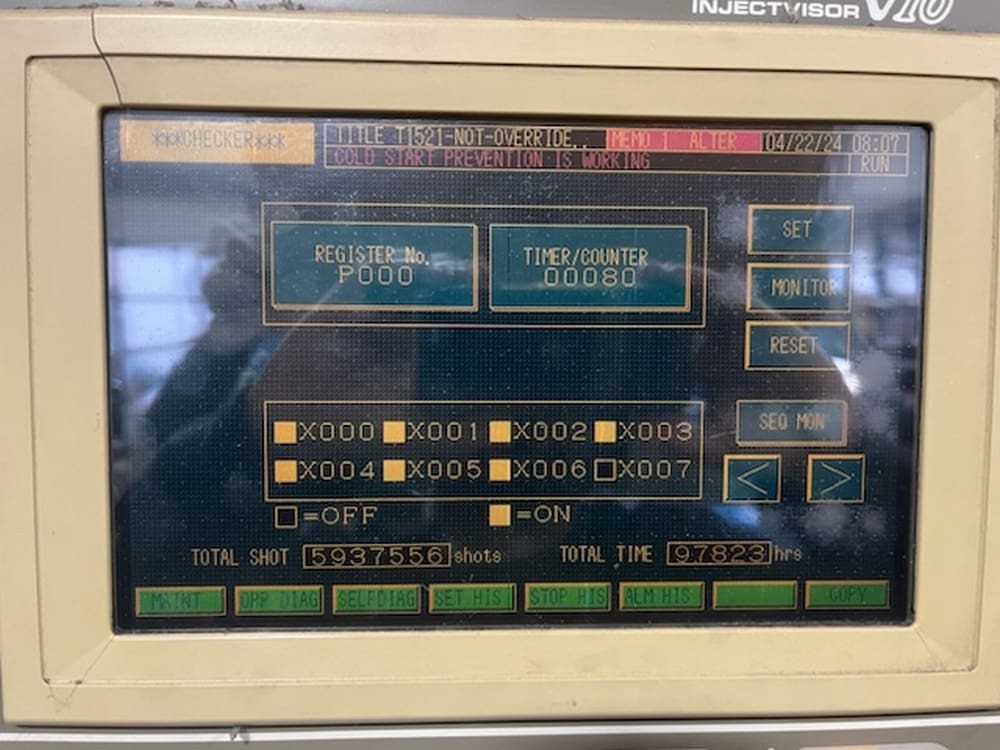

Used Toshiba ISG390V10-19B (2000) Injection Molding Machine for Sale. This 390 ton machine has a 32 oz shot size and runs on a Toshiba Injectvisor V10 control. Tie bar spacing is 28.78″ x 28.78″ with platens measuring 40.1″ x 40.1″. Minimum daylight is 11.8″ and maximum daylight is 49.2″, with a clamp stroke of 37″. Equipped with core pull, hydraulic knockout and a robot interface. The machine is under power and can be run and inspected before purchase. Additional units are listed under plastic injection molding machines, and further equipment from this builder can be found on our Toshiba page. Use Activate Pricing to view the figure for this listing, or Request a Quote and we will follow up with details.
Specifications
| Capacity |
390 Ton |
|---|---|
| Shot Size |
32 oz |
| Tie Bar Spacing |
28.78" x 28.78" |
| Platen Size |
40.1" x 40.1" |
| Min Daylight |
11.8" |
| Max Daylight |
49.2" |
| Clamp Stroke |
37" |
| Control |
Injectvisor V10 |
Features
|
Core Pull |
Hydraulic Knockout |
|
Robot Interface |
Under Power |
